CCS1 vs CCS2: Plug Differences, Regions, and Adapter Direction (2026)
Teilen

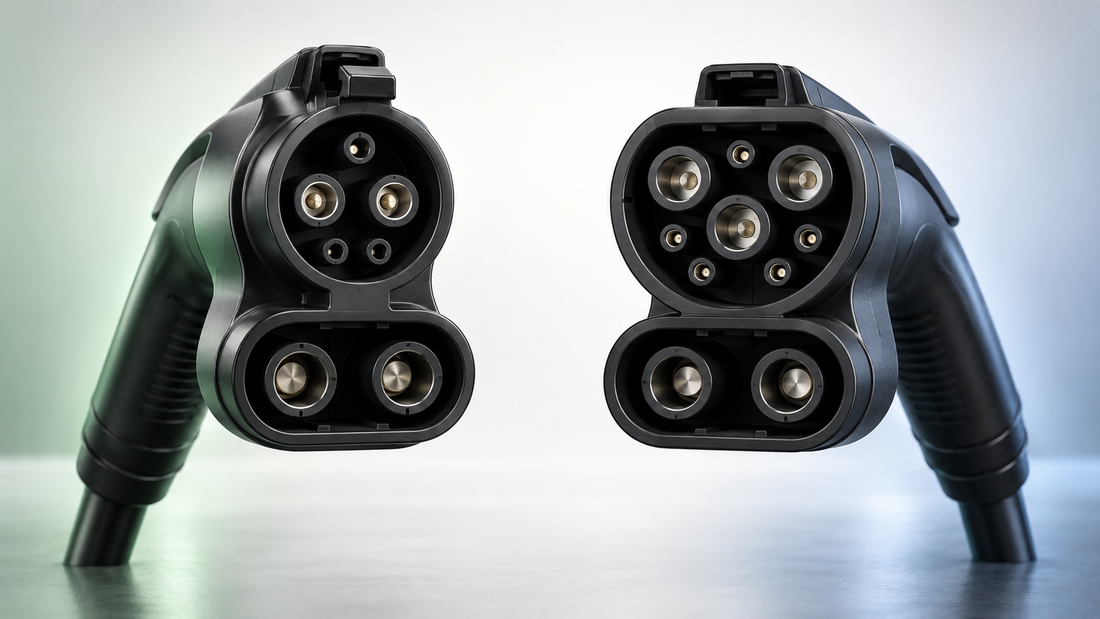

CCS1 and CCS2 are two regional connector versions within the Combined Charging System. CCS1 pairs the Type 1 AC interface with two DC pins, while CCS2 pairs the Type 2 AC interface with two DC pins. The practical choice is not simply “North America or Europe”: identify the charging-source connector, the vehicle inlet, and whether the session is AC or DC.
In simple terms, the station side tells you where power starts, and the vehicle side tells you where it must go. An adapter direction should always be written source first and vehicle second—for example, CCS1 station to CCS2 vehicle is a CCS1-to-CCS2 path.
Last updated: 2026-09-26
What is the difference between CCS1 and CCS2?
Both connectors belong to the CCS family, but their upper AC sections are different. The CharIN CCS implementation guide maps Type 1 AC and Combo 1 DC to the United States, while Type 2 AC and Combo 2 DC are used in Europe. CharIN’s worldwide connector overview also shows Combo 1 prevailing in North America and Combo 2 preferred in Europe.
| Check | CCS1 / Combo 1 | CCS2 / Combo 2 |
|---|---|---|
| Upper interface | Type 1-style geometry | Type 2-style geometry |
| DC section | Two large DC contacts below | Two large DC contacts below |
| Common regional association | North America | Europe and many other markets |
| AC capability of the underlying inlet family | Commonly single-phase | Can support single- or three-phase configurations |
| Adapter decision label | Source CCS1 → vehicle CCS2 | Source CCS2 → vehicle CCS1 |
The SAE J1772 standard page covers the North American conductive charge coupler family. The IEC 62196-2 standard defines dimensional compatibility and interchangeability requirements for AC pin-and-contact-tube accessories, including the Type 1 and Type 2 families. These standards describe interfaces; they do not guarantee that every station, vehicle, or adapter combination will authorize a charging session.
Why does CCS1 vs CCS2 matter for an adapter?
The connector name determines physical fit, but a working DC session also depends on communication and authorization. The ISO 15118-1 overview defines general requirements and use cases for high-level communication between the EV communication controller and charging equipment. That is why a passive shape change is not automatically enough for every cross-standard DC path.
This breaks down into three parts:
- Physical interface: Does the station connector fit the adapter input, and does the adapter output fit the vehicle inlet?
- Charging mode: Is the session AC or DC? A DC-only adapter should not be treated as an AC solution.
- Communication and authorization: Can the station, adapter system, and vehicle complete the required signaling and session checks?
Unlike a simple travel-plug converter, a DC fast-charging adapter may need an active protocol-conversion role. It also cannot create charging power. Actual speed remains limited by the station, adapter rating, vehicle battery-management system, state of charge, temperature, charging curve, and network authorization.
How do you identify the correct adapter direction?
Start with the connector physically attached to the charging cable. Then identify the vehicle inlet—not the vehicle’s sales market alone. Imported vehicles and cross-market models can use a connector that differs from the local convention.
| Charging source | Vehicle inlet | Direction to research |
|---|---|---|
| CCS1 / Combo 1 | CCS2 / Combo 2 | CCS1 to CCS2 |
| CCS2 / Combo 2 | CCS1 / Combo 1 | CCS2 to CCS1 |
| CCS1 / Combo 1 | CCS1 / Combo 1 | Usually no cross-standard adapter needed |
| CCS2 / Combo 2 | CCS2 / Combo 2 | Usually no cross-standard adapter needed |
Before ordering, confirm the connector faces, AC/DC mode, voltage and current limits, station/network restrictions, and vehicle compatibility. If any of those are unclear, send clear photos of both connector faces plus the vehicle year, make, model, and market version to the seller for verification.
Is CCS2 automatically better than CCS1?
No. “Better” depends on the charging ecosystem and the vehicle. CCS2’s Type 2 family can support three-phase AC configurations, while CCS1 is tied to the Type 1 family commonly used in North America. For DC fast charging, the usable result depends more on station output, vehicle limits, communication, and the correct adapter path than on a universal winner.
The key idea is to match the installed infrastructure and the actual vehicle inlet. A connector used widely in one region may be inconvenient on an imported vehicle in another region, but that does not make the standard itself defective.
Which ChargePapa path matches your setup?
If the cable at the station is CCS1 and the vehicle inlet is CCS2, start with the CCS1 station to CCS2 vehicle collection. If the cable is CCS2 and the vehicle inlet is CCS1, use the CCS2 station to CCS1 vehicle collection. These are opposite directions and should not be treated as interchangeable.
For a broader decision tree that includes other standards, use the ChargePapa Buyer’s Guide and verify your exact station-to-vehicle path before purchase.
What are the limitations of a CCS adapter?
An adapter does not change the station’s maximum output, the vehicle’s charging curve, or the network’s access rules. Physical compatibility also does not guarantee a successful session. Firmware, signaling, station configuration, payment or authorization, temperature, state of charge, and the vehicle’s battery-management system can all affect the result.
This guide explains connector identity and direction, not universal vehicle approval. Always check the specific product page and obtain compatibility confirmation when the vehicle or station is unusual, imported, modified, or not listed.
FAQ
Is CCS1 the same as J1772?
Not exactly. CCS1, also called Combo 1, uses the Type 1/J1772-style upper interface and adds two large DC contacts below it. J1772 commonly refers to the Type 1 AC interface. The related shapes share an upper section, but their charging modes and full connector assemblies are not identical.
Is CCS2 the same as Type 2?
Not exactly. CCS2, or Combo 2, combines a Type 2-style upper interface with two large DC contacts below for DC fast charging. Type 2 by itself usually refers to the AC connector family. A product labeled only “Type 2” should not automatically be assumed to support CCS2 DC charging.
Can a CCS1 car use a CCS2 charger?
Potentially, but only with the correct CCS2-source-to-CCS1-vehicle solution and confirmed support for the station, vehicle, and required communication. Matching the plug shape is only one part of the decision. Network authorization, voltage, current, firmware, and vehicle-specific behavior can still prevent or limit a session.
Can a CCS2 car use a CCS1 charger?
Potentially, with a verified CCS1-source-to-CCS2-vehicle solution. Confirm that the product is intended for DC fast charging and for that exact direction. Do not infer support from country alone, and do not assume an AC adapter can handle a DC session or that an adapter increases charging speed.
Does a CCS adapter make the car charge faster?
No. An adapter provides a compatible connection or protocol path; it does not create power. Charging speed is limited by the lowest relevant constraint among the station, adapter, cable, vehicle, battery state, temperature, charging curve, and authorization conditions. A higher adapter rating cannot force the vehicle to accept more power.
Who prepared this guide?
Prepared by ChargePapa. Connector guidance is based on the cited standards sources and should be checked against the exact vehicle, station, and product before purchase.
