GB/T to CCS2 Adapter Not Working? What to Check (2026)
Teilen
A GB/T DC source charging a CCS2 vehicle needs a supported active protocol-conversion path, not just a physical connector bridge. A failed session alone does not prove a defective adapter or a protocol fault. Verify direction, supported equipment, electrical limits and authorization before treating Smart-Link as the right solution.
Last updated: 2026-09-18 · ChargePapa editorial source review. We reviewed the published content against public technical guidance and current product records; this revision is not a charging-session test or manufacturer approval.
Which charging direction are you trying to connect?
Start with the station-side connector, then the actual vehicle inlet. GB/T DC source → CCS2 vehicle is not the same adapter as CCS2 DC source → GB/T vehicle. This works best as a direction check before a product search: the two connector names alone do not tell you which unit to order.
What do PLC, CAN and charging protocols actually mean?
PLC refers to Power Line Communication. CCS uses HomePlug Green PHY on the control-pilot signaling path, not the high-current DC power contacts. CAN refers to Controller Area Network; conventional GB/T DC charging uses a different communication path. These are communication technologies, not interchangeable connector names. CharIN communication FAQ (checked 2026); CharIN charging-system comparison, page 21 (2025).
The physical/data-link layer is distinct from the charging messages carried over it. ISO 15118-3 addresses that layer; CCS charging communication also includes DIN SPEC 70121 and the ISO 15118 family. Do not label PLC itself as “ISO 15118” or assume every CCS session uses the same implementation. ISO 15118-3 scope (2015); CharIN CCS Basic references (checked 2026).
Why is a physical connector bridge not enough?
A passive connector bridge does not translate GB/T CAN charging messages into CCS communication. Active conversion must support the specific charging conversation on both sides; an “active” label alone is not a fitment list. For GB/T charging, the charging communication requirements are specified separately from connector geometry. Official GB/T 27930-2023 standard record (2023).
A failed start can have more than one cause: wrong direction, unsupported firmware or equipment, authorization failure, out-of-range operation, station availability, or damaged hardware. Do not conclude that every communication error proves a protocol mismatch. Record the exact error and configuration before replacing parts or repeatedly trying the same unsupported setup.
Which combinations are different buying paths?
| Charging source | Actual vehicle inlet | Decision |
|---|---|---|
| GB/T DC | CCS2 DC | CPCADA0007: supported active conversion required |
| CCS2 DC | GB/T DC | CPCADA0006: opposite physical direction |
| CCS2 DC | Native CCS2 DC | Check direct charging support; no GB/T converter for this direction |
| Any AC source | Actual AC inlet | Separate AC path; neither Smart-Link unit is for AC |
What should you check when a session will not start?
This breaks down into four checks: source and vehicle direction; permitted equipment and supported communication; the exact electrical operating range; and site access or payment. Follow the vehicle, charger and converter instructions rather than a generic plug-in sequence. Do not defeat interlocks, extend an unsupported cable path or treat a lock as a repair for worn equipment.
An operator app or OCPP backend does not perform GB/T-to-CCS conversion. OCPP connects charging stations to charging-management systems, a different communication path from the vehicle handshake. Shared PLC technology likewise does not establish manufacturer approval or network access; this guide makes no NACS or Supercharger compatibility recommendation. Open Charge Alliance OCPP definition (checked 2026).
What changed in this 2026 review?
During our content review, we found a claimed thirty-attempt failure experiment without an identifiable test report, vehicle, firmware or logs. It is withdrawn, not replaced by an invented experiment. We also removed fixed startup-delay and processor-idle claims: they are not established by the verified records, and active conversion does not guarantee a successful session.
In simple terms, a converter addresses a supported communication mismatch; it does not create power or approval. Both referenced Smart-Link units have a confirmed 300A maximum and 300kW ceiling, not guaranteed output. No numeric voltage range is asserted here. Actual speed still depends on the station, vehicle BMS, state of charge, temperature and charging curve.
Which ChargePapa path fits a GB/T DC source and CCS2 vehicle?

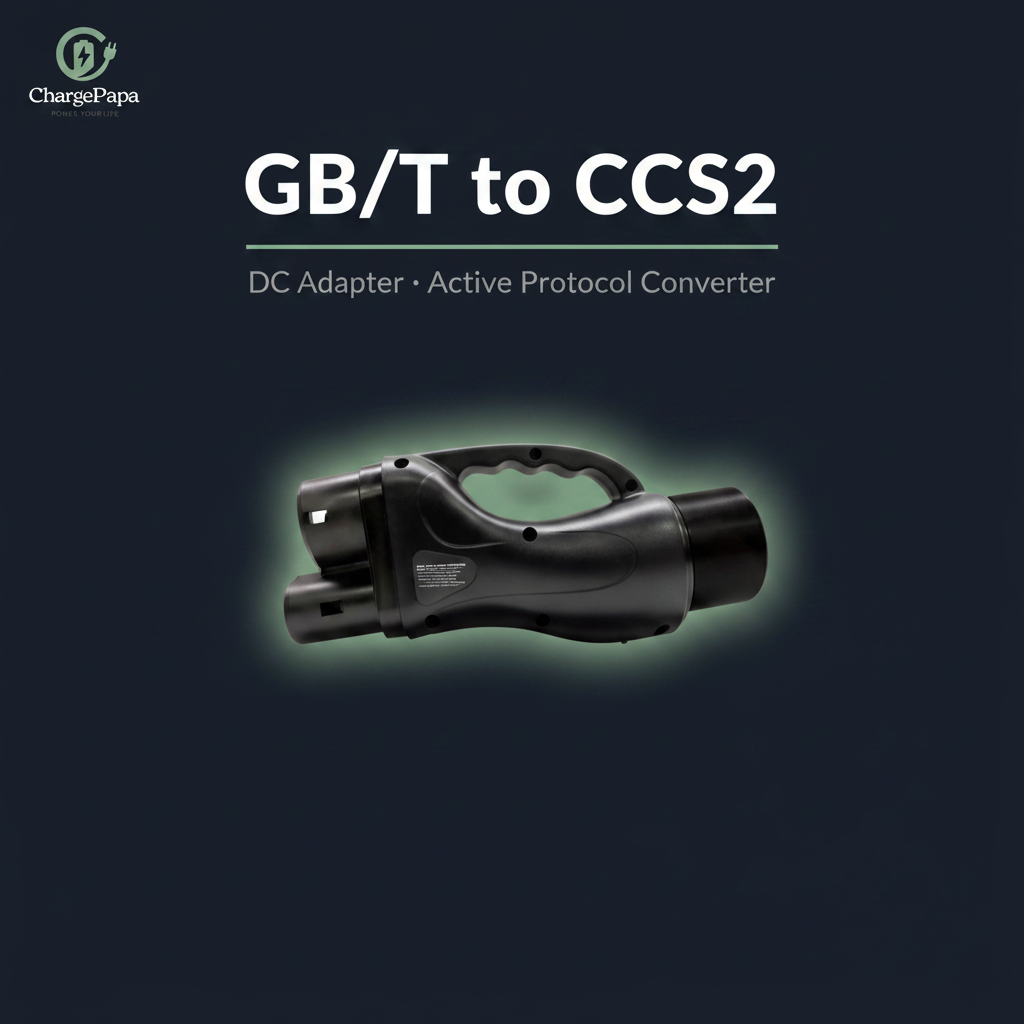

If your verified source is GB/T DC and your vehicle inlet is CCS2 DC, and the exact combination is supported and permitted, the matching information page is ChargePapa Smart-Link GB/T DC → CCS2 vehicle (CPCADA0007). Its explicit direction and active converter role make the buying path clearer than an ambiguous two-connector listing. Confirm operation within the documented limits before ordering.
This path is DC-only, not AC charging and not reverse-direction charging. For a CCS2 DC source and GB/T DC vehicle, Smart-Link CCS2 DC → GB/T vehicle (CPCADA0006) is the opposite information page, not a substitute for this direction. Neither name independently establishes manufacturer approval or operator permission.
ChargePapa’s existing two-year global warranty uses remote diagnosis first, with complimentary unit replacement for confirmed unit faults, subject to published terms. This support is not a guarantee of vehicle or network compatibility. The guide changes no warranty, shipping, return deadline or restocking-fee policy.
For a broader explanation, read the ChargePapa CAN-versus-PLC and adapter-direction guide. This is our Knowledge Hub article, not a Medium publication or evidence of a thirty-session field test.
What should you verify before using this path?
Why can a GB/T-to-CCS2 DC connection fail even when the plugs fit?
Connector fit does not establish matching charging communication. A conventional GB/T DC source and CCS2 vehicle use different communication paths, so a passive connector bridge cannot perform the required translation. Repeated failure may also involve an unsupported vehicle or station, firmware, operating range, authorization, or an actual equipment fault; it is not a diagnosis by itself.
Which Smart-Link direction fits a CCS2 vehicle using a GB/T DC charger?
The charging-source-to-vehicle direction is GB/T DC source to CCS2 DC vehicle, represented by CPCADA0007. CPCADA0006 is the opposite CCS2 DC source to GB/T DC vehicle path. Verify the physical source connector, vehicle inlet, supported combination and permission to use the adapter. Neither product is an AC or reversible adapter.
Do 300A and 300kW mean my vehicle will charge at 300kW?
No. These two Smart-Link products have a confirmed 300A maximum current and a 300kW rated ceiling, not a promised session output. Actual charging depends on the supported operating voltage, vehicle BMS, state of charge, battery temperature, charging curve, station output and authorization. This guide does not infer an unconfirmed numeric voltage range.
Can active conversion guarantee a successful handshake or a two-second delay?
No. Active conversion addresses the supported communication mismatch but cannot guarantee every vehicle, station or firmware combination. This revision makes no measured success-rate or fixed-latency claim. Use the exact unit’s documented instructions and supported configurations; record station, vehicle and error details when a session fails instead of assuming a universal startup time.
What should I do after repeated failed charging attempts?
Stop repeated attempts if equipment is damaged, unusually hot, loose or reporting a persistent fault. Record the charger identifier, vehicle variant and inlet, adapter model, firmware if known, error message and authorization method. Ask the relevant vehicle, station or adapter support team to check that combination; do not bypass locks, protections or operating limits.
What are the limits of this guide?
The cited standards scopes and industry guidance explain charging systems; they do not certify ChargePapa products or provide a vehicle-by-vehicle fitment matrix. We have not verified every model, operator or firmware version. Current vehicle instructions, exact product documentation and station restrictions take priority; do not plan a trip around unconfirmed adapter support.
