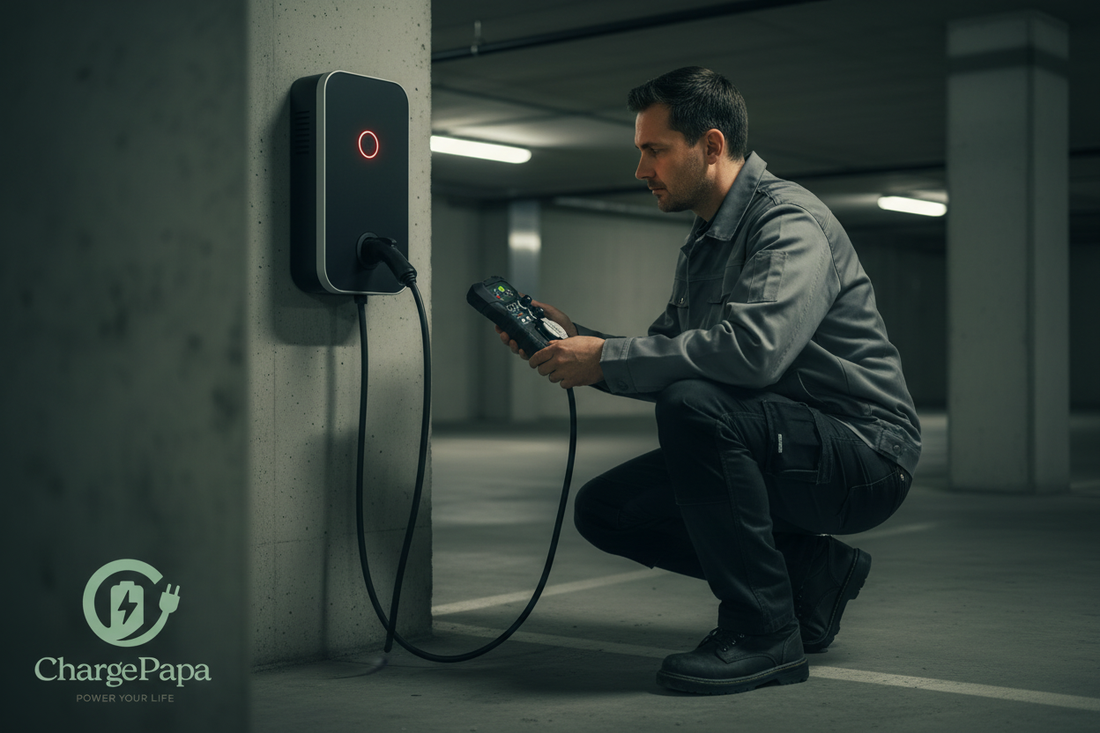

EV Charger Red Fault Light: When Should You Test the Station Before Replacing Parts?

This matters most in commercial, fleet, property, and installer workflows, where the expensive mistake is not a bad charger — it is replacing hardware before the fault path was actually narrowed down.

What Does a Red Fault Light Usually Mean on an EV Charger?

A red fault light means the charger detected a condition that prevented normal charging behavior. That condition may be electrical, signal-related, safety-related, or communication-related — depending on the charger design.

The key point: a red fault light is a symptom, not a full diagnosis. One red light can stand for very different root causes:

• —Ground / PE path problem
• —Control pilot (CP) response issue
• —Internal charger-side fault
• —Installation wiring error
• —Abnormal vehicle-side behavior

Why Do People Replace Parts Too Early?

Because the visible symptom looks decisive. When a charger displays red, many teams jump to one of these conclusions:

1. 1The charger is defective
2. 2The cable or connector assembly is defective
3. 3The vehicle is incompatible
4. 4The whole unit should be replaced

Sometimes that is correct. But often the fault was not isolated first — leading to wasted site visits, unnecessary RMAs, repeated swapping, and still no stable answer when the next session fails again.

What Is the Difference Between a Charger-Side Fault and a Vehicle-Side Fault?

This is the first diagnostic split that matters.

Without a structured test path, teams often see only the final symptom. They do not yet know which side is actually failing.

When Should You Test the Station Before Replacing Parts?

You should test the station first when the charging complaint is repeatable but the root cause is still unclear. That usually includes situations like:

• —Red fault light appears before a session starts
• —The session starts inconsistently
• —Different vehicles produce mixed outcomes
• —The charger was already swapped once and the issue remains
• —Support needs to decide whether the charger side is behaving correctly

In those scenarios, replacing parts first can be the most expensive first move.

Why Is a Real Vehicle Not Always the Best First Diagnostic Tool?

Because the vehicle adds another layer of variables. If you use a real EV — say, a Hyundai IONIQ 5, a Ford Mustang Mach-E, or a Mercedes EQS — as the first diagnostic instrument, you still have to ask:

• —Was the vehicle timing normal?
• —Was the car requesting the expected state?
• —Was the cable path stable?
• —Did a second EV behave the same way?

That is why a structured charger-side tool can be so useful. It reduces the number of moving variables before the team escalates to deeper vehicle-side testing.

What Does ChargePapa StationCheck Do in This Situation?

ChargePapa StationCheck is not a charger. It is an AC EVSE diagnostic simulator designed to help installers, support teams, EVSE resellers, property managers, and fleet operators test charger-side AC station behavior — without using a customer vehicle as the first diagnostic step.

According to the current ChargePapa catalog (refreshed 2026-06-18), the product supports:

• —Simulated charging states A, B, C, and D
• —Selected PE and CP diagnostic workflows
• —Repeatable fault-response checks
• —Cable-resistance simulation

Which StationCheck Version Should a Team Choose?

The correct version depends on the AC charging station connector being tested:

The useful rule: choose by the charger connector you need to test, not by the vehicle brand parked next to it.

When Is StationCheck the Right Tool Path?

StationCheck is the right path when the setup is:

• —AC Level 1 or Level 2
• —Charger-side troubleshooting is the real bottleneck
• —A team needs a more repeatable first-pass test
• —The workflow involves commissioning, support, site management, or RMA triage

Not the right product class for:

• —DC fast charging
• —Tesla Supercharger testing
• —Consumer charging use
• —"I need a charger for my EV" shopping

What Should You Check Before Assuming the Charger Is Defective?

Before approving replacement, work through these steps in order:

1. 1Does the red fault appear with one vehicle only, or across repeated tests?
   If only one vehicle triggers it, the vehicle side is a stronger candidate.
2. 2Is the issue on an AC charger or a DC fast charger?
   AC and DC fault paths are different. Confirm the charging level before selecting a diagnostic approach.
3. 3Does the problem appear before power transfer, during handshake, or after charging begins?
   Timing narrows whether the fault is in PE pre-check, CP negotiation, or mid-session behavior.
4. 4Is there reason to suspect charger-side PE, CP, or installation-path issues?
   Wiring errors, ground faults, and CP signal degradation are common in newly installed or recently modified stations.
5. 5Can the station response be tested independently before swapping hardware?
   If yes, structured station-side testing is often the next best move rather than parts replacement.

Why Is This Better Than Guessing From a Fault Light Alone?

Because a fault light is an outcome, not a workflow. Teams do better when they can move from:

• —Complaint
• →Repeatable charger-side check
• →Narrower diagnosis
• →Replacement only when the fault path is clearer

That is especially important when one site has multiple bays, multiple users, or multiple vehicles producing conflicting reports.

---
