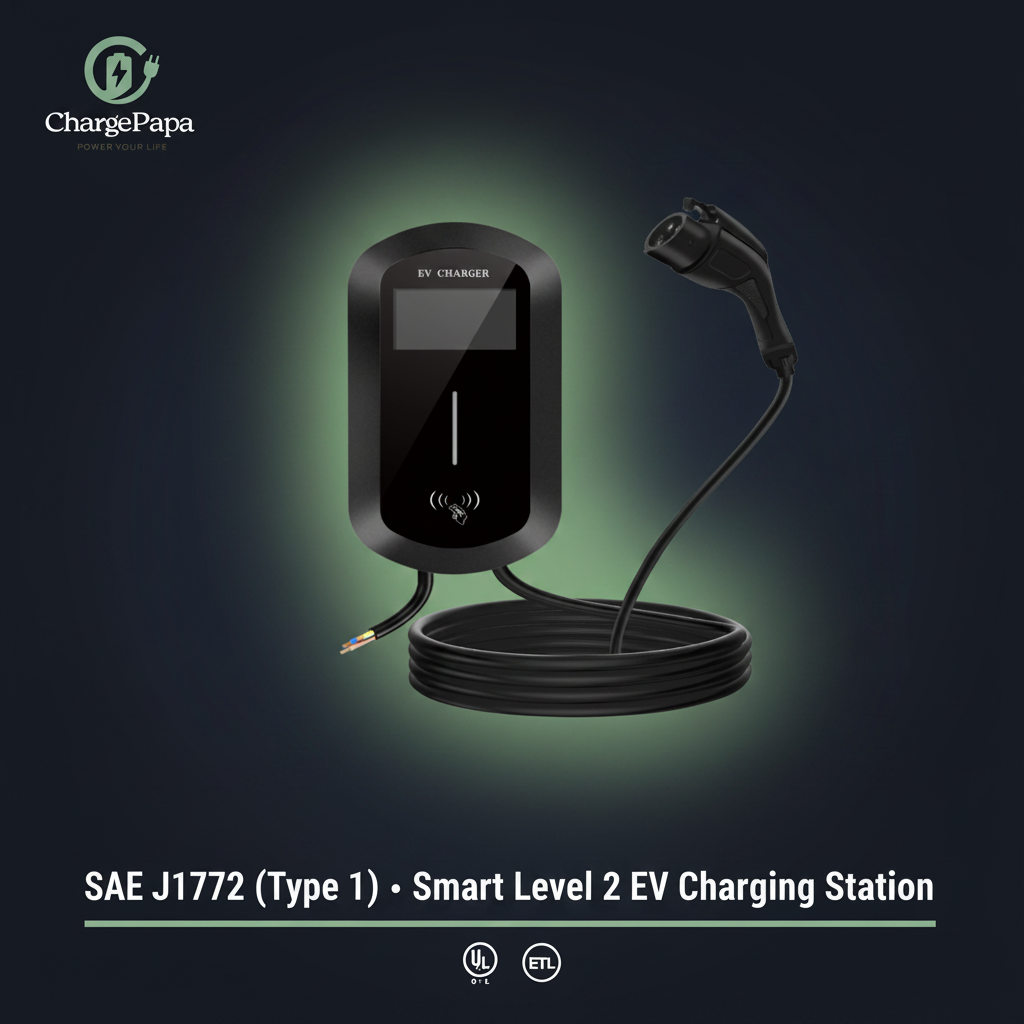

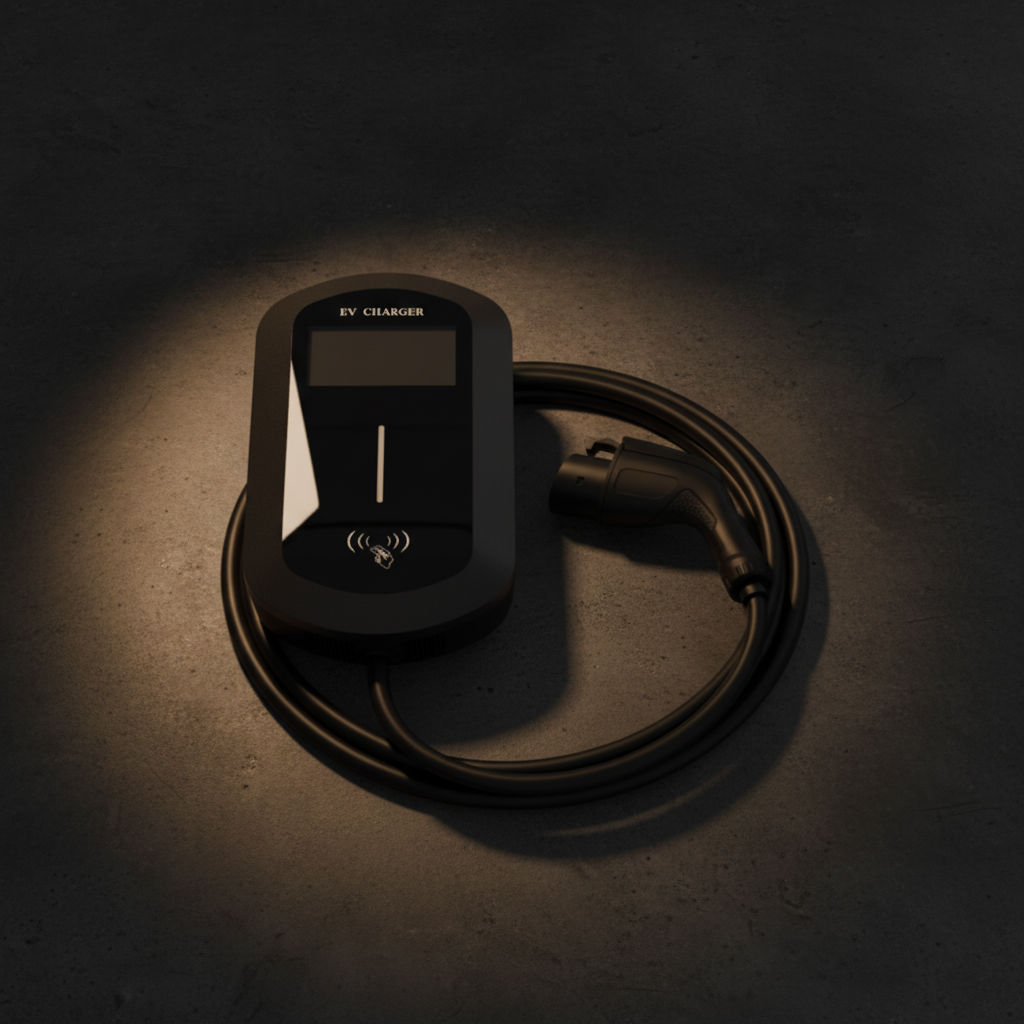

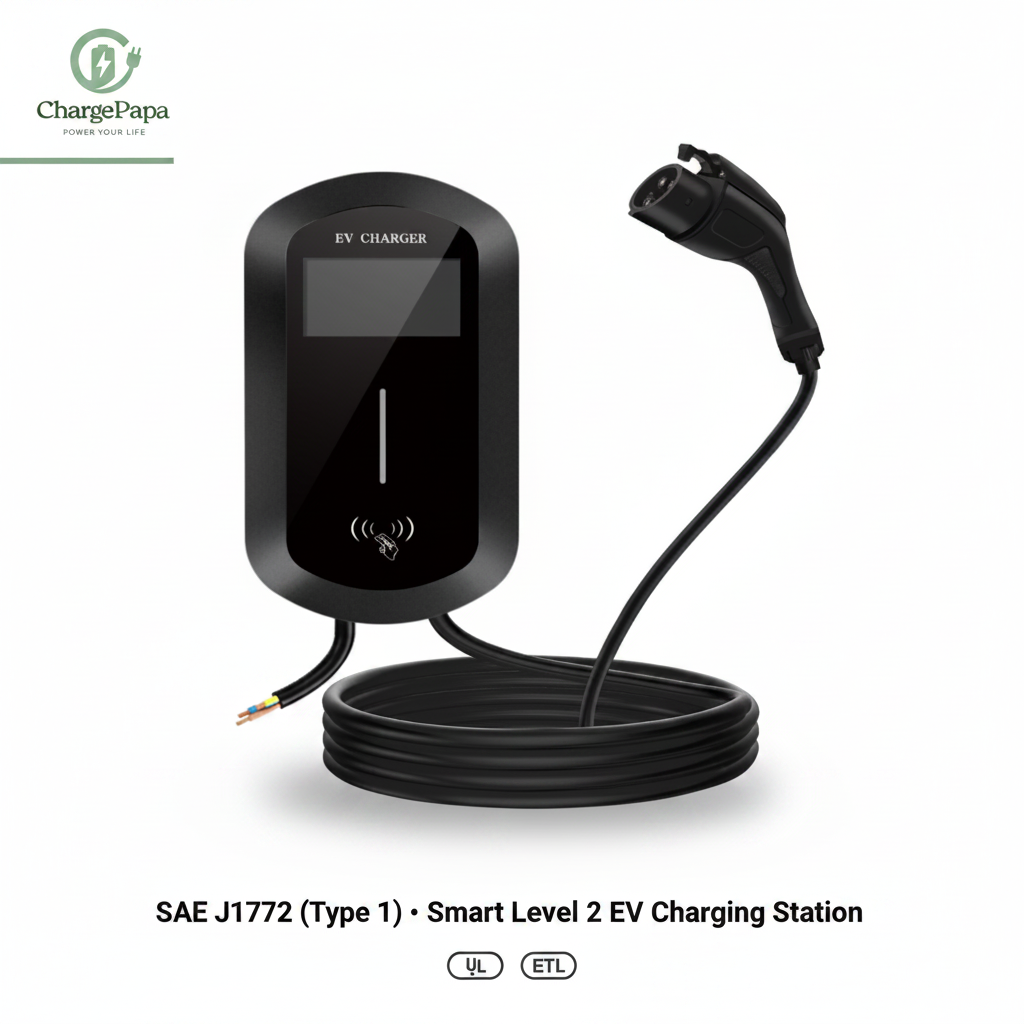

MRS-AJ8 7.6KW 9.6KW 11.5KW TYPE 1 Wall/Pole-mounted EV AC Charging Station (Home/Residential) premium version RFID card function, Bluetooth, WiFi, 4G, OCPP1.6

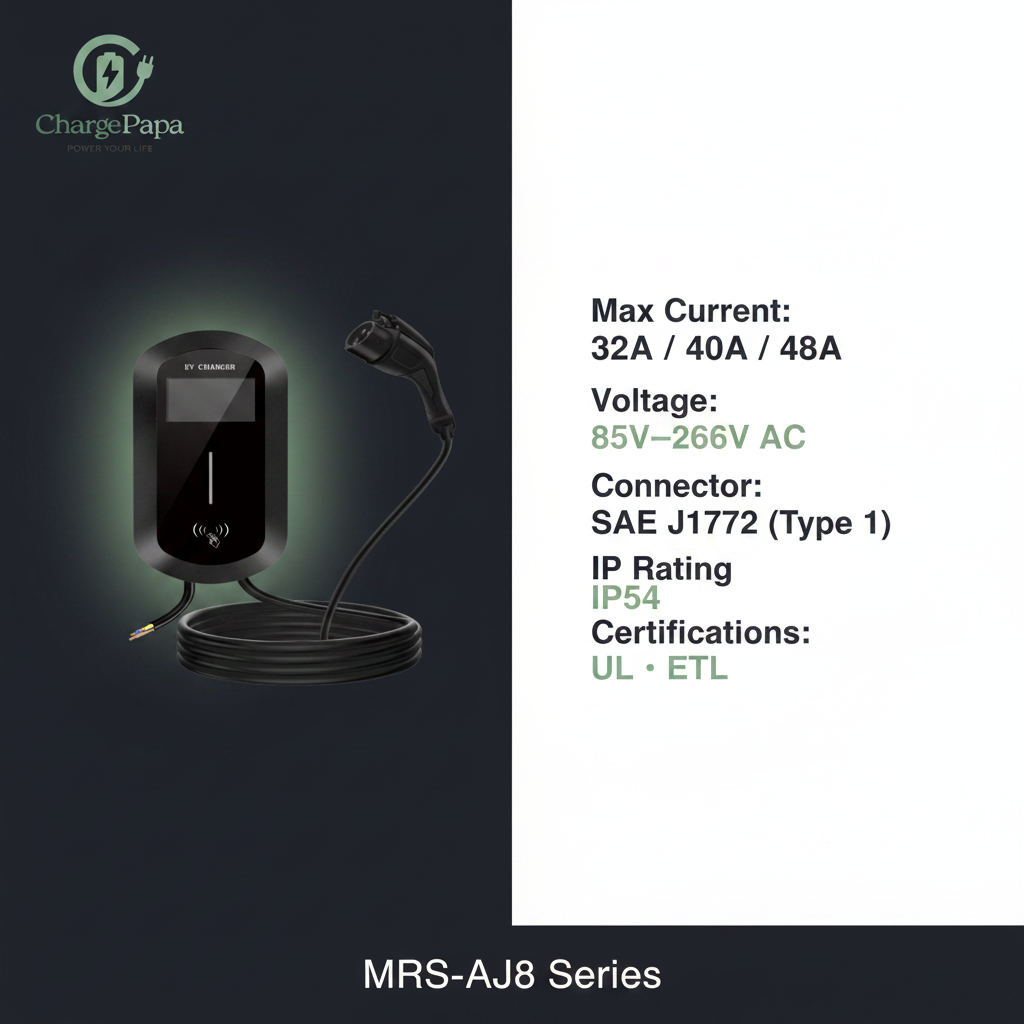

MRS-AJ8 TYPE 1 common Features (premium version)

- Installation: Wall-mounted or pedestal-mounted options

-Standby Power: ≤3W (low energy consumption)

-Charging Indicator: Three-color LED light showing charging status and values

-Panel : black front panels available

-Housing Materials: Gun – PC9330; Control box – PC+ABS; flame-retardant

-Cables: TPE flame-retardant (premium grade)

-Cooling: Natural cooling, no fan noise

-Ingress Protection: IP54, suitable for indoor/outdoor use

-Operating Conditions: Humidity 5–95% (non-condensing), Temperature –30°C ~ +50°C, Altitude <2000m

-Standards & Certifications: SAE J1772, FCC, UL, UL94 V0 flame retardant

-User Interface: LED indicator or 4.3" LCD screen (model-dependent)

-other functions: RFID card function, Bluetooth, WiFi, 4G, OCPP1.6 (depending on configuration)

-Safety Protection: Over-voltage, under-voltage, overload, overcurrent, over-temperature, leakage, grounding, lightning protection, flame retardant

-Packaging: 380 × 200 × 210 mm, approx. 4.9–6.8kg

-Ethernet4G

Ethernet enables high-speed, wired, and reliable digital-data transmission within a local-area network (LAN), allowing devices—EV chargers, PCs, cameras, servers, storage systems, etc.—to “talk” to one another and support remote monitoring, cloud connectivity, firmware updates, energy management, billing, and every other smart feature.

🔹 MRS-AJ8-07032

-Power Output: 7.6kW

-Rated Current: 32A

-Input Voltage: 85–265V AC

-Dimensions: Gun head 220×65×50 mm / Control box 340×190×80 mm

-Cable Spec: 10AWG/3C + 18AWG

-Weight: ~4.0kg

-Best For: Standard residential charging, compact size, efficient 7.6kW Level 2 charger.

🔹 MRS-AJ8-09040

-Power Output: 9.6kW

-Rated Current: 40A

-Input Voltage: 85–265V AC

-Dimensions: 380×200×210 mm

-Cable Spec: 9AWG/2C + 10AWG + 18AWG

-Weight: ~4.9kg

-User Interface: 4.3" LCD display + optional App control

-Communication: WiFi / 4G / OCPP1.6 configurable

-Best For: Faster home or semi-commercial charging, supports smart connectivity and app integration.

🔹 MRS-AJ8-11048

-Power Output: 11.5kW

-Rated Current: 48A

-Input Voltage: 85–265V AC

-Dimensions: 380×200×210 mm

-Cable Spec: 8AWG×2C + 10AWG + 18AWG

-Weight: ~6.8kg

-User Interface: 4.3" LCD display + optional App control

-Communication: WiFi / 4G / OCPP1.6 configurable

-Best For: High-capacity EVs requiring maximum AC charging speed at home or commercial sites
