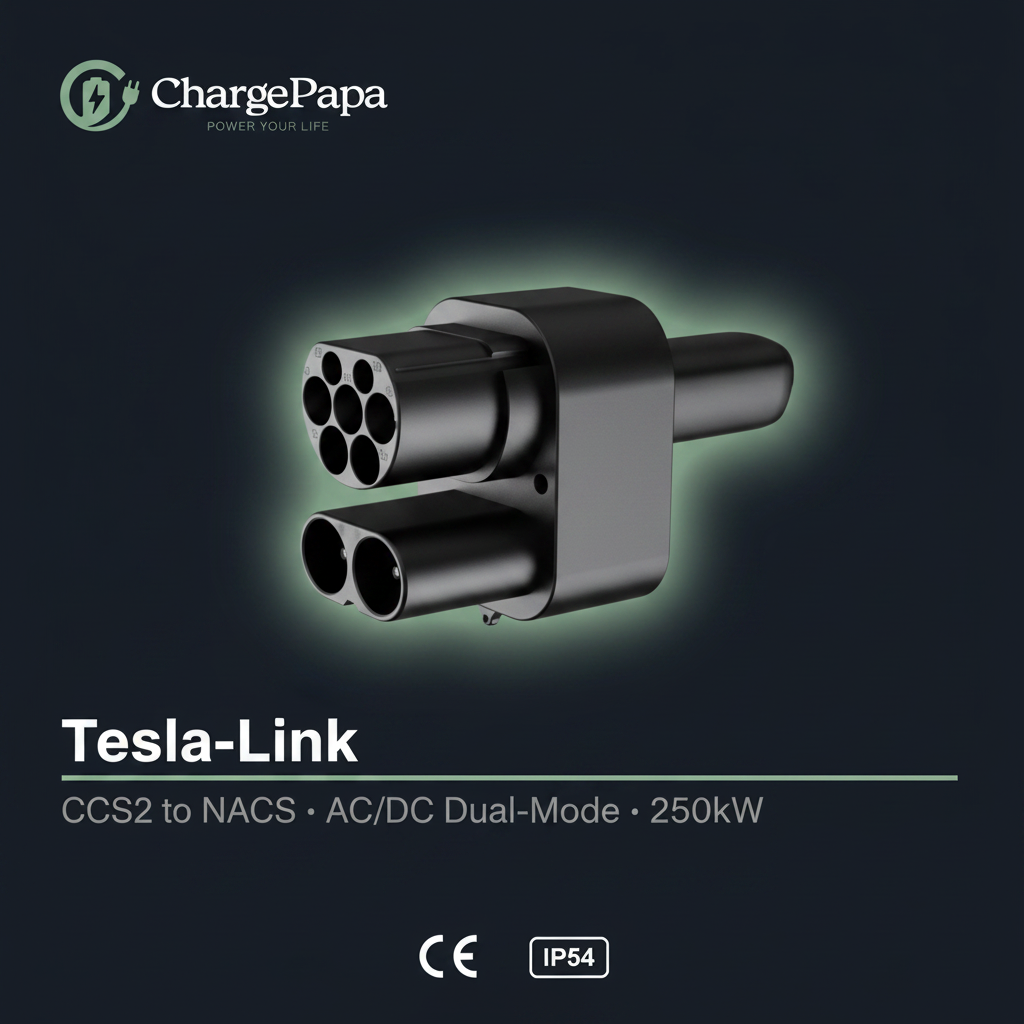

• ② Dark Tech Poster

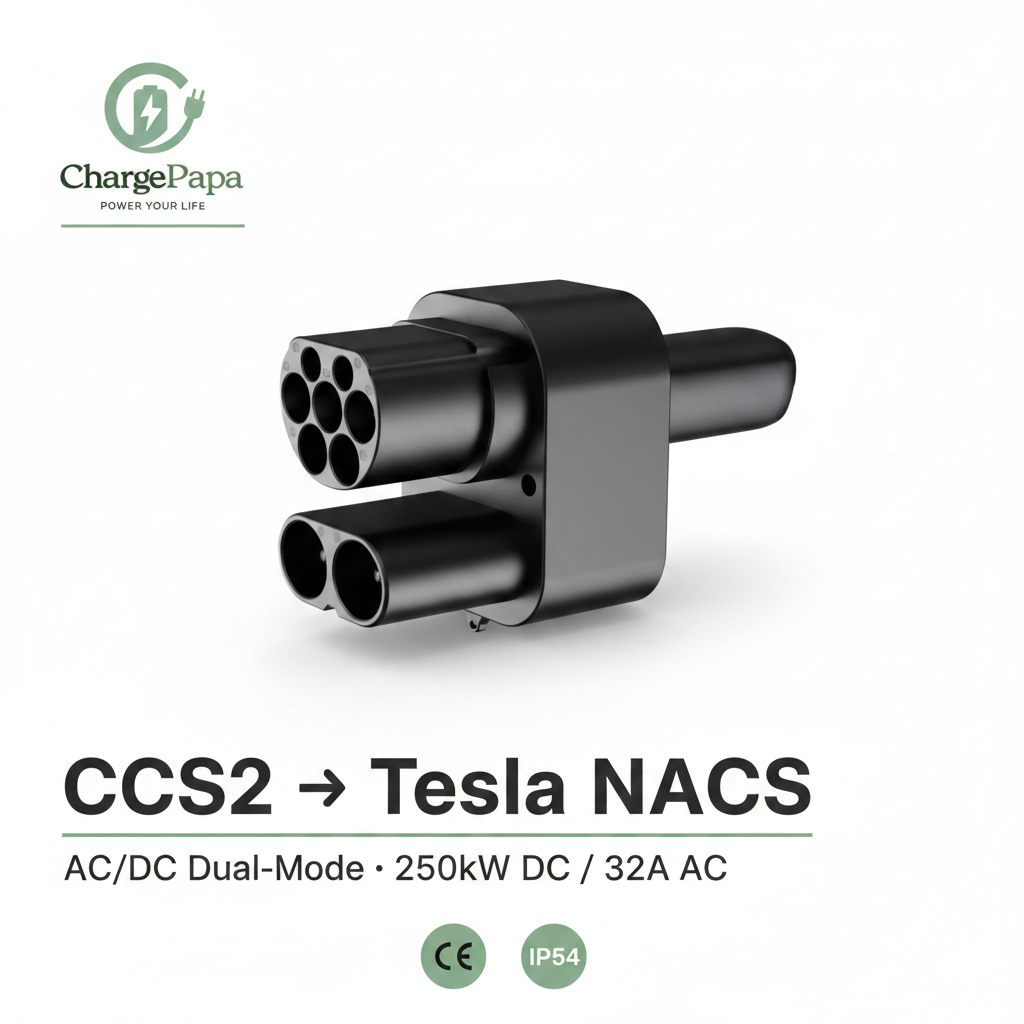

  • ① White Minimal Poster

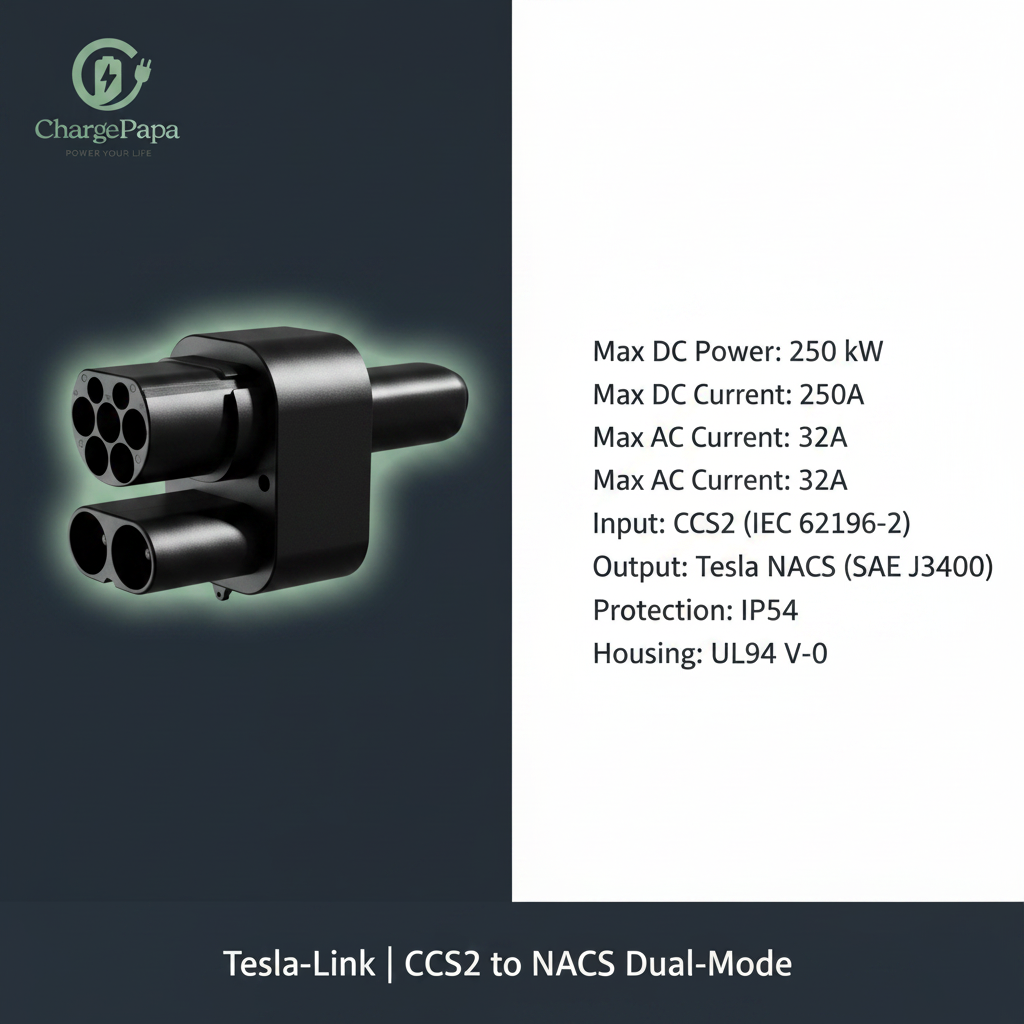

  • ③ Spec Infographic

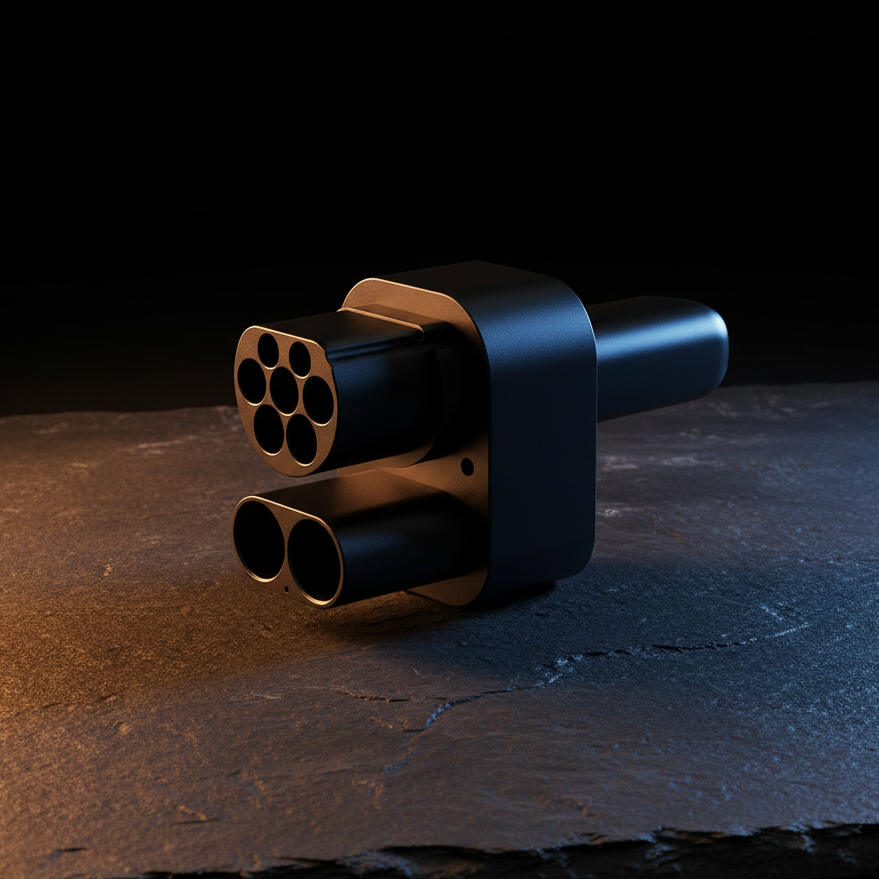

  • CCS2 Dual-Mode - Split Light Still Life
  • ⑤ Seoul Logistics Scene
1 5

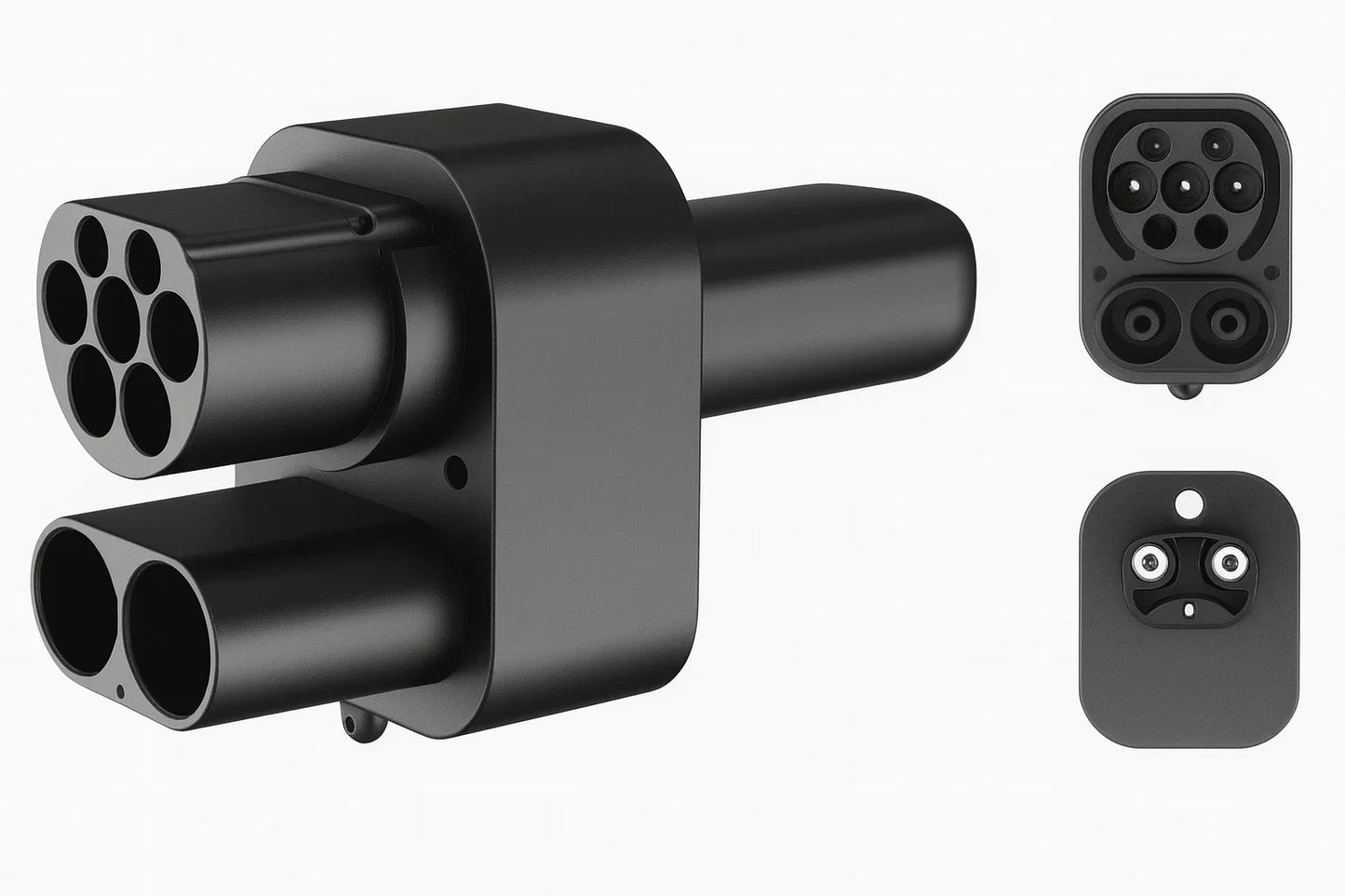

ChargePapa Tesla-Link | CCS2 to Tesla AC/DC Dual-Mode Adapter (250kW / NACS)

$390.05 USD
$390.05 USD
Sale Sold out
Shipping calculated at checkout.
🛡️ Quality Assurance: Every unit undergoes a rigorous 72-hour high-voltage stress test and thermal calibration before dispatch from our global hub. Safety is our priority; quality is non-negotiable.
✅ CE/TUV Safety Certified
🛡️ 2-Year Replacement Warranty
📦 Free Global Shipping

The Universal Bridge for Tesla.
AC + DC Dual-Mode Charging. One Adapter.

Driving a North American spec Tesla in Europe, Australia, or Southeast Asia? The ChargePapa Tesla-Link (SKU: CPCADA0013) is the only adapter you need. It seamlessly converts any CCS2 (IEC 62196-2) DC Fast Charger up to 250kW, or any standard Type 2 AC Wallbox up to 32A, to the Tesla NACS (SAE J3400) standard — in a single compact, heavy-duty device.

Total charging freedom across all international public networks. No dongles. No compromises.

CCS2 Dual-Mode - Conference Low Angle

🔄 One Adapter, Every Station

ChargePapa Tesla-Link CCS2 to NACS adapter engineering diagram
ChargePapa Tesla-Link dual-mode AC DC charging diagram
⚡ DC Fast Mode

Up to 250kW on CCS2 public fast chargers (IEC 62196-2)

🔌 AC Level 2 Mode

Up to 32A on Type 2 home or destination chargers

Dual-Mode Operation Explained

The Tesla-Link uses intelligent pin-mapping to support both CCS2 DC and Type 2 AC protocols through a single housing. The adapter automatically negotiates the correct protocol with the station — no manual switching required:

Mode Station Type Protocol
DC Fast CCS2 Public Fast Charger IEC 62196-2 + DIN 70121 / ISO 15118
AC Level 2 Type 2 Wallbox / Destination Charger IEC 61851-1 Mode 3

For rated current, voltage, and power figures, see the Engineering Data Sheet below.

CCS2 Dual-Mode - Mirror Poster

🛡️ Active Thermal Guard

High-current DC charging generates significant heat. The Tesla-Link includes a multi-layer thermal protection system:

  • Dual Temperature Sensors: Continuously monitors internal pin temperature and outer housing heat in real time.
  • Automatic Cut-off at 85°C: Power delivery is safely paused if thermal limits are exceeded, protecting your Tesla's NACS port.
  • Silver-Plated Terminals: High-conductivity alloy minimizes resistance buildup during sustained 250A peak DC flow.
  • UL94 V-0 Thermoplastic Housing: Flame-retardant enclosure rated for continuous high-current operation.
Engineering Data Sheet
SKU CPCADA0013
Input Connector CCS2 (IEC 62196-2 Combo 2)
Output Connector Tesla NACS (SAE J3400)
Max DC Power 250 kW
Max DC Current 250A
Max AC Current 32A (Single Phase)
Max AC Power 7.4 kW
DC Voltage Range 200–1000V DC
AC Voltage 230V AC (Single Phase)
IP Rating (Connected) IP54
Housing Material Thermoplastic UL94 V-0
Terminal Material Silver-Plated Copper Alloy
Operating Temperature -30°C to +50°C
Humidity 5~95% (non-condensing)
Altitude ≤ 2000m
Weight ~1.0 kg
Vehicle Compatibility
Make Model Year Port Type
Tesla Model 3 (North America Spec) 2017–2024 NACS (SAE J3400)
Tesla Model Y (North America Spec) 2020–2024 NACS (SAE J3400)
Tesla Model S (North America Spec) 2012–2024 NACS (SAE J3400)
Tesla Model X (North America Spec) 2015–2024 NACS (SAE J3400)
Tesla Cybertruck 2023+ ⚠️ NOT COMPATIBLE — See warning below
⚠️ Note: This table covers North American spec Tesla vehicles used internationally with CCS2 infrastructure. European-spec Tesla vehicles use CCS2 natively and do not require this adapter.
✅ Standards & Certifications
Connector Standard (Input) IEC 62196-2 (CCS2 / Combo 2)
Connector Standard (Output) SAE J3400 (Tesla NACS)
AC Charging Protocol IEC 61851-1 Mode 3
DC Communication Protocol DIN 70121 / ISO 15118
Flame Retardancy UL94 V-0
Ingress Protection IP54 (IEC 60529, connected state)
Frequently Asked Questions

Q: Is the CPCADA0013 compatible with Tesla Model 3 and Model Y?

A: Yes. The ChargePapa Tesla-Link (CPCADA0013) is compatible with all North American spec Tesla vehicles equipped with a NACS (SAE J3400) port, including the Model 3 (2017–2024) and Model Y (2020–2024). It supports both CCS2 (IEC 62196-2) DC fast charging up to 250kW and Type 2 AC Level 2 charging up to 32A at 230VAC.

Q: Is the ChargePapa Tesla-Link compatible with the Tesla Cybertruck?

A: No. The CPCADA0013 Tesla-Link is not compatible with the Tesla Cybertruck. The Cybertruck uses a different internal charging architecture that is not supported by this adapter. Please do not attempt to use this adapter with a Cybertruck. For Cybertruck-specific charging solutions, please contact ChargePapa support.

Q: What is the maximum DC fast charging speed with the CPCADA0013?

A: The ChargePapa Tesla-Link supports up to 250A at up to 1000V DC, delivering a maximum of 250kW on compatible CCS2 (IEC 62196-2) public fast chargers. Actual charging speed depends on your Tesla vehicle's onboard charge controller and the station's available output power.

Q: How does the Tesla-Link compare to a standard single-mode CCS2 adapter?

A: Compared to standard single-mode DC-only CCS2 adapters, the ChargePapa Tesla-Link (CPCADA0013) adds full AC Level 2 compatibility — meaning you can also plug into any Type 2 (IEC 62196-2) home wallbox or destination charger at up to 32A. This dual-mode capability eliminates the need to carry two separate adapters when traveling internationally.

Q: Does the CPCADA0013 support Vehicle-to-Grid (V2G) or bidirectional charging?

A: No. The ChargePapa Tesla-Link is designed for unidirectional charging only (grid to vehicle). It does not support Vehicle-to-Grid (V2G) or Vehicle-to-Home (V2H) bidirectional power flow. The adapter communicates via DIN 70121 and ISO 15118 protocols for standard DC fast charging sessions.

Q: What is the SKU, and what safety standards does the Tesla-Link meet?

A: The SKU is CPCADA0013. The ChargePapa Tesla-Link is manufactured to IEC 62196-2 (CCS2 input), SAE J3400 (NACS output), and IEC 61851-1 Mode 3 (AC charging) standards. The housing meets UL94 V-0 flame retardancy requirements, and the unit carries IP54 ingress protection (IEC 60529) in the connected state.

⚠️ Critical Usage Notes
  • Cybertruck Incompatible: Do NOT use this adapter with a Tesla Cybertruck. Incompatible charging architecture may cause charging failure or port damage.
  • European-Spec Tesla Incompatible: European-spec Tesla vehicles already use CCS2 natively. This adapter is designed for North American spec Tesla vehicles only.
  • Do Not Force-Connect: Ensure both connectors are fully seated before initiating a charging session. Never force the connector.
  • Inspect Before Each Use: Check for physical damage, bent pins, or moisture ingress before connecting. Do not use if damaged.
  • Unidirectional Only: This adapter does not support V2G, V2H, or any bidirectional power flow.
