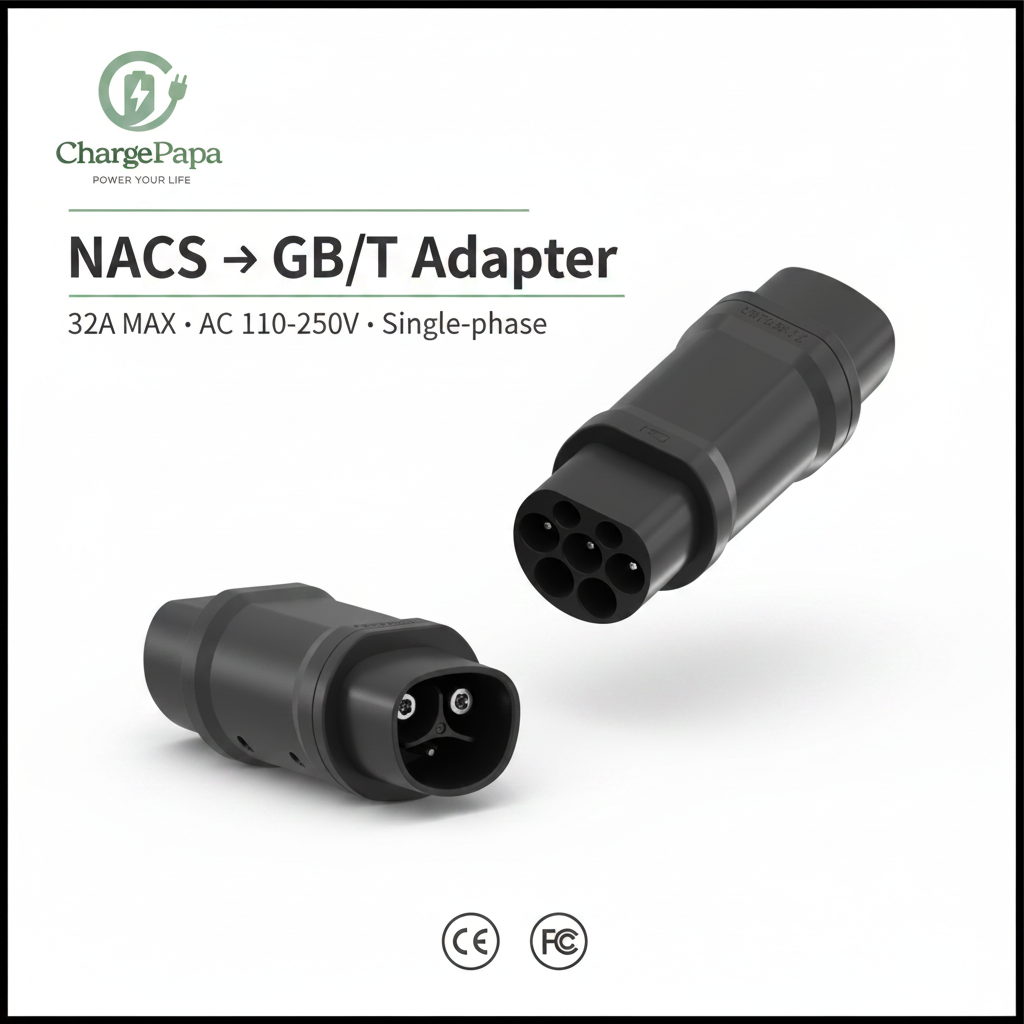

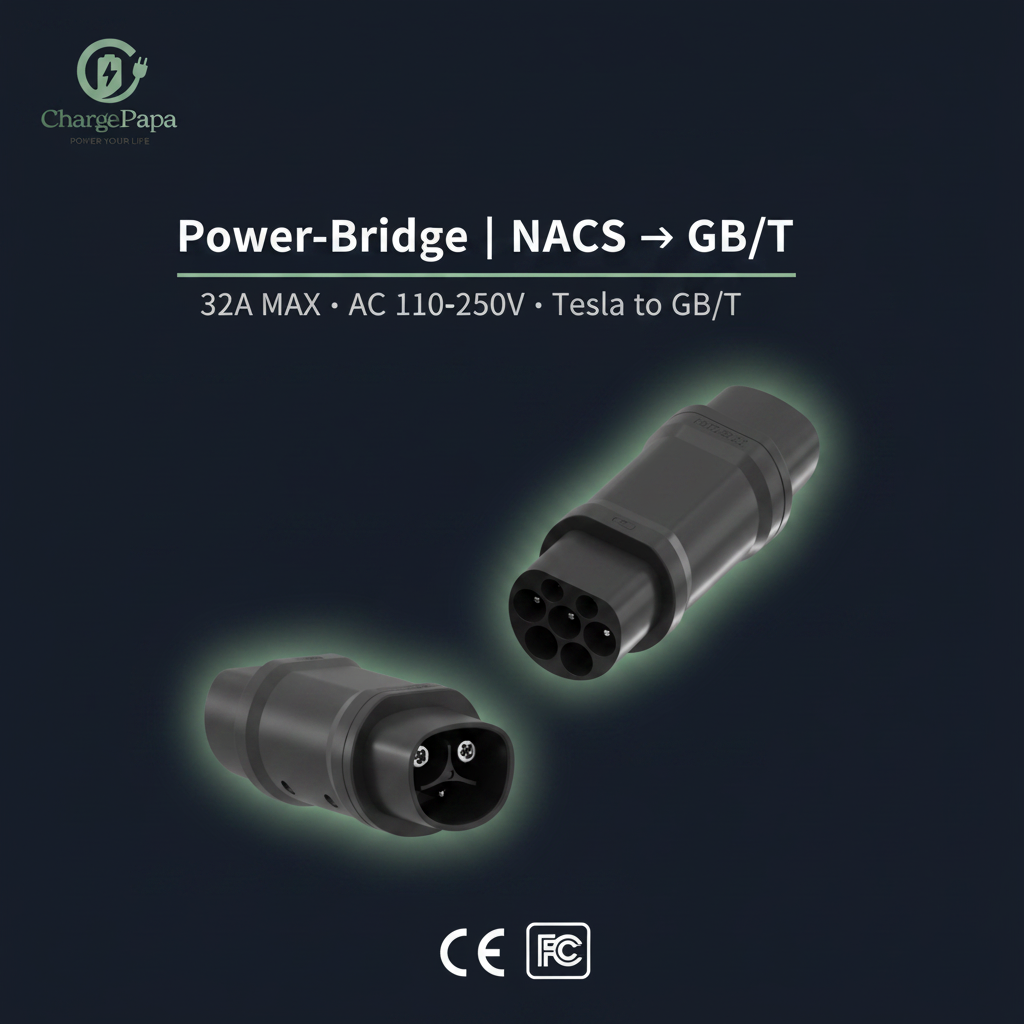

Power-Bridge | NACS (SAE J3400) → GB/T (GB/T 20234.2) Adapter
The ChargePapa Power-Bridge CP-KL-ADP-025 enables GB/T 20234.2 electric vehicles to charge at NACS (SAE J3400) AC Level 2 stations — including Tesla Wall Connectors, Tesla Destination Chargers, and any third-party NACS-standard AC infrastructure. Ideal for Chinese-standard EV owners accessing the growing NACS charging network in North America, this adapter delivers up to 32A MAX with wide-voltage support from AC 110V to 250V. Built with silver-plated copper alloy conductors and a rugged PC+PA66 housing, it is rated for over 10,000 charge cycles. Verify station compatibility in the vehicle manufacturer’s app before route planning — physical connector fit is only one requirement; session authorization is separate.
This is an AC Level 2 charging adapter (32A / AC 110-250V). It is not a DC fast charging adapter. For GB/T DC fast charging solutions, please refer to ChargePapa’s DC-Link series.
| SKU | CP-KL-ADP-025 |
| Input Connector | SAE J3400 NACS (Female) — Station Side |
| Output Connector | GB/T 20234.2 (Male) — Vehicle Side |
| Working Voltage | AC 110V ~ 250V (Wide Voltage) |
| Rated Current | 32A MAX |
| Max Power Output | ~7.4 kW @ 230V · ~3.5 kW @ 110V (Single-phase) |
| Phase Type | Single-phase |
| Terminal Temp Rise | <50K |
| Case Material | PC + PA66 |
| Conductor Material | Copper alloy with silver plating |
| Insertion Force | 45N < F < 100N |
| Plug/Unplug Life | >10,000 cycles |
| Product Dimensions | 165.7 × 70.0 × 69.9 mm |
| Working Temperature | -30°C to +50°C (-22°F to +122°F) |
| Working Humidity | 5% ~ 95% RH |
| Working Altitude | ≤2000m |
| Station Side (Input) | Vehicle Side (Output) | Charging Type |
|---|---|---|
| NACS (SAE J3400) AC Station | GB/T 20234.2 EV Port | AC Level 2 Only |
| Compatible with GB/T 20234.2 electric vehicles including BYD Atto 3, BYD Han, BYD Seal, NIO ES6, NIO ET7, Xpeng P7, Li Auto L9, and other Chinese-standard EVs. Can enable access at compatible, authorized NACS AC Level 2 stations — including Tesla Wall Connectors and Destination Charger sites — when the vehicle, station, and adapter path are supported. Verify station compatibility in the vehicle manufacturer’s app before route planning. Physical connector fit is only one requirement; session authorization is separate. | ||
CE — Conformité Européenne: Meets EU safety, health, and environmental protection requirements.
FCC — Federal Communications Commission: Compliant with electromagnetic interference standards for use in North America.
Q: Which vehicles are compatible with the CP-KL-ADP-025?
A: Any EV with a GB/T 20234.2 port — including BYD Atto 3, BYD Han, BYD Seal, NIO ES6, NIO ET7, Xpeng P7, Li Auto L9, and other Chinese-standard EVs. This adapter is not intended for Tesla or other NACS-native vehicles.
Q: Which charging stations does the CP-KL-ADP-025 work with?
A: Can enable access at compatible, authorized NACS (SAE J3400) AC Level 2 stations — including Tesla Wall Connectors and Destination Charger sites — when the vehicle, station, and adapter path are supported. Verify station compatibility in the vehicle manufacturer’s app before route planning. Physical connector fit is only one requirement; session authorization is separate. Does NOT work with Tesla Superchargers (DC fast charging).
Q: Is this the same as the ChargePapa DC-Link NACS to GB/T adapter?
A: No. The DC-Link series is designed for DC fast charging (300A / 1000V). The CP-KL-ADP-025 Power-Bridge is an AC Level 2 adapter (32A / AC 110-250V) for standard AC charging stations.
Q: What is the maximum charging speed?
A: Up to 32A MAX — approximately 7.4 kW at 230V or 3.5 kW at 110V. Actual speed depends on your vehicle’s onboard charger capacity and the station’s output rating.
This adapter is designed for AC Level 2 single-phase charging only. Do not use with DC fast chargers or Tesla Superchargers.
Always verify that your charging station output does not exceed 32A / 250V before use.
