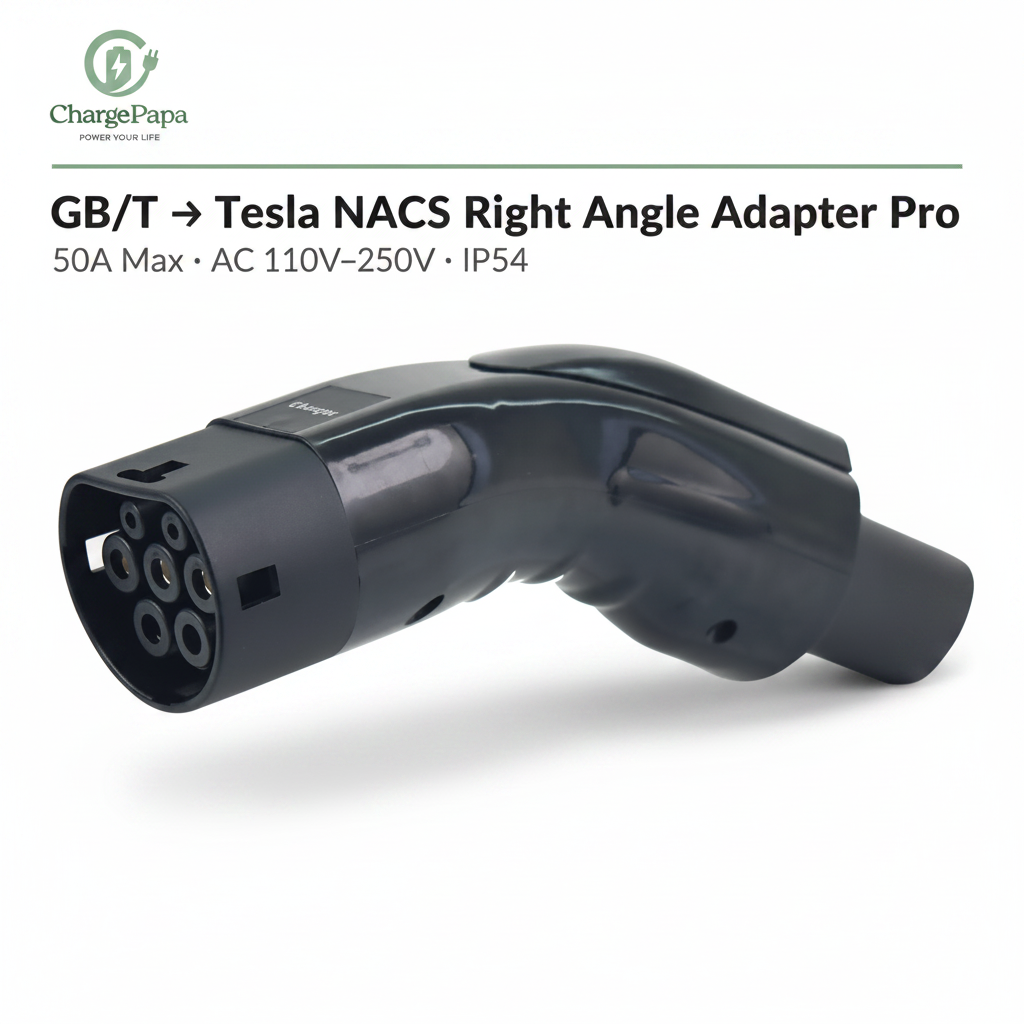

ChargePapa Omni-Link | GB/T to Tesla (NACS) Right Angle Adapter Pro (50A / AC Only)
Couldn't load pickup availability
Omni-Link Adapter Path
Best for NACS EV drivers using GB/T AC charging sources.
Will this fit my setup?
Use this adapter when your charging cable or station has a GB/T 20234.2 AC plug, and your EV has a Tesla / NACS / SAE J3400 charging port for AC charging.
SINGLE-PHASE AC PATHGB/T 20234.2 AC source → Tesla / NACS / SAE J3400 vehicle inlet
For compatible NACS EVs charging from a GB/T AC source.
50A max · AC 110V–250V · IP54
The adapter does not create extra power. Actual speed depends on the source output, cable path, and the vehicle onboard AC charger.
Not for Tesla Superchargers or DC fast charging
Do not use this with GB/T DC, CCS, CHAdeMO, NACS DC, Tesla Superchargers, or any DC fast-charging network.
Need NACS source → GB/T vehicle instead?
This is the opposite charging direction. Choose the NACS to GB/T adapter path instead.
Standards & Certifications

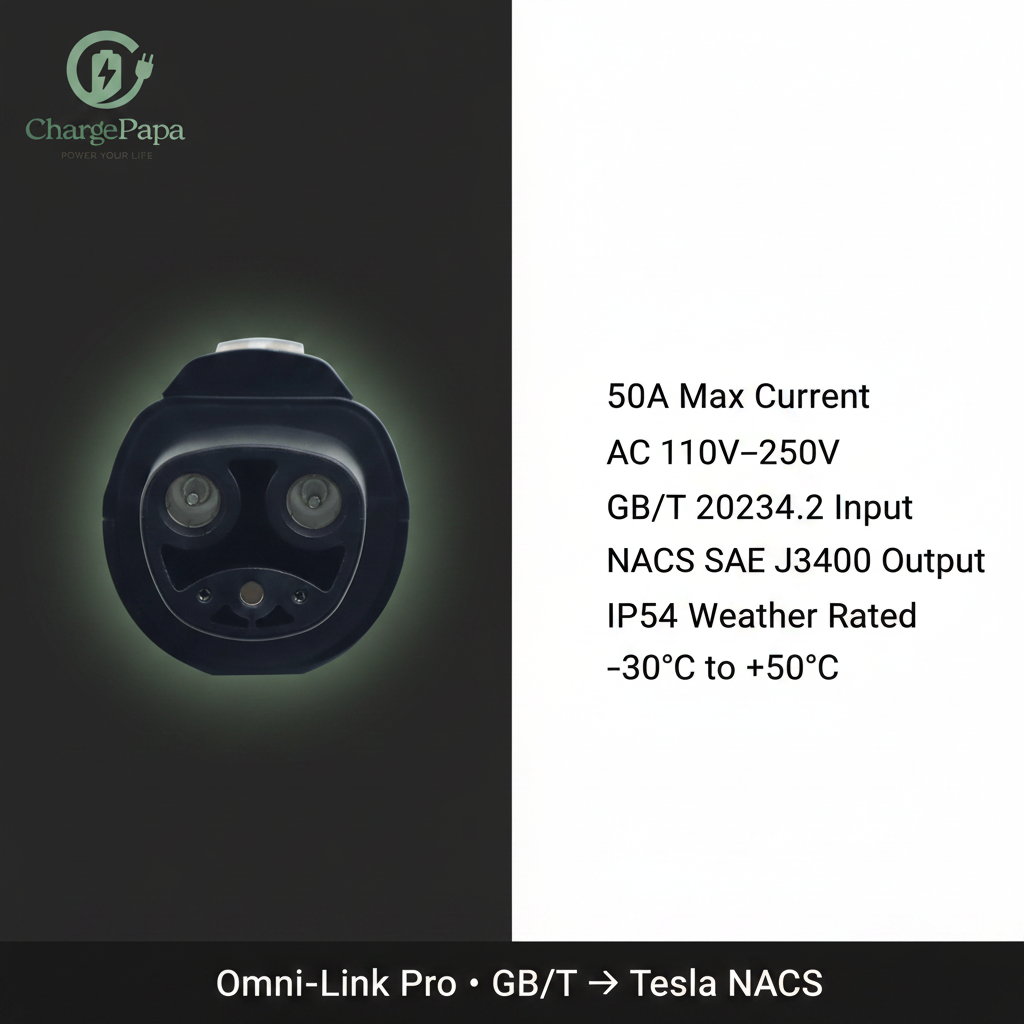

| SKU | CP-TQ-ACM-005 |
| Charging source | GB/T 20234.2 AC source |
| Vehicle inlet | Tesla / NACS / SAE J3400 vehicle inlet |
| Charging mode | AC charging only |
| Rated current | 50A MAX |
| Working voltage | AC 110V–250V |
| Phase | Single phase |
| Protection rating | IP54 |
| Certification | CE |
When This Adapter Helps
Use it when the charger-side plug is GB/T AC and your vehicle side is Tesla / NACS.

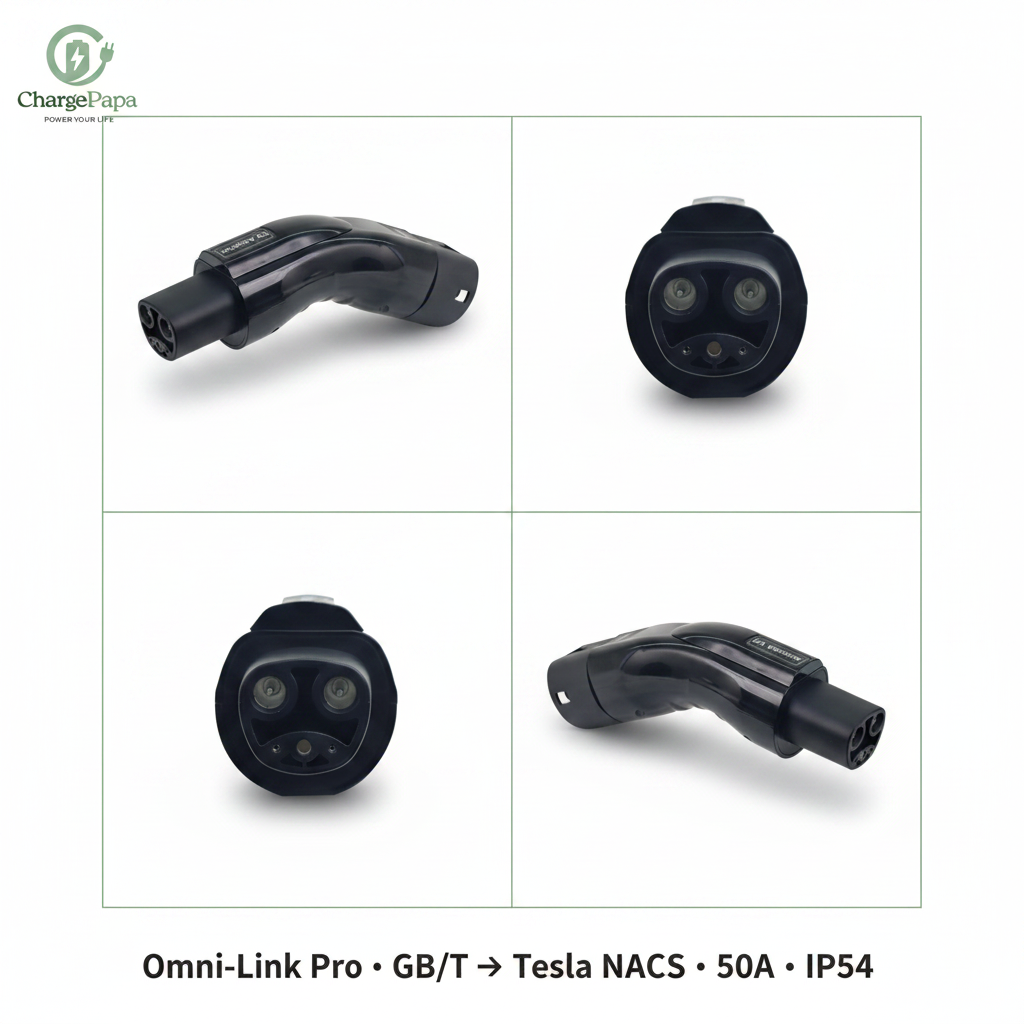

The right-angle form factor helps reduce straight-out connector projection at the vehicle inlet.
Choose this over the 32A straight adapter when your setup calls for the 50A hardware rating.
GB/T AC → NACS / Type 1 / Type 2 Product Line
| Model | Current | Best for |
|---|---|---|
| CP-KL-ADP-029 | 32A · AC 110V–250V | GB/T AC source → NACS vehicle inlet |
| CP-KL-ADP-028 | 32A · AC 110V–250V | GB/T AC source → Type 1 / J1772 vehicle inlet |
| CP-KL-ADP-027 | 32A single phase · AC 110V–250V | GB/T single-phase AC source → Type 2 vehicle inlet |
| CP-KL-ADP-026 | 32A · AC 380V · ~22kW | GB/T three-phase AC source → Type 2 vehicle inlet |
| CP-TQ-ACM-005 This product | 50A Right Angle Pro · AC only | Higher-current GB/T AC source → NACS vehicle inlet path |
| CP-TQ-ACM-006 | 50A Right Angle Pro · AC only | Higher-current GB/T AC source → Type 1 / J1772 vehicle inlet path |
| CP-TQ-ACM-007 | 50A Right Angle Pro · single phase | Higher-current GB/T AC source → Type 2 vehicle inlet single-phase path |
| CPCADA0027 | 50A Right Angle Pro · typical 22kW | Higher-current GB/T three-phase AC source → Type 2 vehicle inlet path |
FAQ
It works from a GB/T 20234.2 AC charging source to a Tesla / NACS / SAE J3400 vehicle inlet.
No. This is an AC adapter only. It does not convert GB/T DC fast charging, CCS, CHAdeMO, NACS DC, Tesla Supercharger, or other DC fast-charging sessions.
No. The listed rating is the adapter-side ceiling. Real speed depends on the charging source, site setup, cable path, and vehicle onboard AC charger.
Confirm the charger-side plug is GB/T AC, the vehicle-side port is Tesla / NACS, and your charging session is AC Level 2 rather than DC fast charging.
