ChargePapa SVC-TG | Movable DC Fast Charger (7kW-20kW) with wifi,Bluetooth
Couldn't load pickup availability

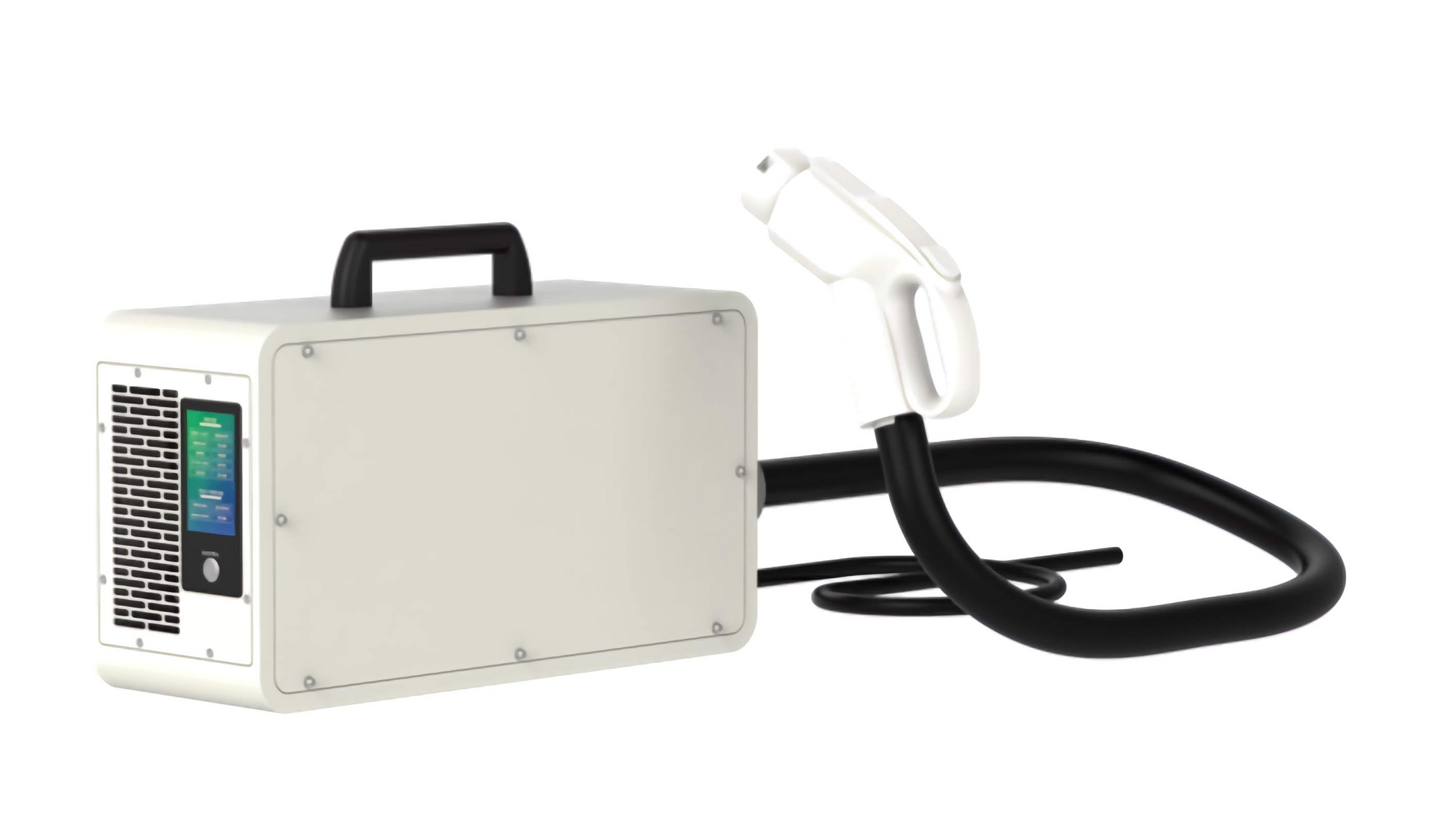

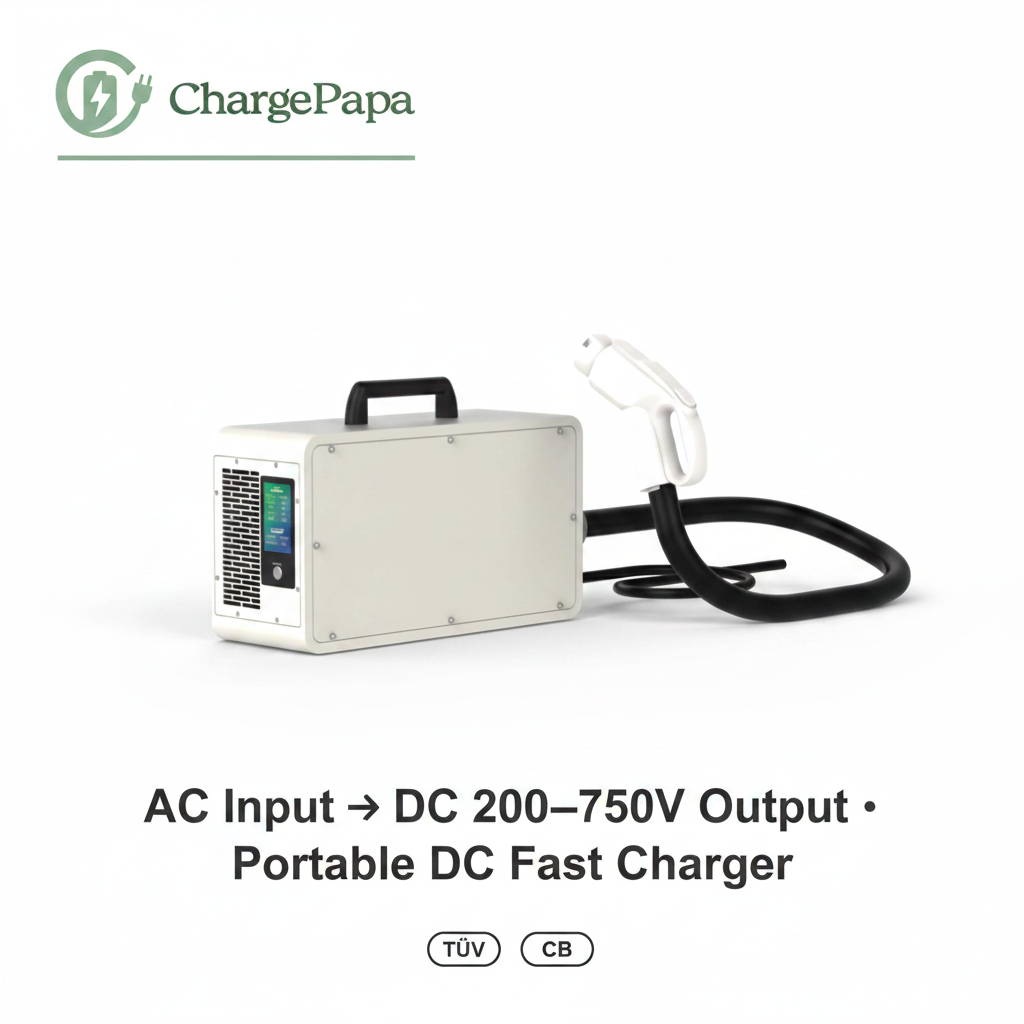

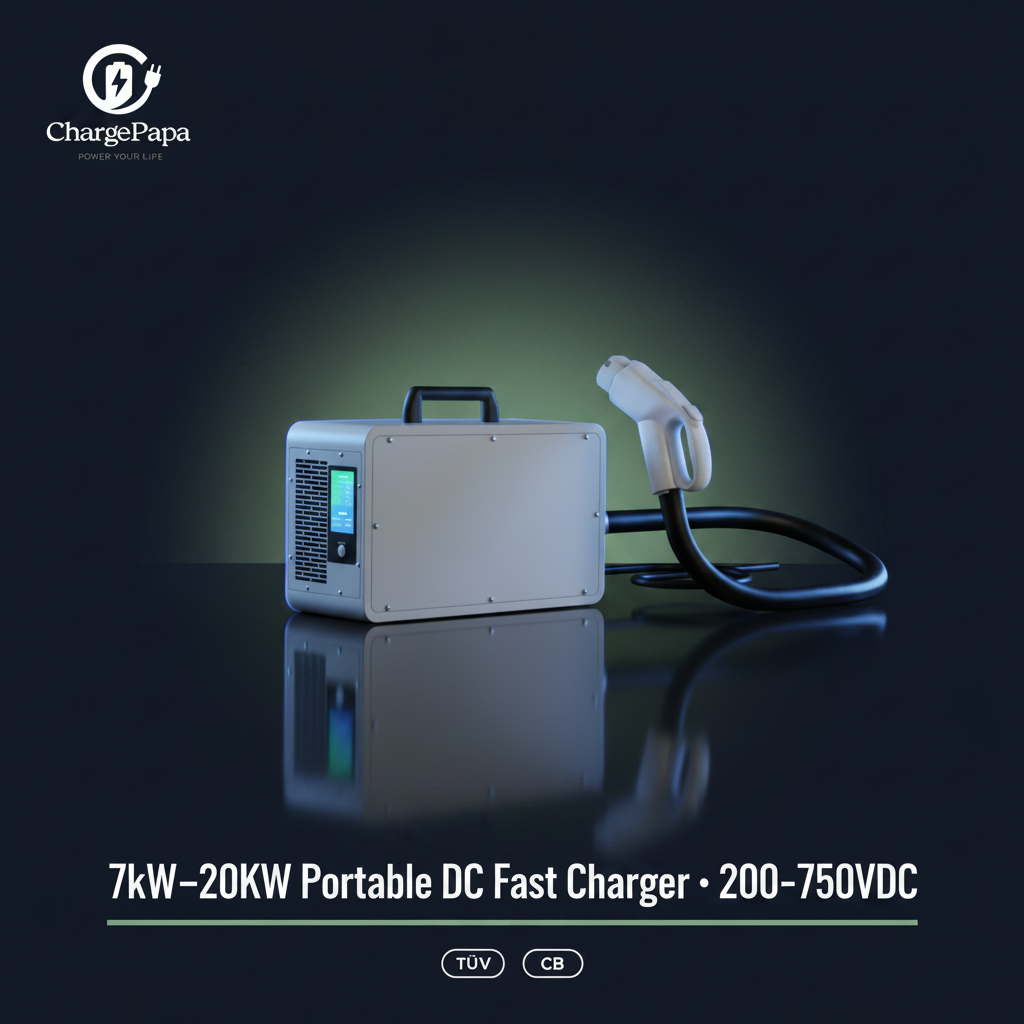

ChargePapa SVC-TG · Movable DC fast charger
Commercial DC fast charging without a fixed station buildout.

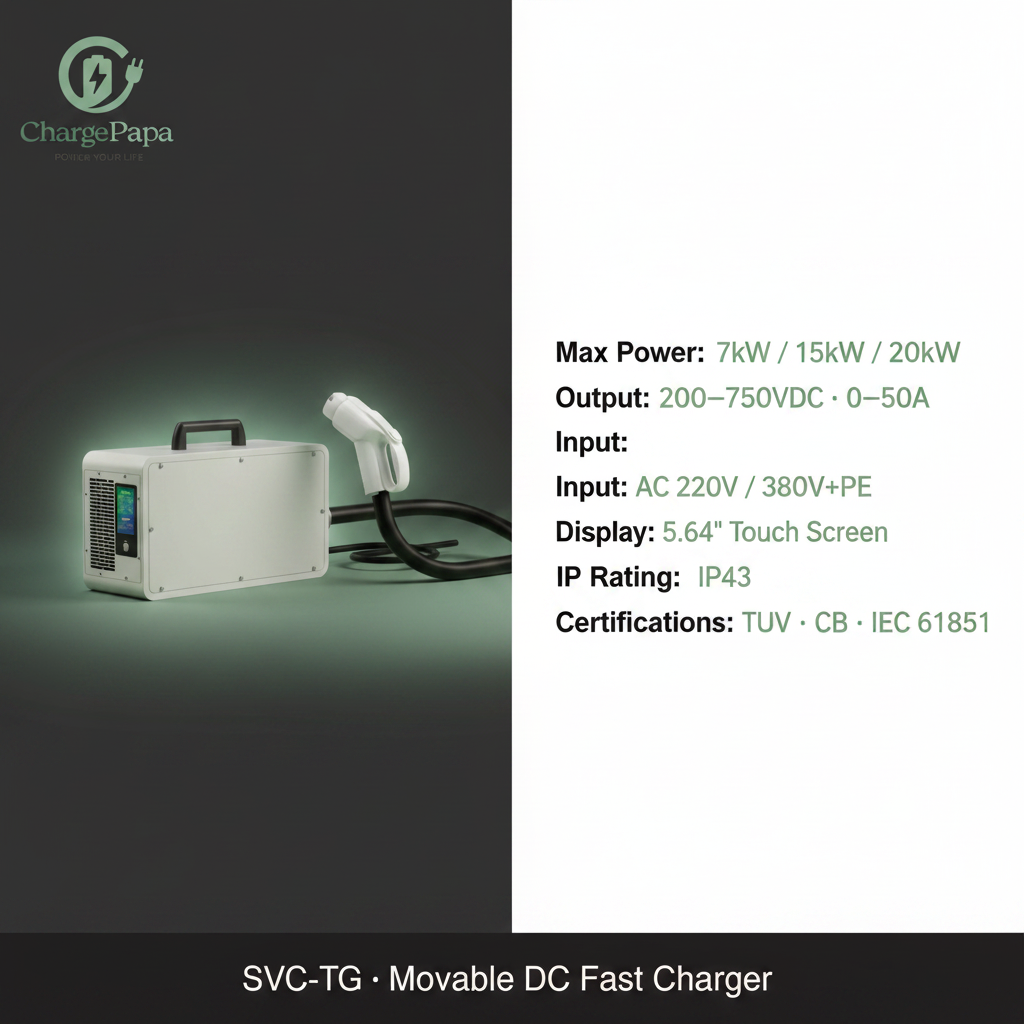

7kW · 15kW · 20kW / DC 200–750V
ChargePapa SVC-TG is a movable DC fast charging station for fleet operators, repair shops, service yards, and commercial EV deployments that need DC output without committing every use case to a permanent charger location.
This is a professional / B2B DC fast charger. It is not an AC Level 1 or Level 2 portable charger, and it requires the correct facility power supply before ordering.
DC fast charging only
DC 200–750V · 0–50A
7kW · 15kW · 20kW
12V or 24V by variant
5.64" touchscreen · OCPP · WiFi · Bluetooth
TÜV / CB · LVD IEC 61851-1 · EMC IEC 61851-21-2
Before you choose a variant
Start with facility power and vehicle auxiliary-voltage requirements. The 7kW model requires single-phase AC 220V±15% input. The 15kW and 20kW models require three-phase AC 380V + PE industrial power.
Choose 12V auxiliary supply for most passenger EV use cases and 24V only where the vehicle or fleet BMS requirement calls for it. The 24V options note extra production days in the live variant titles.
Variant matrix
| SKU | Auxiliary supply | Market output option | Power class | Facility input boundary |
|---|---|---|---|---|
| SVC-TG-1 | 12V | US | 7kW | Single-phase AC 220V±15% |
| SVC-TG-2 | 12V | US | 15kW | Three-phase AC 380V + PE |
| SVC-TG-3 | 12V | US | 20kW | Three-phase AC 380V + PE |
| SVC-TG-4 | 12V | EU | 7kW | Single-phase AC 220V±15% |
| SVC-TG-5 | 12V | EU | 15kW | Three-phase AC 380V + PE |
| SVC-TG-6 | 12V | EU | 20kW | Three-phase AC 380V + PE |
| SVC-TG-7 / SVC-TG-10 | 24V | US / EU | 7kW | Single-phase AC 220V±15% · extra production days |
| SVC-TG-8 / SVC-TG-11 | 24V | US / EU | 15kW | Three-phase AC 380V + PE · extra production days |
| SVC-TG-9 / SVC-TG-12 | 24V | US / EU | 20kW | Three-phase AC 380V + PE · extra production days |
Use cases
- Fleet yards that need a movable DC charger for multiple parking positions
- Repair shops and diagnostic bays that need controlled DC charging access
- Commercial EV deployments before a permanent DC charging site is installed
- Emergency, service, or temporary charging support where facility power is available
Control and network features
5.64" color touchscreen for voltage, current, and session visibility.
OCPP 1.6 / 2.0 support as stated in the original product data.
WiFi 2.4GHz and Bluetooth for monitoring and management functions.
Built-in time reservation scheduling for managed charging windows.
Compatibility and facility checks
Connector fit and voltage range are not the only requirements. Confirm the vehicle DC charging interface, auxiliary voltage requirement, facility input power, grounding, and local electrical requirements before ordering.
The product data lists DC 200–750V output and 0–50A adjustable current. Actual charging behavior depends on the vehicle BMS, requested voltage/current window, temperature, state of charge, and charger configuration.
Safety and boundary notes
- DC fast charging only; not for AC Level 1 or Level 2 charging.
- Professional / commercial use only; verify facility input power before ordering.
- 15kW and 20kW models require three-phase AC 380V + PE industrial power.
- 12V vs 24V auxiliary power must match the vehicle or fleet BMS requirement.
- Use qualified electrical personnel and follow local code for site power and operation.
FAQ
No. SVC-TG is a movable DC fast charger. It does not support AC Level 1 or Level 2 charging.
Choose 7kW when only the listed single-phase AC 220V±15% input is available. Choose 15kW or 20kW only when the site has three-phase AC 380V + PE industrial power and the operational need justifies the higher DC output.
Use 12V for typical passenger EV applications. Choose 24V only when the vehicle or fleet BMS requires 24V auxiliary power; the live variant titles note extra production days for 24V options.
No. The vehicle BMS, state of charge, temperature, voltage request, current request, and charger configuration determine actual DC charging power.
