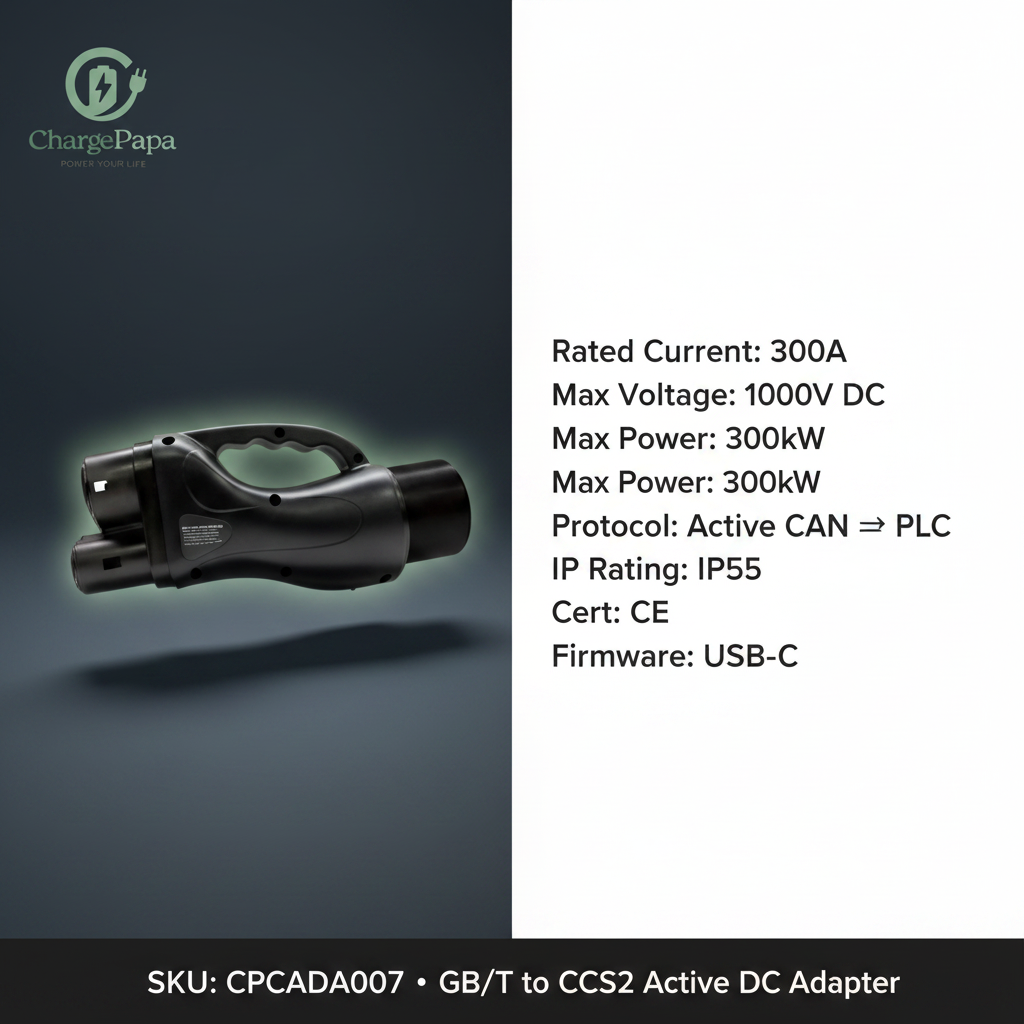

  • 规格信息图 - GB/T to CCS2
  • 别墅车库场景图 - GB/T to CCS2
  • Global Delivery ChargePapa

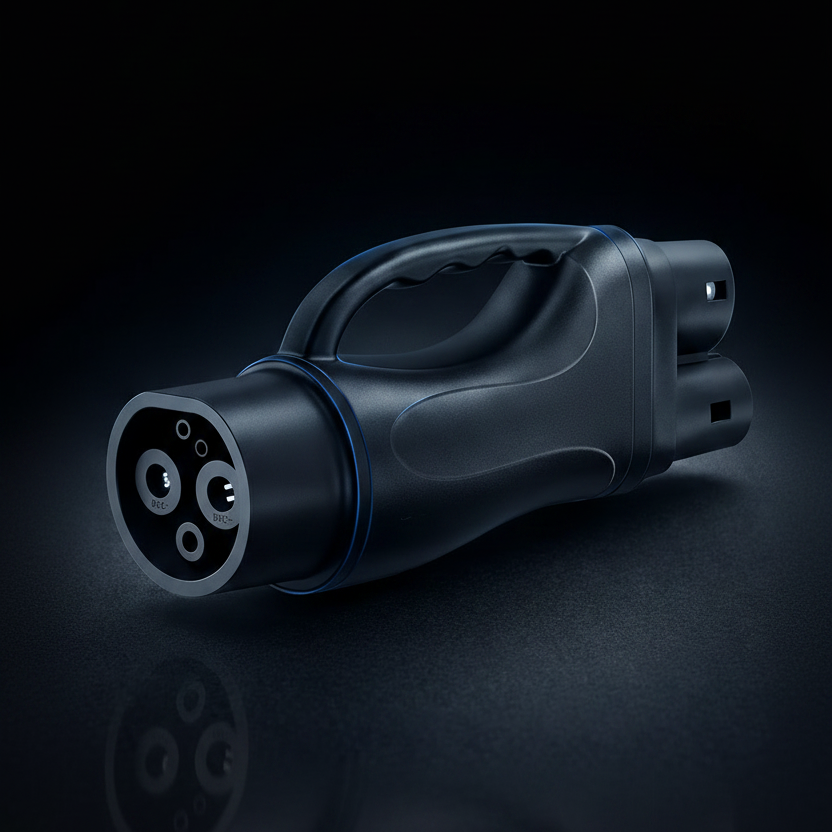

  • GB/T to CCS2 - Mirror Poster
1 5

ChargePapa Smart-Link | GB/T to CCS2 DC Adapter (300A / Active Protocol Converter / CE)

On sale Save $145.00 USD (11% off)
$1,100.55 USD
$1,245.55 USD $1,100.55 USD
Sale Sold out
Shipping calculated at checkout.
🛡️ Quality Assurance: Every unit undergoes a rigorous 72-hour high-voltage stress test and thermal calibration before dispatch from our global hub. Safety is our priority; quality is non-negotiable.
✅ CE/TUV Safety Certified
🛡️ 2-Year Replacement Warranty
📦 Free Global Shipping

Charge Your CCS2 EV at GB/T Stations.
GB/T Charger → CCS2 Vehicle. Active CAN ↔ PLC. 300A.

Brought your European CCS2 vehicle to China? The ChargePapa Smart-Link (SKU: CPCADA0007) is your key to China’s GB/T fast charging network — including State Grid, TELD, Star Charge, and over 1 million GB/T stations nationwide. This active adapter translates the GB/T charger’s CAN Bus signals into your CCS2 vehicle’s PLC protocols in real-time, enabling up to 300A / 300kW of rapid power delivery. CE certified and IP55 rated for all-weather outdoor use.

GB/T to CCS2 - American Garage

GB/T to CCS2 - Factory Top Down

🔌 Active Signal Conversion

Input: GB/T DC

From Chinese Standard GB/T 20234.3 Charger

Output: CCS2

To European / AU Spec CCS2 Vehicle

⚡ Active conversion: Unlike passive adapters, the Smart-Link actively translates CAN Bus (GB/T charger) ↔ PLC (CCS2 vehicle) communication in real-time — enabling full handshake, authentication, and high-speed charging up to 300A.
Engineering Data Sheet
SKU CPCADA0007
Input Connector (Charger Side) GB/T 20234.3 DC
Output Connector (Vehicle Side) CCS2 (IEC 62196-3)
Max Power 300 kW
Rated Current 300A MAX
Voltage Range Max 1000V DC
Communication Protocol Active CAN Bus ↔ PLC
Thermal Protection Auto shut-off at 85°C
Firmware Update USB-C Port
Ingress Protection IP55
Housing Material PA66 + 25% GF / Silicone PC
Power Source Grid Powered (No Battery)
Certifications CE (Conformité Européenne)
Vehicle Compatibility
Make Model Year Port Type
Tesla Model 3, Model Y, Model S, Model X — CCS2 (IEC 62196-3)
Volkswagen ID.3, ID.4, ID.Buzz 2021+ CCS2 (IEC 62196-3)
BMW i3, i4, iX — CCS2 (IEC 62196-3)
Audi e-tron, Q4 e-tron 2019+ CCS2 (IEC 62196-3)
Hyundai IONIQ 5, IONIQ 6 2022+ CCS2 (IEC 62196-3)
Kia EV6, EV9 2022+ CCS2 (IEC 62196-3)
MG MG4, MG ZS EV (EU spec) — CCS2 (IEC 62196-3)
⚠️ CCS2-port vehicles only. Not compatible with Tesla NACS (SAE J3400), CCS1 (SAE J1772 Combo), or CHAdeMO port vehicles. Tesla Year column marked — pending confirmation of CCS2 variant year range.
Frequently Asked Questions

Q: Is the CPCADA0007 compatible with my Volkswagen ID.4, BMW iX, or Hyundai IONIQ 5?

A: Yes. The ChargePapa Smart-Link CPCADA0007 is compatible with all vehicles equipped with a CCS2 (IEC 62196-3 — International Electrotechnical Commission Combo 2) port, including the Volkswagen ID.3, ID.4, ID.Buzz, BMW i4, iX, Audi e-tron, Q4 e-tron, Hyundai IONIQ 5 and IONIQ 6, Kia EV6 and EV9, MG4, and Tesla Model 3/Y/S/X (CCS2 version). It supports up to 300A at 1000V DC via GB/T 20234.3 fast charging stations in China.

Q: What is the maximum charging speed with the ChargePapa Smart-Link CPCADA0007?

A: The ChargePapa Smart-Link CPCADA0007 supports up to 300A at 1000V DC, delivering a maximum of 300kW via GB/T 20234.3 (Chinese national standard for DC fast charging connectors) stations including State Grid, TELD, and Star Charge. Actual charging speed depends on your vehicle’s onboard charger capacity and the station’s rated output.

Q: How does the CPCADA0007 compare to a standard passive GB/T-to-CCS2 adapter?

A: Compared to standard passive GB/T-to-CCS2 adapters, the ChargePapa Smart-Link CPCADA0007 features an active protocol converter that translates CAN Bus (GB/T 20234.3 charger communication standard) to PLC (IEC 62196-3 CCS2 vehicle communication standard) in real-time. Passive adapters cannot perform this handshake and will fail to initiate charging on most modern CCS2 vehicles. The Smart-Link also supports up to 300A — significantly higher than the 100A–200A limit of most passive units — and includes USB-C firmware upgradability for long-term compatibility.

Q: Is the CPCADA0007 compatible with the Tesla Cybertruck or NACS-port Tesla vehicles?

A: No. The ChargePapa Smart-Link CPCADA0007 outputs to CCS2 (IEC 62196-3) and is not compatible with the Tesla Cybertruck or any Tesla vehicle using the NACS (SAE J3400 — Society of Automotive Engineers J3400) connector. It is also not compatible with CCS1 (SAE J1772 Combo) or CHAdeMO port vehicles. Only CCS2-port vehicles are supported.

Q: Has the CPCADA0007 passed CE certification, and what does IP55 mean?

A: Yes. The ChargePapa Smart-Link CPCADA0007 carries CE (Conformité Européenne) certification, confirming compliance with European Union health, safety, and environmental protection directives. IP55 means the adapter is fully dust-protected and resistant to water jets from any direction — per IEC 60529 (International Electrotechnical Commission ingress protection standard) — making it suitable for outdoor charging in all weather conditions. It also includes automatic thermal shut-off at 85°C for additional safety.

Q: What is the SKU, and which connector standards does the Smart-Link CPCADA0007 cover?

A: The SKU is CPCADA0007. The ChargePapa Smart-Link accepts GB/T 20234.3 (Chinese national standard for DC fast charging — GB/T) on the charger input side, and outputs to CCS2 (IEC 62196-3 — International Electrotechnical Commission Combined Charging System Combo 2, European EV DC fast charging standard) on the vehicle side. Rated at 300A / 300kW. CE certified and IP55 rated. Housing material: PA66 + 25% GF / Silicone PC. Firmware upgradeable via USB-C port.

✅ Standards & Certifications

  • CE (Conformité Européenne) — Confirms compliance with European Union health, safety, and environmental protection directives.
  • IP55 — IEC 60529 — International Electrotechnical Commission ingress protection standard. Fully dust-protected and resistant to water jets from any direction.
  • IEC 62196-3 — International Electrotechnical Commission standard for CCS2 (Combo 2) DC fast charging connectors.
  • GB/T 20234.3 — Chinese national standard for DC conductive charging interfaces for electric vehicles.

⚠️ Critical Usage Note

This adapter is designed for CCS2-port vehicles only. Do not use with Tesla NACS (SAE J3400), CCS1 (SAE J1772 Combo), or CHAdeMO port vehicles. Do not exceed rated operating limits (1000V DC / 300A). The adapter will automatically shut off if temperature exceeds 85°C. Inspect before each use — do not use if housing is cracked or contacts are damaged. Ensure connectors are fully seated before initiating a charging session.
