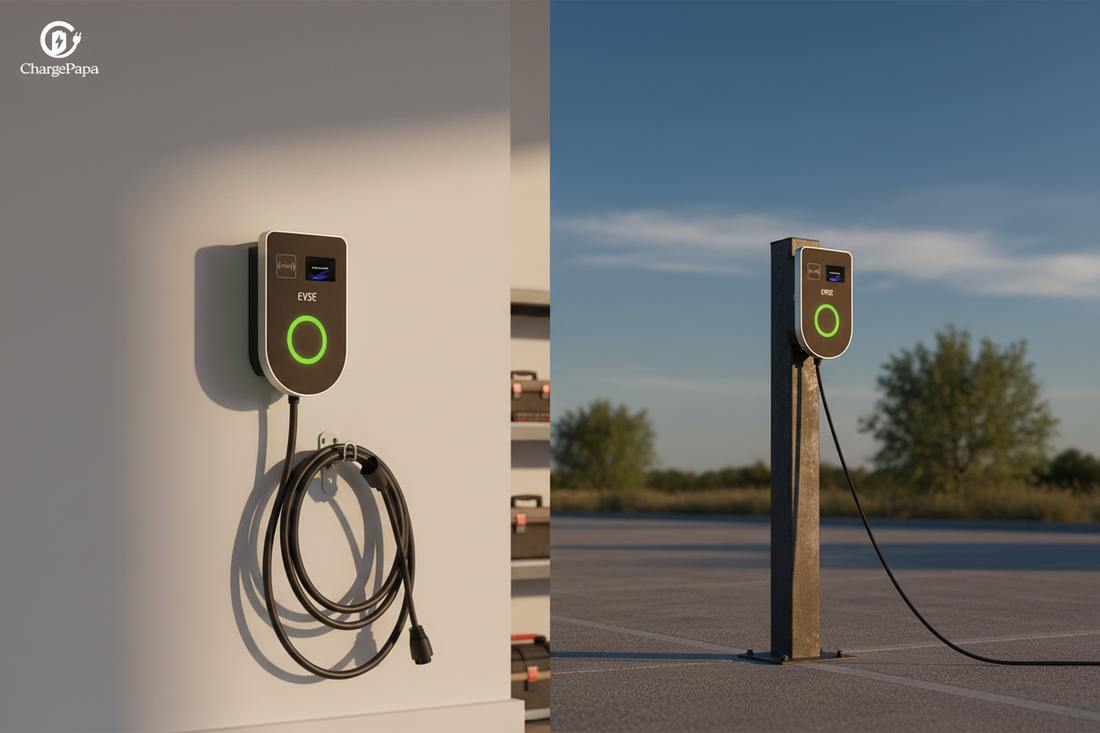

Wall-Mounted vs Pole-Mounted EV Charger: What Changes for Installation?
Share
A wall-mounted EV charger is usually the cleaner choice when the parking space sits next to a garage wall, structural column, or exterior building wall. A pole-mounted EV charger makes more sense when the charging space is away from a wall, shared between parking spots, or installed for a driveway, workplace, Airbnb, or small business lot.
The charger output may be the same, but the installation changes. Wall mounting depends on the building surface. Pole or pedestal mounting depends on ground placement, conduit routing, bollard protection, cable reach, parking layout, and future service access.
ChargePapa Installation GuidanceCore Difference
What Is the Difference Between Wall-Mounted and Pole-Mounted EV Charging?
A wall-mounted EV charger attaches the charging station to a wall or structural vertical surface. The electrical run usually comes through the wall, along the wall, or from nearby conduit. This works best when the vehicle parks close to a garage, carport, building exterior, or parking structure column.
A pole-mounted charger uses a pedestal, post, or ground-mounted support to place the charger where the vehicle parks. This is typically used when there is no convenient wall next to the stall, when one charger needs to serve more than one parking orientation, or when the charger is installed in an open lot.
| Installation type | Best fit | What changes |
|---|---|---|
| Wall-mounted | Garage, carport, building exterior, parking column | Mounting surface, wall conduit, shorter cable path |
| Pole-mounted / pedestal | Driveway, open parking, workplace, Airbnb, small business | Ground support, trenching/conduit, placement, impact protection |
Wall Mounting
When Should I Choose a Wall-Mounted EV Charger?
Choose wall-mounted installation when the parking space is already next to a usable surface. For a private garage, wall mounting usually keeps the charger off the floor, protects the cable from vehicle tires, and gives the electrician a shorter path from panel to charger.
This works best for a homeowner who charges in the same place every night, a small office with parking beside the building, or a covered garage where the wall location lines up with the vehicle charge port.
- Is the wall structurally suitable?
- Can the cable reach the vehicle inlet without strain?
- Is the wall protected from vehicle impact?
- Is outdoor exposure acceptable for the enclosure rating?
- Is there room for service access after installation?
- Charger and cable need a secure mounting surface
- Port location differs by vehicle model
- Garages and parking columns still need clearance
- Enclosure rating and cable routing matter outdoors
- Unit should remain reachable after installation
Pole Mounting
When Should I Choose a Pole-Mounted or Pedestal EV Charger?
Choose pole-mounted installation when the parking spot is not next to a usable wall, or when the charger needs to sit between spaces. This is common for open driveways, shared parking, short-term rental properties, workplaces, small hotels, and employee/customer lots.
The tradeoff is infrastructure. A pedestal setup may require trenching, underground conduit, a concrete base, bollards or wheel stops, and more planning around snow, drainage, landscaping, and vehicle impact.
- Where will conduit run?
- Does the post need impact protection?
- Can one charger serve two stall orientations?
- Is the charger visible to drivers?
- Can service reach the unit later?
- Open-lot installs often need trenching or surface raceway
- Shared parking needs bollards, wheel stops, or setback
- Placement can reduce cable strain
- Visibility reduces blocked access and cable misuse
- Outdoor pedestals need maintenance access
Power Output
Does Charger Power Change Between Wall and Pole Mounting?
No. Mounting style does not change the charger output by itself. A 32A, 40A, or 48A J1772 Level 2 station remains an AC Level 2 charger whether it is wall-mounted or pedestal-mounted. What changes is the installation path.
| Output choice | Approx. power at 240V | Listed breaker path | Mounting note |
|---|---|---|---|
| 32A | 7.6kW | 40A dedicated breaker | Common for private garage or lower-demand shared use |
| 40A | 9.6kW | 50A dedicated breaker | Strong middle ground for home-office and small business |
| 48A | 11.5kW | 60A dedicated breaker | Higher-turnover use when the site and vehicle support it |
ChargePapa Type 1 Lineup
Which ChargePapa Type 1 Chargers Support Wall or Pole Mounting?
Placement Planning
How Do I Decide Placement Before Calling an Electrician?
Start with the parking behavior, not the charger. Park the vehicle the way it will be parked every day, then locate the charge port. Some EVs have front-left ports, some rear-side ports, and some ports that make cable routing awkward if the charger is placed only for a different vehicle.
| Planning check | Wall-mounted install | Pole-mounted install |
|---|---|---|
| Vehicle charge-port location | Must align with wall side | Can be placed closer to port or between spaces |
| Cable reach | Usually shorter and tidier | More flexible, but cable management matters |
| Electrical path | Often shorter from panel or wall conduit | May require trenching or longer conduit |
| Protection | Wall or column may help | Often needs bollards, setback, or wheel stops |
| Future access | Easy in garages | Must remain reachable in parking lot layout |
By Site Type
What Changes for Garage, Airbnb, Workplace, or Small Business Installs?
For a private garage, wall mounting is often the cleanest setup. The driver parks the same way every night, the cable can hang in one place, and the charger does not need public-facing access control unless the garage is shared.
For an Airbnb or guest property, placement matters more because guests arrive with different EVs and different charge-port locations. A pole-mounted charger can work better if the parking area is open or if the charger needs to be visible and reachable without entering a garage.
For a small office or business, the decision often depends on access control and turnover. If customers or visitors use it, a pedestal location may make the charger easier to find, easier to protect, and easier to manage.
| Site | Better first option | Why |
|---|---|---|
| Private garage | Wall-mounted | Shorter cable path, predictable parking, cleaner storage |
| Driveway with no side wall | Pole-mounted | Charger can sit closer to the parking position |
| Airbnb / short-term rental | Depends on parking layout | Guest vehicles vary; visibility and cable reach matter |
| Small office | Wall or pole | Wall if near building, pole if serving open spaces |
| Shared parking / HOA | Pole-mounted often stronger | Placement, access control, and serviceability matter |
What Not to Decide Alone
What Should Not Be Decided by the Charger Alone?
Do not decide mounting style only from a product photo. A charger that looks right on a wall may be wrong if the vehicle parks too far away. A pedestal that looks flexible may be unnecessary if a garage wall already gives a clean, protected cable path.
Also do not treat AC Level 2 placement as a DC fast-charging problem. J1772 / Type 1 wallboxes are AC charging equipment. They are not CCS1 DC fast chargers, NACS DC stations, or Supercharger substitutes. If a Tesla or native-NACS vehicle uses a J1772 wallbox, it needs a properly rated J1772-to-NACS AC adapter such as the ChargePapa Tesla-Link J1772 to NACS Adapter Ultra.
Common Questions
FAQ
No. Mounting style does not determine power. A wall-mounted and pole-mounted Level 2 charger can have the same 32A, 40A, or 48A output. Power depends on charger rating, circuit capacity, breaker sizing, configuration, and the vehicle onboard charger.
Usually, yes, if the vehicle parks near a suitable wall and the cable reaches without strain. Wall mounting keeps the charger off the floor and can reduce conduit length. The electrician still needs to confirm panel capacity, dedicated circuit requirements, local code, and the final mounting surface.
Pedestal or pole mounting is worth considering when the parking space is away from a wall, when one charger must serve an open driveway or shared parking area, or when visibility and cable reach matter. It may add site work such as trenching, conduit, a base, and impact protection.
The ChargePapa MRS-AJ catalog lists IP54 protection and operation from -30°C to +50°C. It also lists wall-mount / pedestal optional mounting. Outdoor installation still depends on mounting location, drainage, cable routing, impact protection, and local electrical code. Use a licensed electrician.
Not necessarily for AC Level 2 charging. A Tesla or native-NACS vehicle can use a J1772 wallbox with a properly rated J1772-to-NACS AC adapter. That is separate from DC fast charging and Supercharger access. Match the adapter and wallbox to AC charging only.
