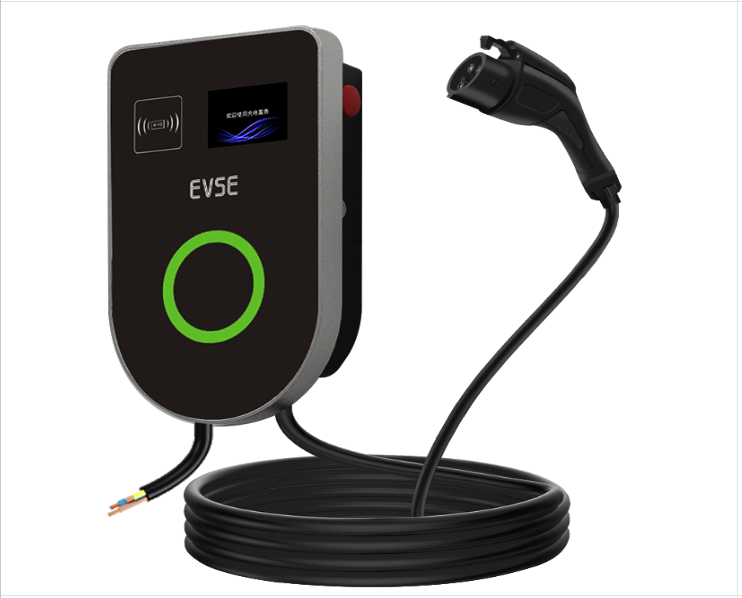

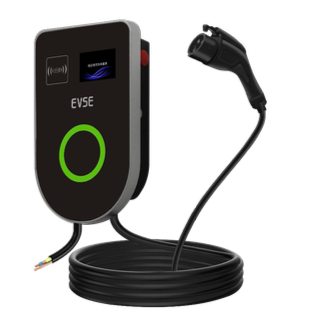

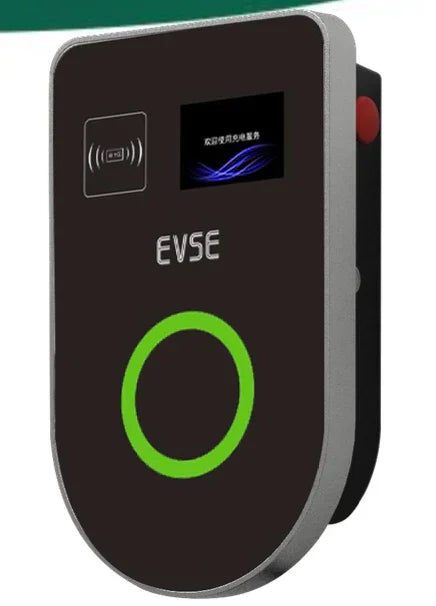

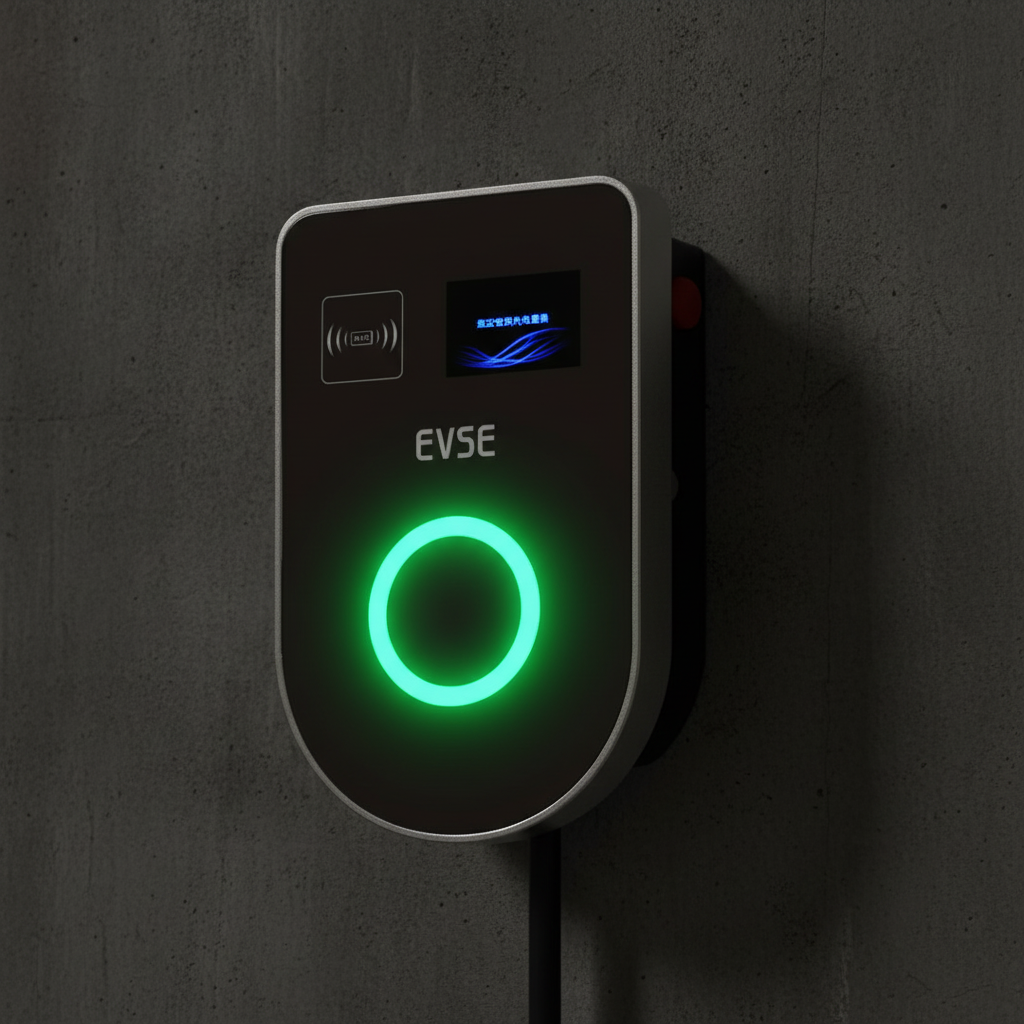

MRS-AU 7.6KW 9.6KW 11.5KW TYPE 1 Wall/Pole-mounted AC Charging Station (Home/Residential) premium version

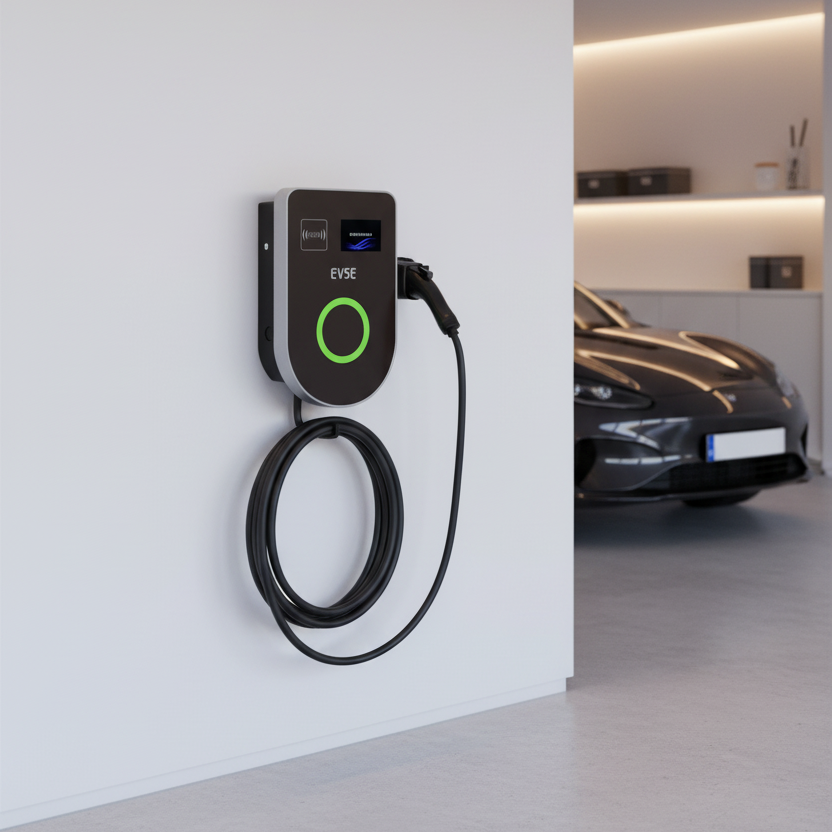

Wall-mounted or pedestal-mounted, U-type design

Common Features (All Models)

-Installation: Wall-mounted or pedestal-mounted (compatible with stand installation kit)

-Standby Power: ≤3W (low energy consumption)

-Indicator: Three-color LED charging status light

-Display: Numeric screen showing real-time charging data

-Enclosure Materials:

-Gun: PC9330

-Control box: PC + ABS

-Ingress Protection: IP54 (indoor/outdoor use)

-Operating Conditions:

-Humidity: 5–95% non-condensing

-Temperature: –30°C ~ +50°C

-Altitude: <2000m

-Cooling: Natural air cooling

-Standards & Certifications: SAE J1772, UL94 V0, FCC, UL

-Interface Options: LED indicator light, optional 4.3" display, APP

-Communication: 4G, WiFi, 4G+WiFi, OCPP 1.6 (optional)

-Safety Protection: Under-voltage, over-voltage, overload, over-current, over-temperature, leakage, grounding, lightning, flame-retardant

-Wiring: Bottom-in / bottom-out

-Package: 460 × 300 × 250 mm, ~5.7–7.9 kg depending on model

-Color Options: Black B / Champagne Gold G / Silver A (from product sheet)

🔹 MRS-AU-07032

-Max Power: 7.6 kW

-Rated Output Current: 32A

-Input Voltage: 85–265V AC, 50/60Hz

-Dimensions: Gun 220 × 65 × 50 mm / Box 365 × 225 × 100 mm

-Cable Spec: 10 AWG / 3C + 18 AWG

-Weight: ~4.7 kg

🔹 MRS-AU-09040

-Max Power: 9.6 kW

-Rated Output Current: 40A

-Input Voltage: 85–265V AC, 50/60Hz

-Dimensions: Box 365 × 225 × 100 mm

-Cable Spec: 9 AWG / 2C + 10 AWG + 18 AWG

-Weight: ~6.6 kg

🔹 MRS-AU-11048

-Max Power: 11.5 kW

-Rated Output Current: 48A

-Input Voltage: 85–265V AC, 50/60Hz

-Dimensions: Box 365 × 225 × 100 mm

-Cable Spec: 8 AWG × 2C + 10 AWG + 18 AWG

-Weight: ~6.6 kg
