ChargePapa The Fleet Charger | MRS-AJ Dual-Gun Commercial Level 2 EV Charging Station (Type 1, 14kW–19kW)
Couldn't load pickup availability
Two cars. One station.
Both charged by morning.

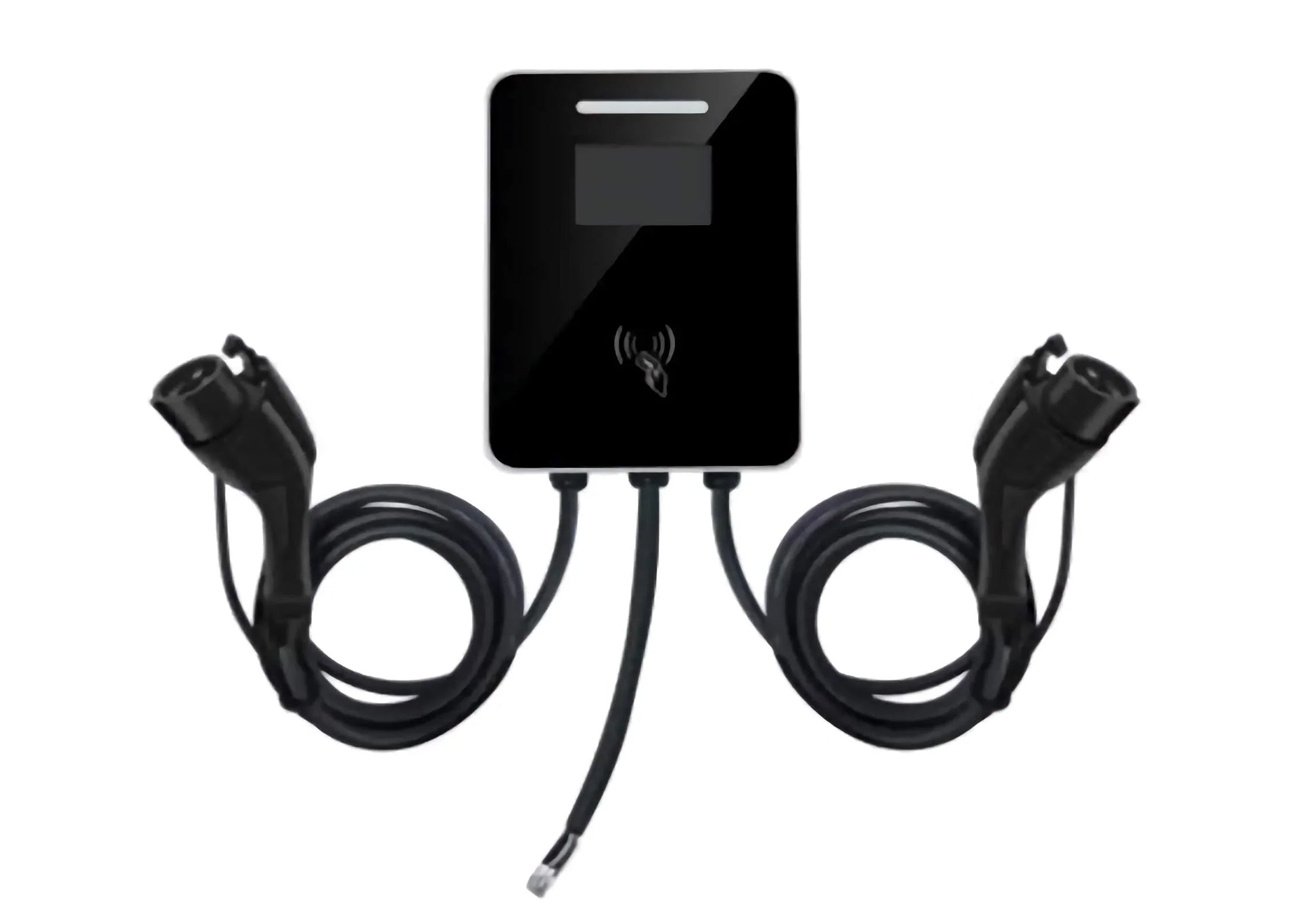

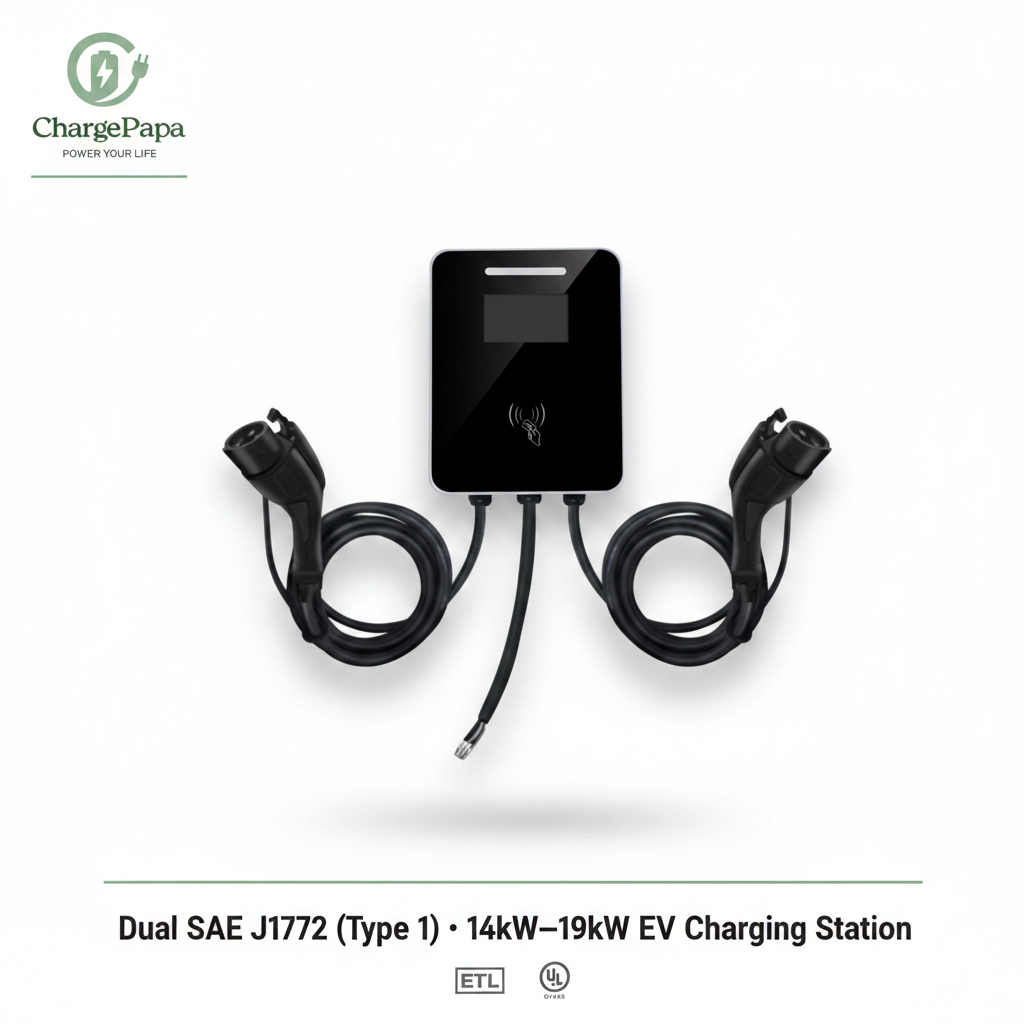

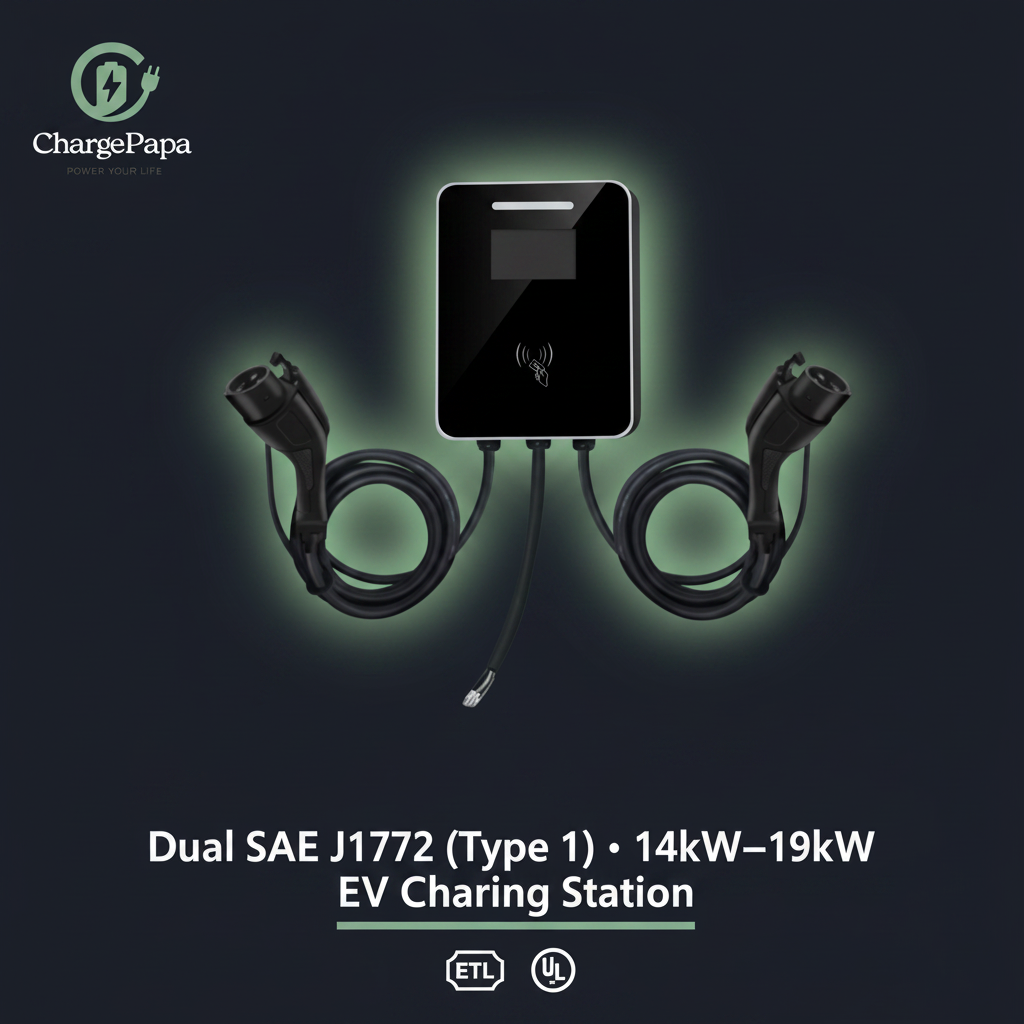

The ChargePapa Fleet Charger is built for properties that can't afford a queue. Two independent SAE J1772 (Type 1) guns, each delivering full power simultaneously — up to 19kW total. IP54-rated PC9330 + ABS enclosure, RFID session control, and optional OCPP 1.6 connectivity make this the right call for apartment lots, workplace parking, and hospitality properties that need managed, reliable charging without a full commercial buildout.

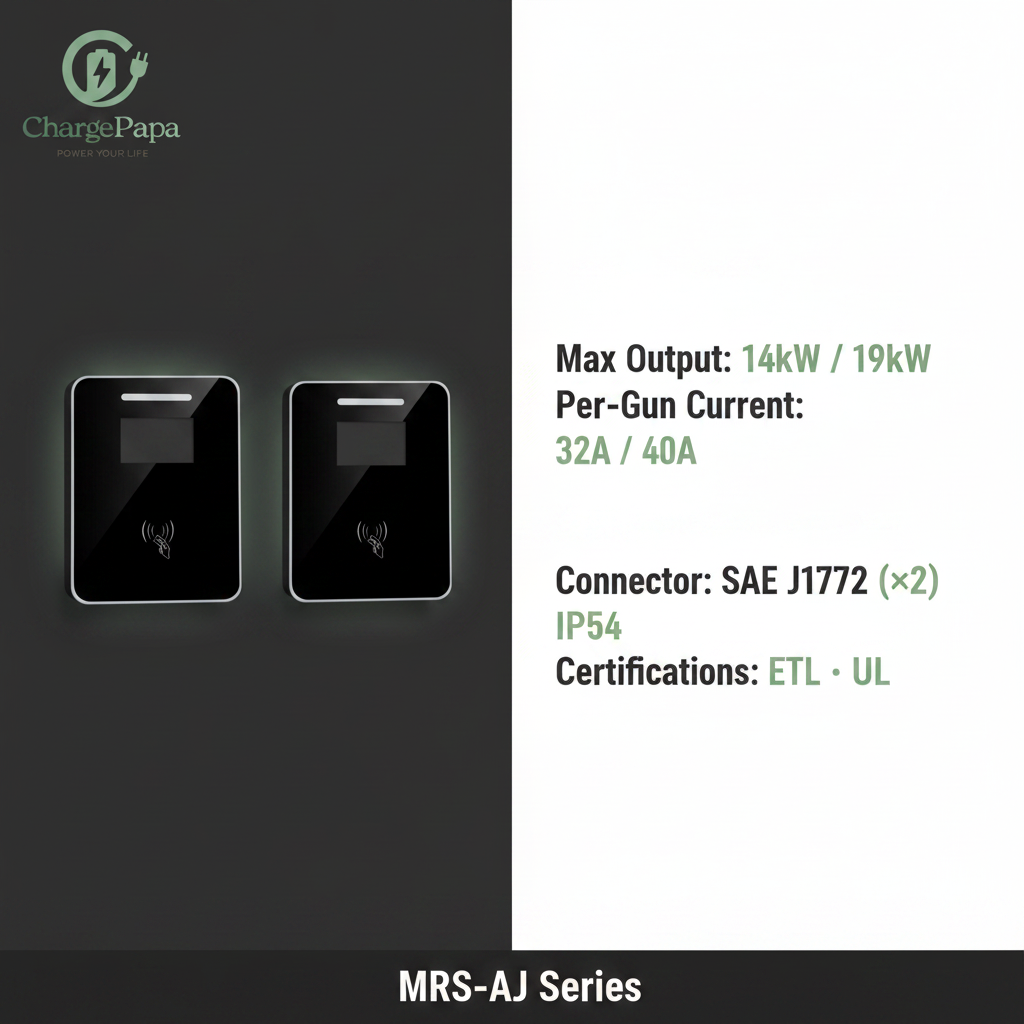

MRS-AJ Series — Choose Your Configuration
| Spec | MRS-AJ-14KW | MRS-AJ-19KW |
|---|---|---|
| Max Power | 14kW | 19kW |
| Per-Gun Current | 32A × 2 | 40A × 2 |
| Cable Spec | 10AWG/3C + 18AWG | 9AWG/2C + 10AWG + 18AWG |
| Circuit Requirement | Dedicated 80A | Dedicated 100A |
| Input Connection | Hardwired only | Hardwired only |
| Best For | Residential / Small Fleet | High-Throughput Fleet |
| Price | $649.99 | $709.99 |
🚗 Charging Your Tesla with the Fleet Charger?
This station uses SAE J1772 (Type 1) connectors. Tesla vehicles use the NACS (SAE J3400) port. To charge your Tesla here, you'll need one of the following ChargePapa adapters:
Full Specs — For the Detail-Oriented
| Parameter | MRS-AJ-14KW | MRS-AJ-19KW |
|---|---|---|
| Connector Standard | 2× SAE J1772 (Type 1) | |
| Input Connection | Hardwired only — no plug. Licensed electrician required. | |
| Max Power Output | 14kW | 19kW |
| Rated Current (per gun) | 32A | 40A |
| Circuit Breaker Required | Dedicated 80A | Dedicated 100A |
| Input Voltage | 85V–265V AC | |
| Output Voltage | 85V–265V AC | |
| Frequency | 50Hz / 60Hz | |
| Phase Type | Single-phase (Split Phase) | |
| Standby Power | 3W | |
| Cable Length | 5m × 2 (16.4ft) — Custom length available | |
| Cable Spec | 10AWG/3C + 18AWG | 9AWG/2C + 10AWG + 18AWG |
| Enclosure Material | PC9330 (gun) + PC + ABS (control box) | |
| Dimensions (H×W×D) | 315 × 245 × 105mm | |
| Weight | ~5.5kg | ~9.6kg |
| Mounting | Wall-mount / Pedestal (optional) | |
| Cooling Method | Natural convection | |
| IP Rating | IP54 | |
| Working Temperature | -30°C to +50°C · Humidity 5–95% · Altitude ≤2000m | |
| Flame Retardancy | UL94 V0 | |
| HMI | LED indicator + 4.3" LCD display per gun | |
| Access Control | Plug-in / Bluetooth / RFID card / APP | |
| Connectivity | WiFi | |
| Leakage Protection (RCD) | Type A · 30mA · CCID20 | |
| Safety Protection | Under/over-voltage · Over-current · Over-load · Over-temp · Leakage · Ground fault · Lightning surge · Flame retardant | |
| Packaging (L×W×H) | 460 × 330 × 250mm | |
| Certifications | ETL (Intertek) · UL (Underwriters Laboratories) | |
Vehicle Compatibility
Running a mixed-brand lot — Bolts, LEAFs, Mach-Es, and the occasional Rivian? The Fleet Charger handles all of them without a second thought. Every SAE J1772 (Type 1) vehicle in North America plugs straight in. Tesla owners need the adapter listed above.
| Make | Model | Year | Port Type |
|---|---|---|---|
| Chevrolet | Bolt EV / Bolt EUV | 2017–2023 | SAE J1772 (Type 1) |
| Nissan | LEAF | 2011–2025 | SAE J1772 (Type 1) |
| Ford | Mustang Mach-E | 2021–2024 | SAE J1772 (Type 1) |
| Ford | F-150 Lightning | 2022–2024 | SAE J1772 (Type 1) |
| Rivian | R1T / R1S | 2022–2024 | SAE J1772 (Type 1) |
| Hyundai | IONIQ 5 / IONIQ 6 | 2022–2024 | SAE J1772 (Type 1) |
| Kia | EV6 / EV9 | 2022–2024 | SAE J1772 (Type 1) |
| Volkswagen | ID.4 | 2021–2024 | SAE J1772 (Type 1) |
| BMW | i4 / iX / i7 | 2022+ | SAE J1772 (Type 1) |
| Tesla | Model S / 3 / X / Y / Cybertruck | All years | NACS (SAE J3400) — Adapter required |
⚠️ Compatibility data based on manufacturer specifications. Tesla vehicles require the ChargePapa Tesla→J1772 adapter listed above. Ford, Rivian, Hyundai, Kia, and VW models from 2025+ have transitioned to NACS (SAE J3400) and also require an adapter.
✅ Standards & Certifications
Frequently Asked Questions
Q: Is the ChargePapa MRS-AJ dual-gun charger ETL and UL certified?
A: Yes. The ChargePapa MRS-AJ dual-gun SAE J1772 charger carries both ETL (Intertek) and UL (Underwriters Laboratories) certifications for North American product safety. The housing also meets UL94 V0 flame retardancy standards.
Q: Can both guns charge at full power simultaneously?
A: Yes. The MRS-AJ-14KW delivers 32A per gun simultaneously (7kW each), and the MRS-AJ-19KW delivers 40A per gun simultaneously (9.5kW each). Each gun operates independently with its own LCD display and RFID session control.
Q: Does the MRS-AJ require hardwired installation?
A: Yes — both models require hardwired installation by a licensed electrician. There is no plug-in option. The MRS-AJ-14KW requires a dedicated 80A circuit; the MRS-AJ-19KW requires a dedicated 100A circuit. No standard North American outlet supports these current levels.
Q: Is the MRS-AJ compatible with Tesla vehicles?
A: The MRS-AJ uses SAE J1772 (Type 1) connectors. Tesla vehicles use the NACS (SAE J3400) port. A ChargePapa Tesla→J1772 adapter is required — see the adapter module above.
Q: What circuit breaker is required for the MRS-AJ-19KW?
A: The MRS-AJ-19KW (2×40A SAE J1772) requires a dedicated 100A hardwired circuit. The MRS-AJ-14KW (2×32A) requires a dedicated 80A circuit. Professional installation by a licensed electrician is mandatory.
Q: Does the MRS-AJ support RFID and Bluetooth access control?
A: Yes. The ChargePapa MRS-AJ supports multiple access methods: RFID card swipe, Bluetooth app pairing, plug-in (free access), and APP-based session management via WiFi connectivity.
Q: Can the MRS-AJ be installed outdoors?
A: Yes. The ChargePapa MRS-AJ is rated IP54, providing protection against dust and water splashing from any direction. It operates from -30°C to +50°C, making it suitable for outdoor parking structures across most North American climates.
⚠️ Critical Usage Note
- Professional electrical installation by a licensed electrician is mandatory. Do not self-install.
- Do not connect to a standard household outlet. A dedicated hardwired circuit is required (80A for 14kW model / 100A for 19kW model).
- Ensure your electrical panel has sufficient capacity before installation. A load calculation is required.
- Do not use extension cords or adapters on the input side of this unit.
- Inspect cables and connectors regularly. Discontinue use if damage, fraying, or overheating is detected.
- This unit is designed for AC Level 2 charging only. It does not support DC fast charging.
