ChargePapa MRS-EJ | Commercial Level 2 EV Charging Station (Type 2, 7kW–22kW)
Couldn't load pickup availability
European-Grade Steel. TÜV & CB Certified.
Up to 22kW Three-Phase Power.

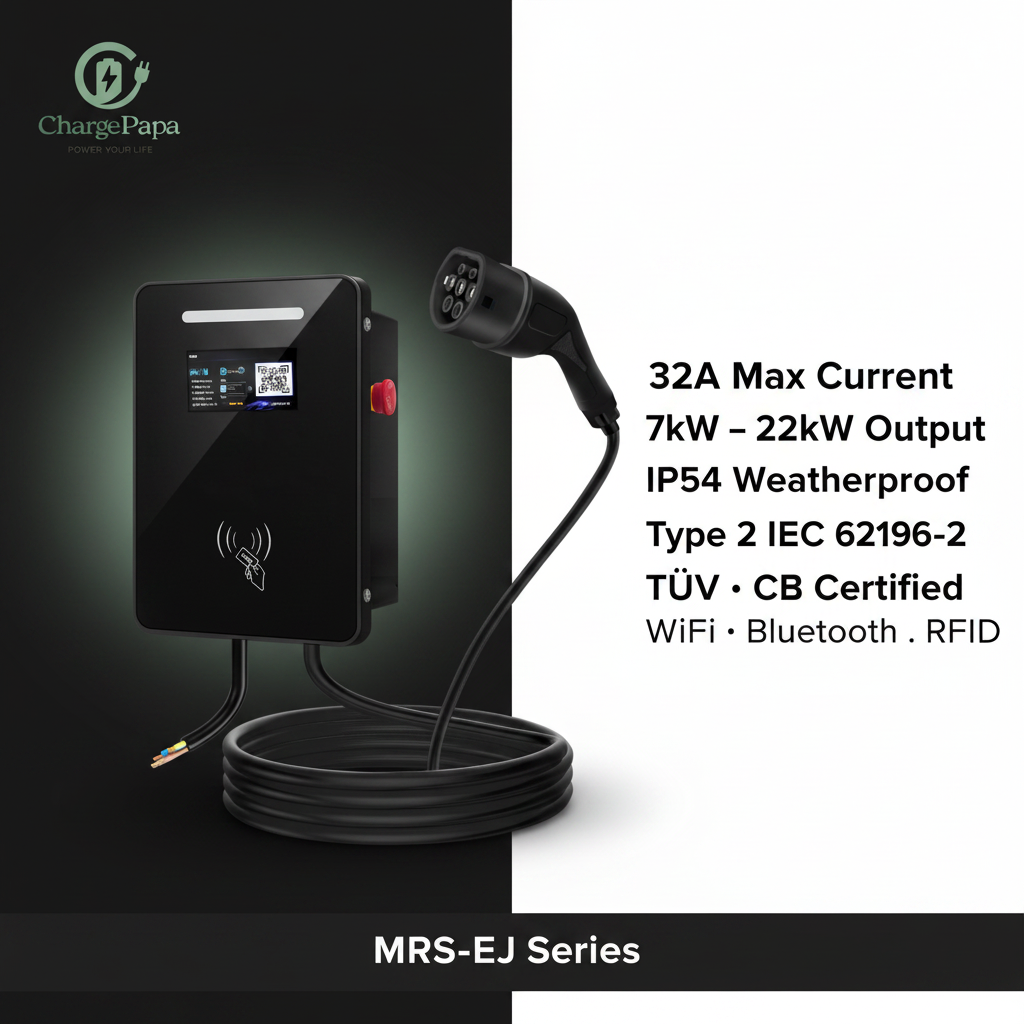

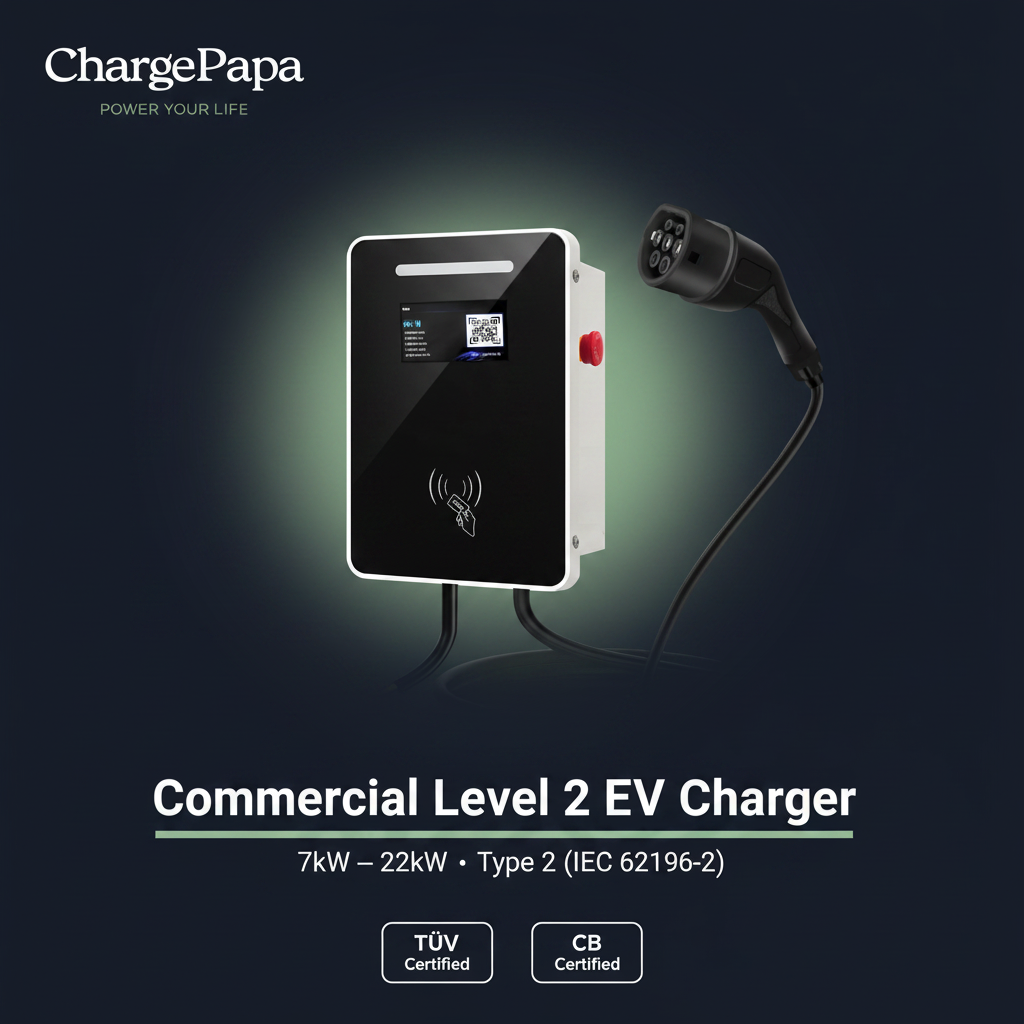

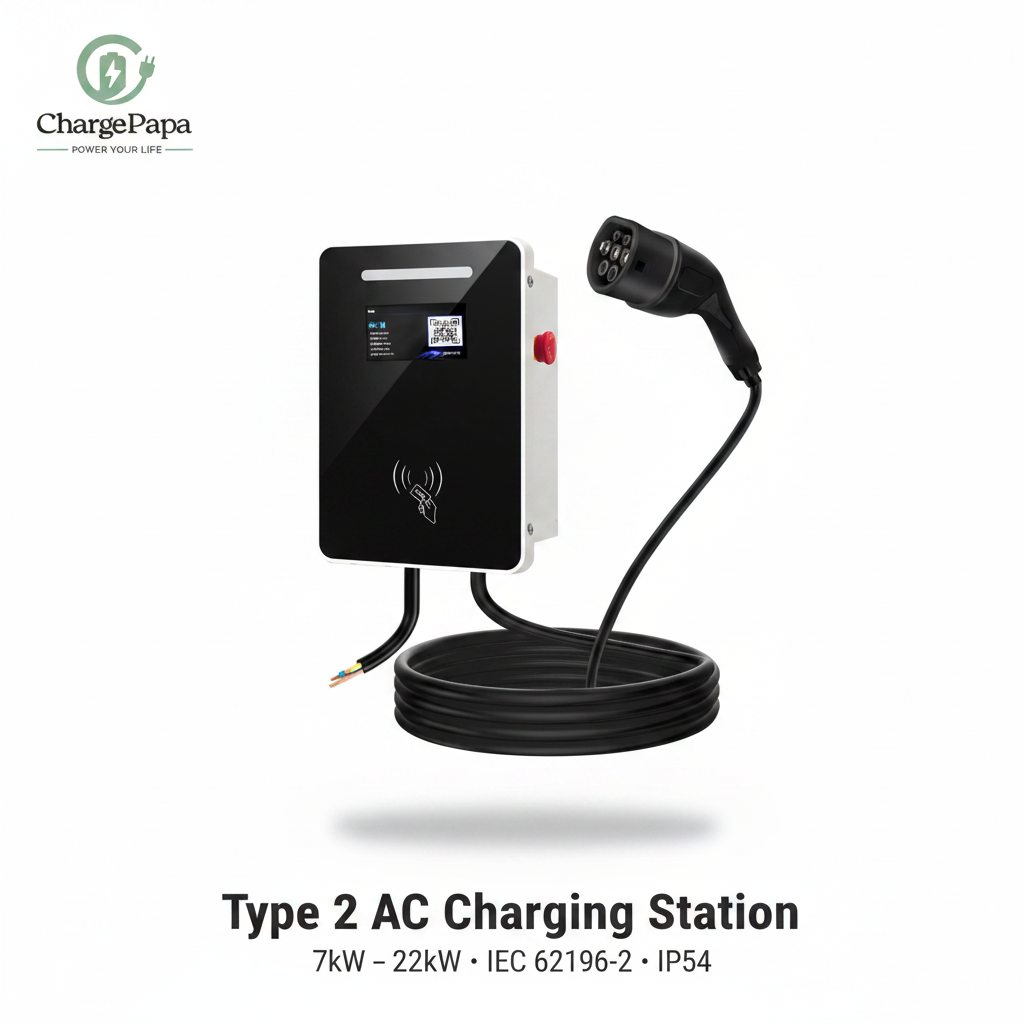

The ChargePapa MRS-EJ is the European-standard counterpart to the MRS-AJ, purpose-built for Type 2 (IEC 62196-2) infrastructure across Europe and Australia. Housed in a heavy-duty sheet metal enclosure with tempered glass panel rated IP54, it supports single-phase 7kW and three-phase 11kW–22kW configurations. Certified to TÜV and CB standards, compliant with LVD (IEC 61851-1) and EMC (IEC 61851-21-2). Equipped with RFID access control, a 4.3" LCD display, WiFi (APP), Bluetooth, and dual-standard leakage protection (Type A 30mA + Type B AC 30mA / DC 6mA).
MRS-EJ Series — Choose Your Power Level
| Spec | MRS-EJ-07032 | MRS-EJ-11016 | MRS-EJ-22032 |
|---|---|---|---|
| Max Power | 7kW | 11kW | 22kW |
| Rated Current | 32A | 16A (3-phase) | 32A (3-phase) |
| Phase | Single-phase | Three-phase | Three-phase |
| Input Voltage | 85V–265V AC | 380V ±10% | 380V ±10% |
| Best For | Home / Single-phase sites | Workplace / Apartment | High-Throughput Commercial |
Engineering Data Sheet
| Parameter | MRS-EJ-07032 | MRS-EJ-11016 | MRS-EJ-22032 |
|---|---|---|---|
| Connector Standard | Type 2 (IEC 62196-2) | ||
| Max Power Output | 7kW | 11kW | 22kW |
| Rated Current | 32A | 16A per phase | 32A per phase |
| Phase Type | Single-phase | Three-phase | Three-phase |
| Input Voltage | 85V–265V AC | 380V ±10% | 380V ±10% |
| Output Voltage | 85V–265V AC | 380V ±10% | 380V ±10% |
| Frequency | 50Hz / 60Hz | ||
| Cable Material | TPU flame-retardant (premium grade) | ||
| Cable Length | 5m — Custom length available | ||
| Gun Head Material | PC flame-retardant | ||
| Enclosure Material | Sheet metal + tempered glass panel | ||
| Enclosure Dimensions | 315 × 245 × 105mm (H×W×D) | ||
| IP Rating | IP54 | ||
| Flame Retardancy | UL94 V0 | ||
| Working Temperature | -30°C to +50°C | ||
| Humidity | 5%–95% (non-condensing) | ||
| Altitude | <2000m | ||
| HMI | 4.3" LCD display + LED charging status indicator | ||
| Access Control | Plug-in / RFID card / Bluetooth / APP | ||
| Connectivity | WiFi · Bluetooth | ||
| Leakage Protection | Type A · 30mA (AC) + Type B · AC 30mA / DC 6mA | ||
| Safety Protection | Under/over-voltage · Over-current · Over-load · Over-temp · Leakage · Ground fault · Lightning surge · Flame retardant | ||
| Mounting | Wall-mount / Pedestal (optional) | ||
| Certifications | TÜV · CB · LVD (IEC 61851-1) · EMC (IEC 61851-21-2) | ||
Vehicle Compatibility
The MRS-EJ is compatible with all Type 2 (IEC 62196-2) port vehicles — the universal AC charging standard across Europe and Australia. The 22kW three-phase model is particularly suited to vehicles with high-capacity onboard chargers such as the Renault Zoe (22kW AC) and Mercedes EQS (22kW AC). Tesla EU-spec vehicles (Model 3 / Model Y) use a Type 2 inlet natively and do not require an adapter.
| Make | Model | Year | Port Type |
|---|---|---|---|
| Volkswagen | ID.3 / ID.4 / ID.7 | 2020+ | Type 2 (IEC 62196-2) |
| Renault | Zoe / Megane E-Tech | 2013+ | Type 2 (IEC 62196-2) |
| BMW | i3 / i4 / iX / i7 | 2013+ | Type 2 (IEC 62196-2) |
| Mercedes-Benz | EQA / EQB / EQC / EQS / EQE | 2019+ | Type 2 (IEC 62196-2) |
| Audi | e-tron / Q4 e-tron / A6 e-tron | 2019+ | Type 2 (IEC 62196-2) |
| Hyundai | IONIQ 5 / IONIQ 6 | 2021+ | Type 2 (IEC 62196-2) |
| Kia | EV6 / EV9 | 2021+ | Type 2 (IEC 62196-2) |
| Peugeot | e-208 / e-2008 / e-308 | 2019+ | Type 2 (IEC 62196-2) |
| Tesla | Model 3 / Model Y (EU spec) | 2019+ | Type 2 (IEC 62196-2) — EU market |
| Volvo | XC40 Recharge / C40 / EX30 / EX90 | 2020+ | Type 2 (IEC 62196-2) |
| Stellantis (Fiat / Opel / Citroën) | 500e / Mokka-e / ë-C4 | 2020+ | Type 2 (IEC 62196-2) |
⚠️ Compatibility based on manufacturer specifications for European-market vehicles. Actual AC charging speed is limited by the vehicle's onboard charger capacity. Tesla EU-spec vehicles use Type 2 natively and do not require an adapter.
🏠 Who Is the MRS-EJ Built For?
For the homeowner in Munich or Amsterdam with a single-phase 230V residential connection and a Volkswagen ID.4 or BMW i4, the MRS-EJ-07032 delivers a full 32A Type 2 charge — adding approximately 40–50km of range per hour. The wide-voltage input (85V–265V) ensures stable operation even on sites with fluctuating grid supply.
For apartment blocks and shared parking in Paris, Madrid, or Stockholm where three-phase 380V infrastructure is standard, the MRS-EJ-11016 (11kW / 16A per phase) provides RFID-secured, app-managed charging for residents without requiring a dedicated high-current circuit per bay.
For workplace charging in Frankfurt, Zurich, or Copenhagen where employees drive vehicles with high-capacity onboard chargers such as the Renault Zoe (22kW AC) or Mercedes EQS (22kW AC), the MRS-EJ-22032 delivers the full 22kW three-phase output — cutting a full charge cycle to under 2 hours for compatible vehicles.
For boutique hotels and Airbnb hosts in Oslo, Amsterdam, or Barcelona, the MRS-EJ's RFID access control and Bluetooth app management make it a premium guest amenity that works with virtually every Type 2 EV sold in Europe — without requiring a network subscription or SIM card.
✅ Standards & Certifications
⚠️ Critical Usage Note
- Professional electrical installation by a qualified electrician is mandatory. Do not self-install.
- The MRS-EJ-07032 requires a single-phase dedicated circuit. The MRS-EJ-11016 and MRS-EJ-22032 require a three-phase 380V supply — confirm your site's electrical infrastructure before ordering.
- Do not connect to a standard household socket outlet. A dedicated hardwired circuit is required.
- Ensure your electrical panel has sufficient capacity before installation. A load calculation is required.
- Inspect cable and connector regularly. Discontinue use if damage, fraying, or overheating is detected.
- This unit is designed for AC Level 2 charging only. It does not support DC fast charging.
- Verify regional certification and installation requirements with your local authority before installation.
