Why Your GB/T-to-CCS2 Adapter Fails Every Time — and What Actually Fixes It
We ran a passive GB/T-to-CCS2 adapter against a 100kW DC fast charger thirty times. It failed thirty times. Every single attempt returned the same fault code: communication timeout.
● 0/30 SESSIONS OPENED
● PROTOCOL PROBLEM
● ACTIVE FIX EXISTS

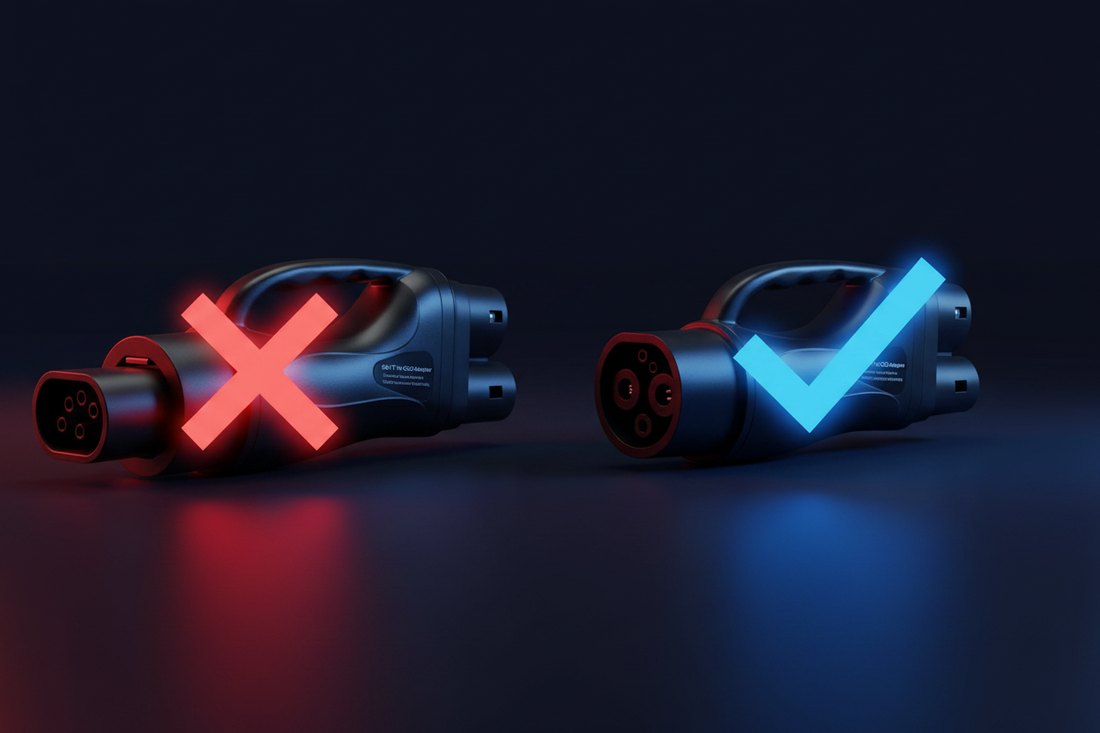

This is not a build quality problem. It is a protocol problem. The pins fit. The electrical connection exists. But DC fast charging requires a two-way digital handshake — and a passive adapter has no processor to complete it.
Why the Pins Fitting Is Not Enough
DC fast charging is not a passive electrical connection. It is a two-way digital handshake. When you plug into a DC fast charger, the charger and vehicle negotiate session parameters — maximum current, voltage ceiling, session ID — before a single amp flows. Only after that handshake completes does high-voltage power transfer begin.
Here is where cross-standard adapters fail at a fundamental level:
Communicate over CAN Bus — ISO 11898. A dedicated two-wire signal. The charger broadcasts session parameters on this wire pair.
Listen for PLC — ISO 15118. Power Line Communication rides the same conductors as the charge current. The vehicle waits for a PLC signal that never arrives.
A passive adapter has no processor. It cannot translate CAN Bus to PLC. The charger broadcasts in one language. The vehicle waits for another. Neither hears what it needs. The session never opens.
What Active Conversion Actually Does
An active adapter carries an embedded processor running firmware that reads incoming CAN frames, translates them in real time, and retransmits in PLC format. The handshake completes. The session opens. Current flows.
The Result
The latency is milliseconds. The difference in outcome is total.
Once the handshake completes and current begins flowing, the processor is idle. Total added session-initiation time: typically under two seconds vs. a native connection.
Quick Reference: Which Combinations Need Active Conversion
| Charger |
Vehicle |
Protocol Match? |
Adapter Needed |
| GB/T (China) |
CCS2 (Europe/AU) |
❌ CAN ≠ PLC |
Active |
| CCS2 (Europe) |
GB/T (China) |
❌ PLC ≠ CAN |
Active |
| NACS (US) |
CCS1 (US) |
✅ PLC = PLC |
Passive OK |
| CCS2 (EU) |
NACS (US) |
✅ PLC = PLC |
Passive OK |
If one side of your connection is GB/T and the other is anything else, you need active conversion. No workaround exists.
