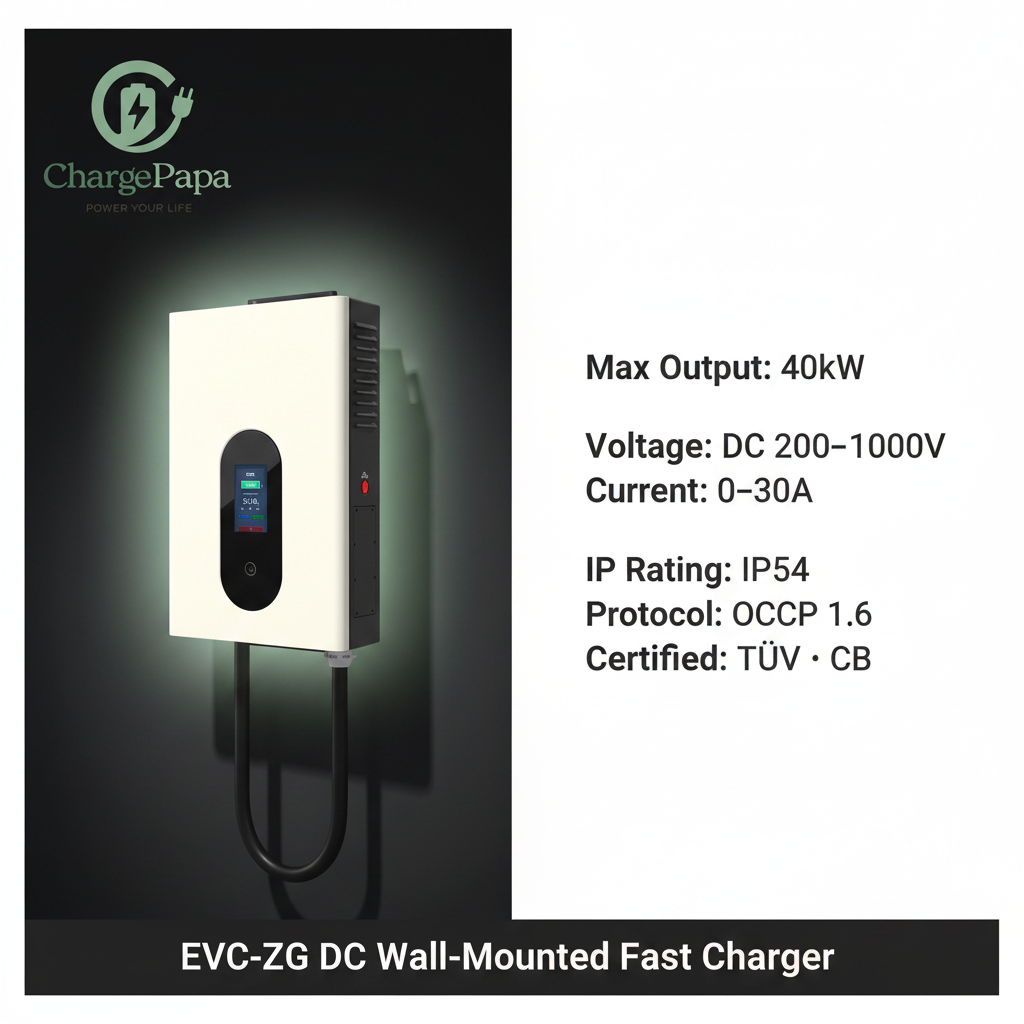

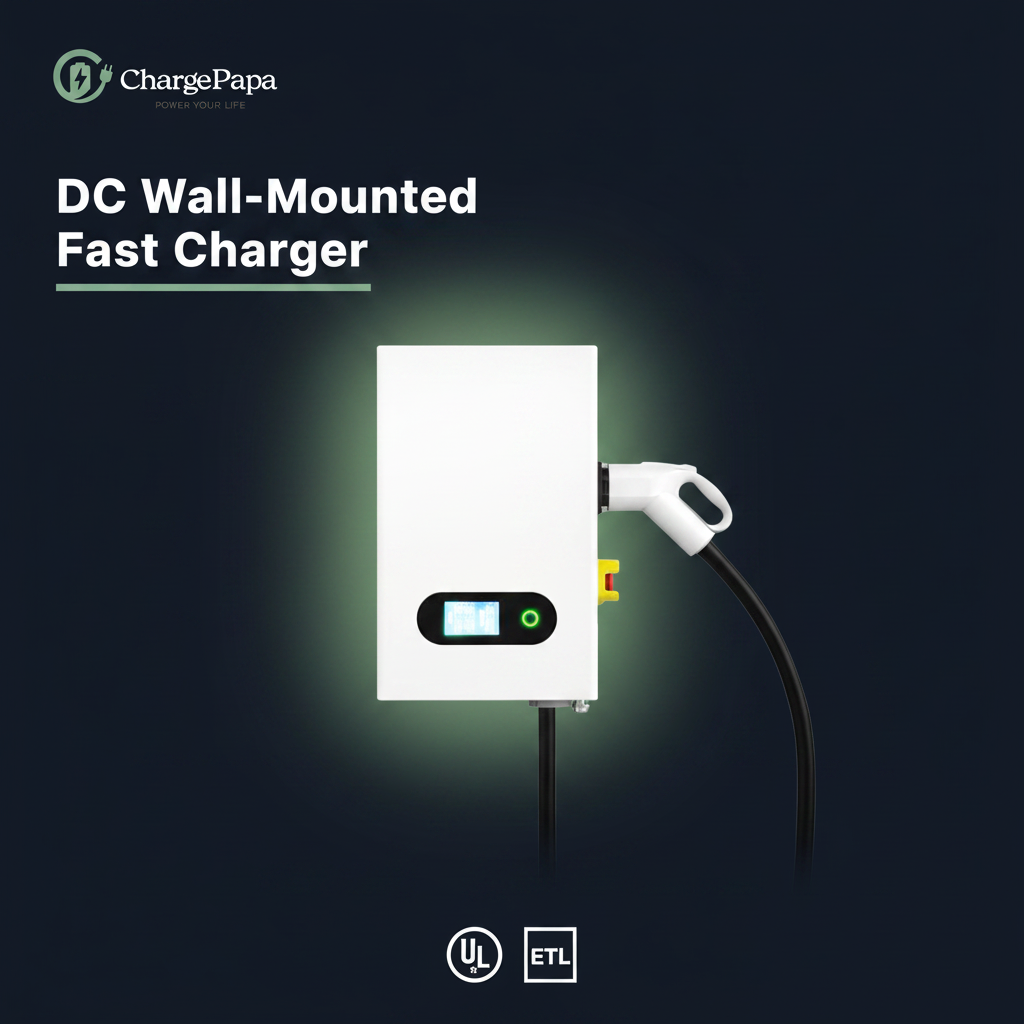

ChargePapa EVC-ZG | DC Wall-Mounted Fast Charger (7kW–40kW)
Couldn't load pickup availability
Commercial DC Fast Charger · Wall-Mounted
A fixed DC charging station for fleets, parking sites, and commercial properties.
7kW–40kW · CCS1 / CCS2 · OCPP 1.6
EVC-ZG is a hardwired wall-mounted DC fast charger for permanent installations. Choose it by facility power first, then by DC connector standard and site throughput target.
Fleet / parking / property sites
CCS1 or CCS2 by variant
7 / 15 / 20 / 30 / 40kW
Hardwired · no input cable
WiFi · Bluetooth · 4G · LAN · OCPP
TÜV & CB certified
Good fit if...
- You need a fixed DC charging point, not a portable charger.
- Your site can support the selected AC input requirement.
- Your vehicles use CCS1 or CCS2 DC fast-charging inlets.
- You need OCPP-based network integration or remote management.
Choose another product if...
- You only need AC Level 1 / Level 2 charging.
- You need a movable DC charger instead of a wall-mounted unit.
- Your site does not have hardwired installation capacity.
- Your vehicle or fleet does not support CCS DC charging.
Choose by facility power first
| Power model | DC output range | Facility input | Input current | DC current | Weight |
|---|---|---|---|---|---|
| EVC-ZG07750A · 7kW | DC 200–750V | AC 220V±15% · single phase | 32A | 0–20A | 15kg |
| EVC-ZG15750A · 15kW | DC 200–750V | AC 380V±15% · three phase | 25A | 0–37A | 36kg |
| EVC-ZG20750A · 20kW | DC 200–750V | AC 380V±15% · three phase | 32A | 0–50A | 36kg |
| EVC-ZG301KA · 30kW | DC 200–1000V | AC 380V±15% · three phase | 46A | 0–100A | 50kg |
| EVC-ZG401KA · 40kW | DC 200–1000V | AC 380V±15% · three phase | 65A | 0–133A | 50kg |
Installation note: EVC-ZG has no input cable. It must be hardwired by a qualified electrician. The 7kW model uses single-phase AC 220V±15%; 15kW–40kW models require three-phase AC 380V±15% industrial power.
Theoretical 20% → 80% DC charge time
This table estimates a 20% → 80% battery window using battery size × 60% ÷ charger power. It is a planning benchmark for site throughput, not a guaranteed vehicle charging time. Vehicle BMS limits, battery temperature, SOC taper, cable rating, and charger configuration can reduce real speed.
| EVC-ZG power | Prius PHEV 13.6kWh | Mach-E SR 73kWh | IONIQ 5 84kWh | Equinox EV 97.4kWh |
|---|---|---|---|---|
| 7kW | ~1.2 hr | ~6.3 hr | ~7.2 hr | ~8.3 hr |
| 15kW | ~0.5 hr | ~2.9 hr | ~3.4 hr | ~3.9 hr |
| 20kW | ~0.4 hr | ~2.2 hr | ~2.5 hr | ~2.9 hr |
| 30kW | ~0.3 hr | ~1.5 hr | ~1.7 hr | ~1.9 hr |
| 40kW | ~0.2 hr | ~1.1 hr | ~1.3 hr | ~1.5 hr |

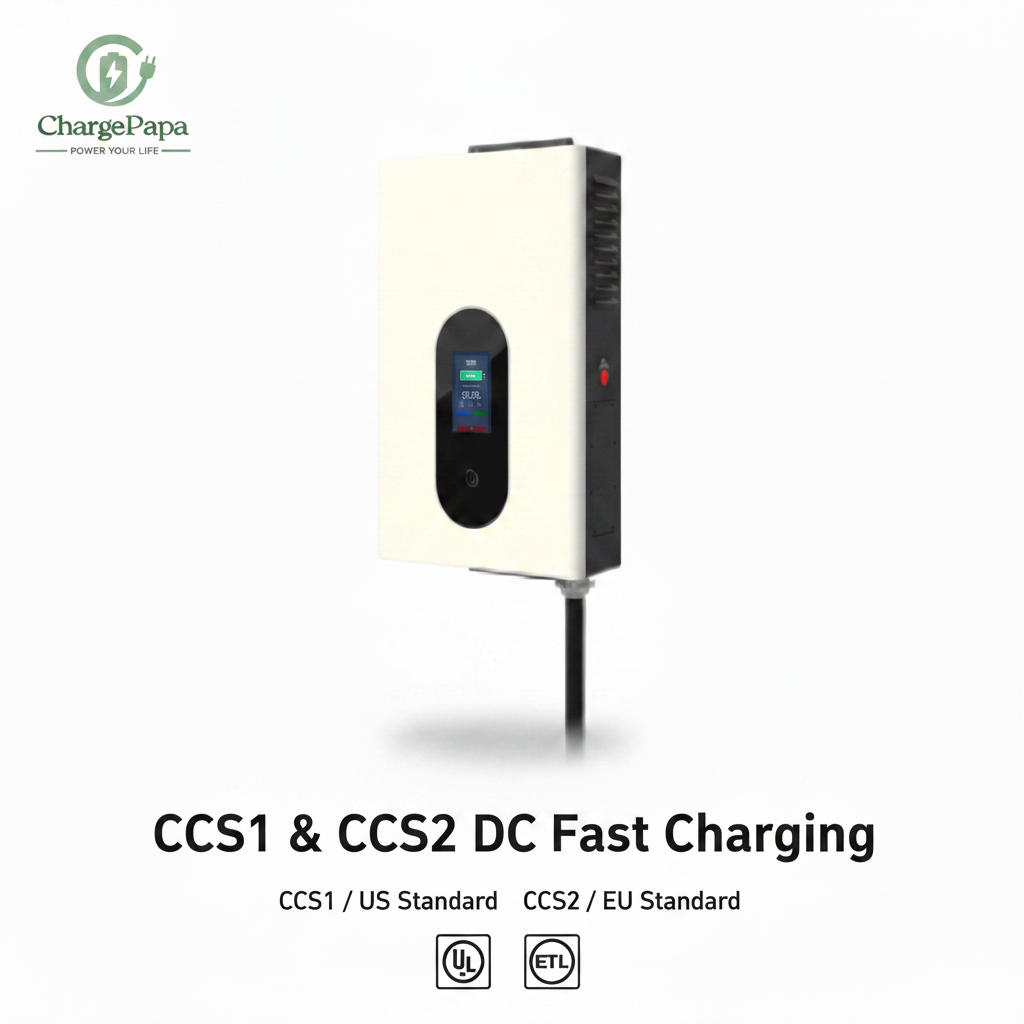

Choose the DC connector
For vehicles with a CCS1 DC fast-charging inlet. Common on many North American non-Tesla EVs before the NACS transition.
For vehicles with a CCS2 / IEC 62196-3 DC fast-charging inlet. Common across European, Australian, and many global-market EVs.
How EVC-ZG compares with SVC-TG
| Model | Install style | Power range | Best use |
|---|---|---|---|
| EVC-ZG | Fixed wall-mounted · hardwired | 7kW–40kW | Permanent commercial / fleet DC charging |
| SVC-TG | Movable DC fast charger | 7kW–20kW | Service bay, workshop, and movable fleet support |
FAQ
No. EVC-ZG is a DC fast charger for compatible CCS DC charging sessions. It is not for AC Level 1 or Level 2 charging.
No. EVC-ZG is a hardwired wall-mounted charger. A qualified electrician must connect it to the facility electrical supply.
No. Real DC charging power depends on the selected model, facility power, vehicle BMS request, battery state of charge, temperature, and charger configuration.
