ChargePapa DIY-Link | J1772 Vehicle Inlet Socket (Type 1 / 50A Max)

ChargePapa DIY-Link | J1772 Vehicle Inlet Socket (Type 1 / 50A Max)

$119.00 USD
$119.00 USD
Sale Sold out
Shipping calculated at checkout.
🛡️ Quality Assurance: Every unit undergoes a rigorous 72-hour high-voltage stress test and thermal calibration before dispatch from our global hub. Safety is our priority; quality is non-negotiable.
✅ CE/TUV Safety Certified
🛡️ 2-Year Replacement Warranty
📦 Free Global Shipping

Build Your Own EV.
Standard J1772 Inlet.

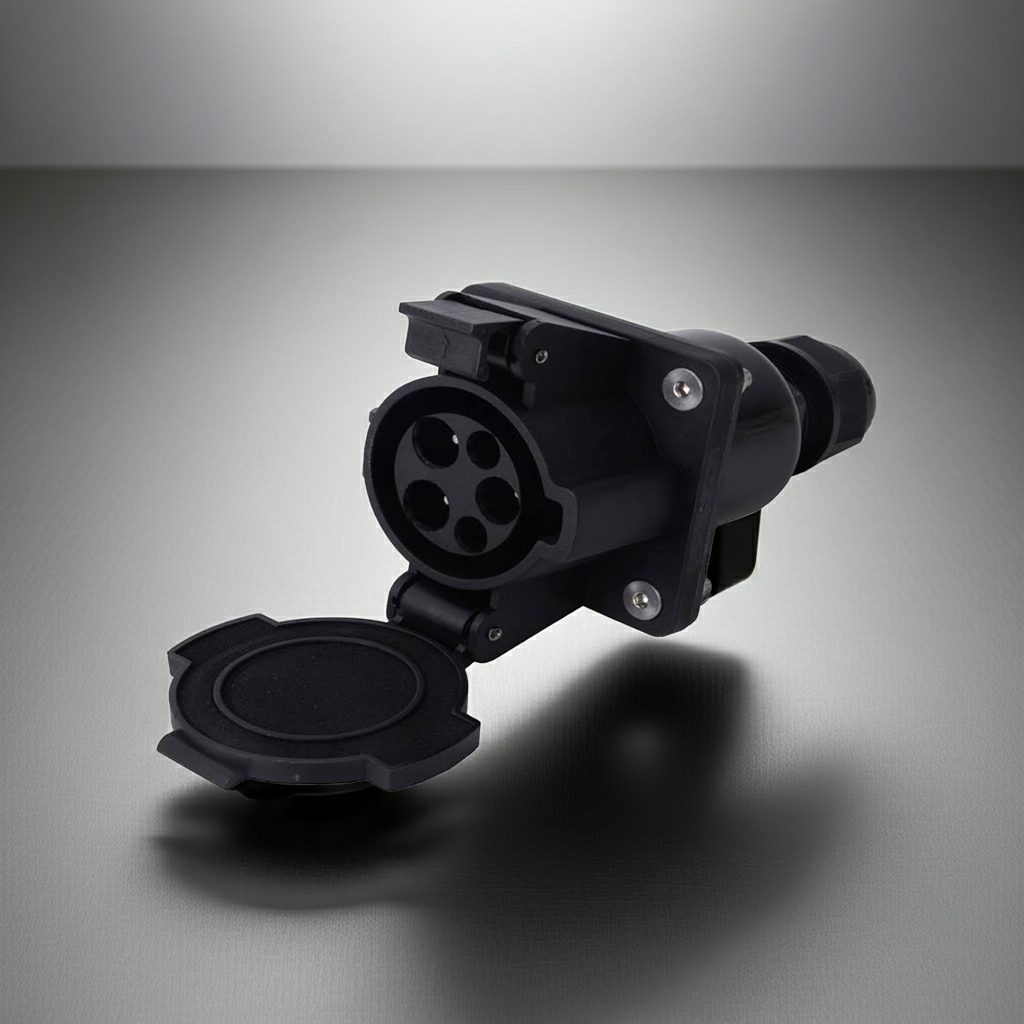

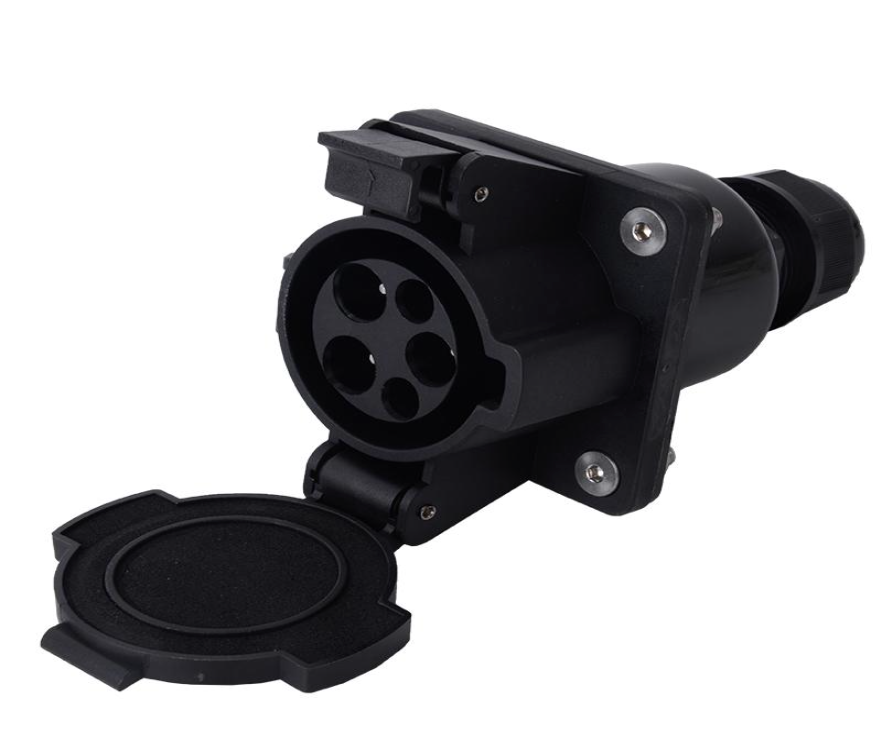

The ChargePapa J1772 Inlet is the standard AC charging interface for North American electric vehicle conversions and repairs. Rated for up to 50 Amps, this heavy-duty socket features a hinged weather-proof cap and high-conductivity copper terminals. It is the critical link between the charging station and your vehicle's onboard charger.

🔌 Wiring Configuration

Standard

SAE J1772 (Type 1)

Mounting

4-Point Flange Fix

Component Data Sheet
Rated Current 16A / 32A / 50A Max
Operating Voltage 110V - 250V AC
Insulation Res. > 1000MΩ
Pin Material Copper Alloy, Silver Plated
Housing Material Thermoplastic UL94 V-0
Protection IP54 (with Cap)

⚠️ Installation Note

This component requires crimping or soldering high-voltage cables. Improper installation can cause fire hazards. We strongly recommend installation by a qualified EV technician or electrician.

Warranty & Assurance

2-Year Comprehensive Warranty.
We cover all internal component failures. If a fault occurs, we provide remote diagnosis and free replacement units or parts. No return shipping required for confirmed defects.

Shipping & Lead Time

Factory Direct Shipping.
• Processing (QC): 3-5 Business Days
• Global Transit: 8-15 Business Days
• Tracking provided via email upon dispatch.

Global Shipping & Fulfillment

Factory Direct Logistics: Estimated Total Turnaround 11-20 Business Days.

🏭 Why the wait? (The Factory Direct Model)

Unlike generic retailers who ship off-the-shelf units, every ChargePapa station undergoes a final load-testing sequence before dispatch. By shipping directly from our manufacturing hub, we ensure you receive a freshly calibrated unit at wholesale pricing.

Fulfillment Timeline

PHASE 1

Processing & QC

3-5 Days

Bench testing, Safety Check, Packing.

PHASE 2

Global Transit

8-15 Days

Air Freight / Express Logistics.

TOTAL

Delivery Estimate

11-20 Days

Business Days (Mon-Fri).

Logistics Details

  • Free Shipping: Standard international shipping is included in the price.

* Orders placed on weekends or holidays will be processed the following business day.  During high-volume periods (like Valentine's Day, Black Friday or New Year), processing may extra days.

* Neither party shall be liable for delays or failures in performance resulting from force majeure events, including but not limited to natural disasters, strikes, customs holds, or other logistical disruptions beyond either party’s reasonable control.

  • Tracking: Tracking numbers are generated *after* Phase 1 (Quality Check) is complete. Please allow up to 5 days to receive your code.
  • Customs: We handle most paperwork, but specific local import duties (if any) are the recipient's responsibility.

Tracking update taking longer than 7 days?

✉ info@chargepapa.com

Will this fit my car?

Please verify your car's port type (Type 1 vs Type 2) before purchasing. If unsure, send a photo of your charging port to our chat support.
