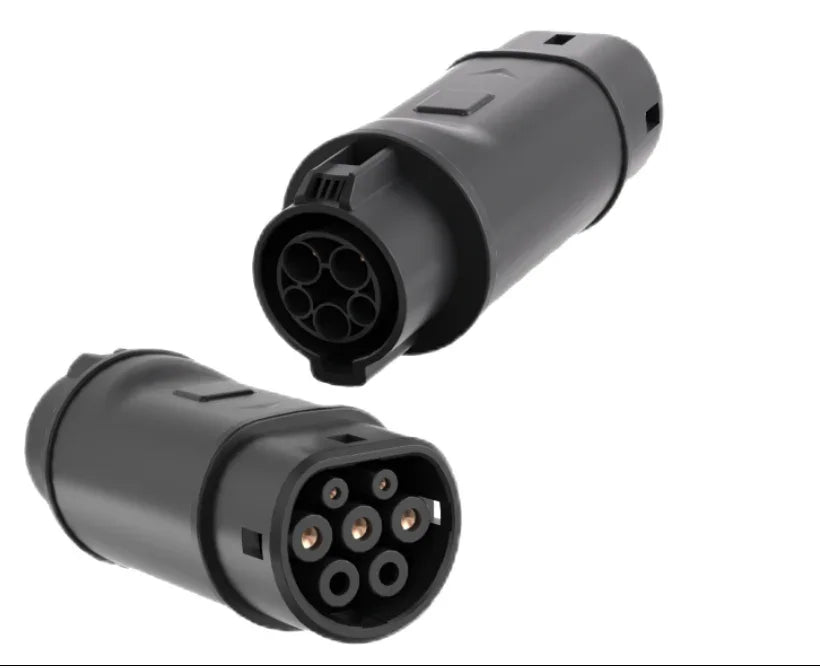

ChargePapa Omni-Link | Type 1 (J1772) to Type 2 Right Angle Adapter Pro (50A / Single Phase)
Couldn't load pickup availability
Charge Your EU-Spec Type 2 EV at US J1772 Charging Stations — Up to 50A AC
The ChargePapa Omni-Link Pro connects North American SAE J1772 (Type 1) AC charging infrastructure to European-specification Type 2 (IEC 62196-2) EVs — including VW ID.4, Audi e-tron, BMW iX, Mercedes EQS, and all EU-spec Type 2 vehicles. Rated at 50A Max / AC 110V–250V / Single Phase with IP54 weather protection and an ergonomic right-angle design. Built with PC+PA66+GF25% flame-retardant housing, silver-plated copper pins, and >10,000 mechanical cycle life.
Conversion Direction
SAE J1772 / Type 1 Charging Station (US/Canada) → Type 2 / IEC 62196-2 EV Port (EU Spec)
AC Level 2 Only · 50A Max · Single Phase · 12.5kW Max · IP54 · Right Angle
⚠️ Single Phase AC Only: This adapter supports single-phase AC Level 2 charging only. EU-spec Type 2 vehicles capable of 3-phase AC charging (e.g. 22kW) will charge at single-phase speed only (up to 12.5kW) when using this adapter at a US J1772 station. DC fast charging is not supported.
| SKU | CPCADA0019 |
| Connector (Input) | SAE J1772 (Type 1) — US/Canada Charging Standard |
| Connector (Output) | Type 2 / IEC 62196-2 — European EV Standard |
| Rated Current | 50A Max |
| Operating Voltage | AC 110V – 250V |
| Phase Type | Single Phase |
| Max Power Output | 12.5kW (50A × 250V) |
| IP Rating | IP54 |
| Housing Material | PC + PA66 + GF25% (Flame Retardant) |
| Pin Material | Silver-Plated Copper |
| Mechanical Life | >10,000 Cycles |
| Product Dimensions | 201 × 58 × 65 mm · ~500g |
| Operating Temperature | -30°C to +50°C · Humidity 5~95% · Altitude ≤2000m |
| Charging Mode | AC Level 2 Only (Single Phase) |
| HS Code | 8544.42.90 |
Designed for EU-specification Type 2 EVs operating in North America. Ideal for European expats, diplomats, and imported vehicle owners who need daily access to the US/Canada J1772 charging network.
| Make | Model | Port Type |
|---|---|---|
| Volkswagen | ID.4 / ID.3 / ID.7 (EU Spec) | Type 2 AC |
| Audi | e-tron / Q4 e-tron / e-tron GT (EU Spec) | Type 2 AC |
| BMW | iX / i4 / i7 / iX3 (EU Spec) | Type 2 AC |
| Mercedes-Benz | EQS / EQE / EQA / EQB (EU Spec) | Type 2 AC |
| Renault | Zoe / Megane E-Tech (EU Spec) | Type 2 AC |
| Peugeot / Citroën | e-208 / e-2008 / ëC4 (EU Spec) | Type 2 AC |
⚠️ EU-spec Type 2 vehicles only. Single-phase AC Level 2 only — not for DC fast charging. 3-phase capable vehicles will charge at single-phase speed only.
⚠️ Critical Usage Note: For single-phase AC Level 2 charging only. Do NOT use at DC fast charging stations. For EU-spec Type 2 vehicles only. Keep connector dry and inspect for damage before each use. Mechanical life rated at >10,000 insertion cycles.
