Power-Bridge | Type 2 → GB/T Single-phase Adapter

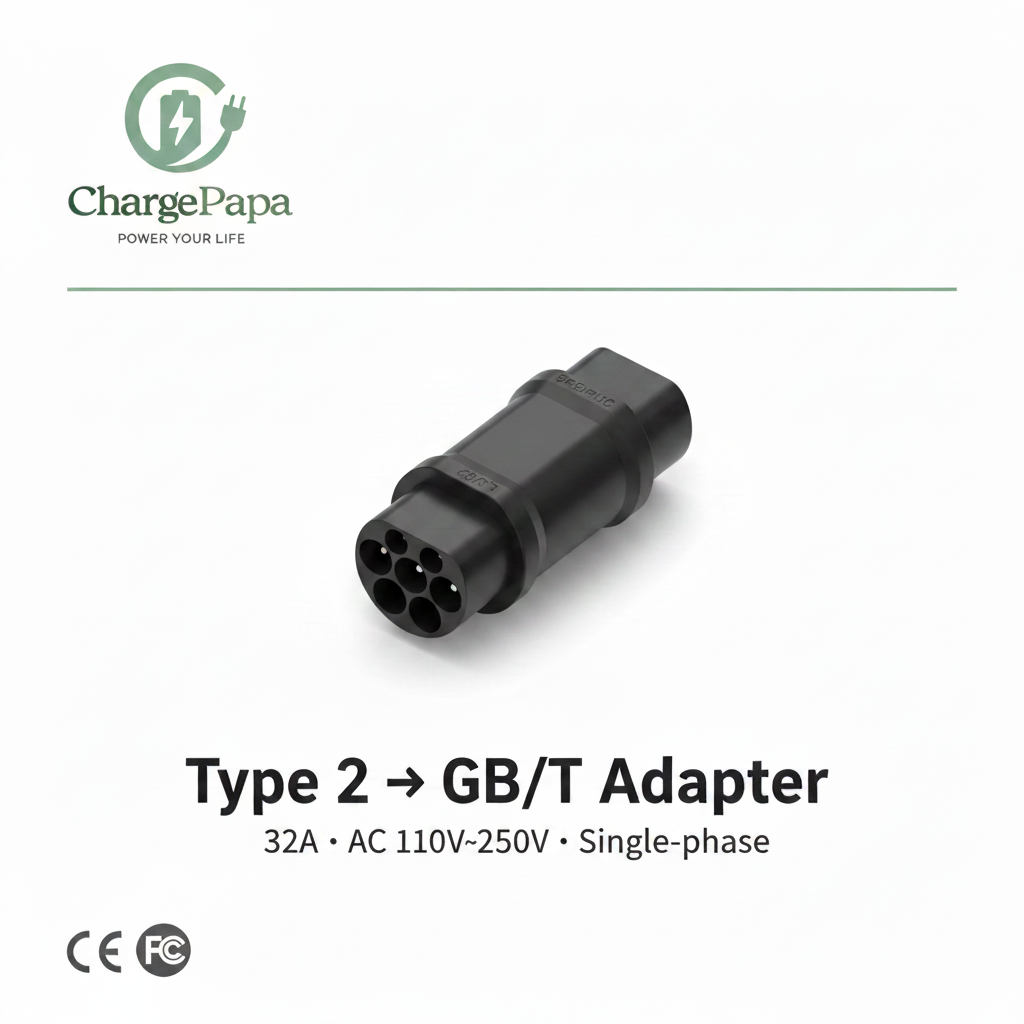

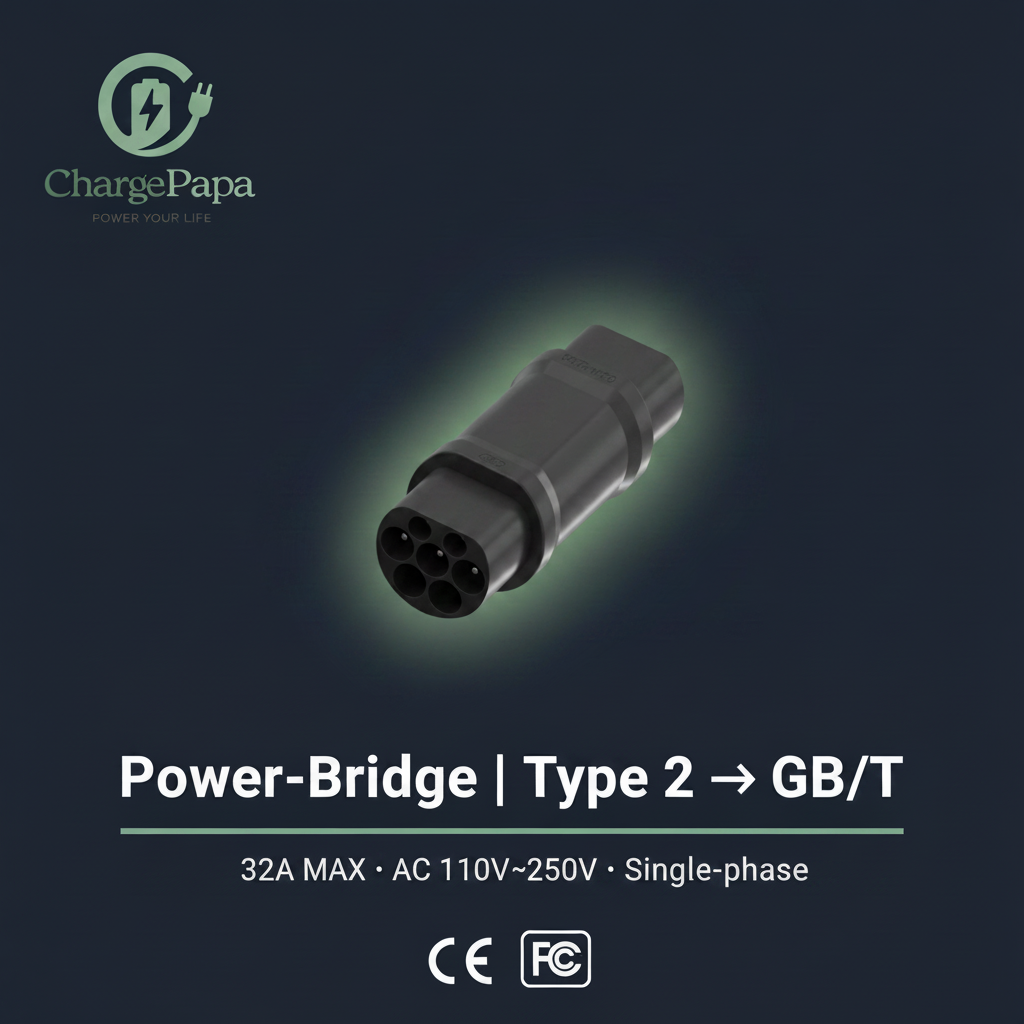

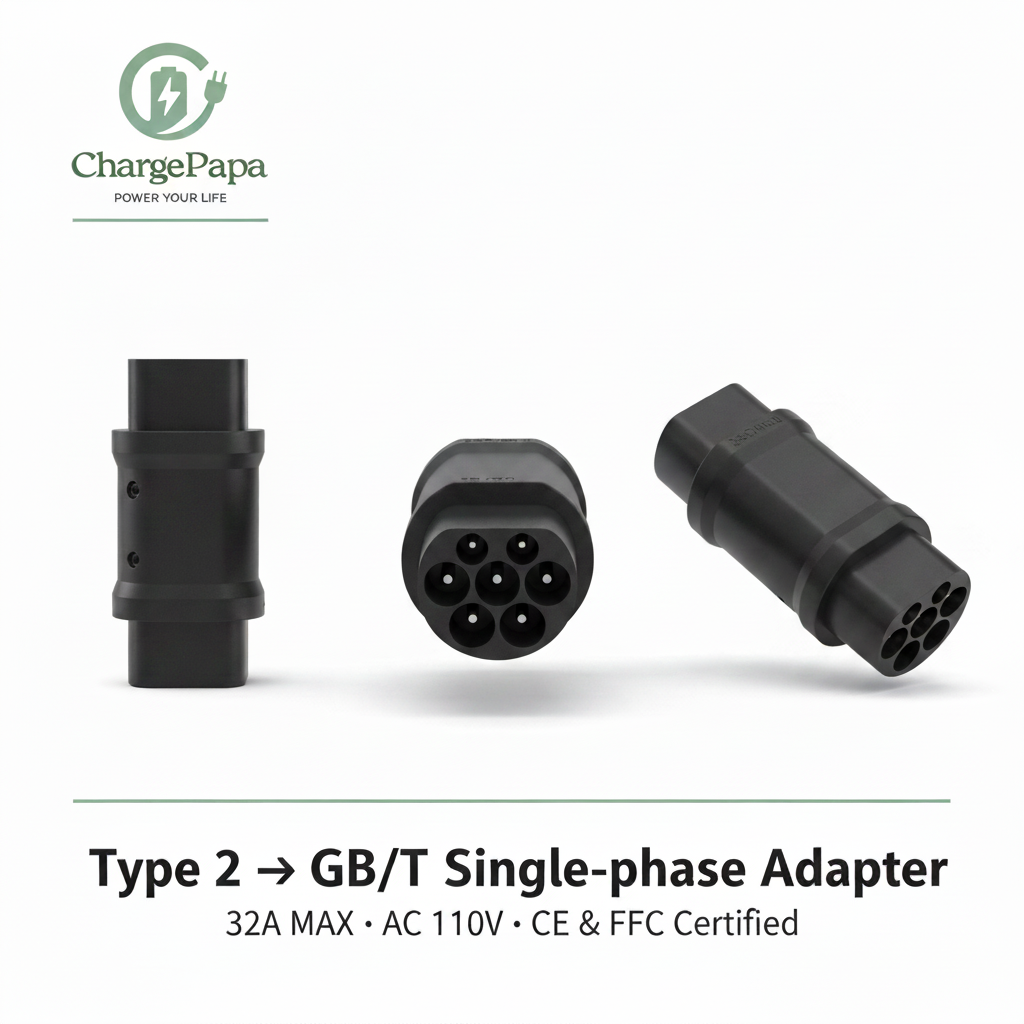

The ChargePapa Power-Bridge CP-KL-ADP-020 bridges IEC 62196-2 Type 2 charging infrastructure with GB/T-standard electric vehicles, delivering up to 32A of single-phase AC power. Built with copper alloy conductors and silver plating, it is engineered for reliability across thousands of charge cycles — whether at a public station or a private wallbox.
Step 1 · Confirm your connector match
✅ Station side: Type 2 (IEC 62196-2)
Public AC posts & home wallboxes with a Type 2 socket — the standard across Europe, UK & AU.
✅ Vehicle side: GB/T (20234.2)
GB/T-standard EVs — BYD, NIO, XPENG, Li Auto, SAIC, Geely and other Chinese-standard cars.
Step 2 · Match your power & charging scenario
| 🏠 |
Home outlet / low-voltage grid Single-phase AC 110–120V supply, everyday overnight charging. |
~3.5 kW 32A @ 110V · CP-KL-ADP-020 |
| 🔌 |
Home wallbox / public AC post Single-phase AC 230V supply, the most common Level 2 scenario. |
~7.4 kW 32A @ 230V · CP-KL-ADP-020 |
| ⚡ |
High-current single-phase wallbox Single-phase AC up to 250V, fastest AC charging this adapter supports. |
up to ~8.0 kW 32A @ 250V · CP-KL-ADP-020 |
Not sure which applies to you? Check your electrician’s label or charger spec sheet for the supply voltage. Household outlets are typically 110–120V (North America) or 220–250V (Europe/UK/AU). This adapter is single-phase, AC Level 2 only — it will not increase output beyond what your vehicle’s onboard charger and the station can deliver.
| SKU | CP-KL-ADP-020 |
| Input Connector | IEC 62196-2 Type 2 (Female) |
| Output Connector | GB/T 20234.2 (Male) |
| Working Voltage | AC 110V~250V |
| Rated Current | 32A MAX |
| Max Power Output | ~3.5 kW (110V) – ~8.0 kW (250V), single-phase |
| Phase Type | Single-phase |
| Terminal Temp Rise | <50K |
| Case Material | PC + PA66 |
| Conductor Material | Copper alloy with silver plating |
| Insertion Force | 45N < F < 100N |
| Plug/Unplug Life | >10,000 cycles |
| Working Temperature | -30°C to +50°C (-22°F to +122°F) |
| Working Humidity | 5% ~ 95% RH |
| Working Altitude | ≤2000m |
| Station Side (Input) | Vehicle Side (Output) | Charging Type |
|---|---|---|
| IEC 62196-2 Type 2 AC Station | GB/T 20234.2 EV Port | AC Level 2 Only |
| Compatible with GB/T-standard EVs including BYD, NIO, XPENG, Li Auto, SAIC, Geely, and other Chinese-standard vehicles. | ||
CE — Conformité Européenne: Meets EU safety, health, and environmental protection requirements for electrical equipment.
FCC — Federal Communications Commission: Compliant with electromagnetic interference standards for use in North America.
Q: Is the CP-KL-ADP-020 compatible with BYD, NIO, and other GB/T-standard EVs?
A: Yes. The ChargePapa Power-Bridge CP-KL-ADP-020 is fully compatible with all GB/T 20234.2-standard electric vehicles, including BYD, NIO, XPENG, Li Auto, SAIC, and Geely models. It connects any IEC 62196-2 Type 2 AC charging station to your GB/T vehicle port.
Q: What is the maximum charging speed with the CP-KL-ADP-020?
A: The ChargePapa Power-Bridge supports up to 32A across an AC 110V~250V range, delivering approximately 3.5 kW at 110V and up to 8.0 kW at 250V on a single-phase circuit. Actual charging speed depends on your vehicle's onboard charger capacity and the station's output rating.
Q: How does this compare to a standard 16A Type 2 to GB/T adapter?
A: Compared to standard 16A adapters, the ChargePapa CP-KL-ADP-020 delivers 100% more current capacity at 32A MAX, cutting charge time significantly for vehicles that support higher AC input. The silver-plated copper alloy conductors also ensure lower contact resistance and better thermal performance over time.
Q: Is this adapter CE and FCC certified?
A: Yes. The CP-KL-ADP-020 carries CE (Conformité Européenne) certification for EU safety and environmental compliance, and FCC (Federal Communications Commission) certification for electromagnetic compatibility in North America.
Q: Does this adapter support DC fast charging?
A: No. The CP-KL-ADP-020 supports AC Level 2 single-phase charging only. For DC fast charging solutions, please refer to ChargePapa's DC-Link adapter series.
Q: How durable is this adapter and what is its rated lifespan?
A: The ChargePapa CP-KL-ADP-020 is rated for over 10,000 plug/unplug cycles. Its PC+PA66 housing withstands operating temperatures from -30°C to +50°C and humidity up to 95% RH, making it suitable for year-round outdoor use at altitudes up to 2,000 meters.
This adapter is designed for AC Level 2 single-phase charging only. Do not use with DC fast chargers or three-phase AC stations.
Always verify that your charging station output does not exceed 32A / 250V before use. Exceeding rated parameters may cause damage and will void the warranty.
