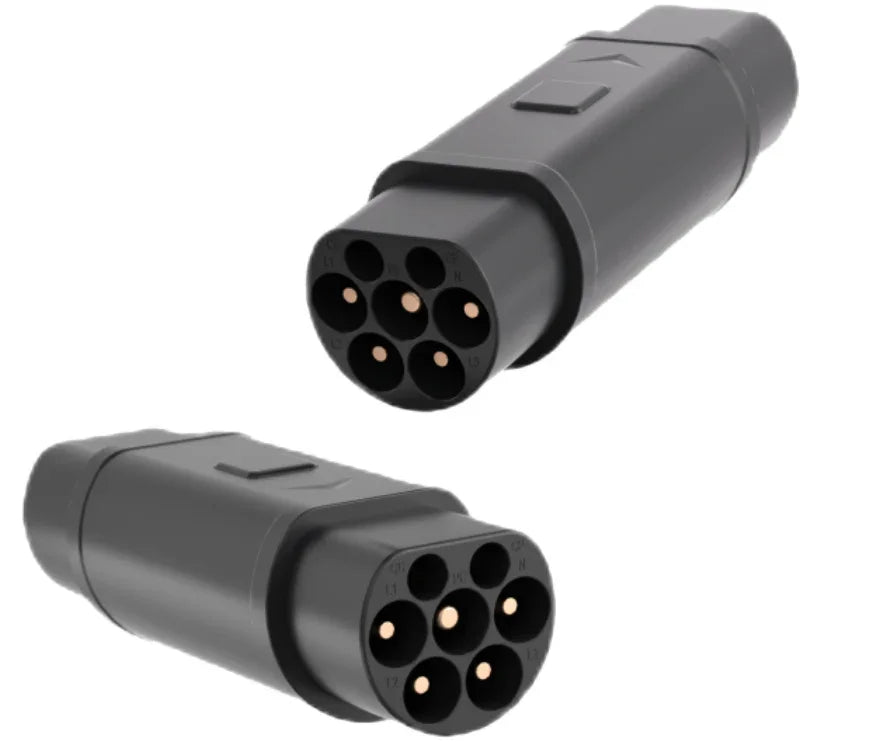

ChargePapa Omni-Link | Type 2 to GB/T Right Angle Adapter Pro (3-Phase 22kW / 50A Max)
Couldn't load pickup availability
Unlock 22kW 3-Phase AC Charging for Your Chinese EV in Europe
The ChargePapa Omni-Link Pro bridges European Type 2 (IEC 62196-2) three-phase charging infrastructure with Chinese GB/T AC-standard vehicles — including BYD, NIO, Zeekr, and other GB/T-equipped EVs. Rated at 50A Max / 380V–450V AC / Three Phase (L1+L2+L3) with IP54 weather protection and an ergonomic right-angle design, it delivers up to 22kW for vehicles with three-phase onboard chargers. Built with PC+PA66+GF25% flame-retardant housing, silver-plated copper pins, and >10,000 mechanical cycle life.
Conversion Direction
Type 2 / IEC 62196-2 Charging Station (Europe) → GB/T AC Port (Chinese EV)
AC Level 2 Only · 50A Max · Three Phase L1+L2+L3 · 22kW Max · IP54 · Right Angle
💡 Why 50A and 22kW? Here’s the difference:
50A is the adapter’s hardware current rating — the maximum current it can safely carry per phase.
22kW is the typical maximum power for most Chinese EVs with 3-phase onboard chargers (e.g. 32A × 3 phases × 230V ≈ 22kW).
The 50A rating future-proofs the adapter for higher-capacity vehicles. Your actual charging speed is always limited by your vehicle’s onboard charger — not the adapter.
✅ Full 22kW — Vehicles with 3-Phase Onboard Charger:
BYD Han EV · BYD Tang EV · NIO ET7 · NIO ET5 · NIO ES8 · Zeekr 001 · Zeekr X
⚠️ Single Phase Speed Only — Vehicles with 1-Phase Onboard Charger: BYD Atto 3 · BYD Seal · Xpeng G9 · MG4 · Other single-phase GB/T vehicles. These vehicles will charge at up to 7.4kW regardless of adapter capability.
⚠️ AC Level 2 Only: This adapter supports AC Level 2 charging only. It is NOT compatible with DC fast charging infrastructure. Use only at Type 2 AC charging stations. Do not use at CCS2 DC fast chargers.
| SKU | CPCADA0025 |
| Connector (Input) | Type 2 / IEC 62196-2 — European Charging Standard |
| Connector (Output) | GB/T 20234.2 (AC) — Chinese EV Standard |
| Rated Current | 50A Max (per phase) |
| Operating Voltage | AC 380V – 450V (Three Phase) |
| Phase Type | Three Phase (L1 + L2 + L3) |
| Max Power Output | 22kW (32A × 3-phase) · Up to 34.5kW at 50A |
| IP Rating | IP54 |
| Housing Material | PC + PA66 + GF25% (Flame Retardant) |
| Pin Material | Silver-Plated Copper |
| Mechanical Life | >10,000 Cycles |
| Operating Temperature | -30°C to +50°C · Humidity 5~95% · Altitude ≤2000m |
| Charging Mode | AC Level 2 Only (Three Phase) |
| HS Code | 8544.42.90 |
Designed for Chinese-market GB/T AC EVs imported to or operating in Europe. Ideal for BYD, NIO, and Zeekr owners who want to access Europe's extensive Type 2 charging network.
| Make | Model | Year | Max AC Speed |
|---|---|---|---|
| BYD | Han EV / Tang EV | 2020–2024 | 11kW (3-phase) |
| BYD | Atto 3 / Seal / Dolphin | 2021–2024 | 7.4kW (single phase) |
| NIO | ET7 / ET5 / ES8 / ES6 | 2019–2024 | 11kW (3-phase) |
| Zeekr | 001 / X / 009 | 2021–2024 | 22kW (3-phase) |
| Xpeng | G9 / P7 / G6 | 2020–2024 | 7.4kW (single phase) |
⚠️ Actual charging speed is limited by the vehicle's onboard charger. Verify your vehicle supports 3-phase AC input before expecting 22kW speeds.
Connector standards compliance: Type 2 / IEC 62196-2 input · GB/T 20234.2 (AC) output · IP54 weather protection rating.
For certification documentation requests, please contact ChargePapa support with your SKU (CPCADA0025).
⚠️ Critical Usage Note: For AC Level 2 charging only. Do NOT use at CCS2 DC fast charging stations. For GB/T AC-port vehicles only. Actual charging speed is limited by your vehicle's onboard charger. Three-phase speed requires a 3-phase onboard charger. Keep connector dry and inspect for damage before each use. Mechanical life rated at >10,000 insertion cycles.
