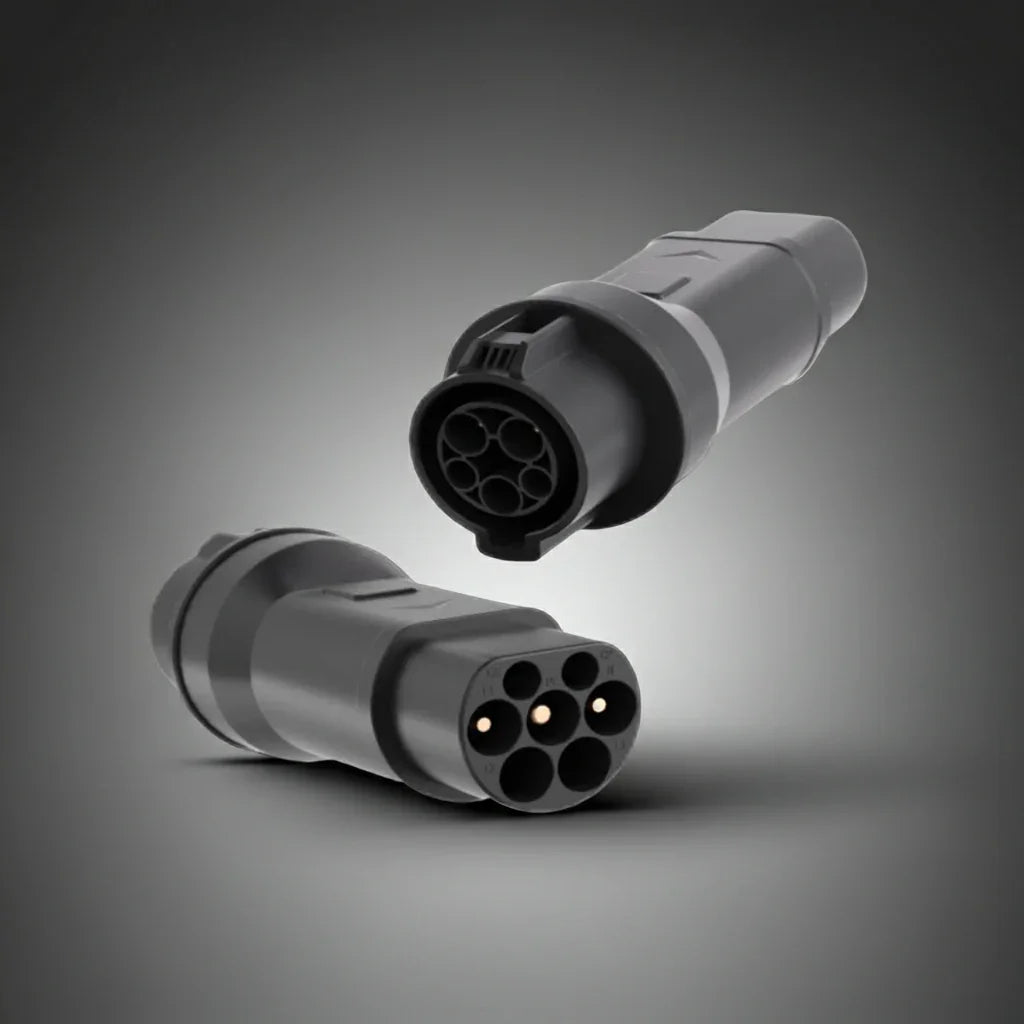

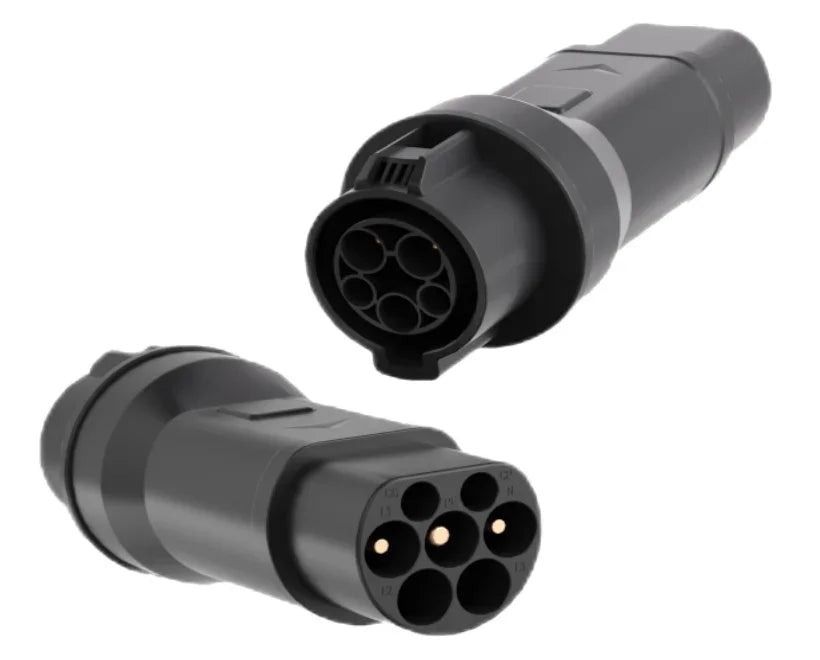

ChargePapa Omni-Link | Type 1 (J1772) to GB/T Right Angle Adapter Pro (50A / Single Phase)
Couldn't load pickup availability
Charge Your China-Spec GB/T EV at US J1772 Charging Stations — Up to 50A AC
The ChargePapa Omni-Link Pro connects North American SAE J1772 (Type 1) AC charging infrastructure to China-specification GB/T AC EVs — including BYD, NIO, Xpeng, Li Auto, Zeekr, and China-spec Tesla. Rated at 50A Max / AC 110V–250V / Single Phase with IP54 weather protection and an ergonomic right-angle design. Built with PC+PA66+GF25% flame-retardant housing, silver-plated copper pins, and >10,000 mechanical cycle life.
Conversion Direction
SAE J1772 / Type 1 Charging Station (US/Canada) → GB/T AC EV Port (China Spec)
AC Level 2 Only · 50A Max · Single Phase · 12.5kW Max · IP54 · Right Angle
⚠️ AC Charging Only: This adapter supports single-phase AC Level 2 charging only. It is NOT compatible with DC fast charging. For DC fast charging, China-spec EVs require a GB/T DC adapter at a CCS or CHAdeMO station.
| SKU | CPCADA0020 |
| Connector (Input) | SAE J1772 (Type 1) — US/Canada Charging Standard |
| Connector (Output) | GB/T 20234.2 AC — China EV Charging Standard |
| Rated Current | 50A Max |
| Operating Voltage | AC 110V – 250V |
| Phase Type | Single Phase |
| Max Power Output | 12.5kW (50A × 250V) |
| IP Rating | IP54 |
| Housing Material | PC + PA66 + GF25% (Flame Retardant) |
| Pin Material | Silver-Plated Copper |
| Mechanical Life | >10,000 Cycles |
| Operating Temperature | -30°C to +50°C · Humidity 5~95% · Altitude ≤2000m |
| Charging Mode | AC Level 2 Only (Single Phase) |
| HS Code | 8544.42.90 |
Designed for China-specification GB/T AC EVs operating in North America, where SAE J1772 is the dominant AC Level 2 charging standard. Ideal for Chinese EV owners, expats, and imported vehicle owners who need daily access to the US/Canada J1772 charging network.
| Make | Model | Port Type |
|---|---|---|
| BYD | Atto 3 / Han / Tang / Seal (China Spec) | GB/T AC |
| NIO | ET5 / ET7 / ES6 / ES8 (China Spec) | GB/T AC |
| Xpeng | P7 / G9 / G6 (China Spec) | GB/T AC |
| Li Auto | L7 / L8 / L9 / MEGA (China Spec) | GB/T AC |
| Zeekr | 001 / 007 / X (China Spec) | GB/T AC |
| Tesla | Model 3 / Y / S / X (China Spec) | GB/T AC |
⚠️ China-spec GB/T AC vehicles only. Not compatible with DC fast charging. Verify your vehicle's onboard charger accepts 50A input before use.
Q: Can I charge my BYD Atto 3 (China spec) at a J1772 charging station in the US?
A: Yes. The ChargePapa Omni-Link Pro converts J1772 AC station output to GB/T, allowing China-spec BYD, NIO, Xpeng, and other GB/T vehicles to charge at US and Canadian J1772 AC stations.
Q: Does this work with China-spec Tesla Model 3?
A: Yes. China-spec Tesla vehicles use GB/T AC ports. This adapter allows them to charge at US J1772 Level 2 stations. Note: US-spec Tesla vehicles use NACS and do not need this adapter.
Q: Is this compatible with DC fast charging stations?
A: No. This adapter supports AC Level 2 charging only. For DC fast charging, China-spec EVs require a separate GB/T DC adapter.
Q: Is the adapter weatherproof for outdoor charging stations?
A: Yes. The ChargePapa Omni-Link Pro is rated IP54 — dust-resistant and splash-proof, suitable for outdoor public J1772 charging stations across North America.
Q: What is the SKU and does ChargePapa ship to North America?
A: The SKU is CPCADA0020. ChargePapa ships to 50+ countries worldwide including the United States and Canada. Tracked shipping available for all orders.
⚠️ Critical Usage Note: For single-phase AC Level 2 charging only. Do NOT use at DC fast charging stations. For China-spec GB/T AC vehicles only. Keep connector dry and inspect for damage before each use. Mechanical life rated at >10,000 insertion cycles.
