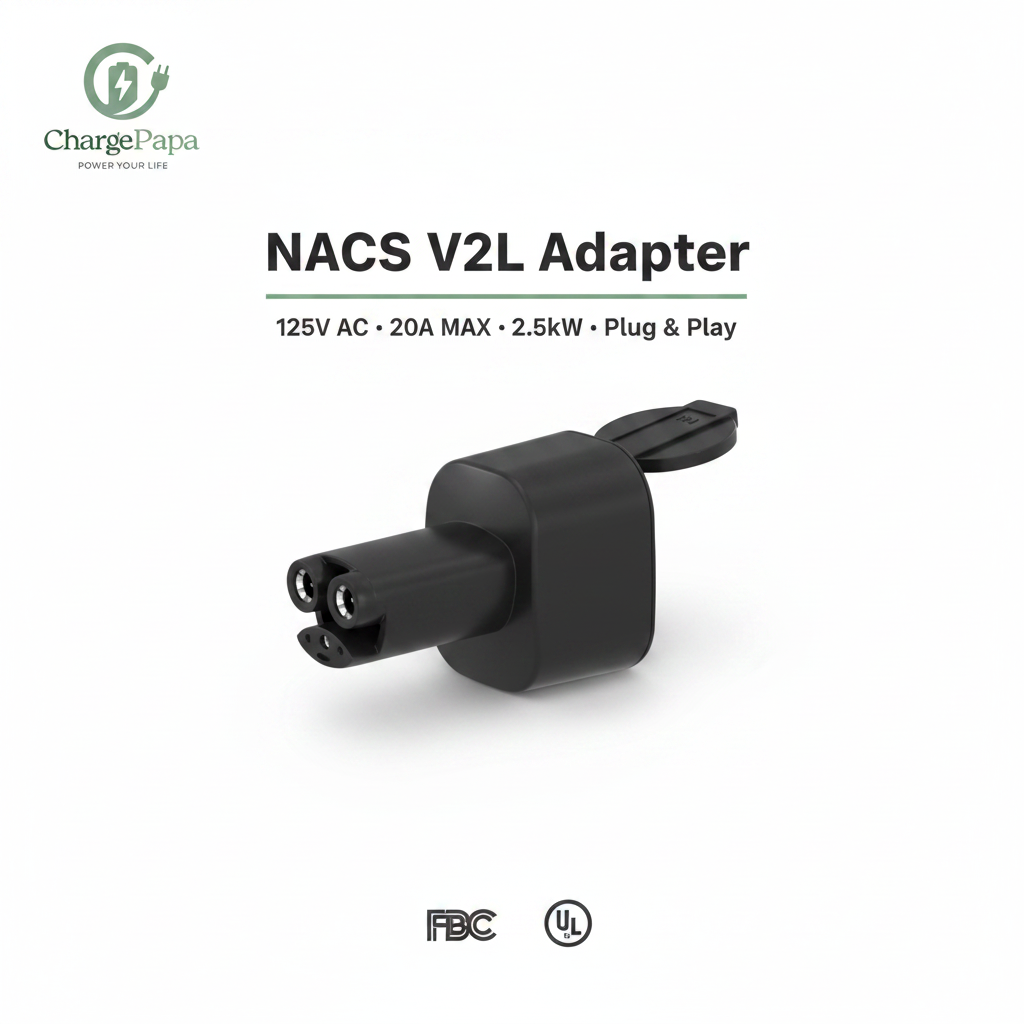

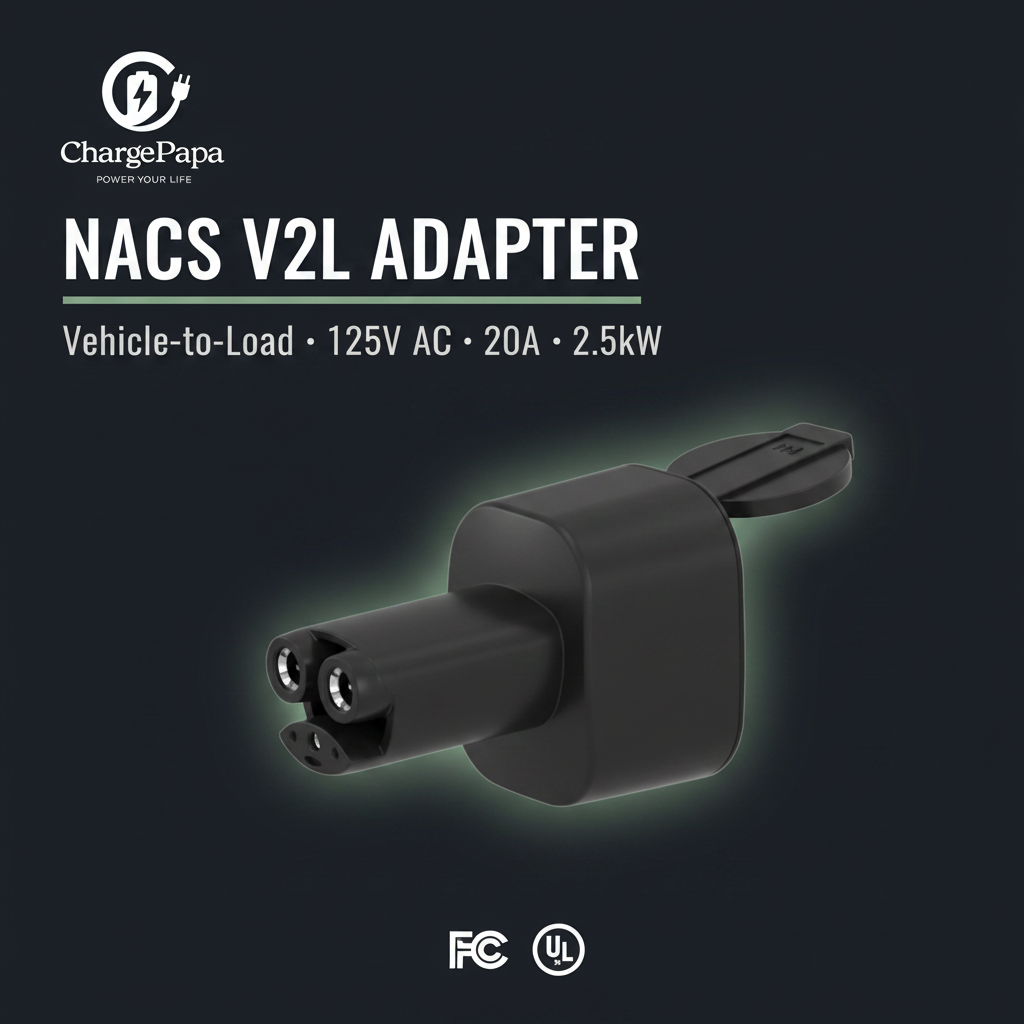

ChargePapa V2L-US | NACS V2L Discharge Adapter (125V AC / 20A / 2.5kW)
Couldn't load pickup availability
V2L-US · NACS discharge adapter
Compact 125V AC power output for V2L-enabled NACS EVs.
Standards & Certifications
Will this power my setup?
Use this adapter when your EV has a NACS port with confirmed V2L / AC power export support, and your devices fit a 125V AC, 20A, 2.5kW output limit.
Load Planning Reference
| Load type | Typical draw | Fit under 2.5kW? |
|---|---|---|
| Phone, laptop, router, LED light | 20–300W | Usually yes |
| Camping electronics or small appliance | 300–1,200W | Usually yes; check startup surge |
| High-draw heater, large tool, or 240V equipment | Often above this adapter class | Use a properly rated higher-power solution |
Reference only. Check the appliance label and startup surge before use.
V2L Product Line
| Model | Vehicle side | AC output | Best for |
|---|---|---|---|
| V2L-US High-Power EV Discharger | NACS or CCS1 | 120V / 240V AC · 5kW | Higher-power US output with built-in inverter |
| V2L-EU High-Power EV Discharger | CCS2 | 230V AC · 5kW | Higher-power EU output with built-in inverter |
| NACS V2L Discharge Adapter (This) | NACS V2L-capable vehicle port | 125V AC · 20A · 2.5kW | Compact direct-plug V2L use |
| Type 2 to EU Socket V2L Power Strip | Type 2 V2L-capable vehicle port | 220–250V AC · 16A · 3.5kW | EU multi-socket passive V2L strip |
Full Specs — For the Detail-Oriented
| SKU | CP-KL-NS-V2L |
| Product type | Passive V2L discharge adapter |
| Vehicle connector | NACS / SAE J3400 |
| Output | 125V AC |
| Rated current | 20A max |
| Max power output | 2.5kW |
| Phase type | Single Phase |
| IP rating | IP54 above |
| Certifications | UL Tested; FCC Certified |
FAQ
Does this work with every NACS or Tesla vehicle?
No. This adapter requires the vehicle to support V2L / AC power export through its NACS port. A matching connector shape does not guarantee power output.
Is this adapter an inverter?
No. This is a passive V2L adapter. The vehicle must provide the AC output. If you need off-board inverter discharge, choose one of the ChargePapa high-power EV discharger models.
Can this charge another EV?
No. This product is for vehicle-to-load AC power output only. It is not an EV charger, not a DC fast-charging adapter, and not a vehicle-to-vehicle charging solution.
Can I use it for home backup?
Use it only for plug-in loads within the product rating. Do not connect it to home wiring, hardwired circuits, or grid backfeed equipment.
