ChargePapa V2L-EU | High-Power EV Discharger (230V AC / 5kW)
Couldn't load pickup availability
ChargePapa V2L-EU
High-Power EV Discharger — EU Output Configuration

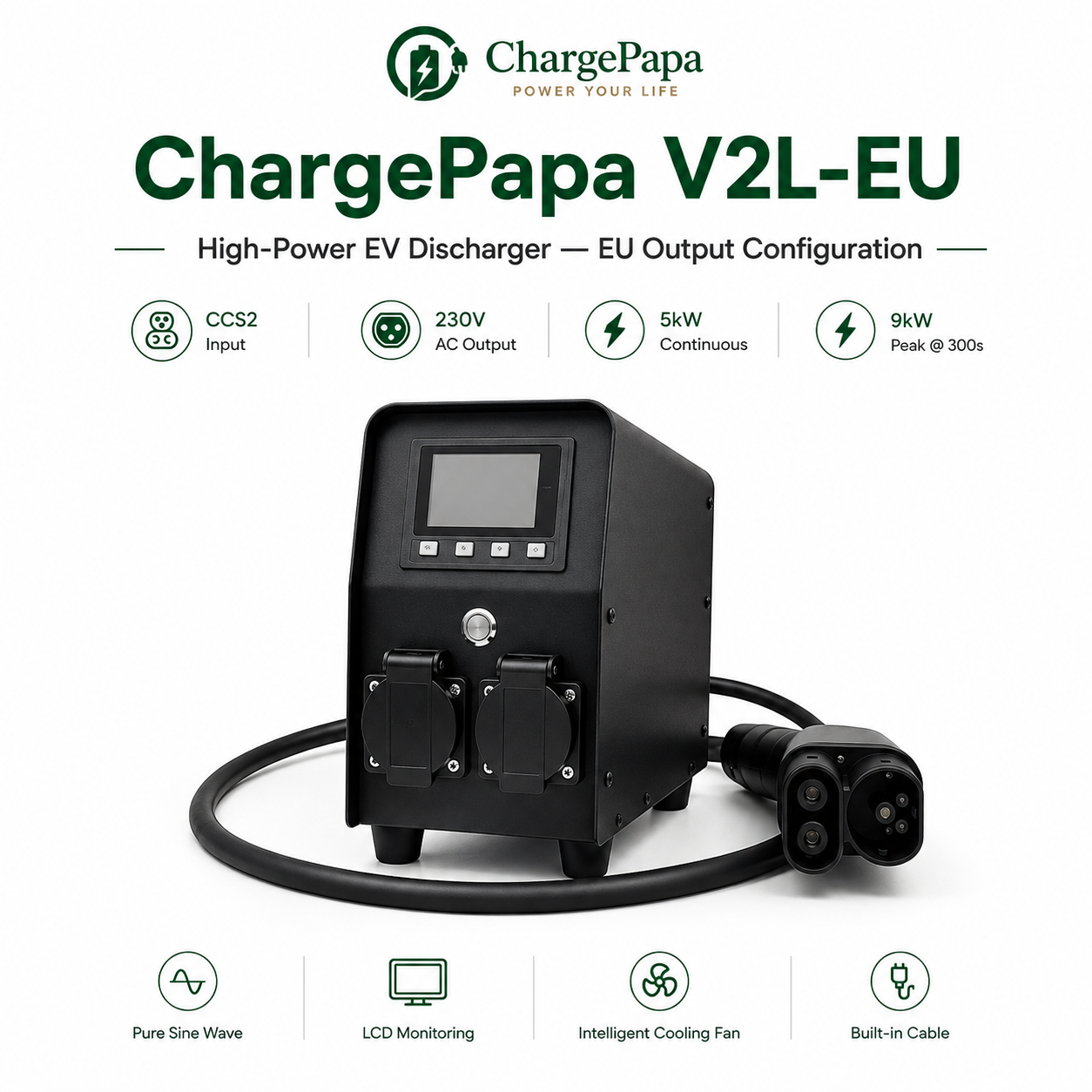

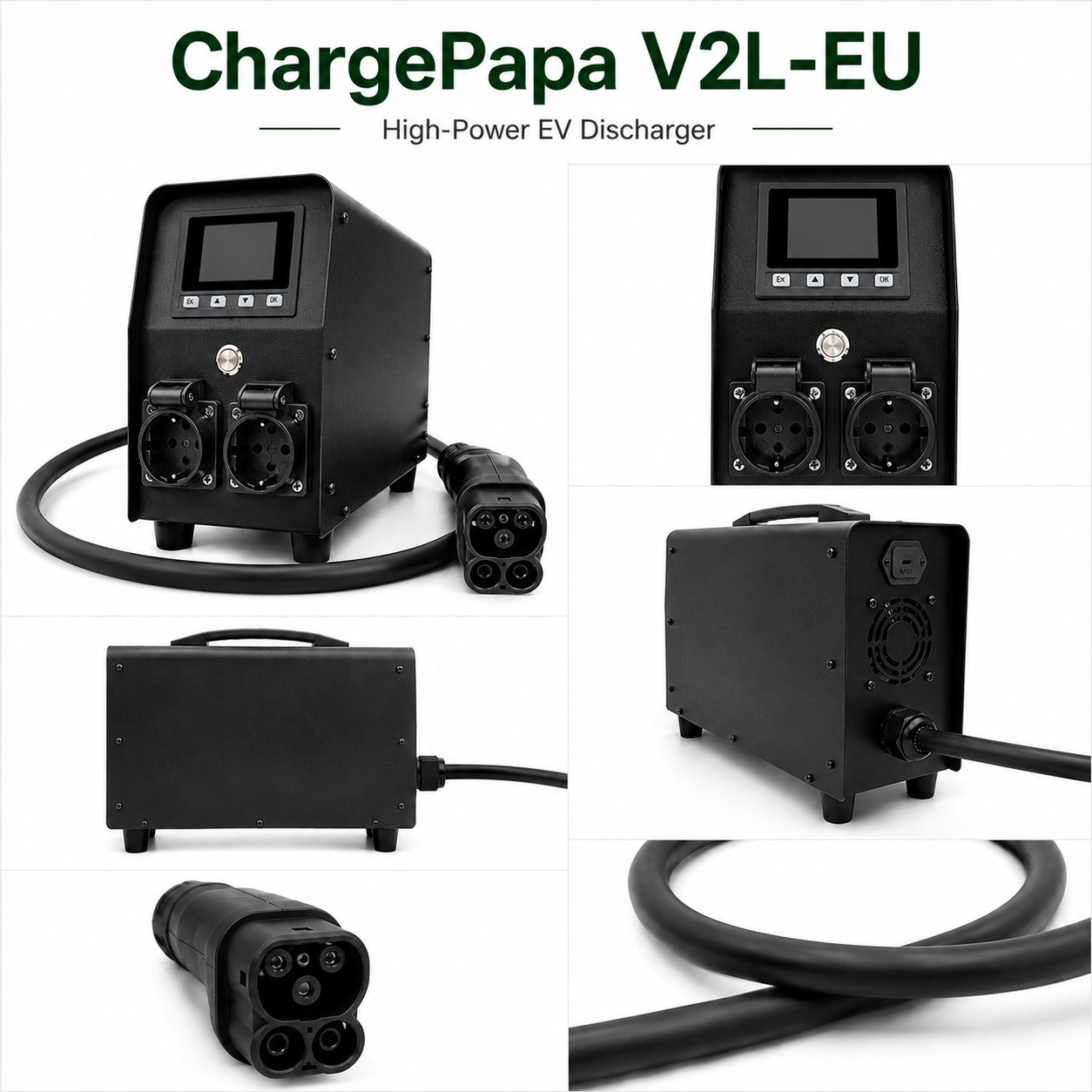

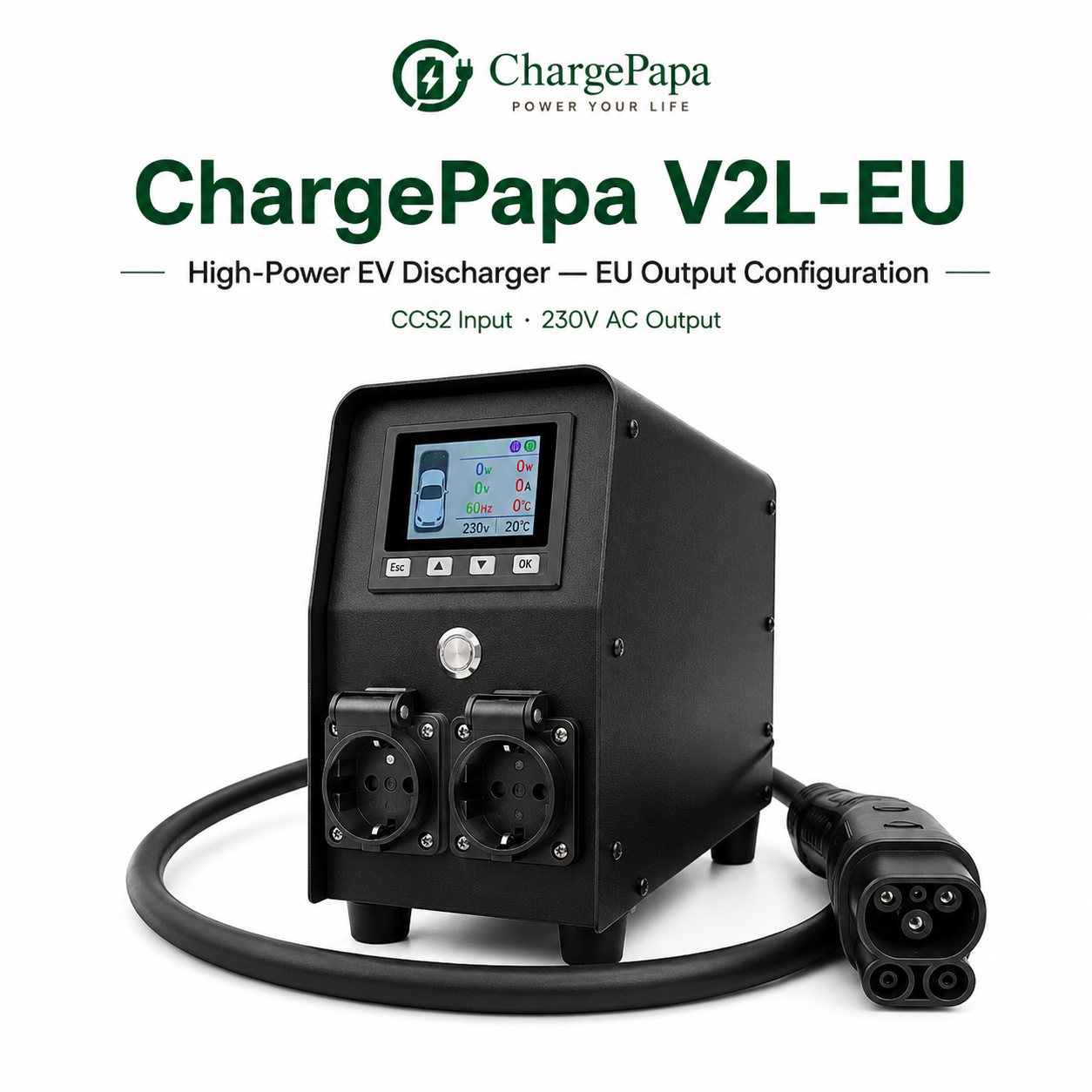

The ChargePapa V2L-EU is a high-power vehicle-to-load (V2L) discharger with CCS2 (IEC 62196-2 combo) input, designed for the EU market. It converts your vehicle’s high-voltage DC battery output into stable 230V AC pure sine wave power — delivering up to 5kW continuous output through EU output sockets. This is a one-way discharge unit. It does not charge your vehicle. Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration.
⚠️ Important — Read Before Purchase
- This is a discharge-only device. It does not charge your EV.
- Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration. Not all CCS2-port vehicles support V2L / external discharge. Verify your vehicle’s V2L capability before ordering.
- Standard configuration ships with EU output sockets. If you need a different socket type, please leave your required socket type in the order note at checkout, or email us immediately after placing your order with your order number. Other socket configurations require additional customization time.
⚙️ Engineering & Performance Features
📋 Engineering Data Sheet
| Supplier Model | EVI5000-EU |
| Input Connector | CCS2 (IEC 62196-2 combo) |
| Input Voltage Range | 250–450V DC |
| Output Sockets | EU output sockets — standard configuration. Other socket types available by order note or post-order email. |
| Output Voltage | 230V AC |
| Output Frequency | 50 Hz |
| Output Waveform | Pure sine wave |
| Max Continuous Output | 5kW |
| Peak Power | 9kW @ 300s |
| Conversion Efficiency | Up to 93% |
| Max Output Current | TBD — pending supplier confirmation |
| Phase Type | Single-phase |
| Display | LCD — real-time voltage / current / power monitoring |
| Protection | Over-current · Overload · Over-temperature · Output short-circuit |
| Cooling | Intelligent cooling fan / active thermal management |
| Cable | Built-in CCS2 — exact length TBD |
| Shipping Weight | 9.5 kg |
| Package Size | 53 × 33 × 25 cm |
| Carton Qty | 1 piece per carton |
🚗 Compatibility
The V2L-EU is designed for EVs with a CCS2 (IEC 62196-2 combo) port where the vehicle supports external discharge / V2L functionality. Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration. Physical connector fit is only one requirement — V2L session authorization is a separate vehicle-side function. Verify your vehicle’s V2L capability in the manufacturer’s app or owner’s manual before ordering.
| Make | Model | Year | Port Type |
|---|---|---|---|
| Confirmed compatibility data pending — to be populated from catalog.yaml. | |||
⚠️ Not all CCS2-port vehicles support external discharge. Compatibility depends on vehicle V2L capability, software version, and market configuration.
✅ Standards & Certifications
❓ Frequently Asked Questions
Q: Does the ChargePapa V2L-EU charge my EV?
No. The V2L-EU (EVI5000-EU) is a discharge-only device. It converts your vehicle’s DC battery power into 230V AC output for powering external devices. It does not supply power to your vehicle’s battery.
Q: Which vehicles is the V2L-EU compatible with?
The V2L-EU uses a CCS2 (IEC 62196-2 combo) input connector, which is the standard DC fast-charge port on most EVs sold in Europe. However, compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration — not all CCS2-port vehicles support V2L / external discharge. Verify V2L support in your vehicle’s owner’s manual or manufacturer app before ordering.
Q: How do I know if my vehicle supports V2L / external discharge?
Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration. Check your vehicle’s owner’s manual, the manufacturer’s app, or contact your dealer to confirm V2L capability before ordering.
Q: Does the V2L-EU output a pure sine wave?
Yes. The V2L-EU (EVI5000-EU) outputs a pure sine wave AC signal at 230V / 50Hz, making it suitable for powering sensitive electronics and motor-driven loads within the rated output capacity.
Q: What can I power with the V2L-EU?
The V2L-EU delivers up to 5kW continuous AC output (peak 9kW @ 300s) through EU output sockets — suitable for tools, appliances, camping equipment, or emergency backup loads within the rated output capacity. Always verify the load requirements of your devices before use.
Q: What certifications does the V2L-EU carry?
The ChargePapa V2L-EU (EVI5000-EU) carries UL 458 (Underwriters Laboratories power converter standard) and UN 38.3 (United Nations transport safety testing) certifications. An MSDS (Material Safety Data Sheet) is available upon request.
Q: I need a different output socket type. Can I request this?
Yes. The standard configuration ships with EU output sockets. If you need a different socket type, you have two options: (1) leave your required socket type in the order note at checkout, or (2) email us immediately after placing your order and include your order number. Other socket configurations require additional customization time. We will confirm your request before processing.
⚠️ Critical Usage Note
- Always verify your vehicle’s V2L / external discharge capability before use. Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration.
- Do not exceed the rated continuous output power of the unit.
- Do not connect loads that exceed the rated output capacity of the EU output socket.
- This product is intended for use by technically competent users familiar with high-voltage EV systems and electrical safety practices.
- IP rating and working temperature range are TBD — pending supplier confirmation. Do not use in environments beyond confirmed operating parameters.
