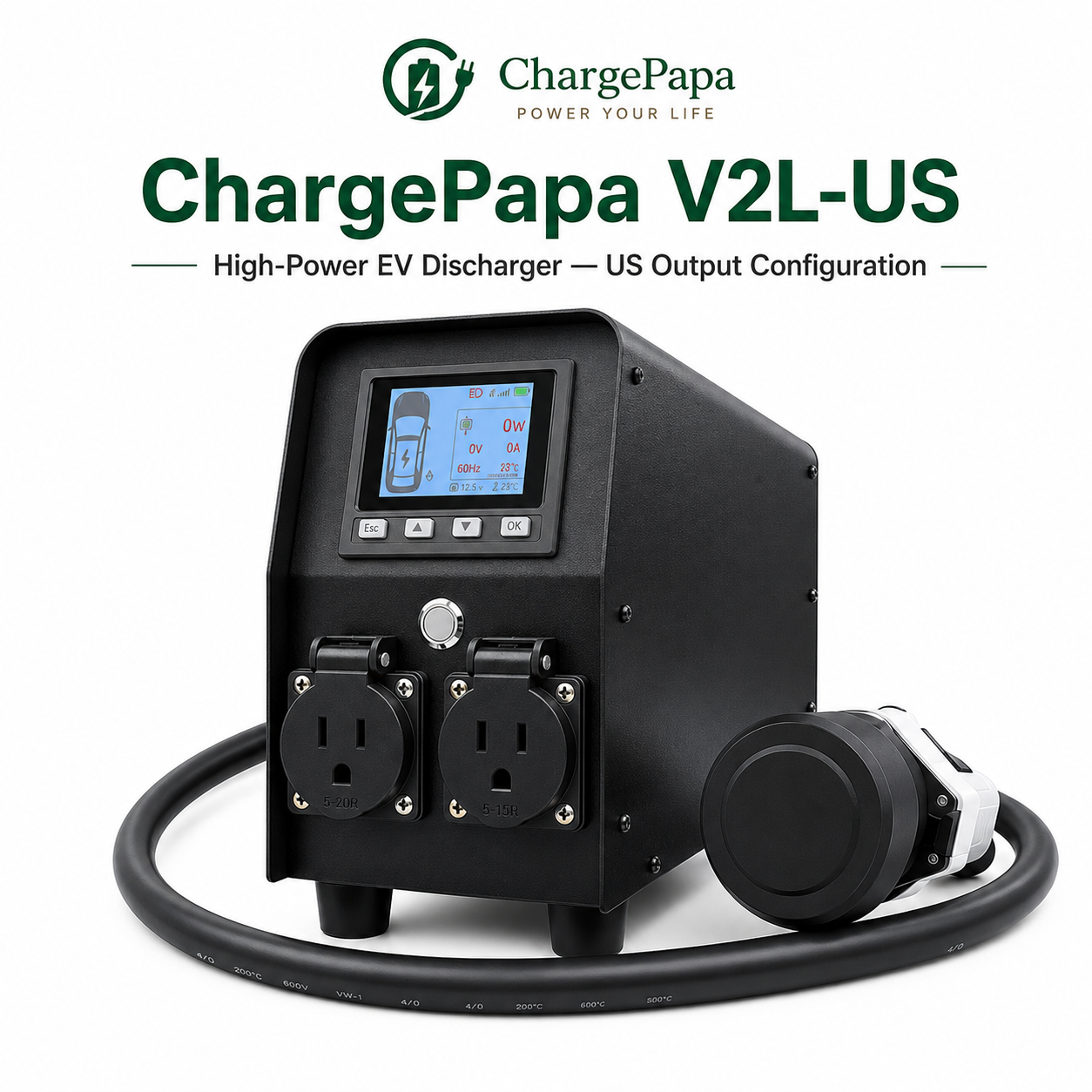

ChargePapa V2L-US
High-Power EV Discharger — US Output Configuration
The ChargePapa V2L-US is a high-power vehicle-to-load (V2L) discharger available with NACS (SAE J3400) or CCS1 input, depending on configuration. It converts your vehicle's high-voltage DC battery output into stable 120V or 240V AC pure sine wave power — delivering up to 5kW continuous output through standard US household sockets. This is a one-way discharge unit. It does not charge your vehicle. Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration.
⚠️ Important — Read Before Purchase
- This is a discharge-only device. It does not charge your EV.
- Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration. Not all NACS-port or CCS1-port vehicles support V2L / external discharge. Verify your vehicle's V2L capability before ordering.
- Standard configuration ships with US output sockets (Type B): 1× NEMA 5-20R + 1× NEMA 5-15R. If you need a different socket type, please leave your required socket type in the order note at checkout, or email us immediately after placing your order with your order number.

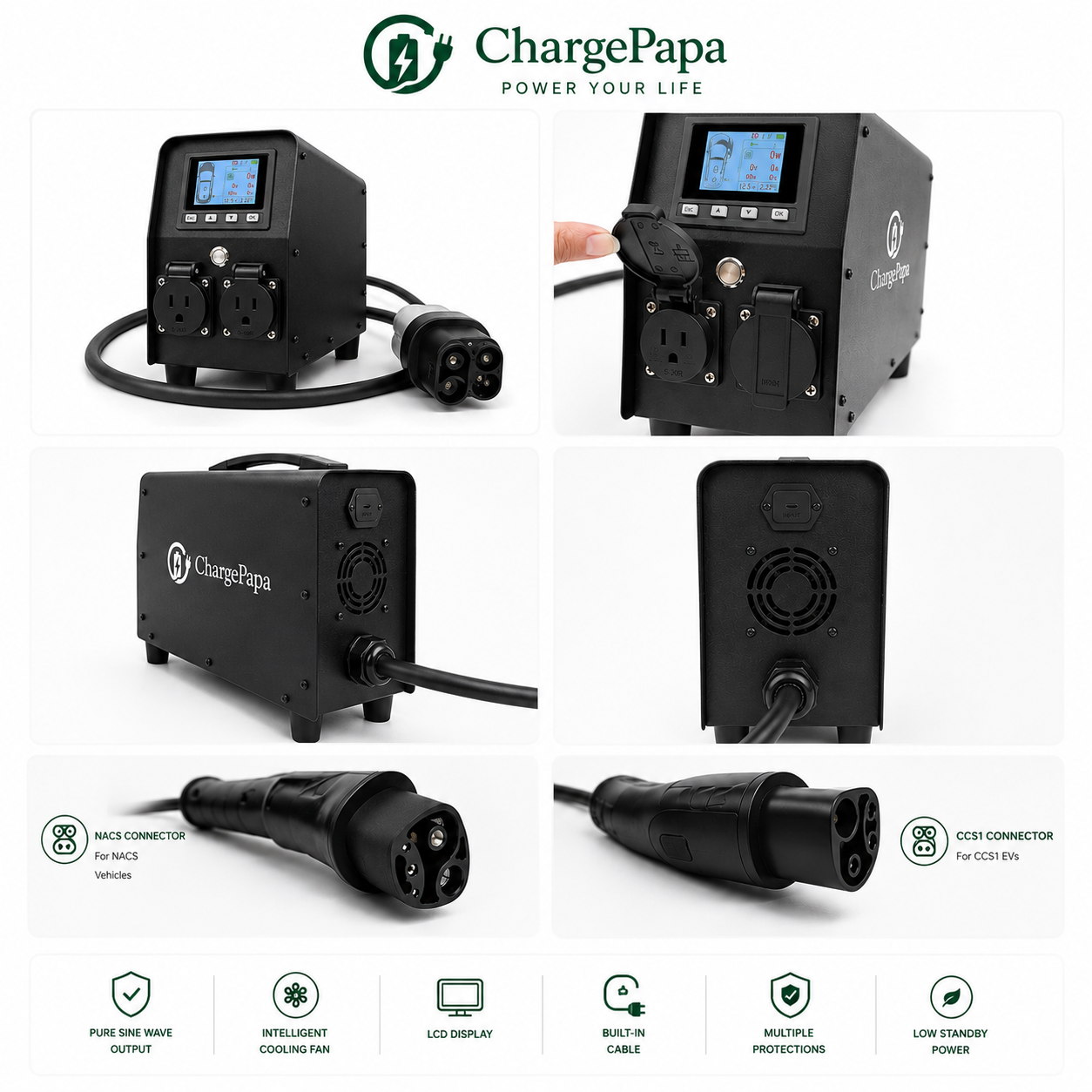

🔌 Input Configuration Options
Select the input connector that matches your vehicle's charge port. Output sockets (NEMA 5-20R + NEMA 5-15R) are identical across both configurations. Compatibility with a specific vehicle depends on that vehicle's external discharge / V2L support — physical connector fit alone does not confirm V2L functionality.
| Configuration | Input Connector | Connector Standard | Typical Use |
|---|---|---|---|
| V2L-US / NACS | NACS | SAE J3400 | NACS-port EVs with confirmed V2L support |
| V2L-US / CCS1 | CCS1 | SAE J1772 + DC combo | CCS1-port EVs with confirmed V2L support |
⚠️ Physical connector fit is only one requirement. V2L session authorization depends on vehicle model, software version, and market configuration. Verify V2L capability in your vehicle's owner's manual or manufacturer app before ordering.

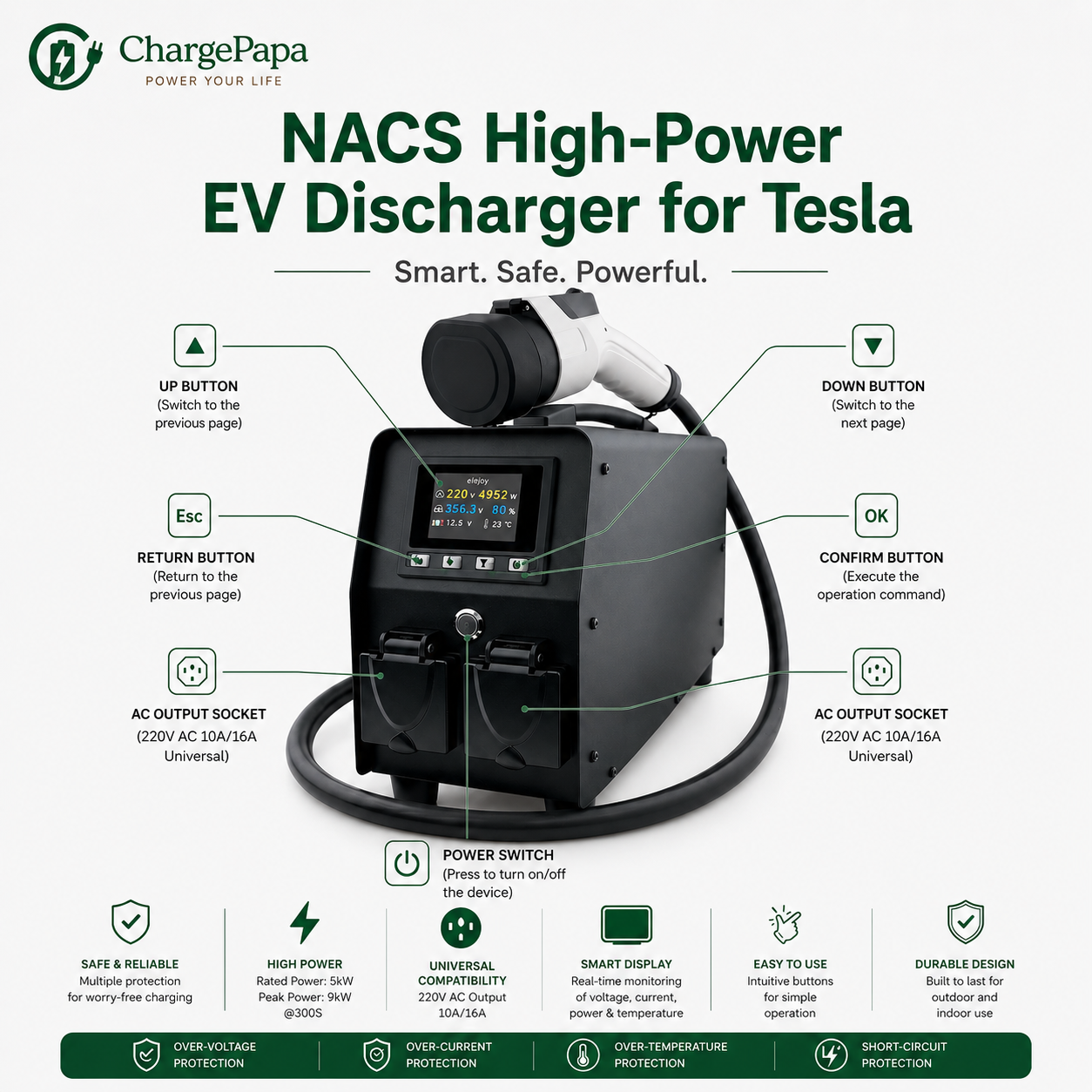

⚙️ Engineering & Performance Features
📋 Engineering Data Sheet
| Supplier Model | EVI3000-US |
| Input Connector Options | NACS (SAE J3400) · CCS1 (SAE J1772 combo) |
| Input Voltage Range | 250–450V DC |
| Output Sockets | US Socket (Type B): 1× NEMA 5-20R + 1× NEMA 5-15R — standard configuration. Other socket types available by order note or post-order email. |
| Output Voltage | 120V AC / 240V AC |
| Output Frequency | 60 Hz |
| Output Waveform | Pure sine wave |
| Max Continuous Output | 3kW / 5kW |
| Peak Power | 4.5kW @ 300s / 9kW @ 300s |
| Conversion Efficiency | Up to 93% |
| Max Output Current | TBD — pending supplier confirmation |
| Phase Type | Single-phase |
| Display | LCD — real-time voltage / current / power monitoring |
| Protection | Over-current · Overload · Over-temperature · Output short-circuit |
| Cooling | Intelligent cooling fan / active thermal management |
| Cable | Built-in — exact length TBD |
| Shipping Weight | 8.5 kg |
| Package Size | 53 × 33 × 25 cm |
🚗 Compatibility
The V2L-US is designed for EVs with NACS (SAE J3400) or CCS1 ports where the vehicle supports external discharge / V2L functionality. Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration. Physical connector fit is only one requirement — V2L session authorization is a separate vehicle-side function. Verify your vehicle's V2L capability in the manufacturer's app or owner's manual before ordering.
| Make | Model | Year | Port Type |
|---|---|---|---|
| Confirmed compatibility data pending — to be populated from catalog.yaml. | |||
⚠️ Not all NACS-port or CCS1-port vehicles support external discharge. Compatibility depends on vehicle V2L capability, software version, and market configuration.
✅ Standards & Certifications
❓ Frequently Asked Questions
Q: Does the ChargePapa V2L-US charge my EV?
No. The V2L-US (EVI3000-US) is a discharge-only device. It converts your vehicle's DC battery power into 120V or 240V AC output for powering external devices. It does not supply power to your vehicle's battery.
Q: Which input configuration should I choose — NACS or CCS1?
Select the configuration that matches your vehicle's charge port. NACS (SAE J3400) is used on certain EVs with a NACS-format port. CCS1 (SAE J1772 combo) is used on many non-Tesla EVs sold in North America. Both configurations deliver identical output: NEMA 5-20R + NEMA 5-15R sockets at up to 5kW continuous. Compatibility with a specific vehicle depends on that vehicle's external discharge / V2L support — not all NACS or CCS1 vehicles support V2L.
Q: How do I know if my vehicle supports V2L / external discharge?
Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration. Check your vehicle's owner's manual, the manufacturer's app, or contact your dealer to confirm V2L capability before ordering.
Q: Does the V2L-US output a pure sine wave?
Yes. The V2L-US (EVI3000-US) outputs a pure sine wave AC signal, making it suitable for powering sensitive electronics and motor-driven loads within the rated output capacity.
Q: What can I power with the V2L-US?
The V2L-US delivers up to 5kW continuous AC output (peak 9kW @ 300s) through a NEMA 5-20R and a NEMA 5-15R socket — suitable for tools, appliances, camping equipment, or emergency backup loads within the rated output capacity. Always verify the load requirements of your devices before use.
Q: What certifications does the V2L-US carry?
The ChargePapa V2L-US (EVI3000-US) carries UL 458 (Underwriters Laboratories power converter standard) and UN 38.3 (United Nations transport safety testing) certifications. An MSDS (Material Safety Data Sheet) is available upon request.
Q: I need a different output socket type. Can I request this?
Yes. The standard configuration ships with US output sockets (Type B): 1× NEMA 5-20R + 1× NEMA 5-15R. If you need a different socket type, you have two options: (1) leave your required socket type in the order note at checkout, or (2) email us immediately after placing your order and include your order number. Other socket configurations require additional customization time. We will confirm your request before processing.
⚠️ Critical Usage Note
- Always verify your vehicle's V2L / external discharge capability before use. Compatibility depends on vehicle external discharge support, software version, model configuration, and market configuration.
- Do not exceed the rated continuous output power of the unit.
- Do not connect loads that exceed the rated output capacity of the NEMA 5-20R or NEMA 5-15R sockets.
- This product is intended for use by technically competent users familiar with high-voltage EV systems and electrical safety practices.
- IP rating and working temperature range are TBD — pending supplier confirmation. Do not use in environments beyond confirmed operating parameters.
