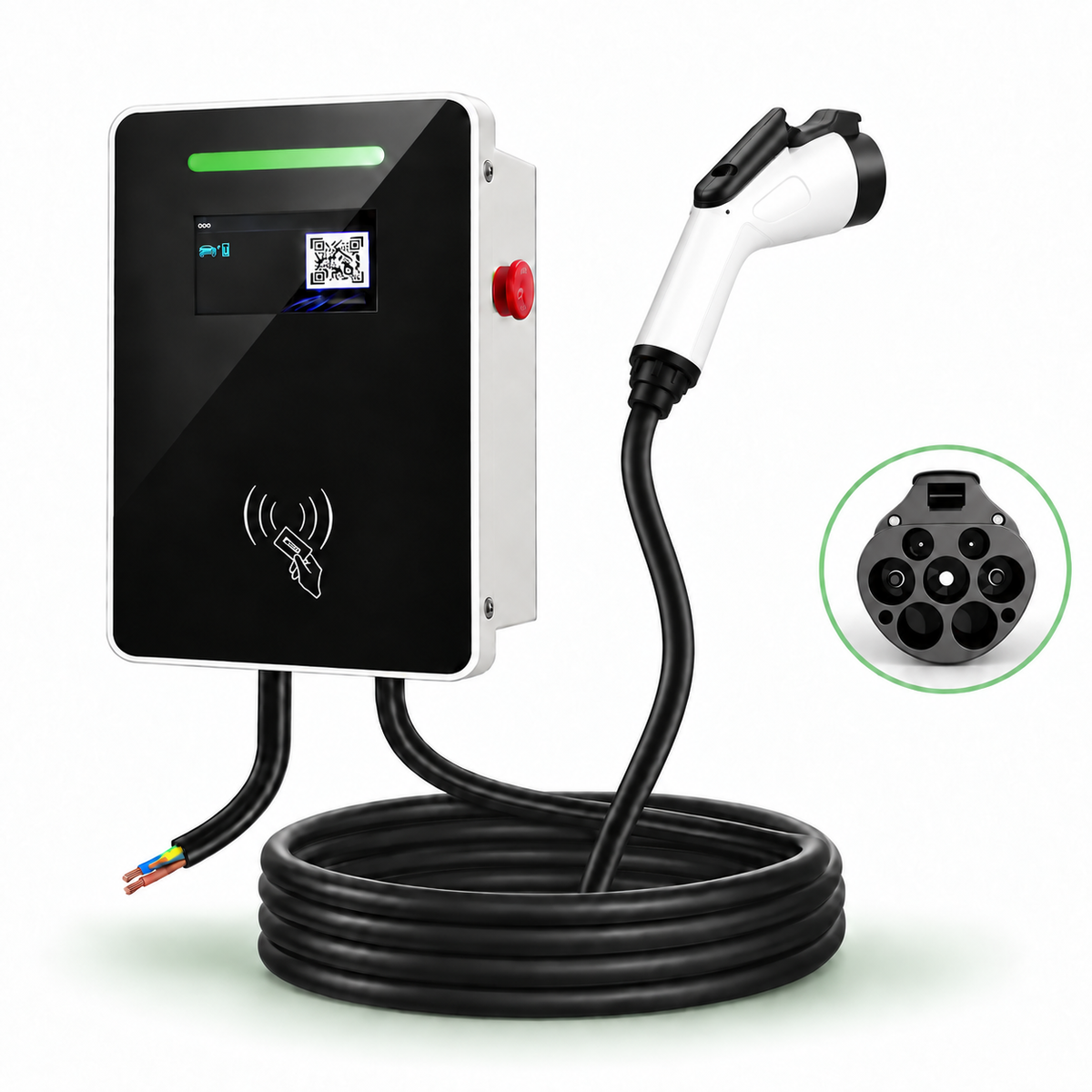

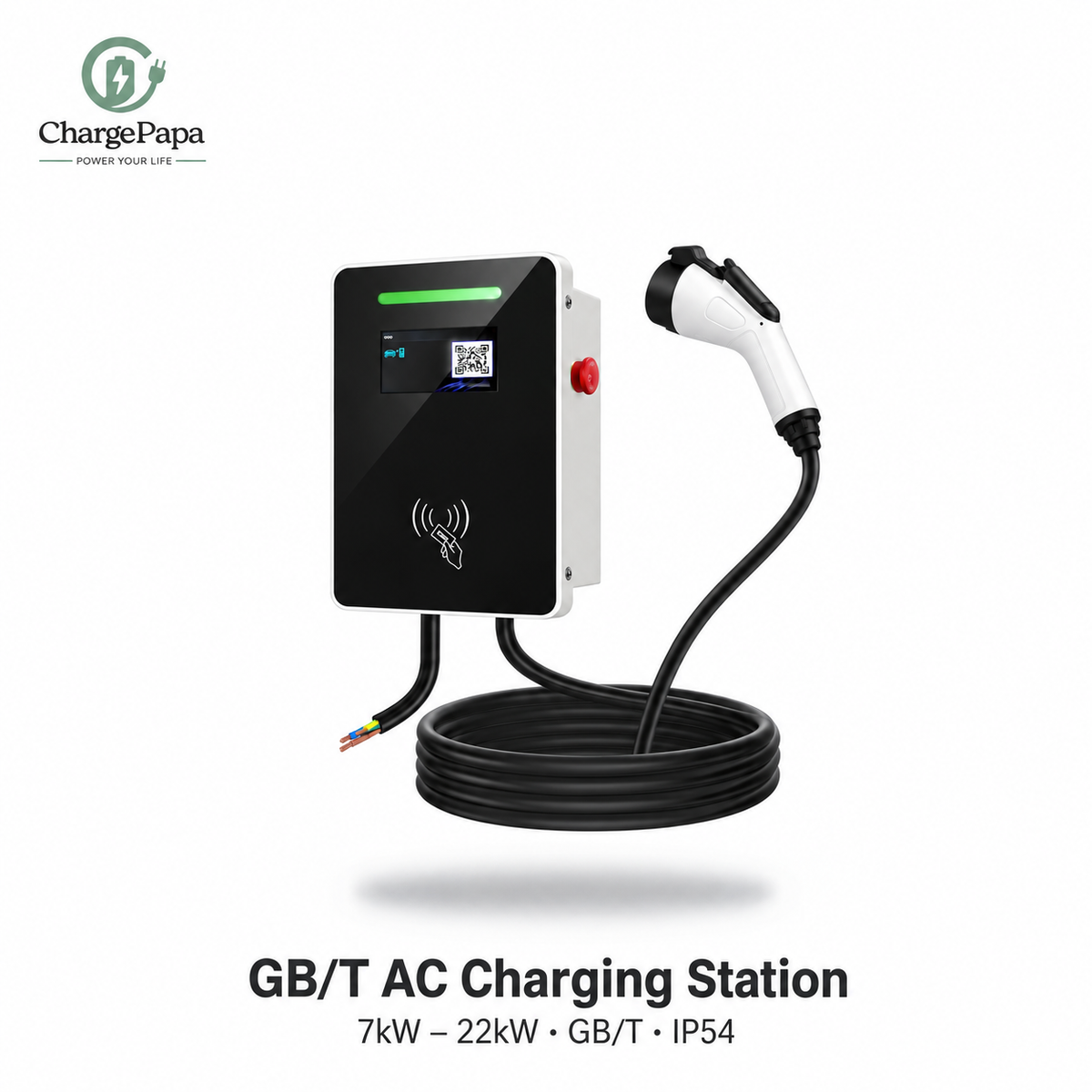

ChargePapa MRS-GJ | Commercial Level 2 EV Charging Station (GB/T, 7kW–22kW)
Couldn't load pickup availability
GB/T AC Vehicle Inlet · Cross-Market Commercial Wallbox
A fixed AC charging station for GB/T-port vehicles used in North America or Europe.
7kW / 11kW / 22kW · GB/T AC · IP54

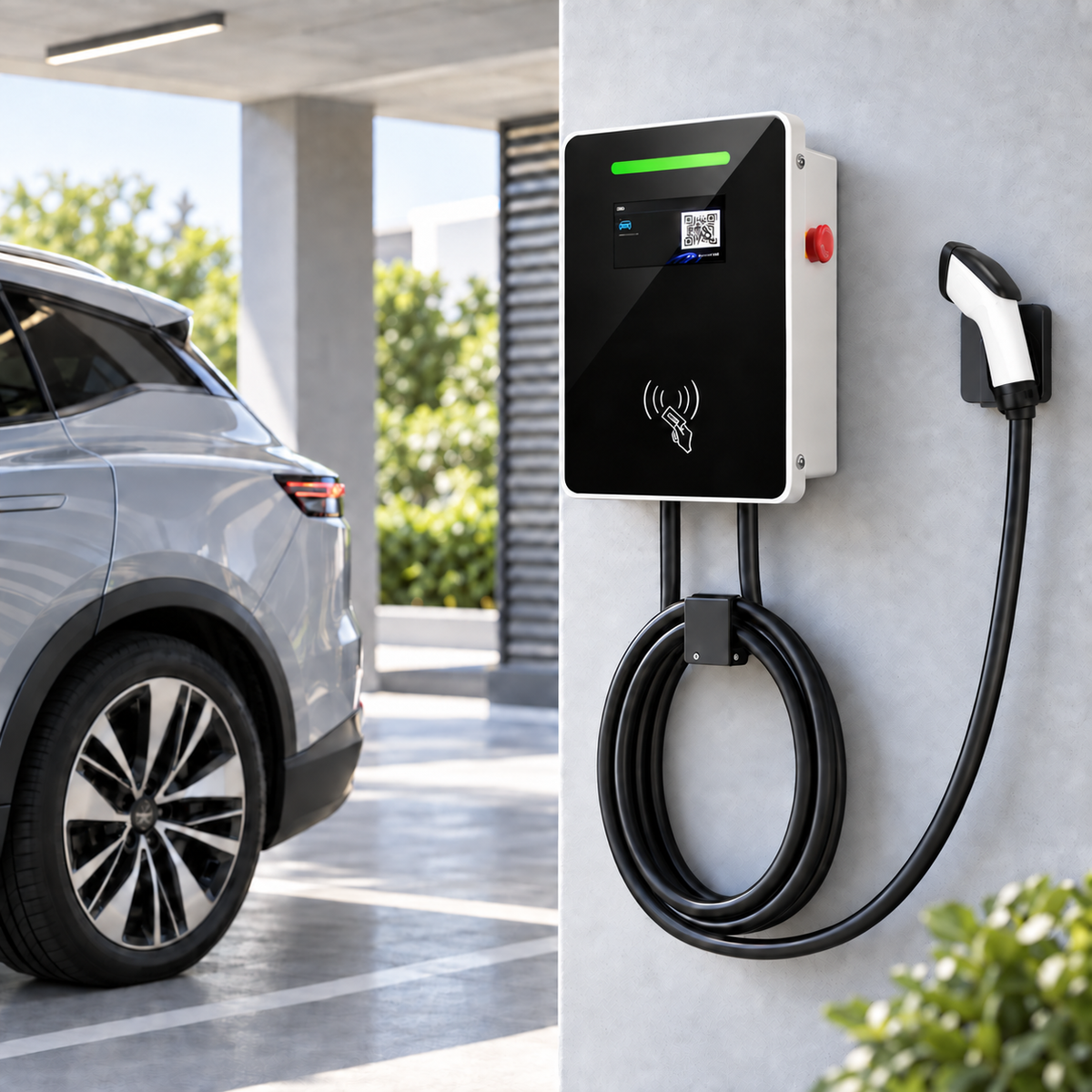

For imported or relocated GB/T-port EVs that need a commercial wall or column-style charging station with a sheet-metal housing, tempered-glass front, RFID access, LCD display, Bluetooth, and WiFi control.
GB/T AC vehicle inlet
7 / 11 / 22kW
Input plug by default · hardwire on request
RFID · LCD · Bluetooth · WiFi
IP54 rated
CE · TÜV · CB
Good fit if...
- Your EV has a GB/T AC vehicle inlet.
- The vehicle is being used outside its original sales market.
- You need a fixed commercial, workplace, hospitality, or residential-property charger.
- Your site and vehicle can support the selected single-phase or three-phase output.
Choose another model if...
- Your vehicle inlet is J1772 / Type 1, Type 2, or NACS.
- You need a portable charger rather than a fixed station.
- Your electrical site cannot support the selected voltage, phase, current, or installation method.
- You are choosing by country alone without checking the actual vehicle inlet.
Pick the output level
MRS-GJ-07032
7kW · 32A
Single-phase GB/T AC path for compatible sites and vehicles.
MRS-GJ-11016
11kW · 16A
Three-phase GB/T AC path where the site and vehicle support 11kW.
MRS-GJ-22032
22kW · 32A
Three-phase GB/T AC path where the supply and onboard charger support 22kW.
Installation note: The input-plug configuration is supplied by default. If your project requires a hardwired input with no plug, contact ChargePapa before ordering. Final plug, circuit, breaker, phase, cable routing, and hardwire requirements must be confirmed for the installation site.

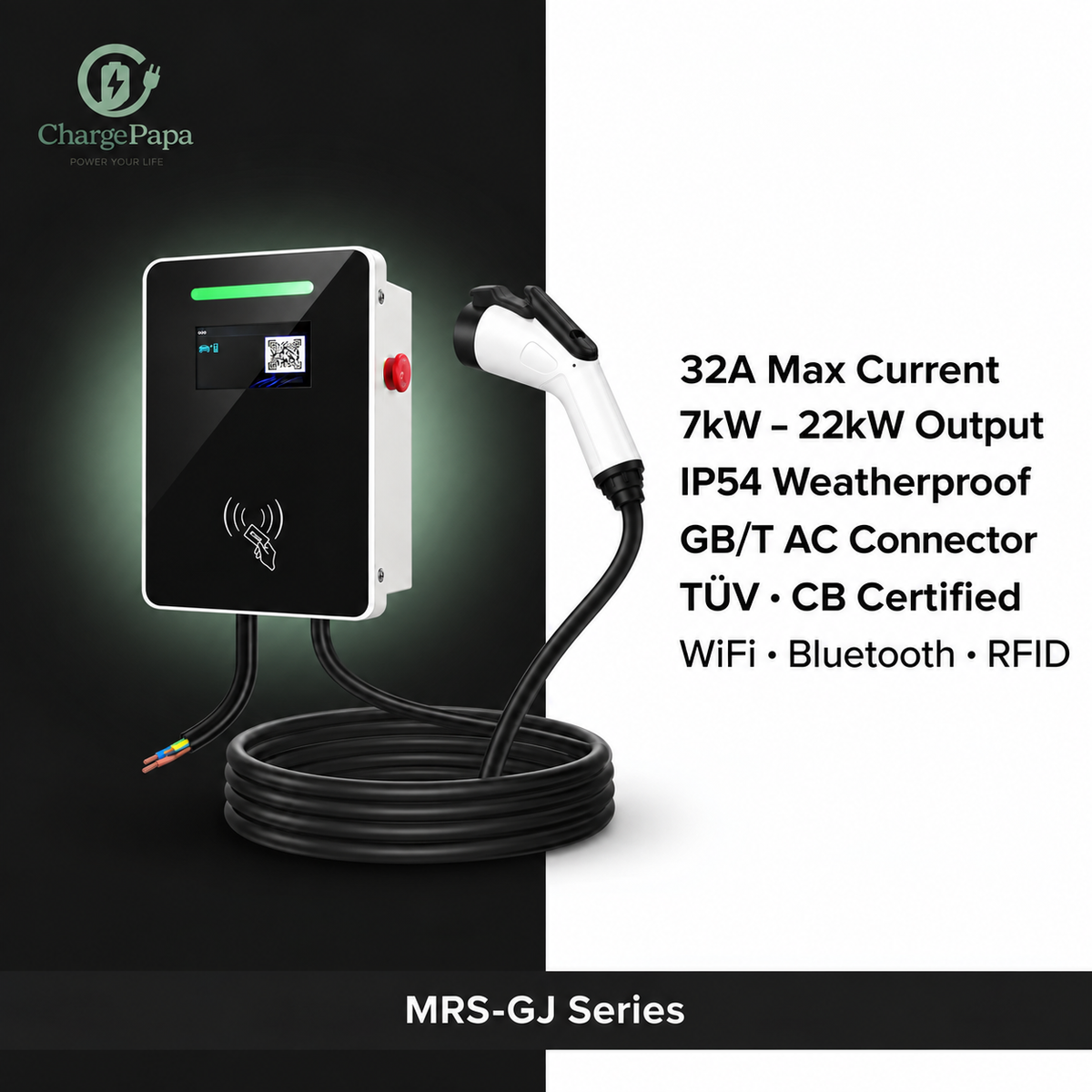

Core specifications
| Connector | GB/T AC charging gun |
|---|---|
| Output choices | 7kW / 32A single-phase · 11kW / 16A three-phase · 22kW / 32A three-phase |
| Cable length | 5 meters |
| Control box size | 315 × 245 × 105 mm (H × W × D) |
| Shipping weight | 7.4 kg |
| Weather rating | IP54 |
| Working environment | -30°C to +50°C · Humidity 5–95% · Altitude ≤2000m |
| Controls | RFID · LCD · Bluetooth · WiFi |
| Certifications | CE Certified · TÜV Certified · CB Certified |
What should a U.S. or European buyer verify?
GB/T describes the vehicle-side charging interface; it does not by itself confirm that a local electrical site can deliver the required AC supply. Before ordering, verify the vehicle's GB/T AC inlet, supported AC phase and onboard-charger limit, then confirm the site's voltage, phase, breaker capacity, input plug or hardwire plan, and local electrical requirements.
MRS Quality & Compliance
- The complete charger is TÜV and CB certified.
- Complies with LVD (IEC 61851-1) and EMC (IEC 61851-21-2).
- Key components—including the TÜV-certified full-copper cable, charging connector and main control board—carry applicable export certifications.
FAQ
MRS-GJ is a strong fit when a GB/T-port EV has been imported into the United States or Europe, when an owner relocates with a GB/T vehicle, when a dealer or specialist supports imported GB/T vehicles, or when a workplace, apartment property, hospitality site, fleet depot, or long-term parking facility wants a dedicated fixed GB/T AC charging point. The vehicle inlet, onboard charger, site voltage, phase, current and installation method must still be confirmed before ordering.
No. It is intended for a compatible GB/T-port vehicle wherever the electrical site can support the selected AC configuration. This can include imported or relocated GB/T vehicles used in North America or Europe.
The standard configuration includes an input plug. A hardwired input without a plug can be requested before ordering. The exact site connection must be confirmed with ChargePapa and the installer.
No. Actual AC charging power is limited by the selected charger, site supply, phase and current, installation setting, cable path, and the vehicle onboard charger. The lowest limit in the complete setup determines charging speed.
