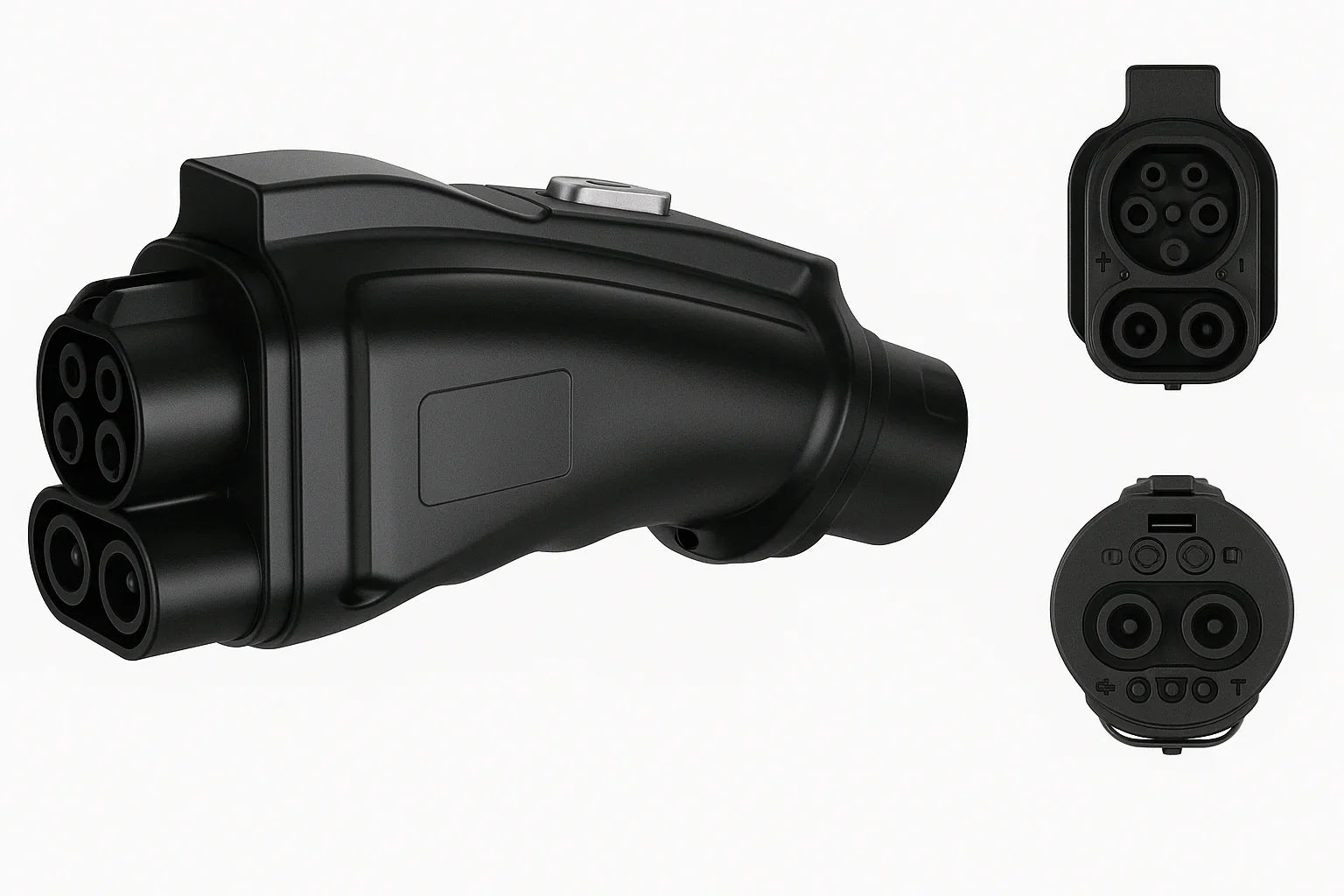

ChargePapa Smart-Link | CCS1 to GB/T DC Adapter (300A / Active Protocol Converter / CE)

On sale Save $145.00 USD (12% off)
$1,013.55 USD
$1,158.55 USD $1,013.55 USD
Sale Sold out
Shipping calculated at checkout.
🛡️ Quality Assurance: Every unit undergoes a rigorous 72-hour high-voltage stress test and thermal calibration before dispatch from our global hub. Safety is our priority; quality is non-negotiable.
✅ CE/TUV Safety Certified
🛡️ 2-Year Replacement Warranty
📦 Free Global Shipping

Power Your Chinese EV in the USA.
CCS1 to GB/T Intelligence. 300A Active Conversion.

Imported a BYD, NIO, or Xpeng to North America? The ChargePapa Smart-Link (SKU: CPCADA0010) bridges the gap between US/Canada CCS1 infrastructure and Chinese GB/T EV standards. This active adapter translates CCS1 (SAE J1772 Combo) PLC signals into your vehicle’s GB/T (GB/T 20234.3) CAN Bus language in real-time, unlocking access to Electrify America, EVgo, ChargePoint, and other CCS1 DC fast charging networks at up to 300A / 300kW. CE certified and IP54 rated.

CCS1 to GB/T - Factory Top Down

CCS1 to GB/T - Garage Workbench

⚠️ North America Only: This adapter uses CCS1 (SAE J1772 Combo — Society of Automotive Engineers Combined Charging System) input, the DC fast charging standard used in the United States and Canada. It is not compatible with CCS2 (IEC 62196-3) stations used in Europe and Australia. For European CCS2 stations with GB/T vehicles, see ChargePapa CPCADA0006.

🔄 Active Signal Conversion

Input: CCS1

From CCS1 (SAE J1772 Combo) Station
Electrify America · EVgo · ChargePoint

Output: GB/T DC

To Chinese Spec GB/T 20234.3 Vehicle

⚡ Active conversion: Unlike passive adapters, the Smart-Link actively translates PLC (CCS1 station protocol) ↔ CAN Bus (GB/T 20234.3 vehicle protocol) in real-time, enabling full handshake, authentication, and high-speed charging at up to 300A / 300kW.
Engineering Data Sheet
SKU CPCADA0010
Input Connector (Charger Side) CCS1 (SAE J1772 Combo)
Output Connector (Vehicle Side) GB/T 20234.3 DC
Rated Current 300A MAX
Max Power 300kW
Voltage Range 300V – 1000V DC
Communication Protocol Active PLC ↔ CAN Bus
Firmware Update USB-C Port
Ingress Protection IP54
Power Source Grid Powered (No Battery)
Certifications CE (Conformité Européenne)
Vehicle Compatibility
Make Model Year Port Type
BYD Han, Tang, Atto 3, Seal (China Spec) 2020+ GB/T 20234.3 DC
NIO ET7, ET5, ES8, ES6, EC6 2019+ GB/T 20234.3 DC
Xpeng P7, G9, G6, G3 2019+ GB/T 20234.3 DC
Zeekr 001, 009, X 2021+ GB/T 20234.3 DC
Volkswagen ID.4 X, ID.6 X (China Spec) 2021+ GB/T 20234.3 DC
⚠️ GB/T 20234.3 DC port (China spec) vehicles only. Not compatible with Tesla NACS (SAE J3400), CCS1 (SAE J1772 Combo), CCS2 (IEC 62196-3), or CHAdeMO port vehicles. Confirm your vehicle is China-spec GB/T before purchase. For use with CCS1 stations in the United States and Canada only.
Frequently Asked Questions

Q: Is the CPCADA0010 compatible with my BYD Han, NIO ET7, or Xpeng P7 imported to the US?

A: Yes. The ChargePapa Smart-Link CPCADA0010 is compatible with all China-spec vehicles equipped with a GB/T 20234.3 (Chinese national standard for DC conductive charging interfaces) port, including BYD Han, Tang, Atto 3, and Seal, NIO ET7, ET5, ES8, ES6, and EC6, Xpeng P7, G9, G6, and G3, Zeekr 001, 009, and X, and Volkswagen ID.4 X and ID.6 X (China spec). It supports up to 300A from CCS1 (SAE J1772 Combo — Society of Automotive Engineers Combined Charging System) DC fast charging stations.

Q: What is the maximum charging speed with the ChargePapa Smart-Link CPCADA0010?

A: The ChargePapa Smart-Link CPCADA0010 supports up to 300A at 1000V DC, delivering a maximum of 300kW via CCS1 (SAE J1772 Combo) DC fast charging stations including Electrify America, EVgo, and ChargePoint. Actual charging speed depends on your vehicle’s onboard charger capacity and the station’s rated output.

Q: How does the CPCADA0010 compare to a standard passive CCS1-to-GB/T adapter?

A: Compared to standard passive CCS1-to-GB/T adapters, the ChargePapa Smart-Link CPCADA0010 features an active protocol converter that translates PLC (SAE J1772 Combo CCS1 communication standard) to CAN Bus (GB/T 20234.3 vehicle communication standard) in real-time. Passive adapters cannot perform this handshake and will fail to initiate charging on modern CCS1 stations. The Smart-Link supports up to 300A — significantly higher than the 100A–200A limit of most passive units — and includes USB-C firmware upgradability for long-term compatibility.

Q: Is the CPCADA0010 compatible with the Tesla Cybertruck or other Tesla vehicles?

A: No. The ChargePapa Smart-Link CPCADA0010 outputs to GB/T 20234.3 and is not compatible with the Tesla Cybertruck, Model S, Model 3, Model X, or Model Y. All Tesla vehicles in North America use the NACS (SAE J3400 — Society of Automotive Engineers J3400) connector standard, which is physically and electrically incompatible with the GB/T 20234.3 output of this adapter. This adapter is for China-spec GB/T port vehicles only.

Q: Has the CPCADA0010 passed CE certification, and what does IP54 mean?

A: Yes. The ChargePapa Smart-Link CPCADA0010 carries CE (Conformité Européenne) certification, confirming compliance with European Union health, safety, and environmental protection directives. IP54 means the adapter is protected against dust ingress and water splashing from any direction — per IEC 60529 (International Electrotechnical Commission ingress protection standard) — making it suitable for outdoor charging in typical weather conditions.

Q: What is the SKU, and which connector standards does the Smart-Link CPCADA0010 cover?

A: The SKU is CPCADA0010. The ChargePapa Smart-Link accepts CCS1 (SAE J1772 Combo — Society of Automotive Engineers Combined Charging System, North American DC fast charging standard) on the charger input side, and outputs to GB/T 20234.3 (Chinese national standard for DC conductive charging interfaces for electric vehicles) on the vehicle side. Rated at 300A / 300kW. CE certified and IP54 rated. Firmware upgradeable via USB-C port. For use with CCS1 stations in the United States and Canada only.

✅ Standards & Certifications

  • CE (Conformité Européenne) — Confirms compliance with European Union health, safety, and environmental protection directives.
  • IP54 — IEC 60529 — International Electrotechnical Commission ingress protection standard. Protected against dust and water splashing from any direction.
  • SAE J1772 Combo (CCS1) — Society of Automotive Engineers Combined Charging System standard for DC fast charging in North America.
  • GB/T 20234.3 — Chinese national standard for DC conductive charging interfaces for electric vehicles.

⚠️ Critical Usage Note

This adapter is designed for China-spec GB/T 20234.3 DC port vehicles only and for use with CCS1 (SAE J1772 Combo) stations in the United States and Canada only. Do not use with CCS2 (IEC 62196-3) stations in Europe or Australia — see CPCADA0006 for CCS2-to-GB/T compatibility. Do not use with Tesla NACS (SAE J3400), CCS1, CCS2, or CHAdeMO port vehicles. Do not exceed rated operating limits (1000V DC / 300A). Inspect before each use — do not use if housing is cracked or contacts are damaged. Ensure connectors are fully seated before initiating a charging session. Powered directly by the charging station — no internal battery.

Warranty & Assurance

2-Year Comprehensive Warranty.
We cover all internal component failures. If a fault occurs, we provide remote diagnosis and free replacement units or parts. No return shipping required for confirmed defects.

Shipping & Lead Time

Factory Direct Shipping.
• Processing (QC): 3-5 Business Days
• Global Transit: 8-20 Business Days
• Tracking provided via email upon dispatch.

Global Shipping & Fulfillment

Shipped Direct: Estimated timelines vary by product type.

Total turnaround may vary because product categories have different warehouse stock levels, quality-control procedures, and dispatch preparation cycles before shipment.

Adapters & Accessories

12-22 Business Days

Handling 4-7 business days + transit 8-15 business days.

Portable, Home & DC Chargers

15-29 Business Days

Handling 7-14 business days + transit 8-15 business days.

🏭 The Direct Process

To ensure safety and performance, ChargePapa products go through inspection, preparation, and dispatch coordination before shipment. Different product types may require different warehouse allocation and quality-control turnaround before release.

PART 1 Estimated Handling Time Before Dispatch

Tier 1

Adapters & Accessories

4-7 Business Days

For charging adapters, connector accessories, and related small parts. This handling window remains unchanged.

Tier 2

Portable Chargers, Home Chargers & DC Chargers

7-14 Business Days

For portable EV chargers, home charging stations, and DC charger models including DC SVC-TG and DC EVC-ZG. Additional preparation time is required before dispatch.

PART 2 Transit Time (8-15 Days)

Global Transport

8-15 Days

International transport via Air Freight, Sea Freight, or Land depending on destination and local delivery conditions.

Estimated Timeline by Product Type

Longer total timelines do not mean inactive processing. They reflect differences in stock allocation, warehouse readiness, product inspection workload, and dispatch turnover by category.

Product Type Handling Time Transit Time Estimated Total
Adapters & Accessories 4-7 business days 8-15 business days 12-22 business days
Portable EV Chargers 7-14 business days 8-15 business days 15-29 business days
Home Charging Stations 7-14 business days 8-15 business days 15-29 business days
DC Chargers / DC SVC-TG / DC EVC-ZG 7-14 business days 8-15 business days 15-29 business days

Remote Areas & Extended Delivery

Deliveries to remote regions, island destinations, low-frequency carrier zones, or special-route areas may require additional transit time beyond the standard estimate.

Depending on destination access and local logistics availability, shipments may be routed through a combination of air freight, sea freight, and land transport to complete final delivery safely and efficiently.

Logistics & Protection

Global Shipping Protection (Included)

All international orders are automatically insured against loss or damage. We handle claims with transport partners at no extra cost to you.

Multi-Modal Transport

We utilize a combination of Air, Sea, and Land transport networks to ensure secure delivery to your specific address.

Tracking Information

Tracking numbers are generated after handling is complete. Adapters and accessories usually receive tracking within 4-7 business days, while portable chargers, home charging stations, and DC charger orders may require 7-14 business days before tracking becomes active.

Customs & Duties

We handle export paperwork. However, specific local import duties or taxes are the recipient's responsibility.

* Product-specific handling times apply before transit begins.

* Orders placed on weekends or holidays will be processed on the next business day.

* Remote regions, islands, and special-route destinations may require additional transit time.

* During high-volume periods such as Black Friday or New Year, handling and transit may require additional time.

* Neither party shall be liable for delays resulting from force majeure events, including natural disasters, strikes, customs holds, or transport disruption.

Need a status check on your order timeline?

Contact our logistics team if your tracking update is taking longer than the estimated handling window for your product type.

✉ info@chargepapa.com

Will this fit my car?

Please verify your car's port type (Type 1 vs Type 2) before purchasing. If unsure, send a photo of your charging port to our chat support.
