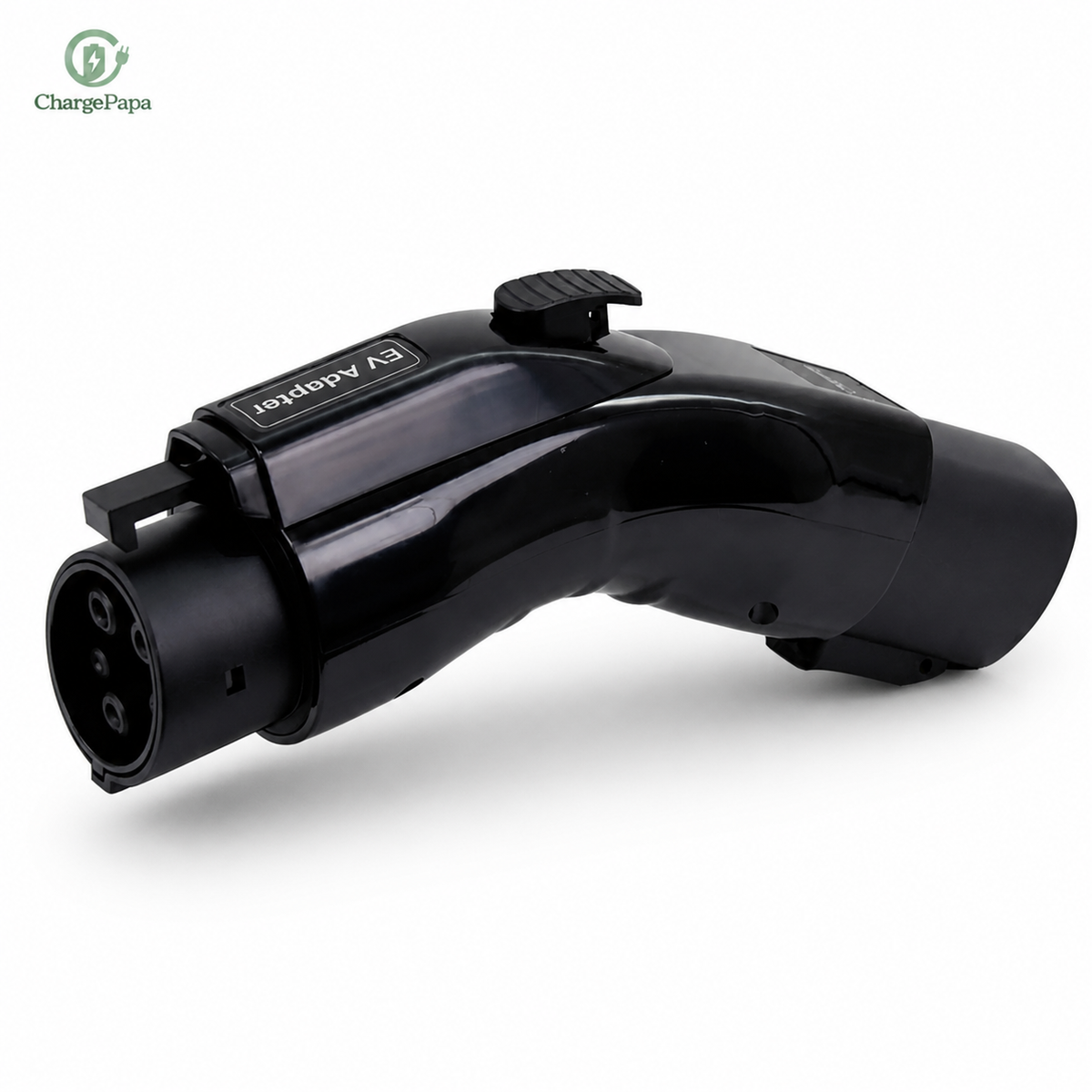

• ChargePapa Omni-Link Pro Tesla to J1772 right angle adapter, 50A IP54, white background
  • ChargePapa Omni-Link Pro EV adapter dark background, Tesla to J1772 Type 1, 50A AC
  • ChargePapa Omni-Link Pro Tesla to J1772 adapter multi-angle view – 50A right angle

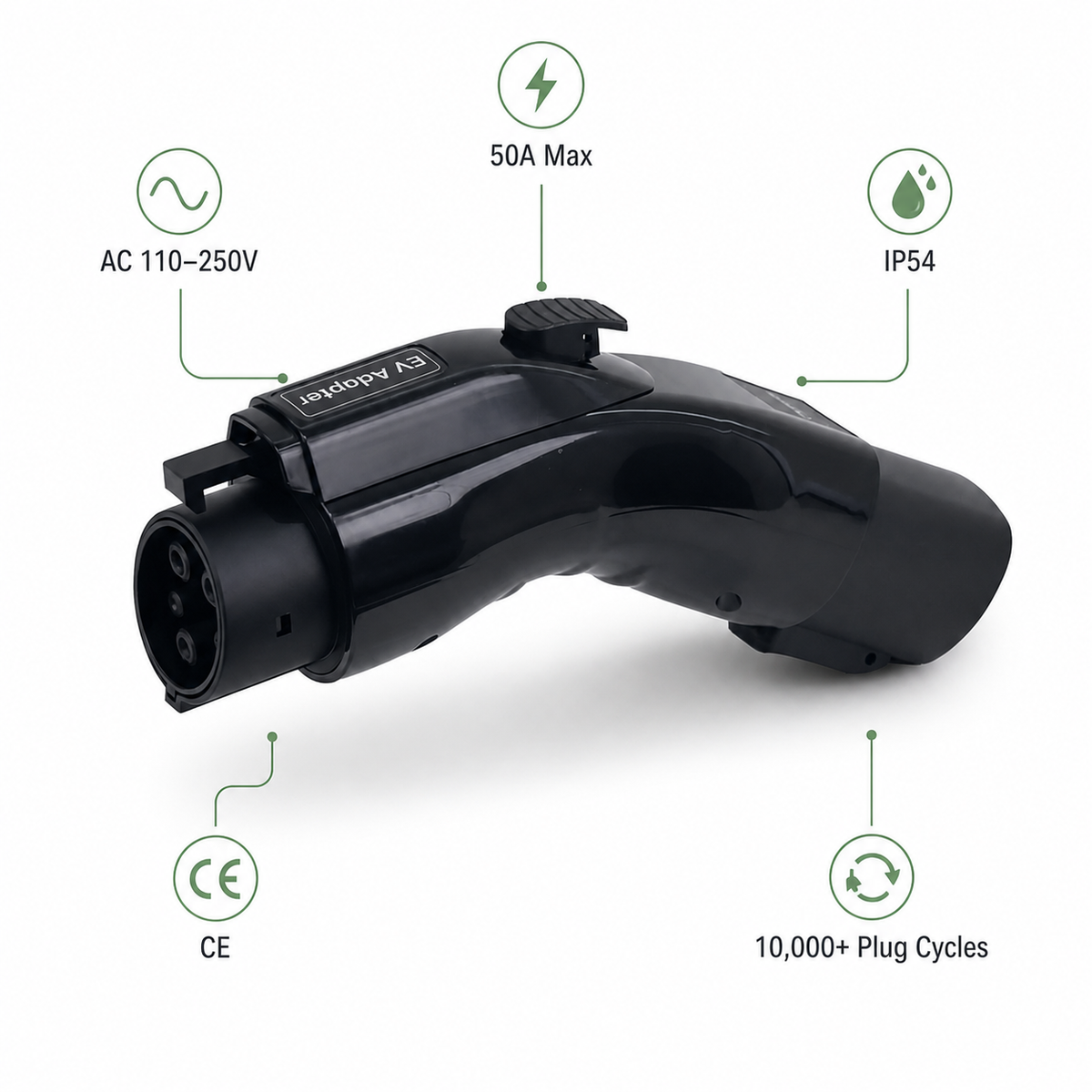

  • ChargePapa Omni-Link Pro spec sheet – 50A, SAE J1772 output, Tesla input, IP54 rated
  • ChargePapa EV charging adapter worldwide shipping – Paris delivery scene
1 5

ChargePapa Omni-Link | Tesla to J1772 (Type 1) Right Angle Adapter Pro (50A / AC Only)

On sale Save $43.50 USD (15% off)
$245.05 USD
$288.55 USD $245.05 USD
Sale Sold out
Shipping calculated at checkout.
🛡️ Quality Assurance: Every unit undergoes a rigorous 72-hour high-voltage stress test and thermal calibration before dispatch from our global hub. Safety is our priority; quality is non-negotiable.
✅ CE/TUV Safety Certified
🛡️ 2-Year Replacement Warranty
📦 Free Global Shipping

Adapter Path

Best for J1772 EV drivers using NACS AC charging sources.

ChargePapa Omni-Link | Tesla to J1772 (Type 1) Right Angle Adapter Pro (50A / AC Only) CP-TQ-ACM-004 connects a NACS / SAE J3400 AC charging source to a SAE J1772 Type 1 vehicle inlet, rated for 50A Max, AC 110V–250V, with ~12.5kW. Use it as a path-matching adapter for compatible AC Level 2 charging setups.

Quick Fit Check
Station Side Vehicle Side Charging Type
NACS / SAE J3400 AC SAE J1772 Type 1 AC Level 2 only
Rated output: 50A Max · AC 110V–250V Phase: Single / Split Phase Not for: Tesla Superchargers / DC fast charging

🔌 Connection Direction: NACS AC station → J1772 Type 1 vehicle

Use this adapter when the charger-side connector and the vehicle-side inlet match this direction. Physical connector fit is only one requirement; the charger, vehicle, and any authorization path still need to support the charging session.

This is not the reverse path. If your EV has a NACS port and you want to charge from a J1772 Type 1 AC charger, choose the J1772-to-NACS direction instead.

Product-Specific Fit Notes
✓

Right-angle form factor helps reduce cable strain in garage or parking setups where a straight adapter sticks out too far.

✓

Built for compatible Tesla Wall Connector and Destination Charger AC sources feeding a J1772 / Type 1 EV port.

✓

50A Max, AC 110V–250V, IP54, 1500V withstand voltage, and >10,000-cycle mechanical life are preserved from the original data sheet.

⚠️ Not Compatible with Tesla Superchargers (DC Fast Charging)

This adapter supports AC Level 2 charging only. It is not compatible with Tesla Superchargers, CCS DC fast chargers, or any DC fast charging network. Confirm your target station is an AC Level 2 source before purchasing.

What This Means for You

You are solving a connector-direction mismatch.

Match the charging-source connector first, then the vehicle inlet. This avoids buying the visually similar adapter that works in the opposite direction.

You are charging on AC Level 2, not DC fast charging.

This product class is built for home, workplace, hotel, destination, and other compatible AC charging setups.

You want the limits visible before checkout.

Current, voltage, phase, connector direction, and Supercharger limits are stated upfront so the purchase path is easier to verify.

📍 Real-World Scenarios

Home or garage AC charging

Use this when the installed AC charging source and your vehicle inlet need this exact adapter direction.

Hotel or destination AC charging

Useful during travel when the site has a compatible AC charger and allows your vehicle to start a session.

Shared workplace parking

A practical bridge where multiple EV standards appear in the same AC charging area.

Wrong use case: DC fast charging

If the charger is a Tesla Supercharger or other DC fast charger, this is the wrong product class. Physical connector fit is not enough.

Original Product Images
ChargePapa Tesla to J1772 right angle adapter at home garage Level 2 charging station
Full Specs — For the Detail-Oriented
SKU CP-TQ-ACM-004
Station Side Tesla Proprietary (Wall Connector / Destination Charger)
Vehicle Side SAE J1772 (Type 1)
Rated Current 50A Max
Working Voltage AC 110V–250V
Max Power Output ~12.5kW
Phase Single / Split Phase
IP / Weather Rating IP54
Working Temperature -30°C to +50°C · Humidity 5~95% · Altitude ≤2000m
Material / Build Note PC + PA66 + GF25% flame-retardant housing · Silver-plated copper pins · Mechanical life >10,000 cycles

Specs above are carried forward from the original product page data. If your installation depends on a current ceiling, station authorization, or regional electrical code, confirm the complete setup before ordering.

Frequently Asked Questions

Q: Which direction does this adapter work?

A: NACS AC station → J1772 Type 1 vehicle. Read adapter names as charging source to vehicle inlet. If your real setup is the reverse direction, choose the matching reverse adapter instead.

Q: Does it work with Tesla Superchargers?

A: No. This is an AC Level 2 adapter path. Tesla Superchargers and other DC fast chargers require a different product class and separate vehicle/network support.

Q: What should I check before buying?

A: Check the charger-side connector, the vehicle-side inlet, the station output, AC/DC charging type, current limit, voltage range, and whether the site or app allows your vehicle to start a session.

Q: Why does ChargePapa show the limits so prominently?

A: Adapter purchases fail most often when connector direction or AC/DC use is misunderstood. The page is structured to make the path, limits, and wrong-use cases visible before checkout.
