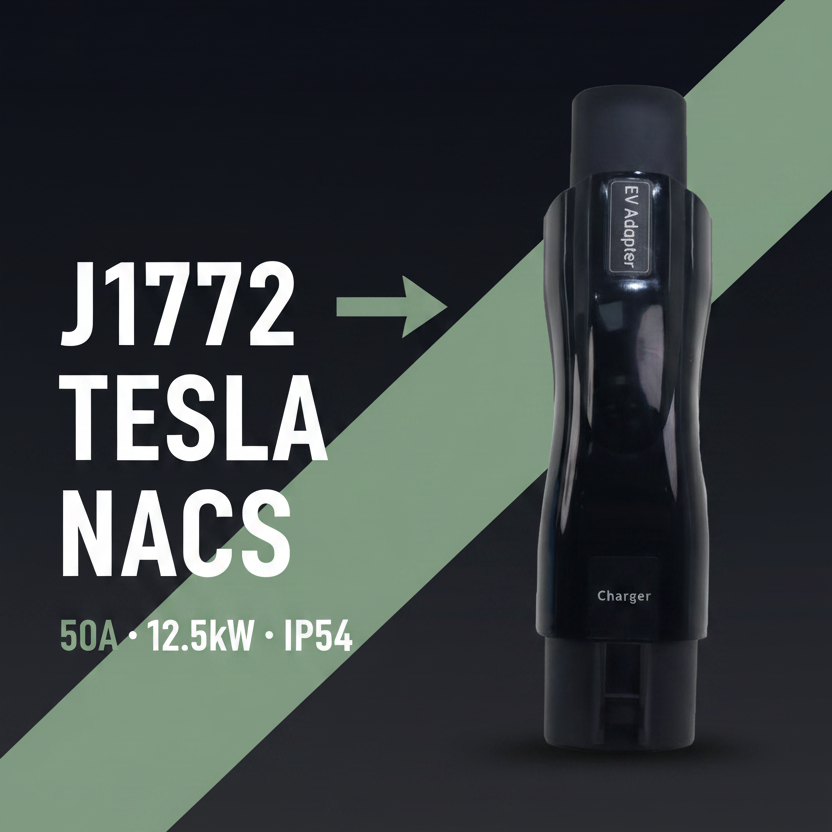

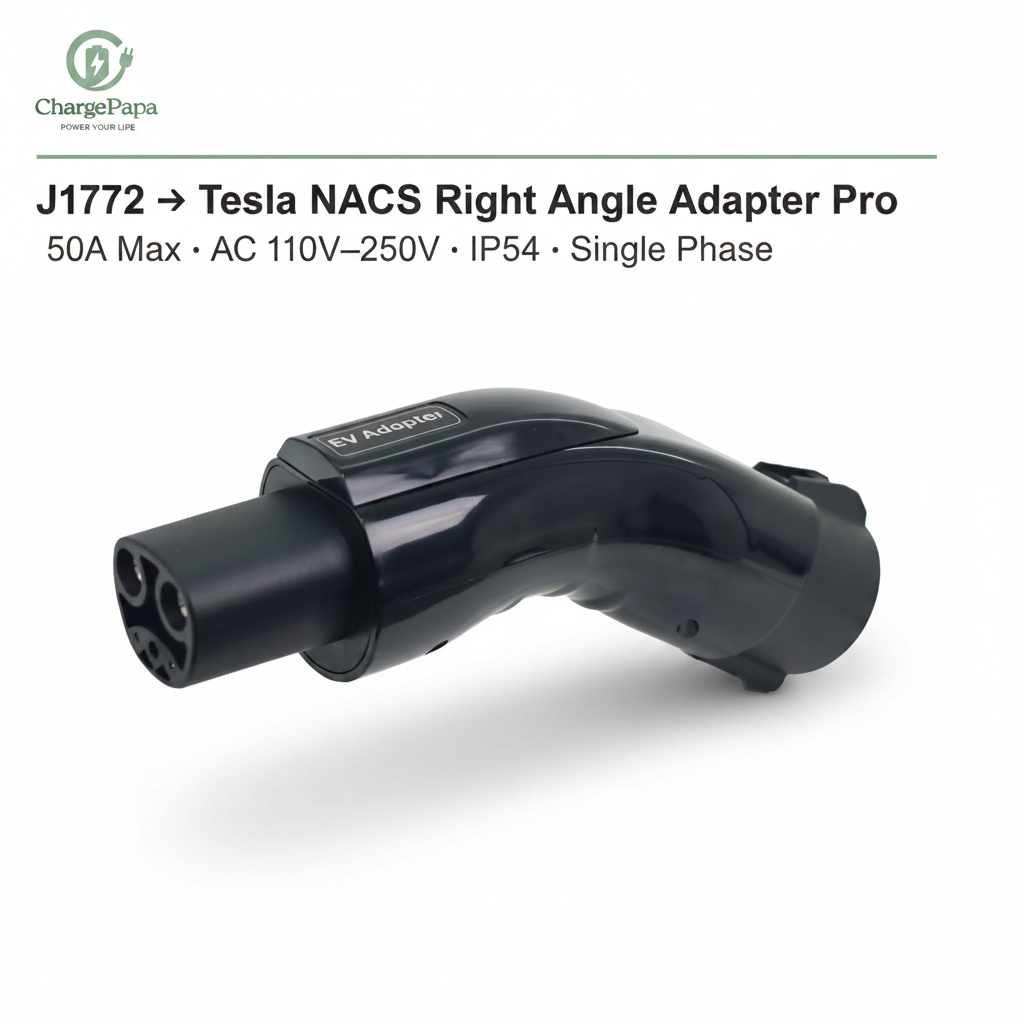

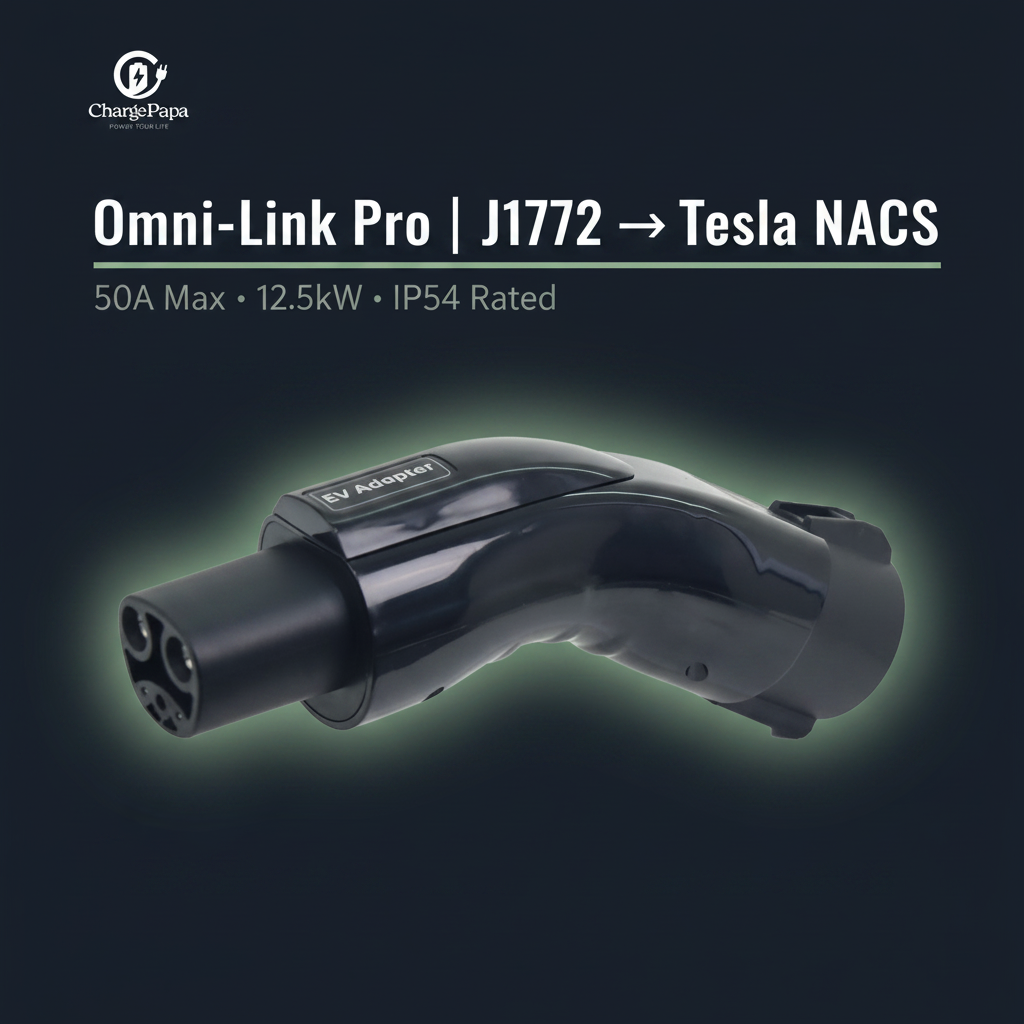

ChargePapa Omni-Link | J1772 to Tesla (NACS) Right Angle Adapter Pro (50A / Single Phase)
Couldn't load pickup availability
Charge Your Tesla at Any J1772 Level 2 Station — Up to 50A AC
The ChargePapa Omni-Link Pro connects SAE J1772 (Type 1) AC charging infrastructure to Tesla vehicles equipped with the NACS (North American Charging Standard) port — including Model 3, Model Y, Model S, and Model X. Rated at 50A Max / AC 110V–250V / Single Phase with IP54 weather protection and an ergonomic right-angle design. Built with PC+PA66+GF25% flame-retardant housing, silver-plated copper pins, and >10,000 mechanical cycle life.
Conversion Direction
SAE J1772 / Type 1 Charging Station (US/Canada) → Tesla NACS Port
AC Level 2 Only · 50A Max · Single Phase · 12.5kW Max · IP54 · Right Angle
⚠️ AC Level 2 Only: This adapter supports AC Level 2 charging only. It is NOT compatible with DC fast charging. Tesla vehicles can use Superchargers directly via their NACS port — this adapter is for J1772 AC destination chargers, home wallboxes, and public Level 2 stations only.
| SKU | CPCADA0018 |

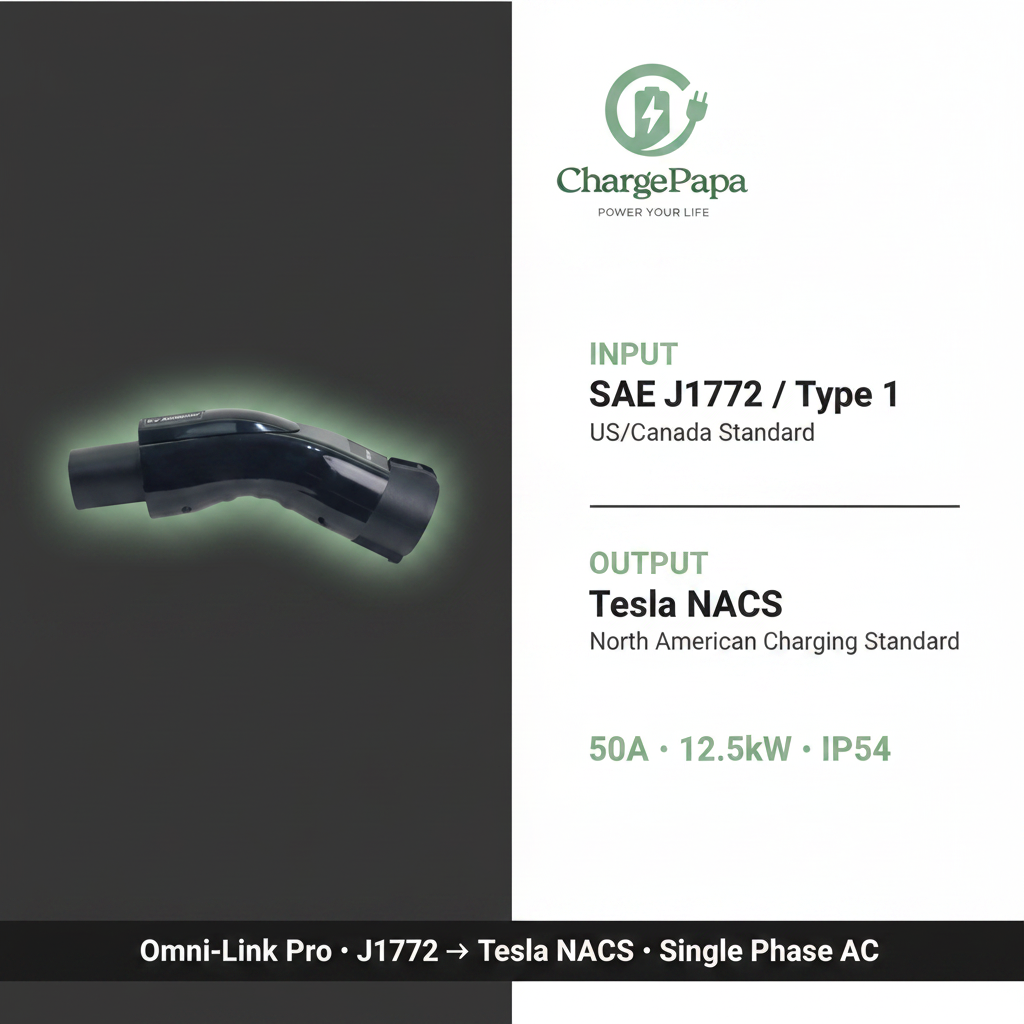

| Connector (Input) | SAE J1772 (Type 1) — US/Canada Charging Standard |
| Connector (Output) | Tesla NACS (North American Charging Standard) |
| Rated Current | 50A Max |
| Operating Voltage | AC 110V – 250V |
| Phase Type | Single Phase |
| Max Power Output | 12.5kW (50A × 250V) |
| IP Rating | IP54 |
| Housing Material | PC + PA66 + GF25% (Flame Retardant UL94 V-0) |
| Pin Material | Silver-Plated Copper |
| Temperature Rise | <50K |
| Mechanical Life | >10,000 Cycles |
| Operating Temperature | -30°C to +50°C · Humidity 5~95% · Altitude ≤2000m |
| Charging Mode | AC Level 2 Only (Single Phase) |
| HS Code | 8544.42.90 |
Compatible with all Tesla vehicles equipped with the NACS port. Allows Tesla owners to access the extensive J1772 Level 2 charging network across North America — including destination chargers, workplace chargers, and public Level 2 stations.
| Model | Year | Port | Max AC Speed |
|---|---|---|---|
| Model 3 | 2017–2024 | NACS | ~11.5kW |
| Model Y | 2020–2024 | NACS | ~11.5kW |
| Model S | 2012–2024 | NACS | ~11.5kW |
| Model X | 2015–2024 | NACS | ~11.5kW |
| Cybertruck | 2023–2024 | NACS | ~11.5kW |
⚠️ AC Level 2 only. Not for DC Supercharging. Speed limited by vehicle OBC capacity.
Q: Can I charge my Tesla Model 3 at a J1772 public charging station?
A: Yes. The ChargePapa Omni-Link Pro connects any J1772 Level 2 station to your Tesla NACS port, giving you access to thousands of public J1772 chargers across North America.
Q: Can I use this at a Tesla Supercharger?
A: No. This adapter is for J1772 AC Level 2 stations only. Tesla vehicles connect to Superchargers directly via their NACS port without any adapter.
Q: Is this weatherproof for outdoor charging stations?
A: Yes. The ChargePapa Omni-Link Pro is rated IP54 — dust-resistant and splash-proof, suitable for outdoor public J1772 charging stations across North America.
Q: Does this work with Tesla home Wall Connectors?
A: Tesla Wall Connectors use NACS natively — no adapter needed. This adapter is specifically for J1772 chargers (non-Tesla infrastructure).
Q: What is the SKU and does ChargePapa ship to North America?
A: The SKU is CPCADA0018. ChargePapa ships to 50+ countries worldwide including the United States and Canada. Tracked shipping available for all orders.
⚠️ Critical Usage Note: For AC Level 2 charging only. NOT for DC Supercharging. For Tesla NACS vehicles only. Keep connector dry and inspect for damage before each use. Mechanical life rated at >10,000 insertion cycles.
