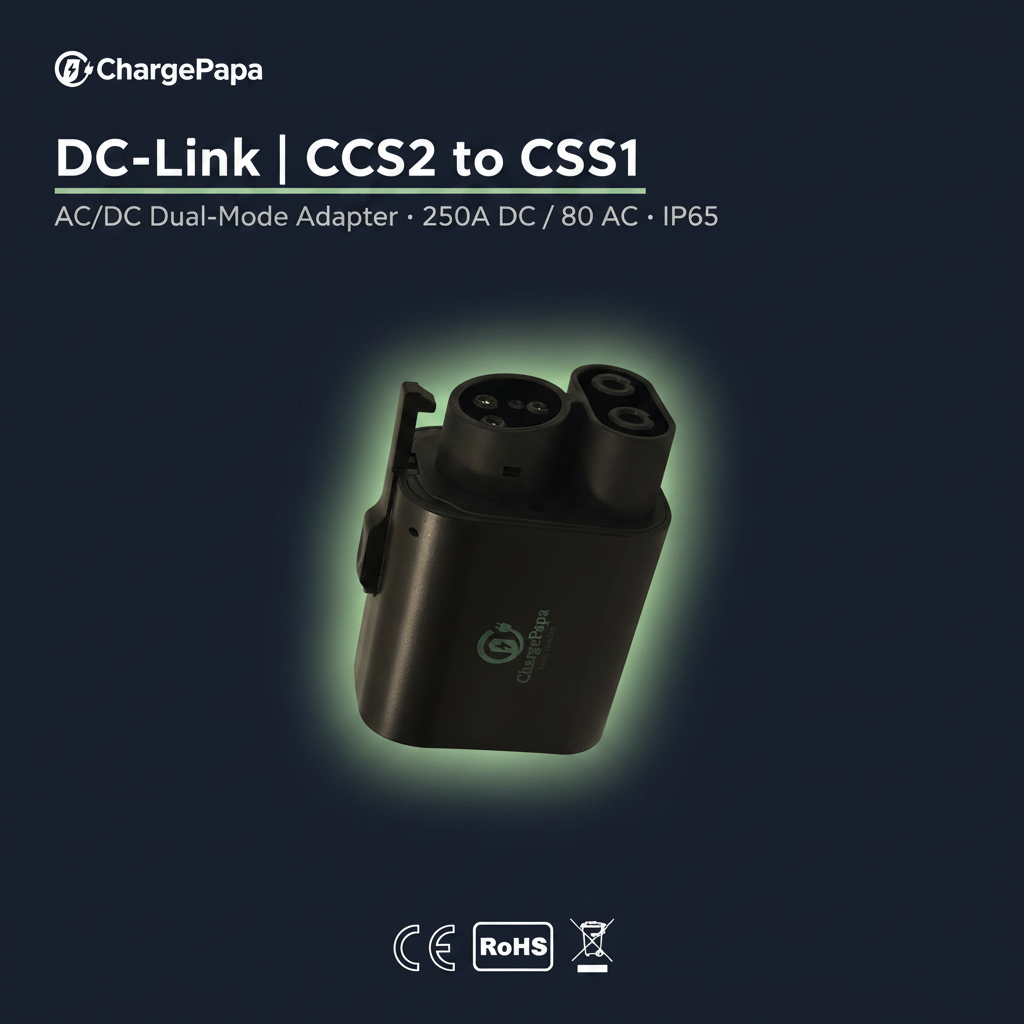

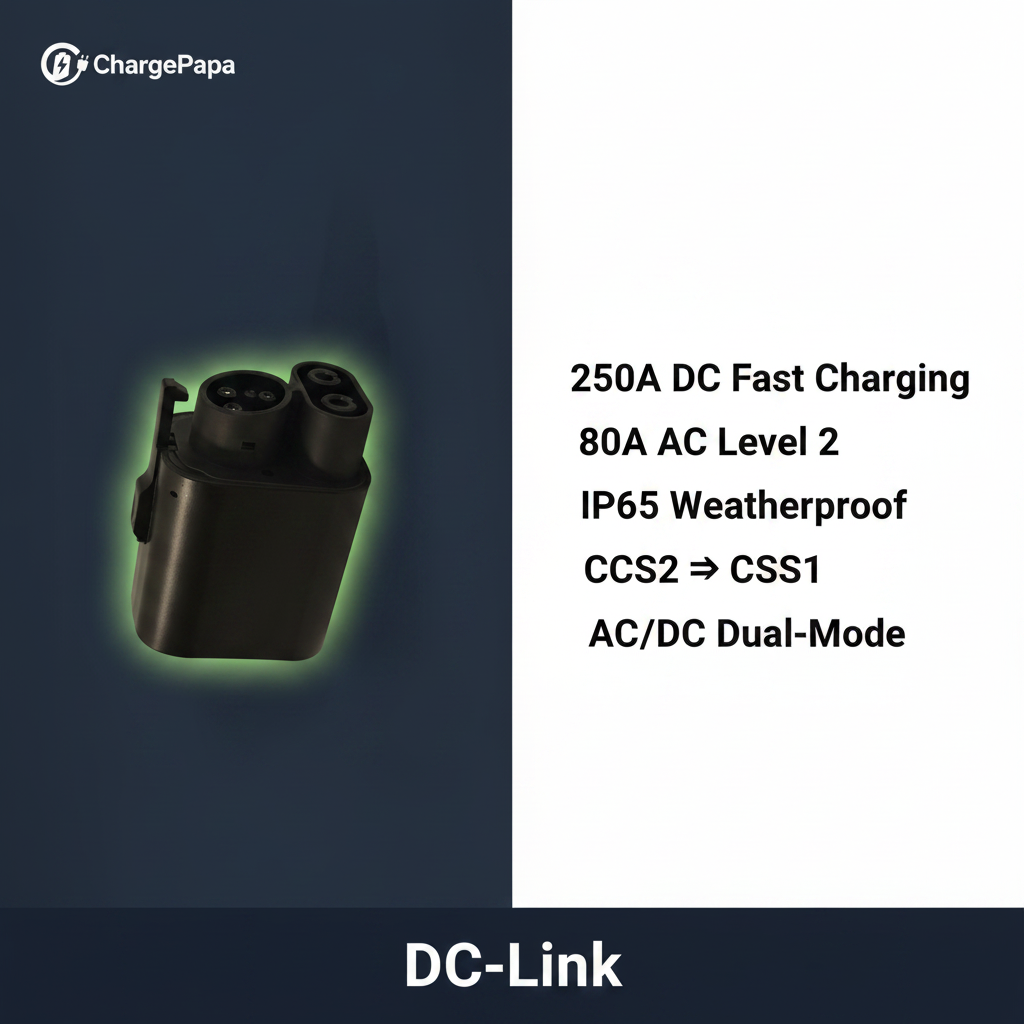

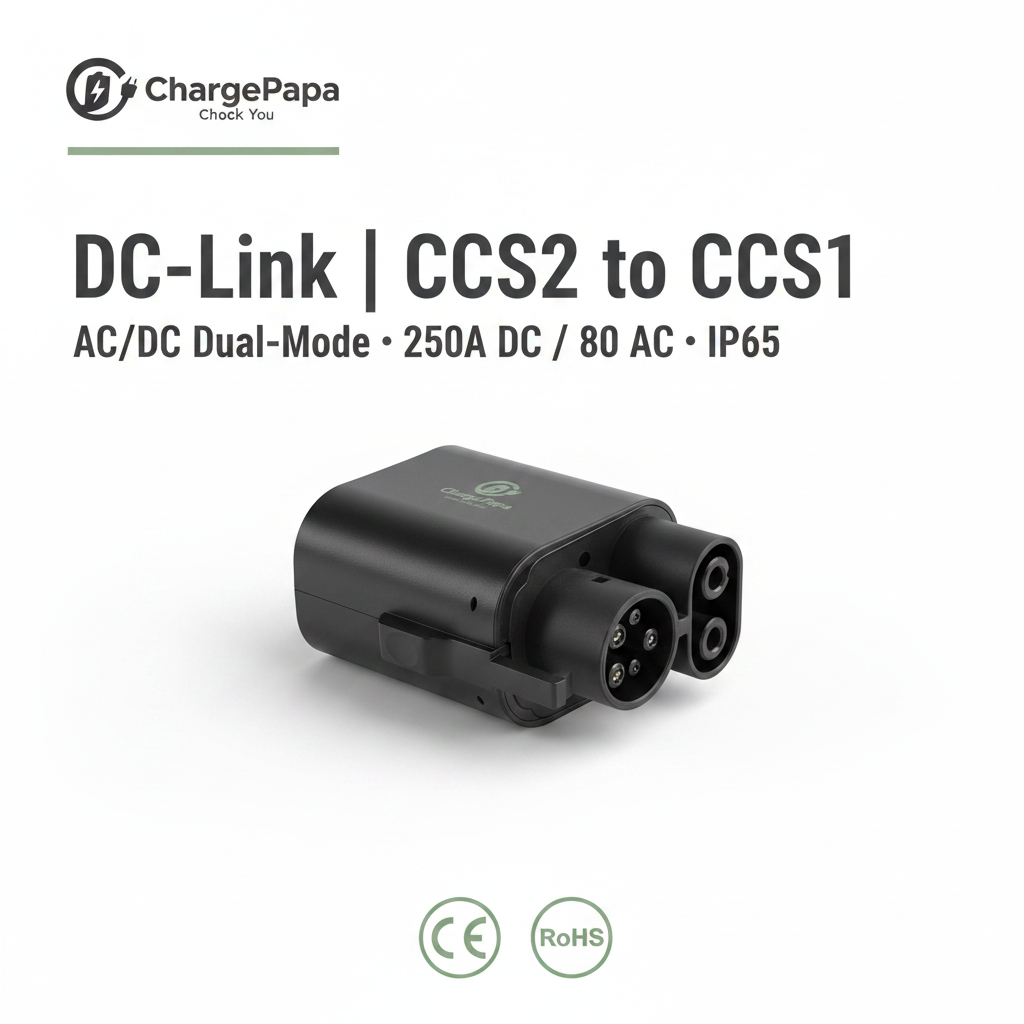

ChargePapa DC-Link | CCS2 to CCS1 AC/DC Dual-Mode Adapter (250A DC / 80A AC / IP65)
Couldn't load pickup availability
DC-Link / Dual-Mode Adapter Path
Use CCS2 DC fast chargers or Type 2 AC charging sources with a CCS1 vehicle.
CCS2 Combo DC or Type 2 AC
CCS1 vehicle inlet
AC/DC dual-mode
250kW / 250A rated DC · 80A AC · IP65
CE · FCC
Estimated DC Charging Time Reference
These are approximate 0–80% charging-time ranges for a compatible CCS2 DC source → CCS1 vehicle inlet path. The adapter is rated up to 250A / 1000V DC, but actual speed is still limited by station output, vehicle BMS, battery temperature, state of charge, charging curve, cable path, and session authorization.
| Station class | Typical scenario | Approx. 0–80% charging time |
|---|---|---|
| 50–100kW CCS2 DC charger | Urban, older, or lower-output DC site | About 40–75 minutes |
| 120–180kW CCS2 DC charger | Common highway DC fast charger | About 25–45 minutes |
| 200–250kW CCS2 DC charger | High-power site near adapter ceiling | About 20–40 minutes |
| Above 250kW CCS2 DC site | Adapter / vehicle / session-limited path | Still depends on the adapter ceiling and the vehicle charging curve |
Estimated 0–80% charging time for compatible CCS1 EVs. This table means charging time, not driving time. Actual time depends on station output, vehicle charging curve, battery temperature, state of charge, cable path, and authorization.
AC Charging Reference
On the AC path, this adapter is rated up to 80A / 250V AC. It does not increase charging power. Actual AC charging speed depends on the Type 2 AC source, circuit capacity, cable path, and the vehicle onboard AC charger.
CCS1 / CCS2 adapter comparison
| Model | Direction | Mode | Rated path |
|---|---|---|---|
| CP-KL-ADP-004 | CCS1 DC fast charger → CCS2 vehicle inlet | DC only | 400A · 1000V DC |
| CPCADA0002 | CCS2 DC fast charger → CCS1 vehicle inlet | DC only | 250kW · 250A |
| CP-AT-ADC-006 | CCS1 DC or Type 1 AC source → CCS2 vehicle inlet | AC/DC dual-mode | 250kW / 250A DC · 19.2kW / 80A AC |
| CP-KL-C2-C1 This product | CCS2 DC or Type 2 AC source → CCS1 vehicle inlet | AC/DC dual-mode | 250kW / 250A rated DC · 300A peak DC · 80A AC · IP65 |
AC/DC boundary: use the DC path only with compatible CCS2 DC fast-charging sessions, and use the AC path only with compatible Type 2 AC sources. This adapter does not reverse the direction or override charger, vehicle, cable, BMS, or network authorization limits.
FAQ
No. This is an AC/DC dual-mode adapter. The DC path is for compatible CCS2 DC fast-charging sources, and the AC path is for compatible Type 2 AC charging sources.
No. DC and AC ratings are separate. The DC path is rated up to 250kW / 250A DC, while the AC path is rated up to 80A / 250V AC.
Use it when the charging source side is CCS2 Combo DC or Type 2 AC, and the vehicle side is CCS1. It is not for charging a CCS2 vehicle from a CCS1 source.
