• ChargePapa MRS-EA2 | 11kW-22kW 3-Phase Portable EV Charger (Stepless Adjustment)
  • ChargePapa MRS-EA2 | 11kW-22kW 3-Phase Portable EV Charger (Stepless Adjustment)
  • ChargePapa MRS-EA2 | 11kW-22kW 3-Phase Portable EV Charger (Stepless Adjustment)
  • ChargePapa EV charging adapter worldwide shipping — Paris delivery scene
1 4

ChargePapa The Euro Home Pro Charger | MRS-EA2-Three Phase (Type 2, 11kW–22kW, TÜV & CB Certified)

$607.55 USD
$607.55 USD
Sale Sold out
Shipping calculated at checkout.
Product Type
🛡️ Quality Assurance: Every unit undergoes a rigorous 72-hour high-voltage stress test and thermal calibration before dispatch from our global hub. Safety is our priority; quality is non-negotiable.
✅ CE/TUV Safety Certified
🛡️ 2-Year Replacement Warranty
📦 Free Global Shipping

Full charge before breakfast. Every morning.
TÜV & CB Certified. 3-Phase. 11kW or 22kW — for EVs that can take it.

Your EV has a 3-phase onboard charger. Your home or workplace has a 3-phase supply. The MRS-EA2 Three Phase connects the two — and does it properly. TÜV Rheinland and CB certified. Type 2 (IEC 62196-2) output. Stepless current from 6A to 32A in 1A steps. 1.28" circular LCD showing voltage, current, power, and kWh. WiFi, Bluetooth, and App included as standard. Wall-mount bracket and carry bag in the box. Two models: 11kW/16A (CEE Red 16A) and 22kW/32A (CEE Red 32A).

ChargePapa MRS-EA2 Three Phase EV charger in use at home garage

⚠️ 3-Phase Notice: Full 11kW or 22kW output requires your vehicle to have a 3-phase onboard charger (e.g. Renault Zoe, Audi e-tron, BMW i4). Single-phase EVs will charge at their maximum single-phase rate (typically 7.4kW) when connected to this charger. Requires a CEE Red 3-phase industrial socket — not a standard household outlet.

🎯 Which MRS-EA2 Three Phase Is Right for You?

Both models use Type 2 (IEC 62196-2). The decision is your CEE socket rating and how fast your EV can charge. Two questions — 30 seconds.

Step 1 — Your Vehicle's Charging Port & Onboard Charger

✅ Type 2 + 3-Phase OBC FULL POWER

Renault Zoe (22kW OBC), Audi e-tron / Q4 e-tron, BMW i4 / iX, Mercedes EQS / EQE, VW ID.3 / ID.4 / ID.7, Hyundai IONIQ 5/6, Kia EV6/EV9, BYD Atto 3 (EU). Unlocks full 11kW or 22kW output.

⚠️ Type 2 + Single-Phase OBC 7.4kW MAX

Tesla Model 3/Y (EU-spec, single-phase OBC), Nissan LEAF (EU), Peugeot e-208, Fiat 500e. These EVs will charge at their max single-phase rate (~7.4kW) regardless of the charger model chosen. The MRS-EA2 still works — just not at full 3-phase speed.

Step 2 — Your CEE Socket Rating & Charging Scenario

🏠
Home / Campsite — CEE Red 16A Socket

You have a CEE Red 16A 3-phase industrial socket (common in EU garages, campsites, and rural properties). ~65–70km of range per hour. Stepless 6–16A — ideal for solar PV integration.

RECOMMENDED MODEL MRS-EA2-11016 11kW · 16A×3 · $419
CEE Red 16A plug · 4.5kg · 3-Phase
⚡
Workplace / Fleet — CEE Red 32A Socket

You have a CEE Red 32A 3-phase industrial socket (offices, car parks, fleet depots, industrial sites). ~100km of range per hour for 3-phase capable EVs. Maximum AC charging speed. Stepless 6–32A.

RECOMMENDED MODEL MRS-EA2-22032 22kW · 32A×3 · $499
CEE Red 32A plug · 6.2kg · 3-Phase
🌞
Solar PV / Flexible Load Management

Want to dial current to match your solar output in real time? Both models support stepless 1A adjustment. Choose the model that matches your CEE socket — then throttle down to whatever your PV is generating.

EITHER MODEL WORKS 11016 (CEE 16A) or 22032 (CEE 32A)
Match to your socket — both support stepless 6A–max adjustment

💡 How to identify your CEE socket: A CEE Red socket is a round industrial plug with 5 pins (3P+N+PE), typically red in colour. The amperage is stamped on the socket face — look for "16A" or "32A". CEE Blue (2P+E, 230V) is single-phase and not compatible with this charger. If you're unsure, check with your electrician before ordering. Also confirm your vehicle's onboard charger (OBC) rating — not all Type 2 EVs have a 3-phase OBC. Check your vehicle manual or spec sheet under "AC charging power".

MRS-EA2-11016

11kW / 3-Phase 16A

CEE Red 16A · 3-Phase industrial socket

~65–70km of range per hour. Stepless 6–16A. For homes and workplaces with a 3-phase 16A supply.

MRS-EA2-22032

22kW / 3-Phase 32A

CEE Red 32A · 3-Phase industrial socket

~100km of range per hour. Stepless 6–32A. Maximum AC charging speed for 3-phase capable EVs.

🏅 Your building manager asks for TÜV. This has it.TÜV Rheinland certified and CB Scheme listed. Compliant with IEC 61851-1 (LVD) and IEC 61851-21-2 (EMC). Independently tested — not a self-declaration.
⚡ Running solar? Dial the current to match your PV output.Stepless current adjustment from 6A to 16A or 32A in 1A steps. Set exactly what your grid or solar supply can handle — no fixed presets, no tripped breakers.
🔌 Permanent wallbox today, travel charger tomorrow. Same unit.Wall-mount bracket included for fixed home or workplace installation. Carry bag included for campsite and travel use. One unit, two modes.
📱 Want to schedule off-peak charging? It's already built in.WiFi, Bluetooth, and App (iOS & Android) included as standard — same as the TA2 and AA2. Schedule sessions, monitor energy use, and get alerts from your phone. No add-on required.
🛡️ Outdoor socket in the rain, -20°C winter morning — it doesn't care.IP54 splash-resistant. IK10 impact-resistant. UL94 V-0 flame-retardant ABS+PC housing. Operates from -30°C to +50°C.
📊 Left your phone inside? The screen tells you what's happening.1.28" circular LCD shows voltage, current, power (kW), energy delivered (kWh), session time, and fault codes. Full visibility without opening an app.
🚗 Vehicle Compatibility

Driving a Renault Zoe or Audi e-tron and want to wake up to a full charge in under 2 hours? Here's what to expect — these are the EVs that can use the full 3-phase output.

Make Model Year Port Type
Renault Zoe (22kW onboard charger) 2013+ Type 2 (IEC 62196-2)
BMW i4 / iX / iX3 2021+ Type 2 (IEC 62196-2)
Audi e-tron / Q4 e-tron / e-tron GT 2019+ Type 2 (IEC 62196-2)
Mercedes-Benz EQS / EQE / EQA / EQB 2021+ Type 2 (IEC 62196-2)
Volkswagen ID.3 / ID.4 / ID.5 / ID.7 2020+ Type 2 (IEC 62196-2)
Hyundai IONIQ 5 / IONIQ 6 2021+ Type 2 (IEC 62196-2)
Kia EV6 / EV9 2022+ Type 2 (IEC 62196-2)
BYD Atto 3 / Seal / Han (EU spec) 2022+ Type 2 (IEC 62196-2)

⚠️ Full 11kW or 22kW output requires a 3-phase onboard charger in your vehicle. Single-phase EVs will charge at their maximum single-phase rate (typically 7.4kW). AC Level 2 only — does not support DC fast charging.

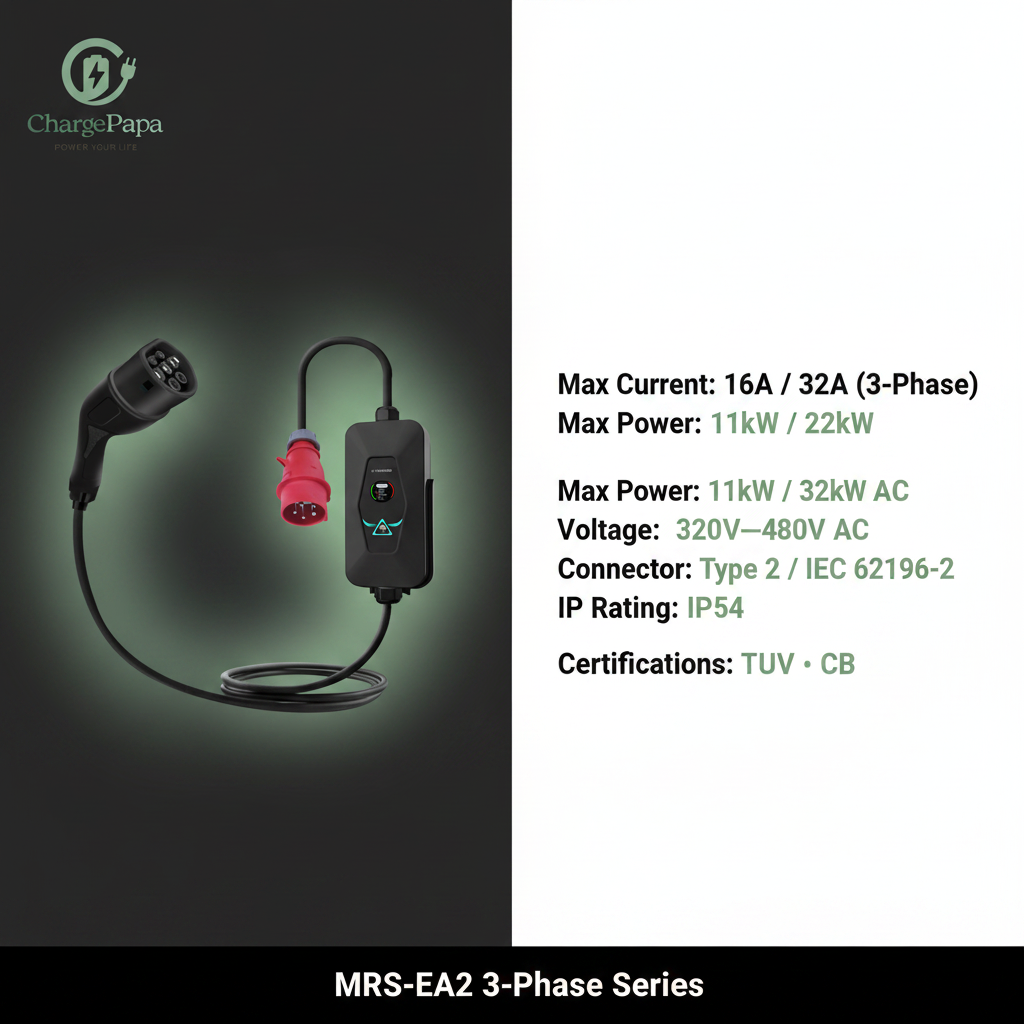

Full Specs — For the Detail-Oriented
Parameter MRS-EA2-11016 (11kW) MRS-EA2-22032 (22kW)
Rated Power 11kW 22kW
Rated Current 3-Phase 16A 3-Phase 32A
Adjustment Range 6–16A (Stepless, 1A steps) 6–32A (Stepless, 1A steps)
Input Plug CEE Red 16A (IEC 60309, 3-Phase) CEE Red 32A (IEC 60309, 3-Phase)
Rated Voltage 320V–480V AC (3-Phase)
Phase Configuration Three-Phase (3P+N+PE)
Frequency 50Hz / 60Hz
Output Connector Type 2 / IEC 62196-2
Charging Mode Mode 3 (IEC 61851-1)
Cable Length 5 metres · TÜV certified high-purity copper · TPU flame-retardant
Display 1.28" circular LCD (V, A, kW, kWh, time, fault codes)
Connectivity WiFi · Bluetooth · App (iOS & Android) — all standard
Dimensions (H×W×D) 230 × 95 × 60mm
IP Rating IP54
Impact Resistance IK10
Working Temperature -30°C to +50°C
Housing Material ABS + PC · UL94 V-0 flame-retardant · tempered glass
Leakage Protection Type A RCD · 30mA AC
Electrical Protection OVP · UVP · OCP · Over-temp · Ground fault · Lightning surge

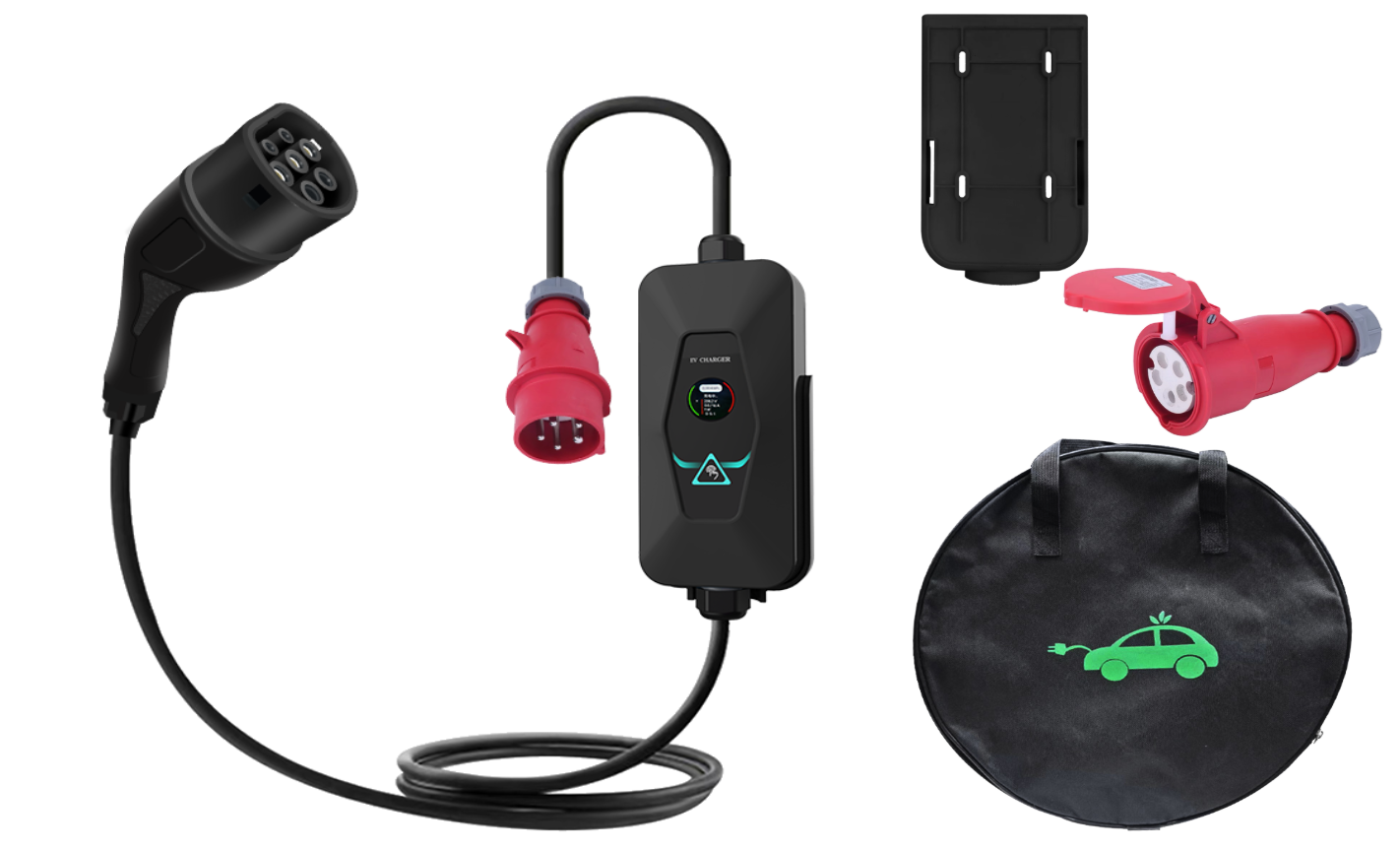

Accessories Wall-mount bracket + carry bag
Certifications TÜV Rheinland · CB · IEC 61851-1 (LVD) · IEC 61851-21-2 (EMC) · IEC 62196-2 · UL94 V-0
Warranty 2 Years
✅ Standards & Certifications
TÜV RheinlandInternational product safety and quality certification
CB SchemeIEC System — international mutual recognition of safety test results
IEC 61851-1 (LVD)EV conductive charging system safety — Mode 3
IEC 61851-21-2 (EMC)Electromagnetic compatibility for off-board EV chargers
IEC 62196-2Type 2 connector — European EV charging interface standard
UL94 V-0 · IK10Highest flame-retardancy rating · Impact-resistant enclosure
Frequently Asked Questions

Q: What's the difference between the 11kW and 22kW models?

A: Both use the same Type 2 (IEC 62196-2) connector, same IP54 enclosure, same LCD display, and same TÜV/CB certifications. The MRS-EA2-11016 delivers up to 11kW at 3-phase 16A (CEE Red 16A plug). The MRS-EA2-22032 delivers up to 22kW at 3-phase 32A (CEE Red 32A plug) — roughly 100km of range per hour for compatible EVs.

Q: Will this work with my single-phase EV?

A: Yes, but at reduced power. Single-phase EVs charge at their maximum single-phase rate (typically 7.4kW) regardless of the charger's 3-phase capability. To use the full 11kW or 22kW output, your vehicle needs a 3-phase onboard charger — e.g. Renault Zoe, Audi e-tron, BMW i4, Mercedes EQS.

Q: Is the MRS-EA2 Three Phase TÜV certified?

A: Yes. TÜV Rheinland certified and CB Scheme listed. Compliant with IEC 61851-1 (LVD, Mode 3) and IEC 61851-21-2 (EMC). Key components — cable, connector, PCB — also carry export certifications. Independently tested, not a self-declaration.

Q: Can I adjust the current for solar PV integration?

A: Yes. Stepless adjustment from 6A to rated max in 1A steps. Set it to match your solar output in real time — no fixed presets, no wasted generation.

Q: Is WiFi and App control included?

A: Yes. WiFi, Bluetooth, and App (iOS & Android) are included as standard on every MRS-EA2 Three Phase unit — same as the TA2 and AA2. Schedule off-peak sessions, monitor energy use, and get alerts from day one. No upgrade needed.

Q: Can I wall-mount it permanently?

A: Yes. Wall-mount bracket included. Mount it in your garage or carport for a permanent setup, or detach and use the carry bag for travel and campsite charging. Same unit, two modes.

⚠️ Critical Usage Note
  • Requires a dedicated CEE Red 3-phase industrial socket (IEC 60309). Do not use with standard household sockets.
  • Full 11kW/22kW output requires a 3-phase onboard charger in your vehicle. Single-phase EVs will charge at their maximum single-phase rate.
  • Always select a current rating at or below 80% of your circuit breaker's capacity.
  • Do not daisy-chain extension cords. Connect directly to a dedicated outlet.
  • Keep the cable fully uncoiled during use to prevent heat buildup.
  • For fixed installation, consult a qualified electrician.
  • AC Level 2 only — does not support DC fast charging.
