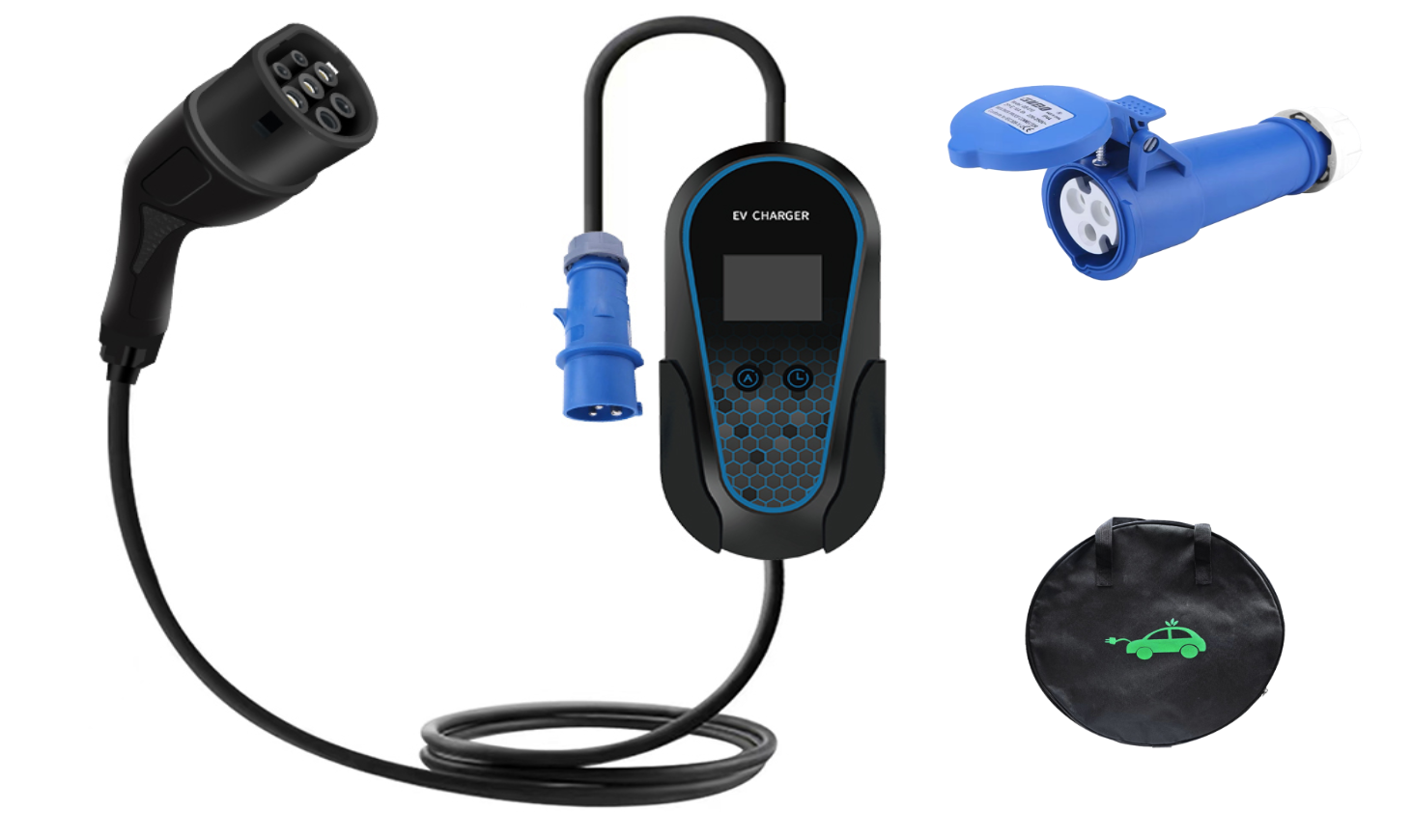

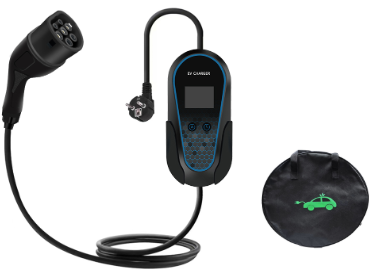

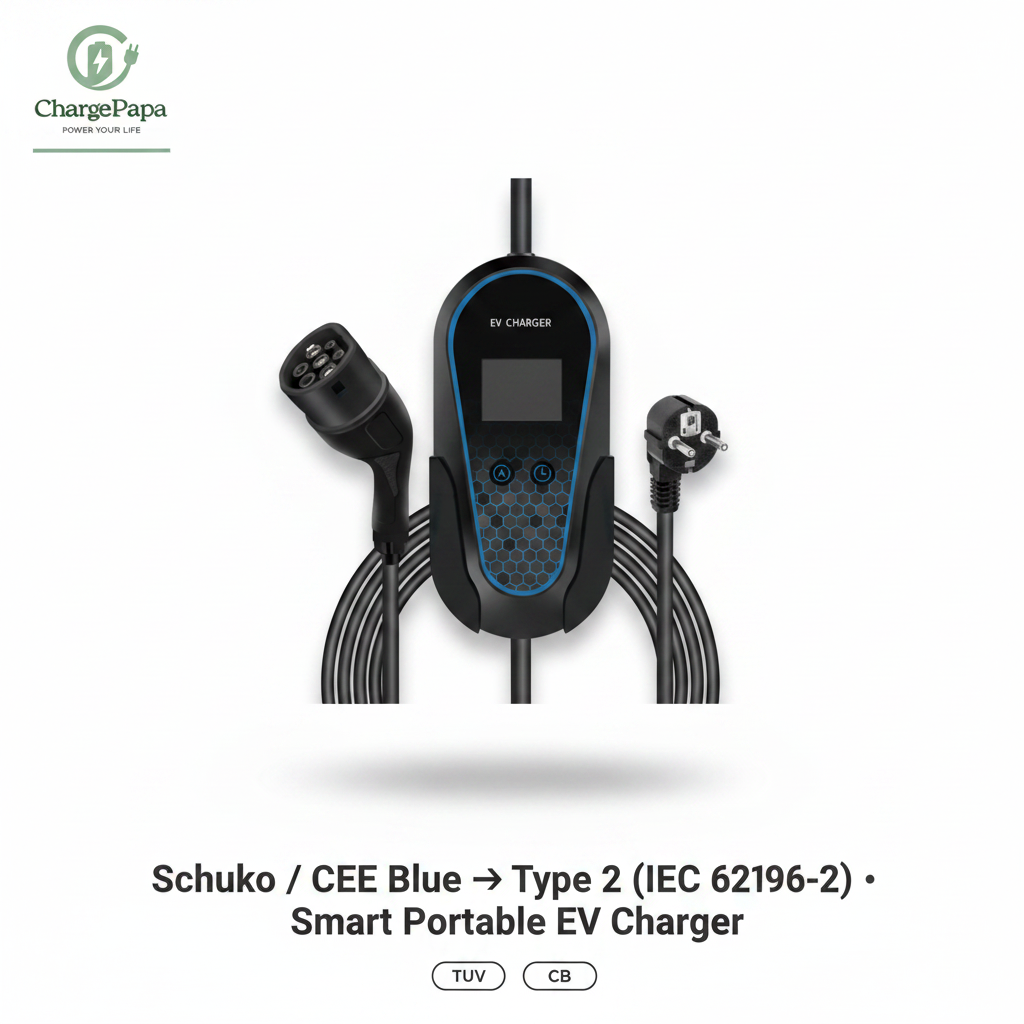

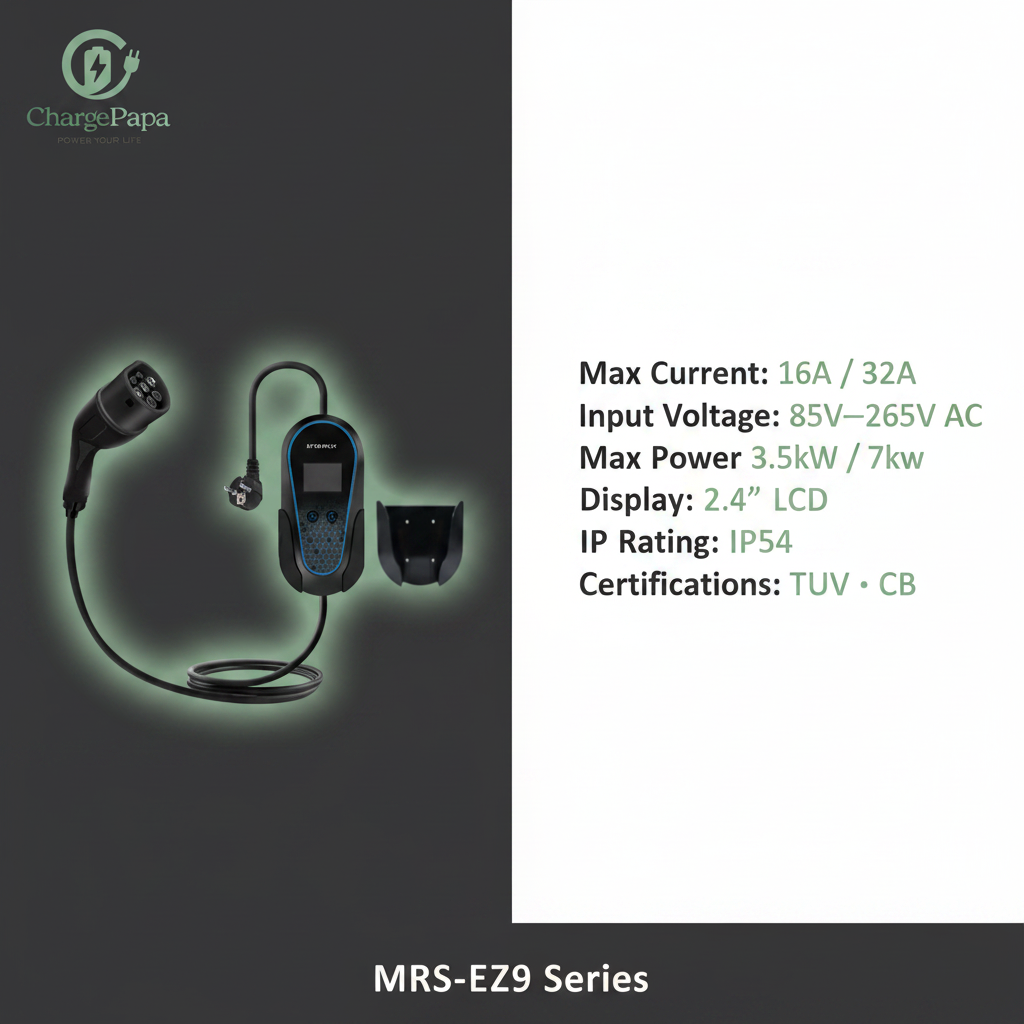

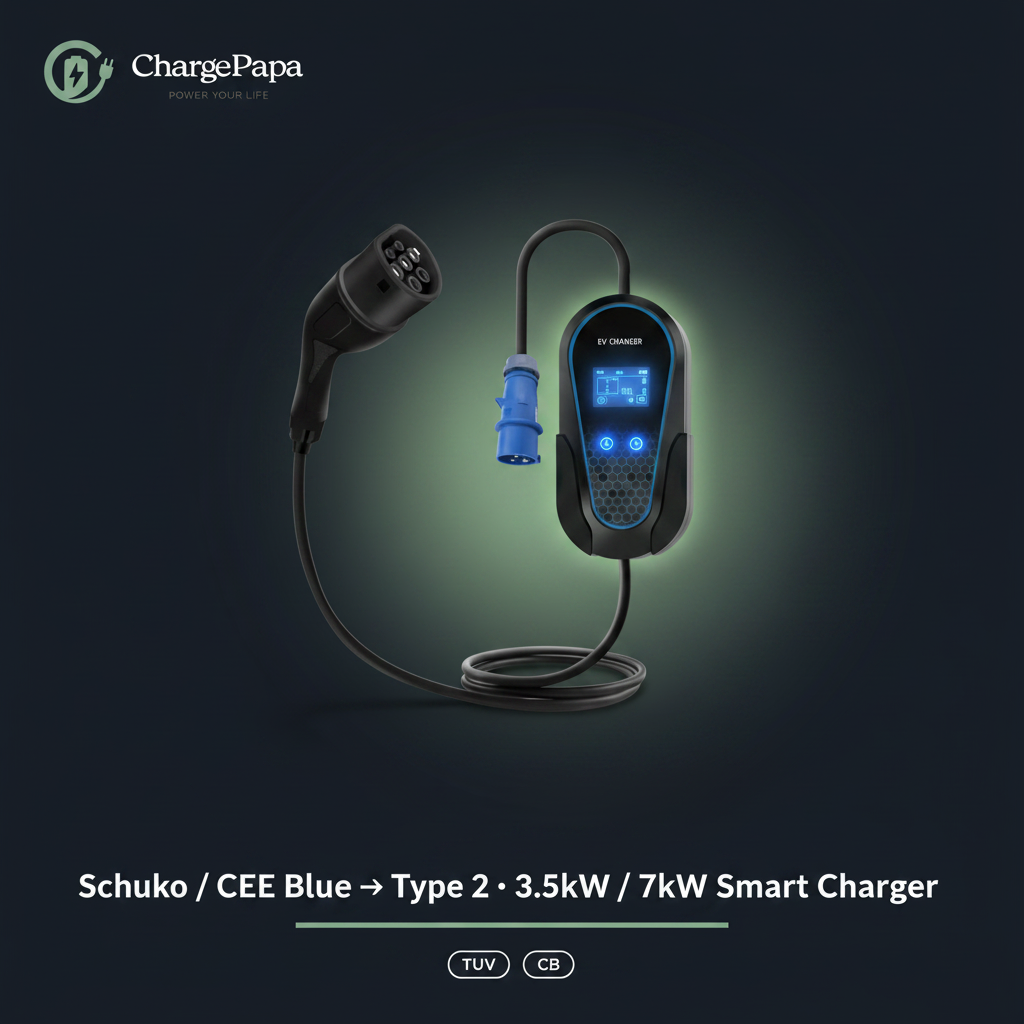

MRS-EZ9 3.5KW 7KW Type 2 (EU) portable in-cable control box (ICCB) AC charging gun for EV with Numeric digital-display screen Scheduled Charging Current Adjustment

MRS-EZ9 Series – EU Standard Portable AC EV Charger (Type 2, Z9 Model)

1) Common Features (All Models)

-Product Type: Portable household AC EV charger, EU Standard Type 2

-Installation: Portable / wall-mounted dual use

-Included Accessories: Wall-mount back clip and screws (for fixed use)

-Functions: Adjustable current steps, scheduled charging function

-Display: Numeric and real-time data display

-Materials:

-Gun: PC9330 flame-retardant

-Control box: PC + ABS

-Cable: TPU flame-retardant (premium grade)

-Wiring Direction: Top in / bottom out

-Standby Power: 3W

-Input Voltage: 85–265V AC

-Frequency: 50Hz / 60Hz

-Cable Length: 5 meters

-Ingress Protection: IP54 (indoor/outdoor use)

-Cooling: Natural air cooling

-Environmental Conditions:

-Humidity: 5%–95% non-condensing

-Temperature: –30°C ~ +50°C

-Altitude: <2000m

-Standards & Certifications: GB/T, UL94 V0 (flame-retardant), Quality Inspection Report

-Safety Protections: Under-voltage, over-voltage, overload, over-current, over-temperature, leakage, grounding, lightning, flame-retardant

-Screen: 2.4-inch LCD display (with language interface)

-Package Size: 380 × 380 × 100 mm

2) Model-Specific Features

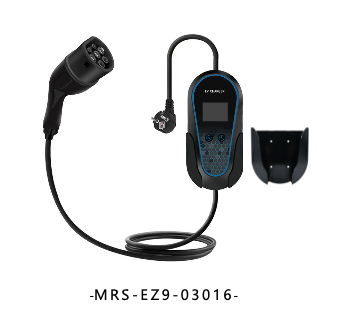

🔹 MRS-EZ9-03016

-Plug Type: 16A EU Standard Plug

-Max Current: 16A

-Max Power: 3.5kW

-Output Current Levels: 6A / 8A / 13A / 16A

-Dimensions: Gun 230×70×60mm / Box 225×95×50mm

-Cable Spec: 3 × 2.5mm² + 0.75mm²

-Weight: ~2.2kg (net) / ~3.0kg (with package)

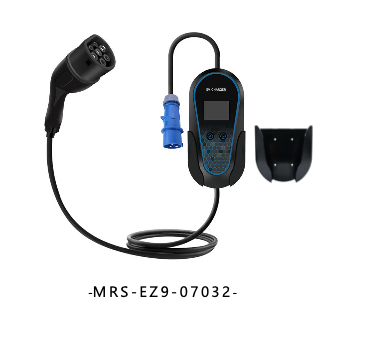

🔹 MRS-EZ9-07032

-Plug Type: 32A EU Industrial Plug

-Max Current: 32A

-Max Power: 7kW

-Output Current Levels: 6A / 8A / 10A / 13A / 16A / 24A / 32A

-Dimensions: Gun 230×70×60mm / Box 225×95×50mm

-Cable Spec: 3 × 6mm² + 0.75mm²

-Weight: ~3.6kg (net) / ~4.4kg (with package)

Standard delivery: Each order undergoes manual verification prior to shipment. We appreciate your understanding.
