ChargePapa The Euro Home Pro Charger | MRS-EA2-Single Phase (Type 2, 3.5kW–7kW, TÜV & CB Certified)
Couldn't load pickup availability
Plugs into any EU socket tonight. Charges your car by morning.
TÜV & CB Certified. Type 2. Single-phase portable — 3.5kW or 7kW.
You drive a European EV. You want a charger that works from your home Schuko socket today, and from the CEE 32A outlet at the campsite or workplace tomorrow. The MRS-EA2 does both. TÜV Rheinland and CB certified. Type 2 (IEC 62196-2) output. Stepless current from 6A to 32A in 1A steps. 1.28" LCD showing voltage, current, power, and kWh — no app required. Wall-mount bracket and carry bag included. Two models: 3.5kW/16A (Schuko, standard EU socket) and 7kW/32A (CEE 32A, industrial socket).
⚠️ Plug Notice: EU orders default to Schuko (CEE 7/4) for the 3.5kW model and CEE 32A blue plug for the 7kW model. Need a different plug standard (UK BS 1363, etc.)? Contact us before ordering.
🎯 Which MRS-EA2 Single Phase Is Right for You?
Both models use Type 2 (IEC 62196-2) output. The only decision is which socket you have. Two questions — 30 seconds.
Step 1 — Your Vehicle's Charging Port
All EU-spec EVs: VW ID.3/4/7, BMW i3/i4/iX, Mercedes EQA–EQS, Audi e-tron/Q4, Renault Zoe/Mégane, Hyundai IONIQ 5/6, Kia EV6/EV9, Tesla EU-spec, Peugeot e-208, Citroën ë-C4. Plug straight in — no adapter.
US-spec CCS1, CHAdeMO (older Nissan LEAF), GB/T (China-spec), or NACS (US Tesla) vehicles are not compatible. This charger is for EU-spec Type 2 port vehicles only.
Step 2 — Your Socket Type & Charging Scenario
You have a standard EU household socket (Schuko). Zero installation cost. Charges ~20–25km of range per hour. Stepless 6–16A — dial down if sharing the circuit with other appliances. Ideal for overnight home charging.
You have a CEE 32A blue industrial socket (common at campsites, workshops, and many EU workplaces). Twice the speed of the Schuko model — ~40–50km of range per hour. Stepless 6–32A.
You charge at home (Schuko), at campsites (CEE 32A), and at the office. Both models include a wall-mount bracket and carry bag. Choose the model that matches your primary socket — or get both for full flexibility.
💡 How to identify your socket: A Schuko socket (CEE 7/4) is the standard round 2-pin + earth socket found in most EU homes — it looks like a recessed round hole with two round pins and an earth clip on the side. A CEE 32A Blue socket is a round industrial plug with 3 pins + earth + neutral, typically blue in colour, with "32A" stamped on the face. If you're unsure, check with your electrician. The 7kW model requires a dedicated CEE 32A socket — it will not plug into a standard Schuko outlet.
MRS-EA2-03016
3.5kW / 16A

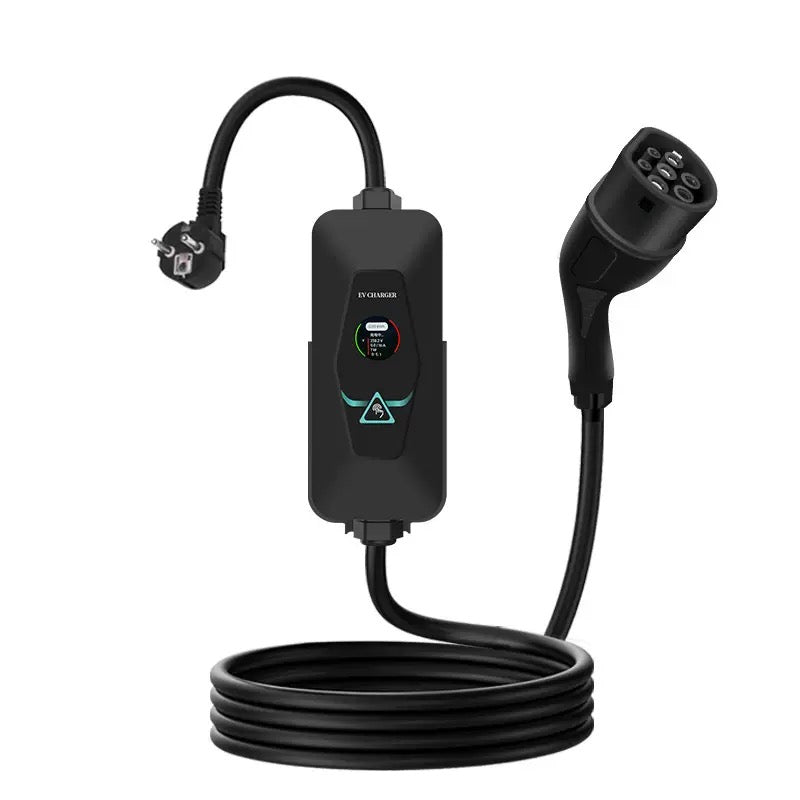

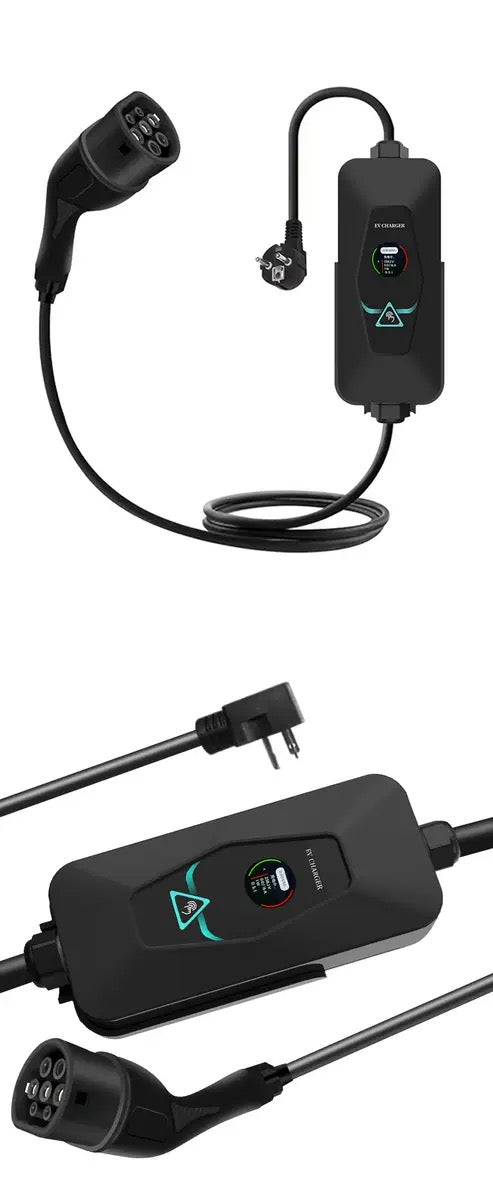

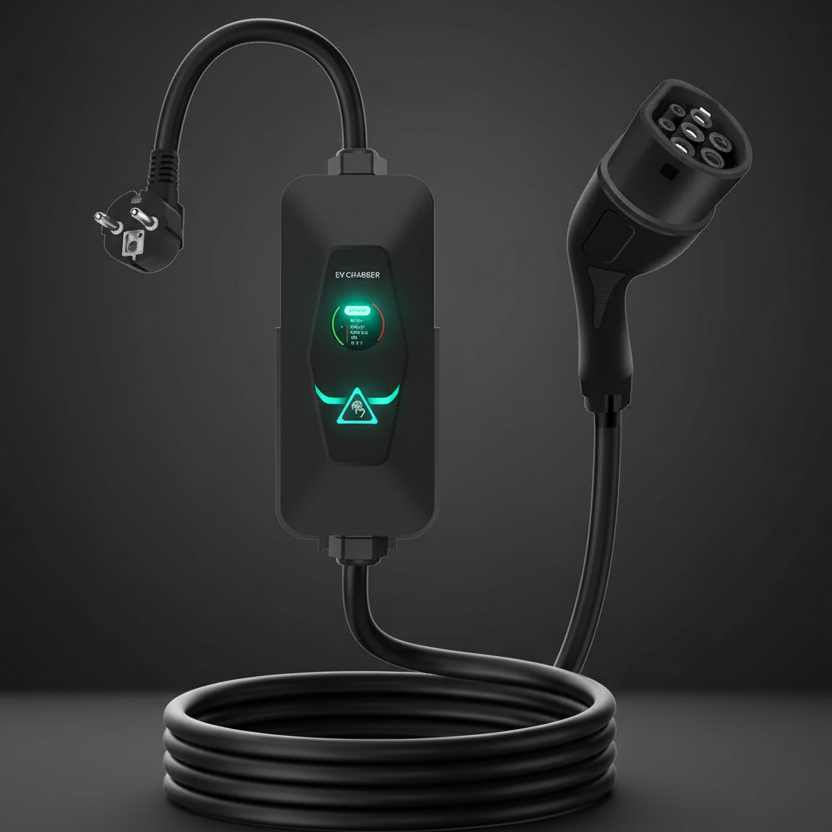

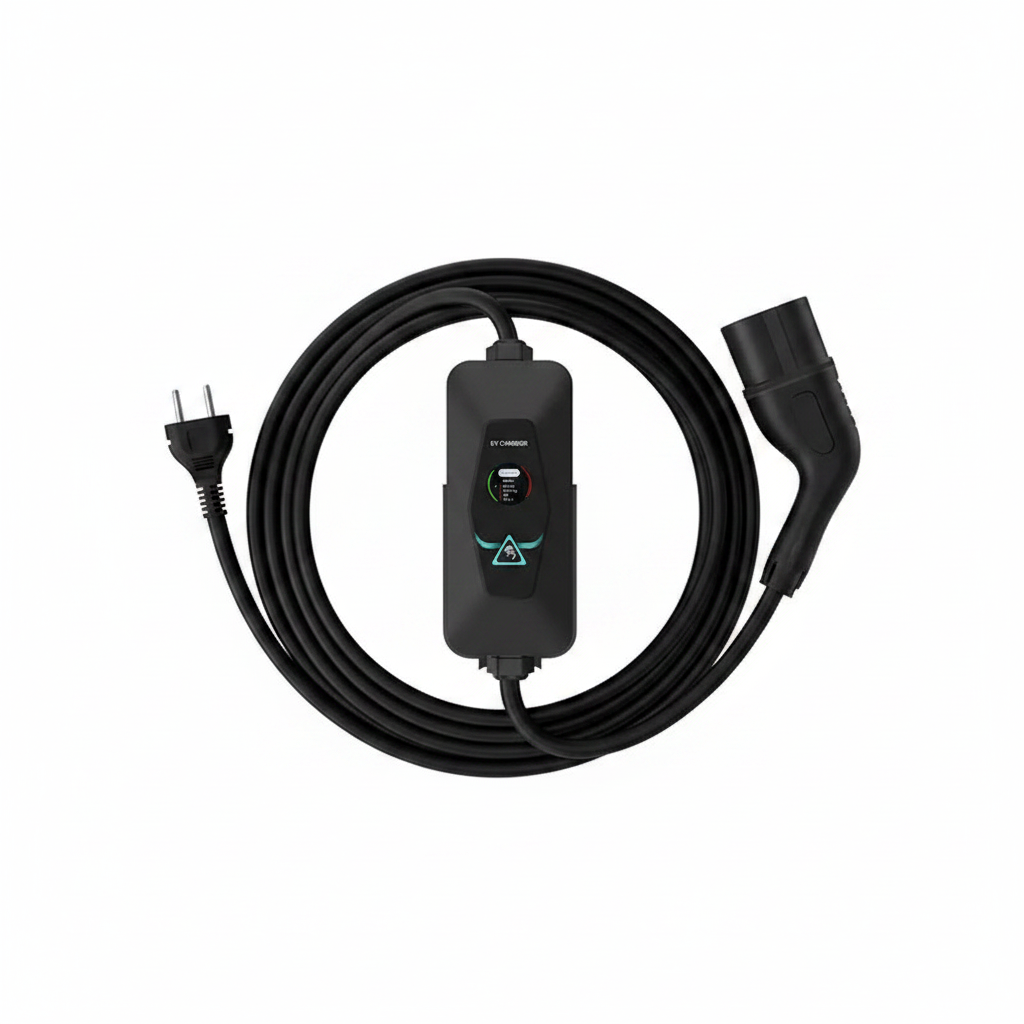

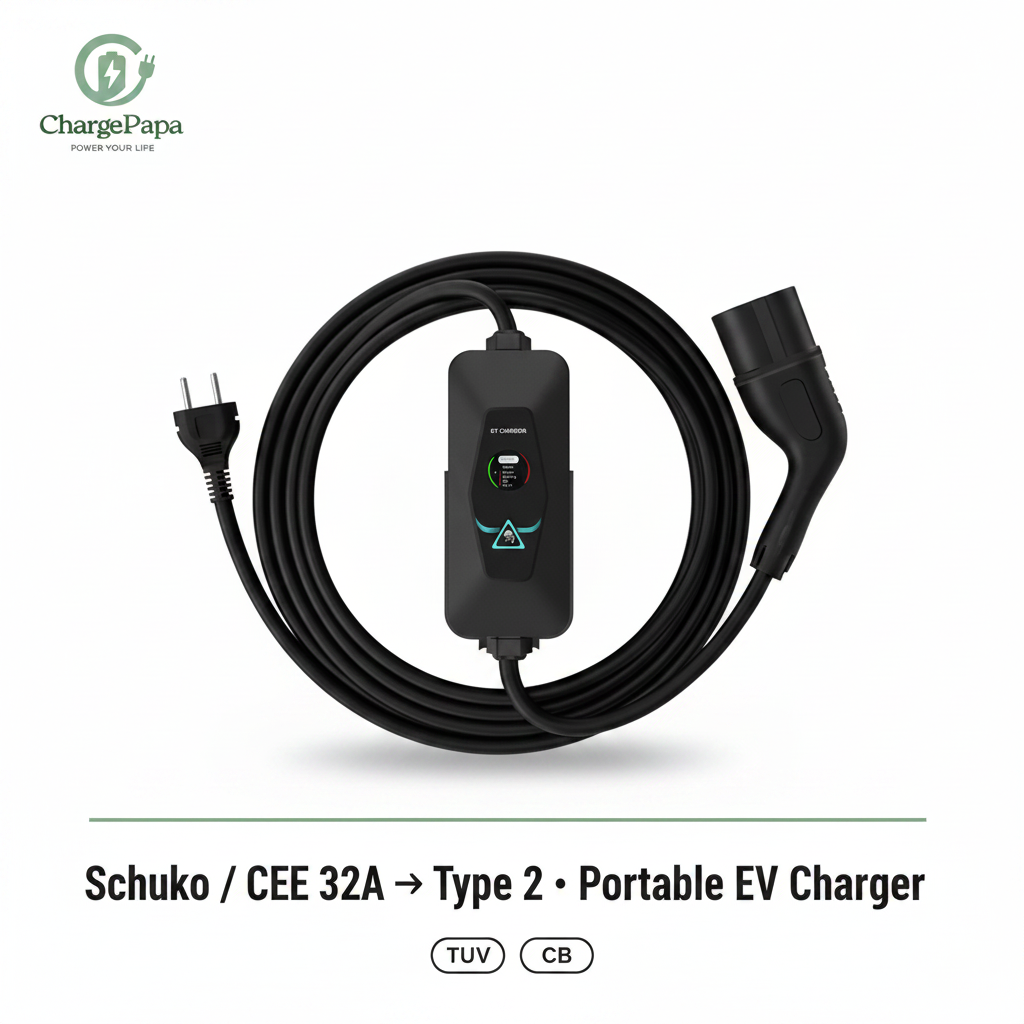

Schuko CEE 7/4 · Standard EU household socket
Works from any standard EU wall socket. Stepless 6–16A. Zero installation cost if you already have a Schuko outlet.
MRS-EA2-07032
7kW / 32A

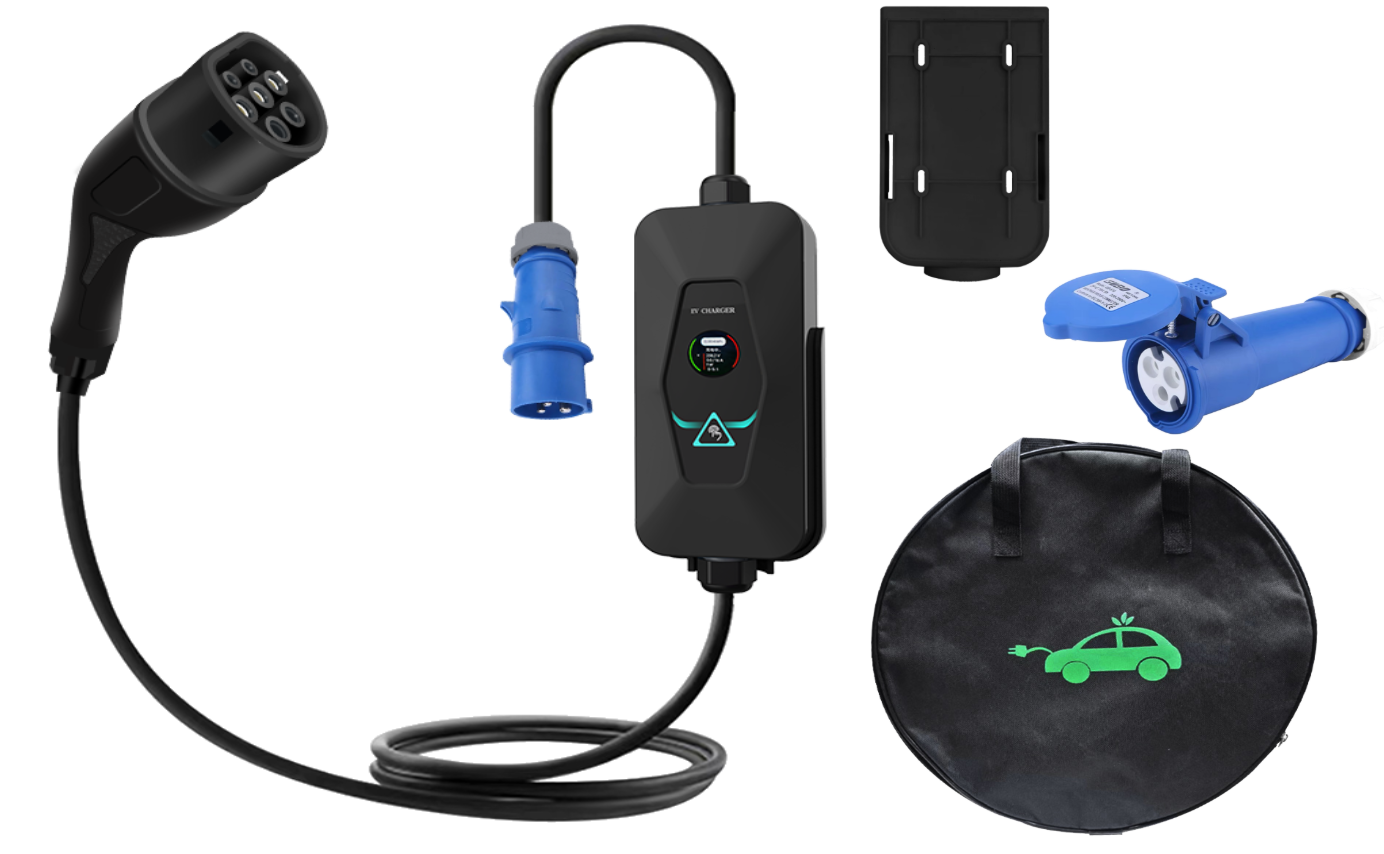

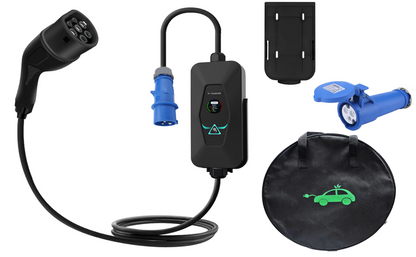

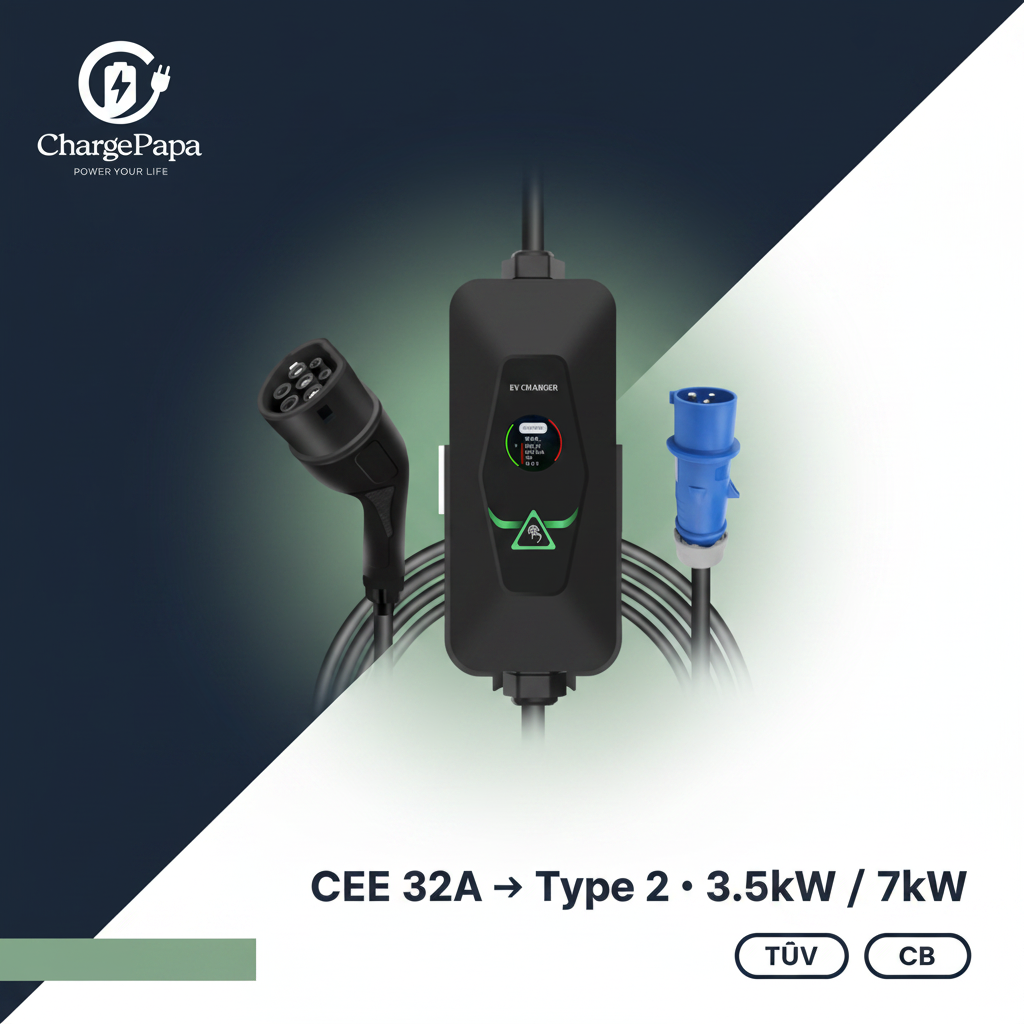

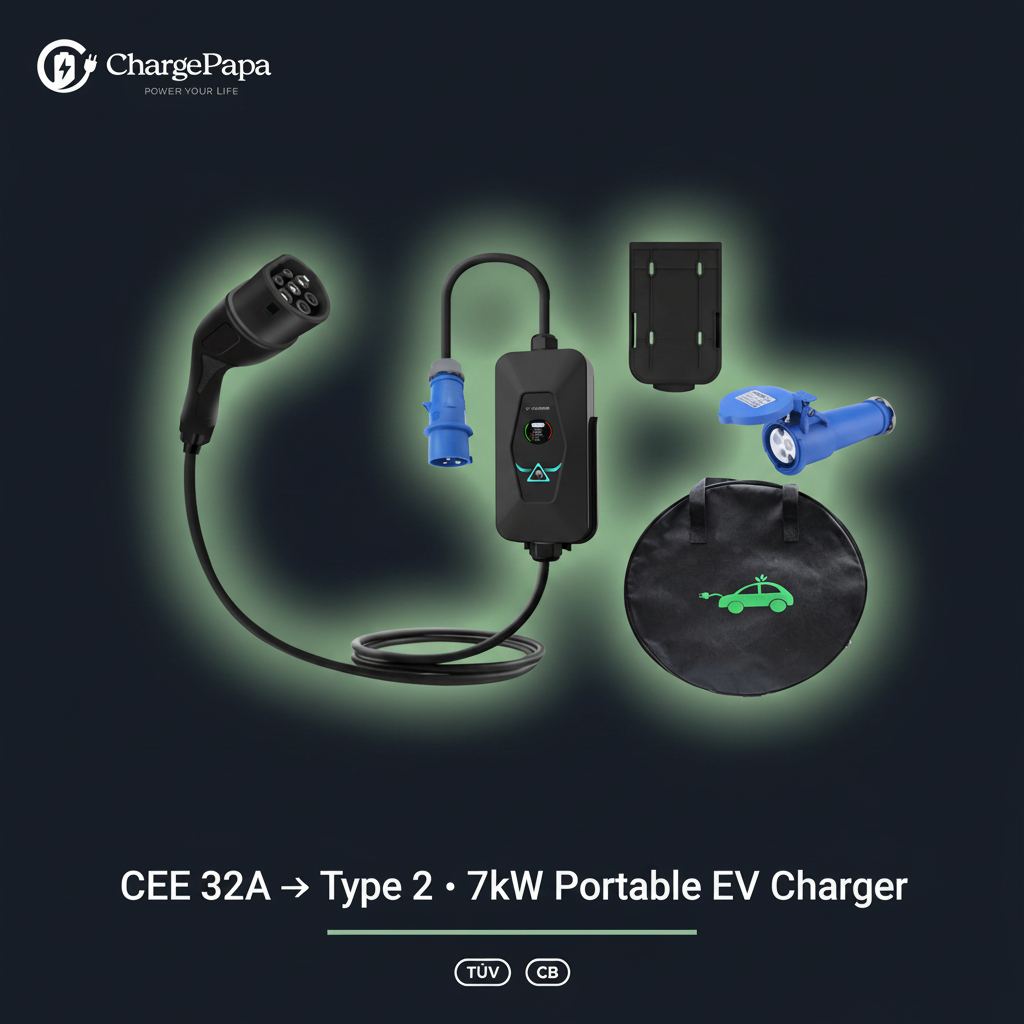

CEE 32A Blue · Industrial socket (campsite / workplace)
Twice the speed of the 16A model. Requires a dedicated CEE 32A socket. Common at campsites, workshops, and many workplaces.
Driving a VW ID.4 to work every day and want to wake up to a full charge? Here's what to expect — every European EV with a Type 2 port works with this charger.
| Make | Model (examples) | Port Type |
| Volkswagen | ID.3 / ID.4 / ID.7 | Type 2 (IEC 62196-2) |
| BMW | i3 / i4 / iX | Type 2 (IEC 62196-2) |
| Mercedes | EQA / EQB / EQC / EQS | Type 2 (IEC 62196-2) |
| Audi | e-tron / Q4 e-tron | Type 2 (IEC 62196-2) |
| Renault | Zoe / Megane E-Tech | Type 2 (IEC 62196-2) |
| Hyundai / Kia | IONIQ 5 / 6 / EV6 / EV9 | Type 2 (IEC 62196-2) |
| Tesla | Model 3 / Y / S / X (EU spec) | Type 2 (IEC 62196-2) |
| Peugeot / Citroën / Opel | e-208 / ë-C4 / Mokka-e | Type 2 (IEC 62196-2) |
Compatible with all EU-spec EVs using a Type 2 (IEC 62196-2) AC charging port. AC Level 1 and Level 2 only — does not support DC fast charging.

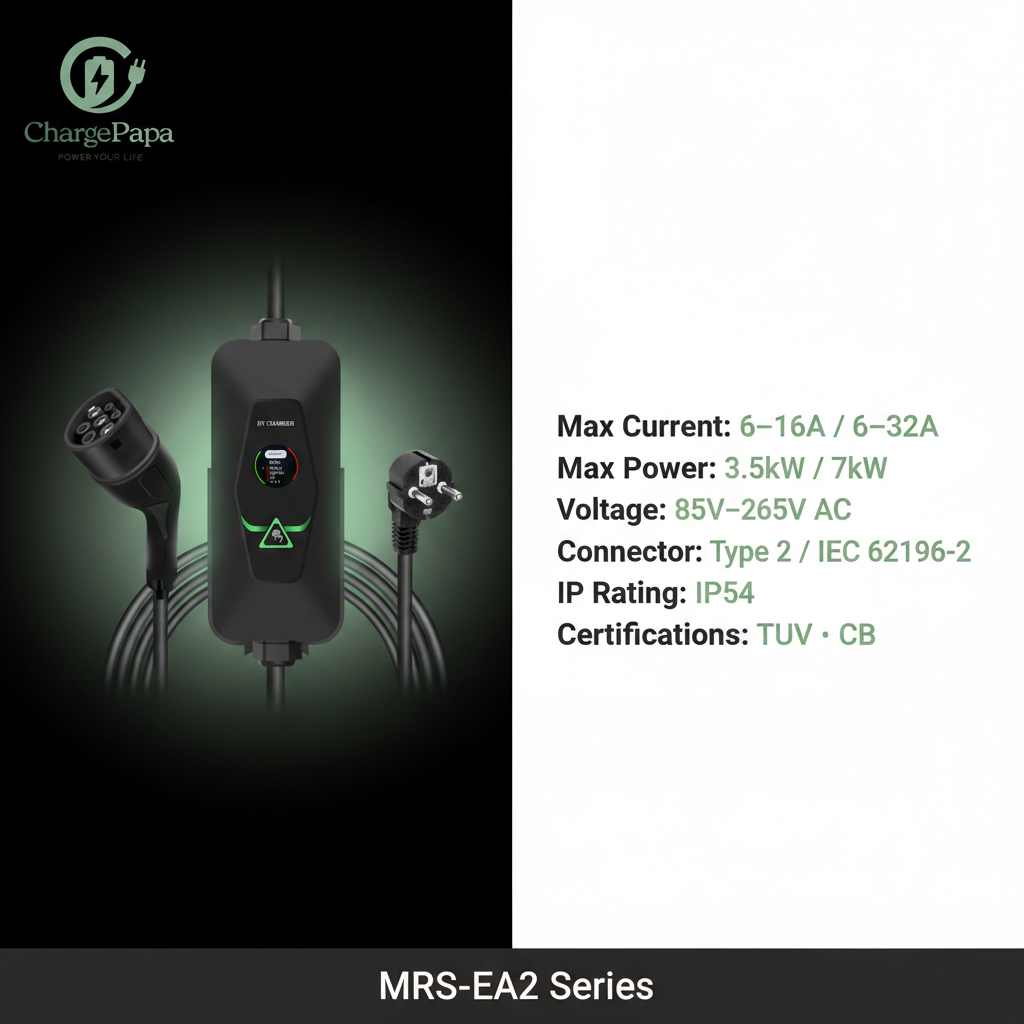

| Parameter | MRS-EA2-03016 (3.5kW) | MRS-EA2-07032 (7kW) |
|---|---|---|
| Rated Power | 3.5kW | 7kW |
| Output Current | 6–16A (Stepless, 1A steps) | 6–32A (Stepless, 1A steps) |
| Input Voltage | 85V–265V AC | |
| Frequency | 50Hz / 60Hz | |
| Phase Type | Single Phase | |
| Input Plug (Default) | Schuko CEE 7/4 | CEE 32A Blue (IEC 60309) |
| Output Connector | Type 2 / IEC 62196-2 | |
| Cable Length | 5 metres | |
| Display | 1.28" circular LCD (V, A, kW, kWh, time, fault codes) | |
| Dimensions (H×W×D) | 230 × 95 × 60mm | |
| IP Rating | IP54 | |
| Working Temperature | -30°C to +50°C | |
| Housing Material | ABS + PC · UL94 V-0 flame-retardant · tempered glass | |
| Cable Material | TPU flame-retardant (premium grade) | |
| Safety Protection | Under/over-voltage · Over-current · Over-load · Over-temp · Leakage (6mA DC) · Ground fault · Lightning surge | |

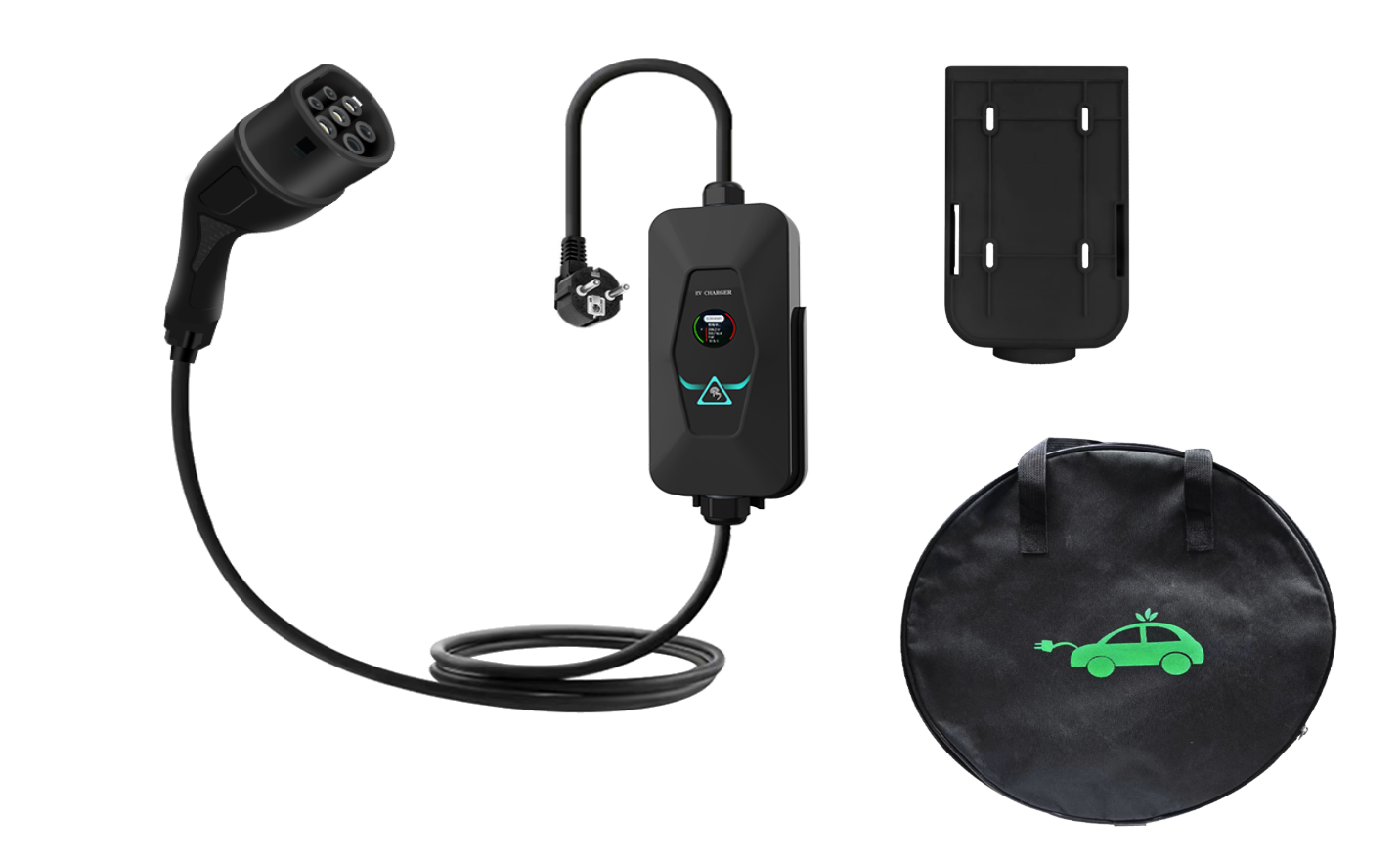

| Accessories | Wall-mount bracket + carry bag | |
| Certifications | TÜV Rheinland · CB · IEC 61851-1 (LVD) · IEC 61851-21-2 (EMC) · IEC 62196-2 · UL94 V-0 | |
| Warranty | 2 Years | |
Q: What's the difference between the 3.5kW and 7kW models?
A: The 3.5kW (MRS-EA2-03016) uses a Schuko plug and works from any standard EU household socket — zero installation needed. The 7kW (MRS-EA2-07032) uses a CEE 32A blue industrial plug and requires a dedicated 32A socket, common at campsites, workshops, and many workplaces. Both share the same IP54 enclosure, LCD display, and TÜV/CB certifications.
Q: Can I adjust the current to avoid tripping my circuit breaker?
A: Yes. Stepless button control lets you set current from 6A to 16A (or 32A) in 1A increments. Lower it when sharing a circuit with other appliances, raise it when the panel is free.
Q: Is this compatible with my EV?
A: If your EV has a Type 2 (IEC 62196-2) AC charging port — which covers all EU-spec EVs including VW, BMW, Mercedes, Audi, Renault, Hyundai, Kia, Tesla EU, Peugeot, and more — yes, it's compatible. AC Level 1/2 only, not DC fast charging.
Q: Is the MRS-EA2 TÜV certified?
A: Yes. TÜV Rheinland certified and CB Scheme listed. Compliant with IEC 61851-1 (LVD) and IEC 61851-21-2 (EMC). Independently tested — not a self-declaration.
Q: Can I wall-mount it?
A: Yes. Wall-mount bracket included. Mount it in your garage for a permanent home setup, or remove it and use the carry bag for travel and campsite charging.
Q: Do I need the app to use it?
No — the unit works fully standalone via LCD and button controls. But WiFi, Bluetooth, and App (iOS & Android) are included as standard on every MRS-EA2, same as the TA2 and AA2. Scheduling and remote monitoring are available from day one, no upgrade needed.
- The 7kW model requires a dedicated CEE 32A (IEC 60309) industrial socket. Do not use with standard household sockets.
- Always select a current rating at or below 80% of your circuit breaker's capacity.
- Do not daisy-chain extension cords. Connect directly to a dedicated outlet.
- Keep the cable fully uncoiled during use to prevent heat buildup.
- For fixed installation, consult a qualified electrician.
- AC Level 1 and Level 2 only. Does not support DC fast charging.
