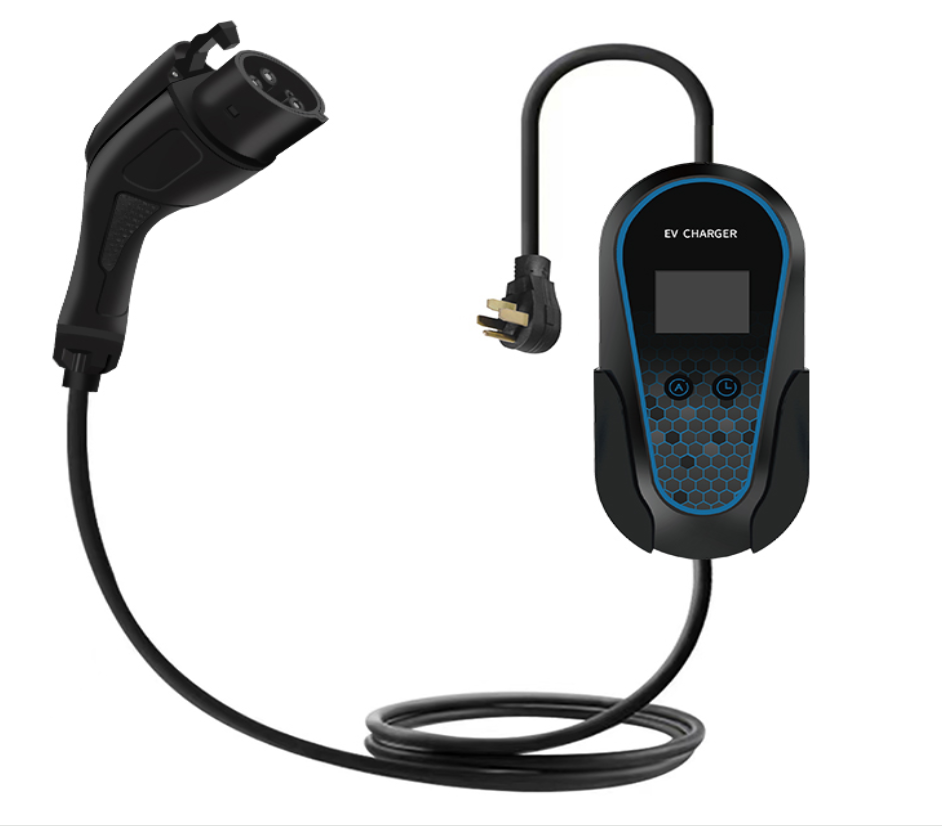

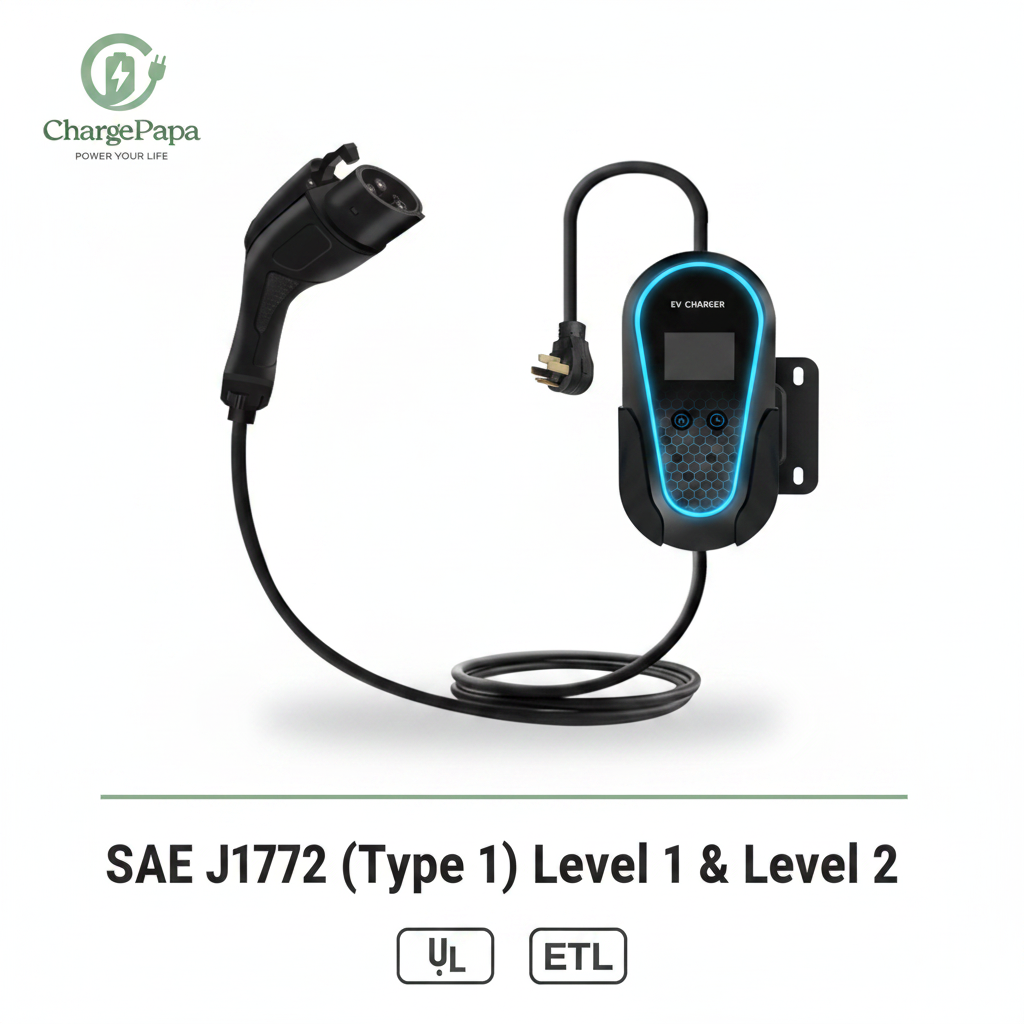

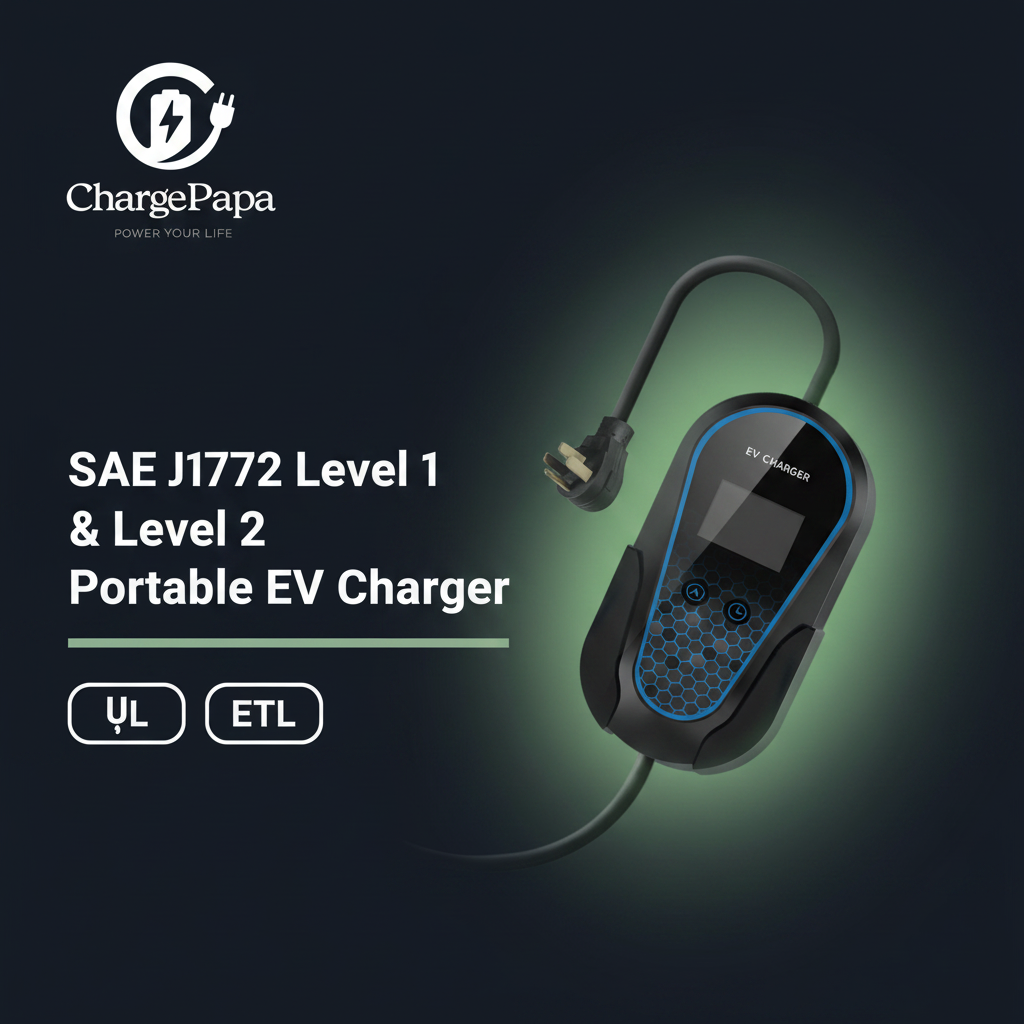

ChargePapa MRS-AZ9 | Type 1 Level 1 & 2 Portable EV Charger (16A/40A Adjustable)
Couldn't load pickup availability
Charge Anywhere in North America.
Level 1 & Level 2. One Charger.
The ChargePapa MRS-AZ9 adapts to your home's power grid. From a standard 120V wall outlet to a 240V NEMA 14-50 dryer socket, it delivers up to 9.6kW (40A) of Level 2 charging with a built-in delay timer, adjustable current output, and a clear LCD display — all in a portable, wall-mountable form factor.

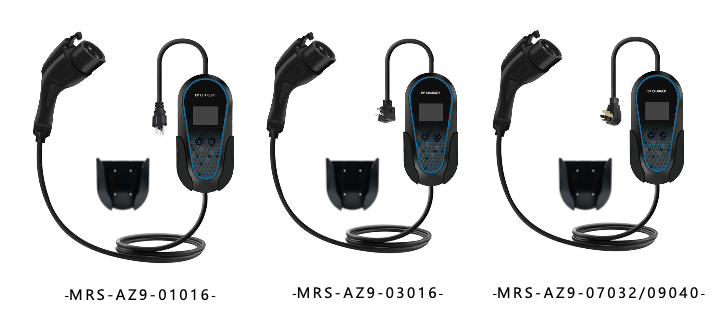

MRS-AZ9 Series — Match Your Outlet
| Spec | MRS-AZ9-01016 | MRS-AZ9-03016 | MRS-AZ9-09040 |
|---|---|---|---|
| Plug Type | NEMA 5-15P | NEMA 6-20P | NEMA 14-50P |
| Level | Level 1 | Level 2 | Level 2 |
| Max Power | 1.92kW | 3.84kW | 9.6kW |
| Max Current | 16A | 16A | 40A |
| Adjustable Range | 8–16A | 8–16A | 8–40A |
| Range Added/hr | ~4–5 mi | ~12–15 mi | ~30–38 mi |
| Best For | Travel / Emergency | Apartment / Light Use | Home / Daily Driver |
Charging Your Tesla with the MRS-AZ9?
The MRS-AZ9 uses a SAE J1772 (Type 1) connector. Tesla vehicles use the NACS (SAE J3400) port. To charge your Tesla with this portable charger, you'll need one of the following ChargePapa adapters:

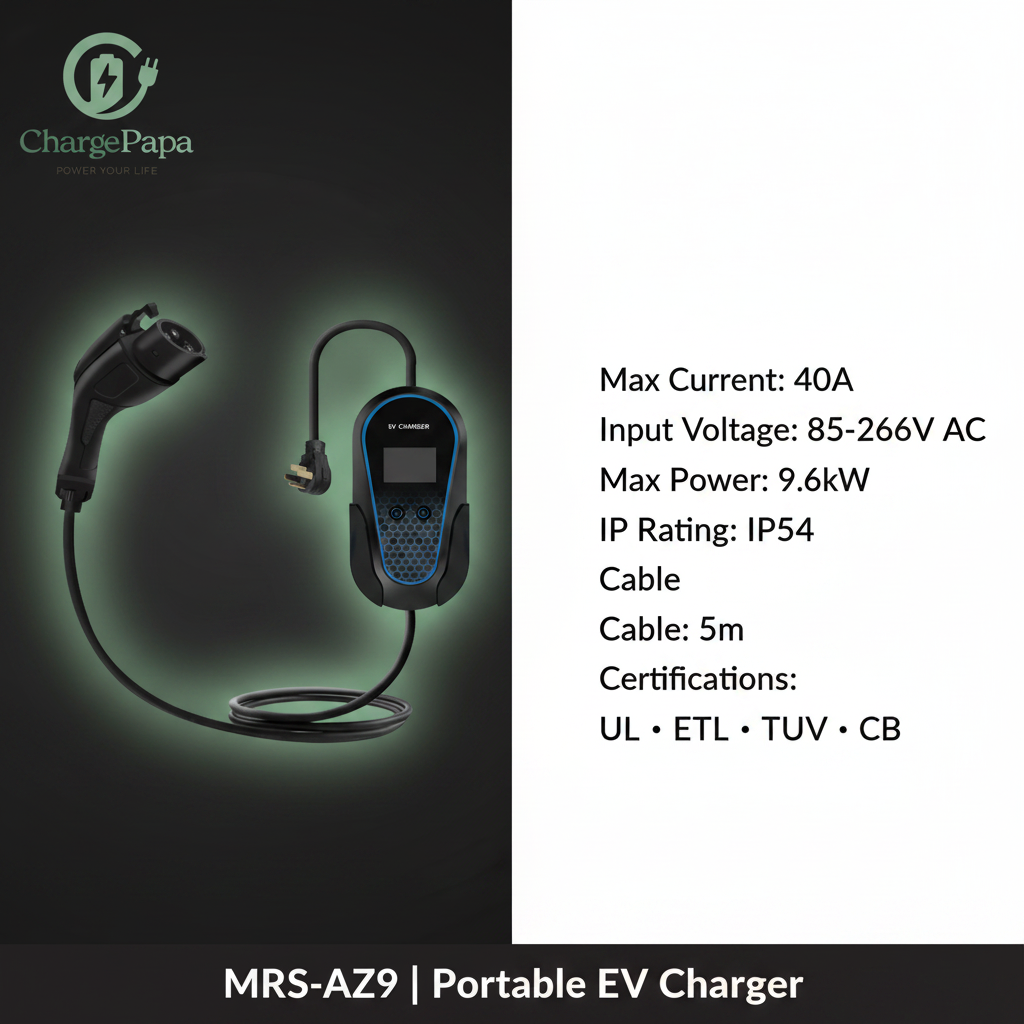

Engineering Data Sheet
| Parameter | AZ9-01016 | AZ9-03016 | AZ9-09040 |
|---|---|---|---|
| Connector Standard | SAE J1772 (Type 1) | ||
| Plug Type | NEMA 5-15P | NEMA 6-20P | NEMA 14-50P |
| Max Power Output | 1.92kW | 3.84kW | 9.6kW |
| Output Current (max) | 16A | 16A | 40A |
| Adjustable Current | 8–16A | 8–16A | 8–40A |
| Input Voltage | 85V–265V AC | ||
| Output Voltage | 85V–265V AC | ||
| Frequency | 50Hz / 60Hz | ||
| Delay Timer | 1–10 hours (button-controlled) | ||
| Cable Length | 5m (16.4ft) | ||
| Enclosure Material | PC9330 (gun) + ABS (control box) | ||
| Mounting | Portable + Wall-mount bracket included | ||
| IP Rating | IP54 | ||
| Working Temperature | -30°C to +55°C | ||
| Flame Retardancy | UL94 V0 | ||

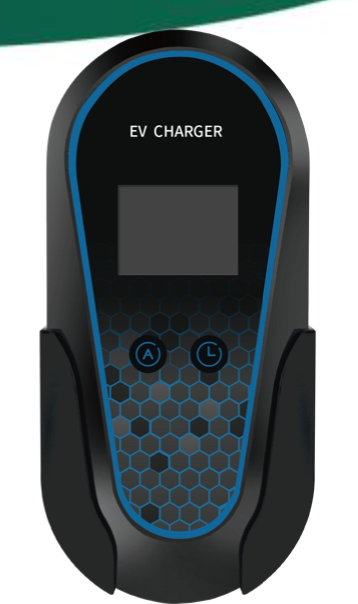

| HMI | LCD display (voltage / current / kW / kWh) + Current button + Timer button | ||
| Safety Protection | Under/over-voltage · Over-current · Over-temp · Leakage · Ground fault · Lightning surge · Flame retardant | ||
| Certifications | TUV · CB · FCC · UL · LVD (IEC 61851-1) · EMC (IEC 61851-21-2) | ||
Vehicle Compatibility
The MRS-AZ9 is compatible with all SAE J1772 (Type 1) port vehicles across North America. Its wall-mountable design makes it equally at home as a permanent garage charger or a portable travel companion. Tesla owners can charge using the optional adapter listed above.
| Make | Model | Year | Port Type |
|---|---|---|---|
| Chevrolet | Bolt EV / Bolt EUV | 2017+ | J1772 (SAE J1772) |
| Nissan | LEAF | 2011+ | J1772 (SAE J1772) |
| Ford | Mustang Mach-E | 2021+ | J1772 (SAE J1772) |
| Ford | F-150 Lightning | 2022+ | J1772 (SAE J1772) |
| Rivian | R1T / R1S | 2022+ | J1772 (SAE J1772) |
| Hyundai | IONIQ 5 / IONIQ 6 | 2022+ | J1772 (SAE J1772) |
| Kia | EV6 / EV9 | 2022+ | J1772 (SAE J1772) |
| Volkswagen | ID.4 | 2021+ | J1772 (SAE J1772) |
| BMW | i4 / iX / i7 | 2022+ | J1772 (SAE J1772) |
| Tesla | Model S / 3 / X / Y / Cybertruck | 2012+ | NACS (SAE J3400) — Adapter required |
Compatibility data based on manufacturer specifications. Tesla vehicles require the ChargePapa Tesla to J1772 adapter. Applies to North American market vehicles.
Who Is the MRS-AZ9 Built For?
For the renter in New York, Chicago, or Los Angeles who can't install a permanent wall charger — the MRS-AZ9-03016 (NEMA 6-20, 3.84kW) plugs into the 240V outlet already in many apartment laundry rooms or garages. No landlord approval needed, no electrician required. Plug in, set your current, charge overnight.

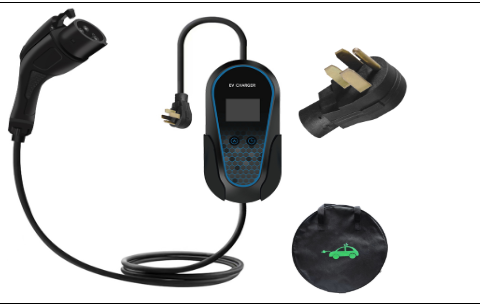

For the homeowner in Phoenix, Austin, or Denver who wants a permanent-feeling charger without the permanent price tag — the MRS-AZ9-09040 (NEMA 14-50, 9.6kW) mounts cleanly on the garage wall with the included bracket, delivers up to 38 miles of range per hour, and can be unplugged and taken on a road trip when needed.

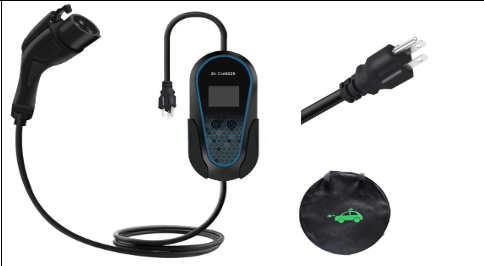

For the new EV owner in Seattle, Atlanta, or Miami who just drove their Nissan LEAF or Chevy Bolt home and needs to charge tonight — the MRS-AZ9-01016 (NEMA 5-15, 1.92kW) plugs into any standard 120V outlet in the garage. Slower, but charging tonight, not next week after the electrician visit.
Standards & Certifications
Frequently Asked Questions

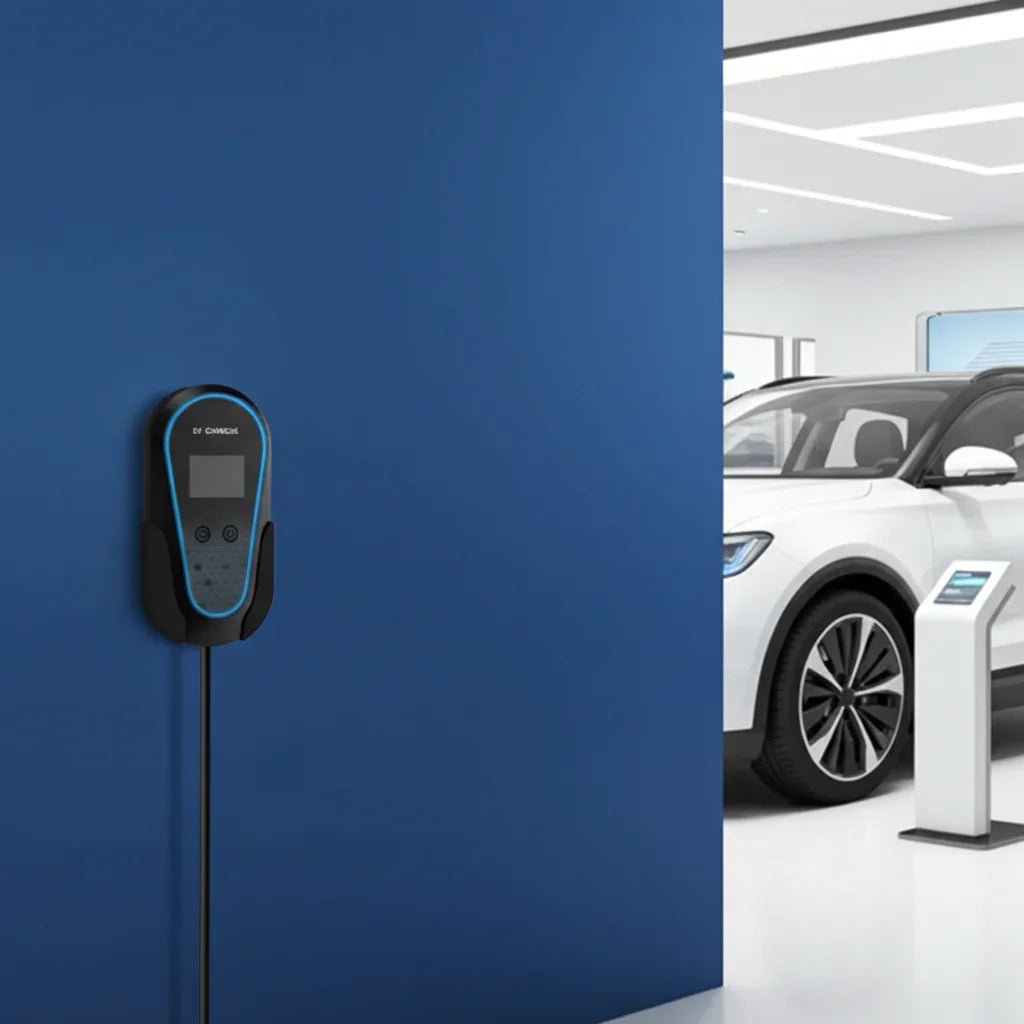

Q: Can I mount the ChargePapa MRS-AZ9 on my garage wall permanently?
A: Yes. The MRS-AZ9 includes a wall-mount bracket for permanent garage installation. It remains portable — you can unmount and take it with you when needed. The NEMA 14-50P plug (09040 model) simply unplugs from the outlet, making it easy to remove without any tools.
Q: What is the delay timer and how does it work on the MRS-AZ9?
A: The ChargePapa MRS-AZ9 has a built-in delay timer (1–10 hours) controlled by a button on the unit. Plug in your EV when you get home, set the delay, and the charger will automatically start charging at the scheduled time — ideal for taking advantage of lower overnight electricity rates in states like California, Texas, or New York where time-of-use pricing applies.
Q: Is the MRS-AZ9 compatible with Tesla vehicles?
A: The MRS-AZ9 uses a SAE J1772 (Type 1) connector. Tesla vehicles use the NACS (SAE J3400) port. To charge a Tesla Model S, 3, X, or Y with this charger, you will need a ChargePapa Tesla to J1772 adapter — see the adapter module above. Note: the Cybertruck is not compatible with J1772 adapters.
Q: Is the ChargePapa MRS-AZ9 FCC and UL certified?
A: Yes. The MRS-AZ9 has passed FCC (Federal Communications Commission) electromagnetic compliance testing and UL (Underwriters Laboratories) product safety certification for the North American market. The housing also meets UL94 V0 flame retardancy standards.
Q: What is the difference between the MRS-AZ9 and the MRS-AP2?
A: Both are portable SAE J1772 Level 1 & 2 chargers for the North American market. The MRS-AZ9 adds a wall-mount bracket and a delay timer (1–10 hours), making it better suited for homeowners who want a semi-permanent garage solution with scheduled charging. The MRS-AP2 is more compact and travel-focused. Both are FCC & UL certified.
Q: Can I use the MRS-AZ9 at an RV park or campground?
A: Yes. The MRS-AZ9-09040 uses a NEMA 14-50P plug, the same standard 50A outlet found at most RV parks and campgrounds across the US and Canada. This makes it a versatile travel charger for road trips through Colorado, Utah, Montana, or British Columbia where public J1772 stations may be sparse.
Q: What certifications does the MRS-AZ9 hold, and what international standards does it comply with?
A: The ChargePapa MRS-AZ9 portable EV charger holds TUV and CB certifications — two of the most rigorous internationally recognised safety credentials for electrical equipment. TUV certification (issued by TUV Rheinland or TUV SUD) verifies independent third-party testing of electrical safety and durability. CB certification (issued under the IECEE CB Scheme) confirms compliance with international IEC safety standards and facilitates market acceptance across 50+ countries.
The unit also fully complies with:
- LVD — IEC 61851-1: Low Voltage Directive for EV conductive charging systems, covering electrical safety, pilot signal communication, and protective earth requirements.
- EMC — IEC 61851-21-2: Electromagnetic Compatibility requirements for EV off-board chargers, ensuring the unit does not cause or suffer from electromagnetic interference in residential and commercial environments.
Critical Usage Note
- Always verify your outlet type and circuit breaker rating before use. Do not exceed the rated current of your outlet or circuit.
- The MRS-AZ9-09040 (40A) requires a dedicated 50A circuit. Do not use on a shared or undersized circuit.
- Do not use with extension cords or power strips. Plug directly into a wall outlet only.
- Inspect the cable and connector before each use. Discontinue use if damage, fraying, or overheating is detected.
- This unit is designed for AC Level 1 and Level 2 charging only. It does not support DC fast charging.
- Store in a dry location when not in use. Do not expose the control box to standing water.
