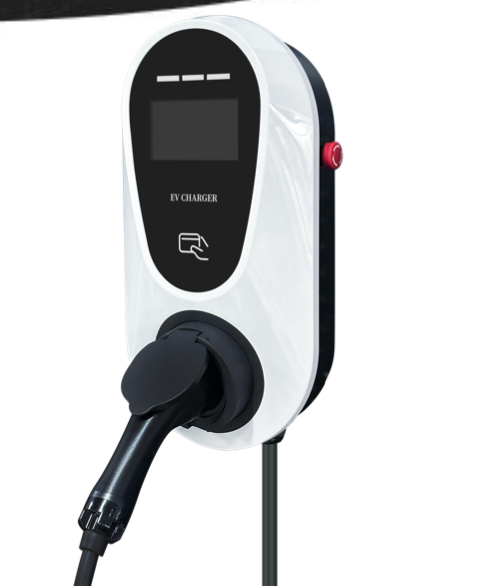

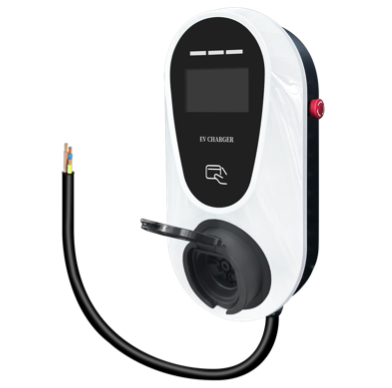

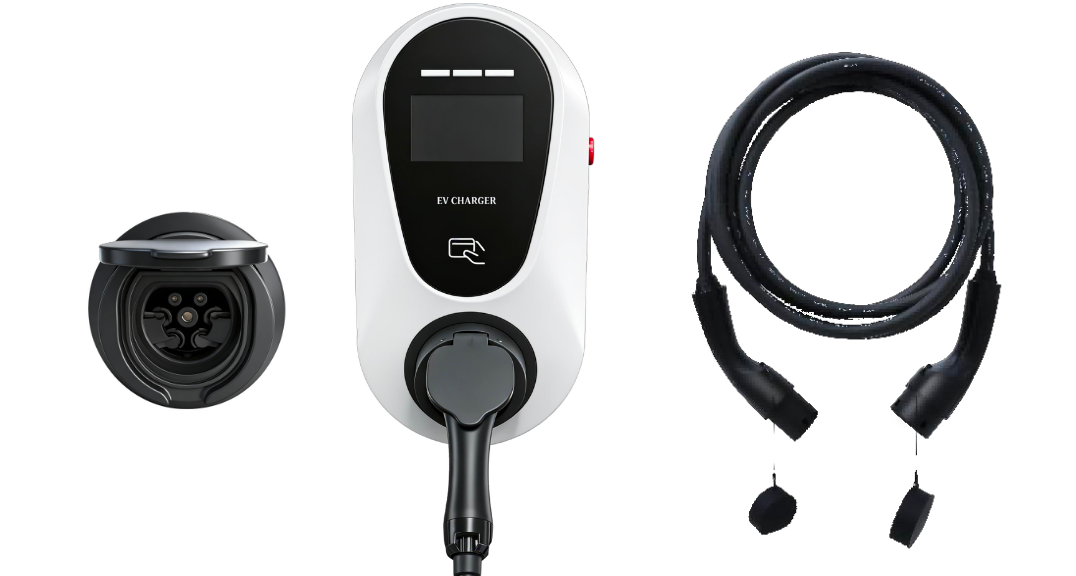

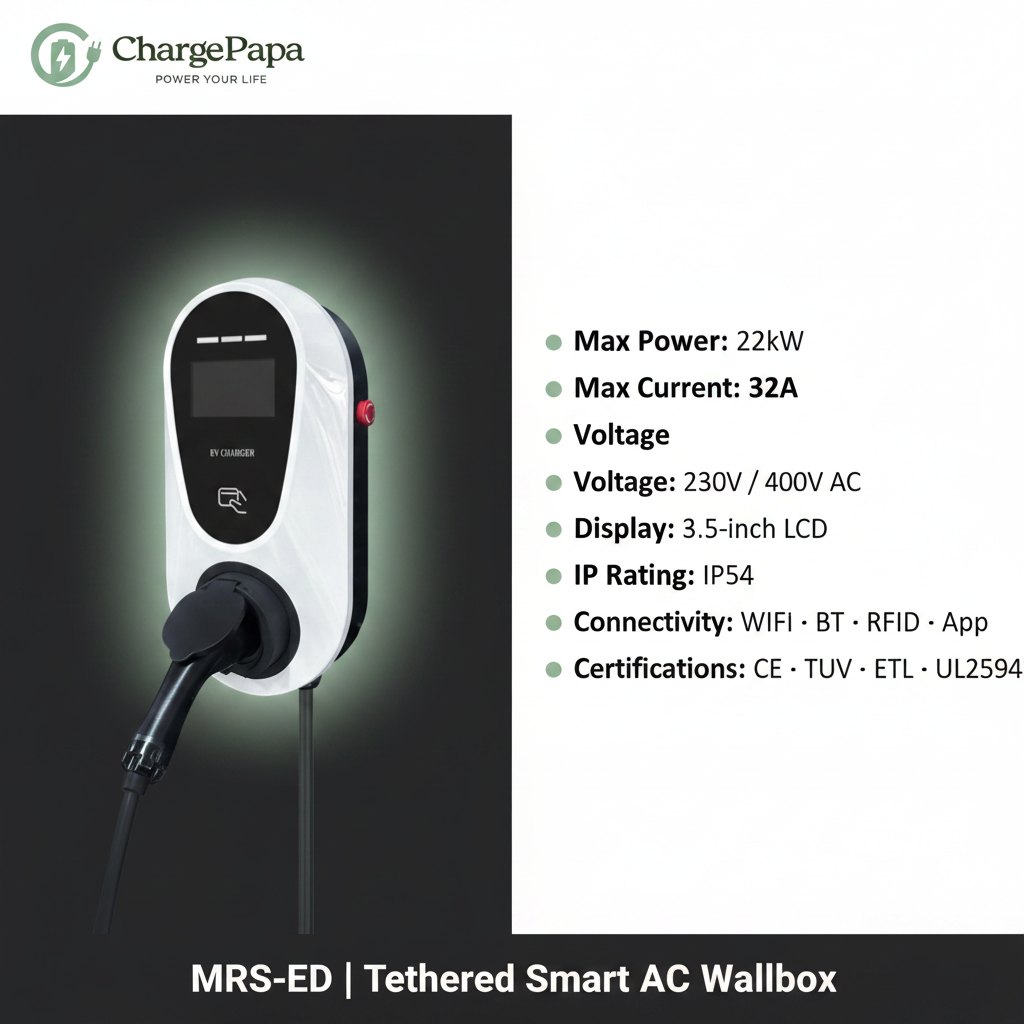

MRS-ED 7KW 11KW 22KW Type 2 (EU) classic Wall-mounted and floor-standing AC charging piles

🔹 Common Features (All Models)

-Installation Type: Wall-mounted (optional pedestal installation)

-Charging Mode: AC charging for residential or commercial use

-Connector Type: Type 2 (European standard)

-Activation Methods: Plug & Play / RFID (Card Swipe) / App control

-User Interface: LED indicator / 4.3-inch display screen

-Smart Functions:

-Bluetooth

-Wi-Fi

-4G + Ethernet (option)

-OCPP 1.6 J Protocol (for commercial use)

-Dynamic Load Balancing (DLB)

-Input Voltage: 380 V ± 10 % (11 kW / 22 kW models) or 85 V–265 V (7 kW model)

-Protection Functions: Over-current, over-voltage, under-voltage, overload, over-temperature, leakage, grounding, lightning, and flame protection

-Material: Flame-retardant PC + ABS housing

-Cooling Method: Natural air cooling

-Ingress Protection: IP54

-Flame Rating: UL94 V0

-Operating Temperature: −30 °C ~ +50 °C

-Operating Humidity: 5 % ~ 95 % non-condensing

-Standby Power: ≈ 3 W

-Applicable Scenarios: Indoor / Outdoor

-Certification: GB/T & Quality Inspection Report

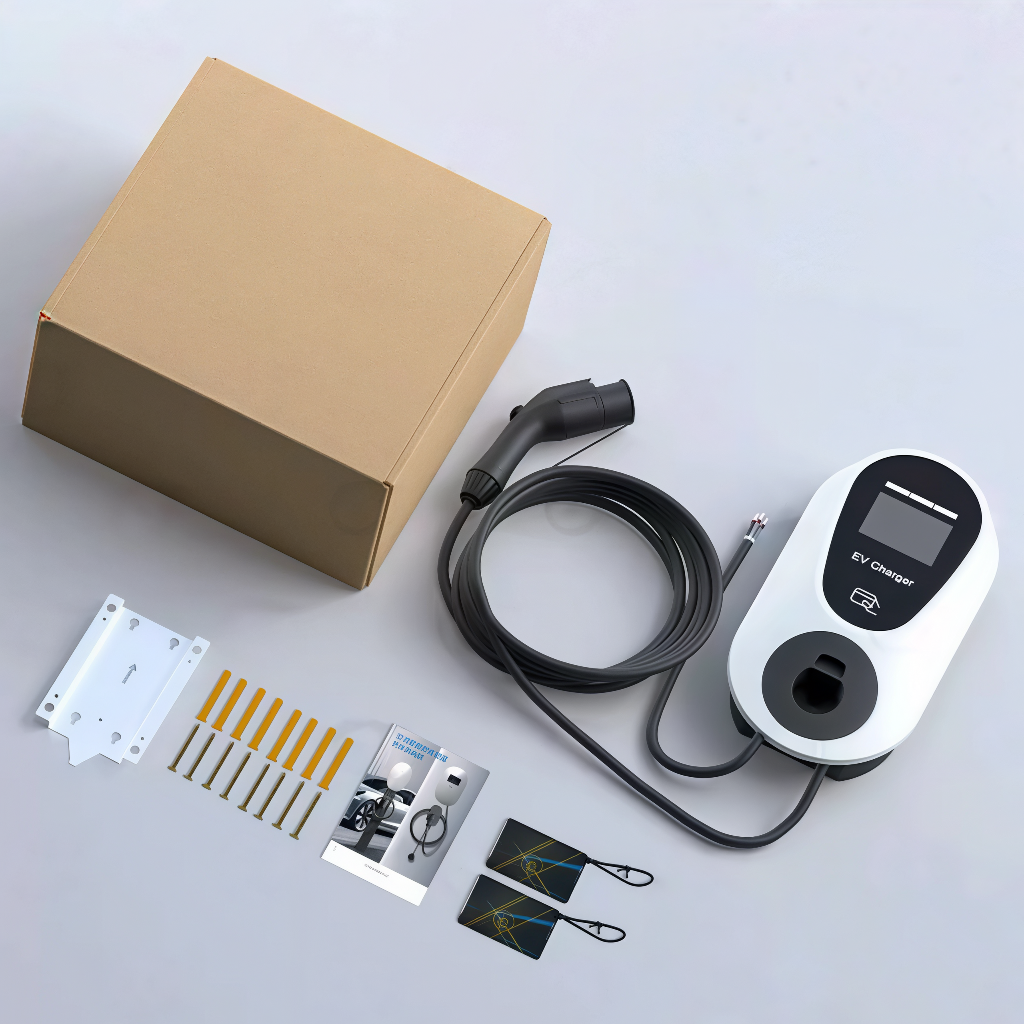

Standard delivery: Each order undergoes manual verification prior to shipment. We appreciate your understanding.

🔸 Model 1: MRS-ED-07032

-Power: 7 kW (single phase)

-Output Current: 32 A

-Voltage: 240 V (85–265 V input range)

-Cable Specification: 3 × 6 mm² + 0.75 mm²

-Cable Length: 5 m (customizable)

-Mounting: Wall mount / optional pedestal

-Color: White

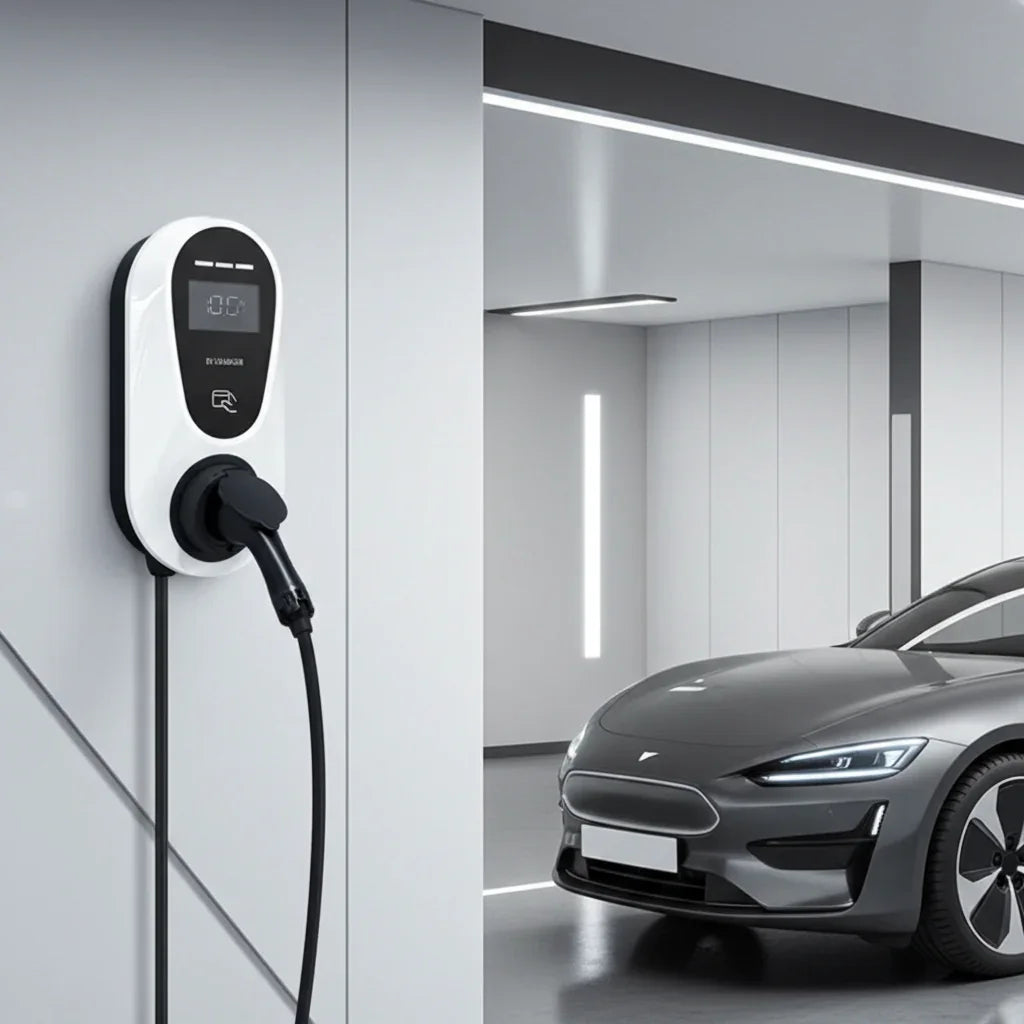

🔸 Model 2: MRS-ED-11016

-Power: 11 kW (three-phase)

-Output Current: 16 A

-Voltage: 380 V ± 10 %

-Cable Specification: 5 × 2.5 mm² + 0.75 mm²

-Cable Length: 5 m (customizable)

-Mounting: Pedestal or wall mount

-Color: White

🔸 Model 3: MRS-ED-22032

-Power: 22 kW (three-phase)

-Output Current: 32 A

-Voltage: 380 V ± 10 %

-Cable Specification: 5 × 6 mm² + 0.75 mm²

-Cable Length: 5 m (customizable)

-Mounting: Pedestal or wall mount

-Color: White
