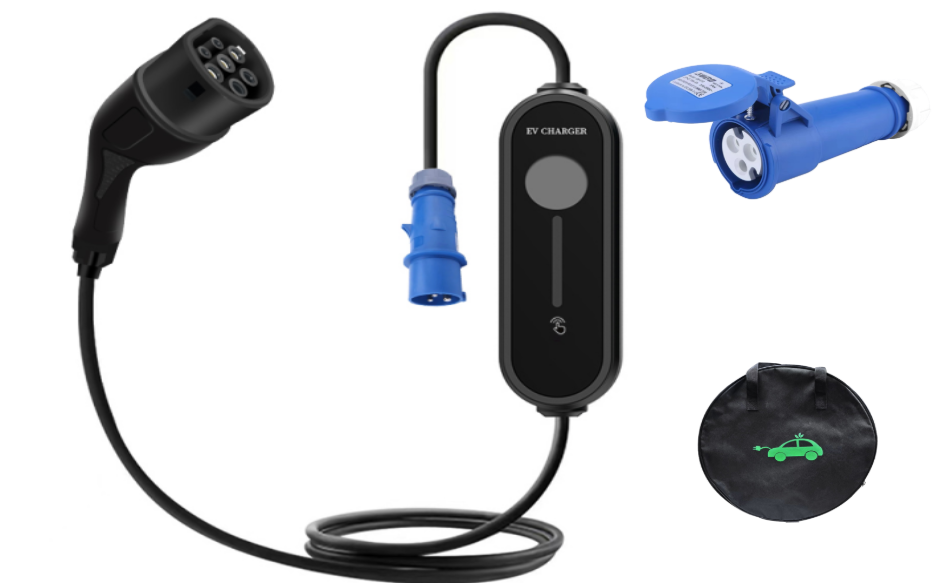

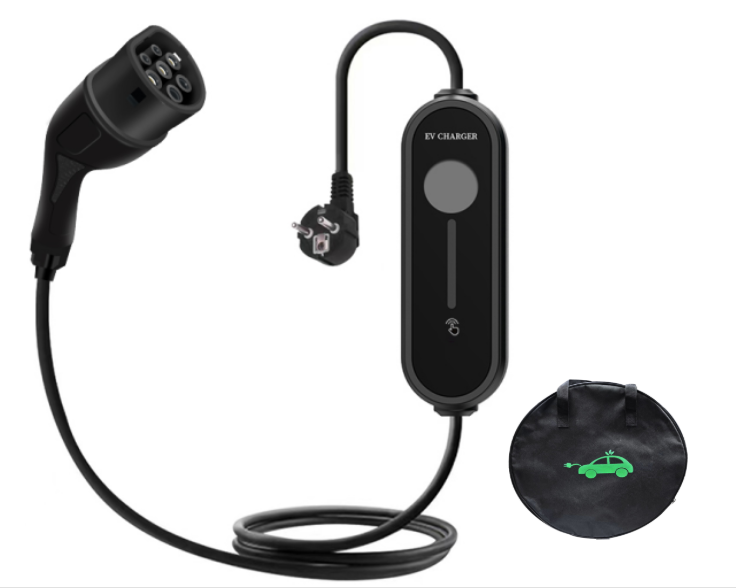

MRS-EP2 3.5KW 7KW Type 2 (EU) portable in-cable control box (ICCB) AC charging gun for EV with Numeric digital-display screen Stepless Current Adjustment

Common Features (All Models)

-Product Type: Portable AC EV Charger, EU Standard (Type 2)

-Usage: Portable; can be carried after charging is completed

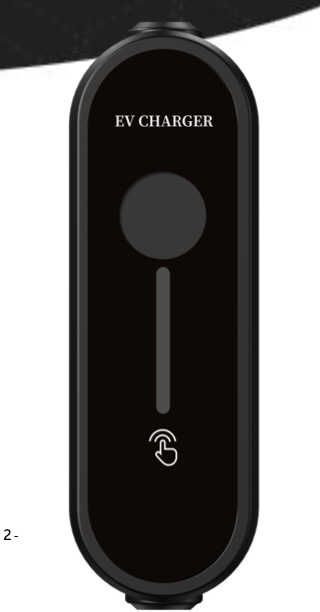

-Display: 1.26-inch LCD display, real-time charging data

-Functions: Adjustable current steps, scheduled charging function

-Materials:

-Gun: PC9330 flame-retardant

-Control box: ABS

-Cable: TPU flame-retardant (premium grade)

-Dimensions: Gun 230×70×60 mm / Control box 220×80×45 mm

-Installation (for fixed use): Wall-mount back clip, screw accessories

-Wiring Direction: Top in / bottom out

-Standby Power: 3W

-Input Voltage: 85V–265V

-Frequency: 50Hz / 60Hz

-Environmental Conditions:

-Humidity: 5%–95% non-condensing

-Temperature: –30°C ~ +50°C

-Altitude: <2000m

-Ingress Protection: IP54 (indoor/outdoor use)

-Cooling: Natural air cooling

-Standards & Certifications: GB/T, UL94 V0 flame-retardant, Quality Inspection Report

-Safety Protections: Under-voltage, over-voltage, overload, over-current, over-temperature, leakage, grounding, lightning, flame-retardant

-Cable Length: 5 meters

-Optional Control: Free upgrade Bluetooth / WiFi / APP

🔹 MRS-EP2-03016

-Plug Type: 16A EU Standard Plug

-Functions: Plug-and-charge, scheduled charging

-Max Current: 16A

-Max Power: 3.5kW

-Input Voltage: 80–265V

-Adjustable Current (via APP): 0–16A

-Weight: ~5kg

🔹 MRS-EP2-07032

-Plug Type: 32A EU Industrial Plug

-Functions: Plug-and-charge, scheduled charging, adjustable current

-Max Current: 32A

-Max Power: 7kW

-Input Voltage: 80–265V

-Adjustable Current (via APP): 0–32A

-Weight: ~5kg

Standard delivery: Each order undergoes manual verification prior to shipment. We appreciate your understanding.
